Cell Lab Forced Air Drying Oven [PID Control | Uniform Heating | 30–625 L]

Cell Lab Forced Air Drying Oven [PID Control | Uniform Heating | 30–625 L] High-efficiency convection oven for precise drying, baking, and heat treatment The Cell Lab™ Forced Air Drying Oven is engineered for uniform, reliable, and energy-efficient drying of...
Vendor: Cell Lab
SKU: DO0030A
Product type: Drying Oven
£489.00
£489.00
Volume: 30L(A model)
Subtotal: £489.00
Description
Description
x

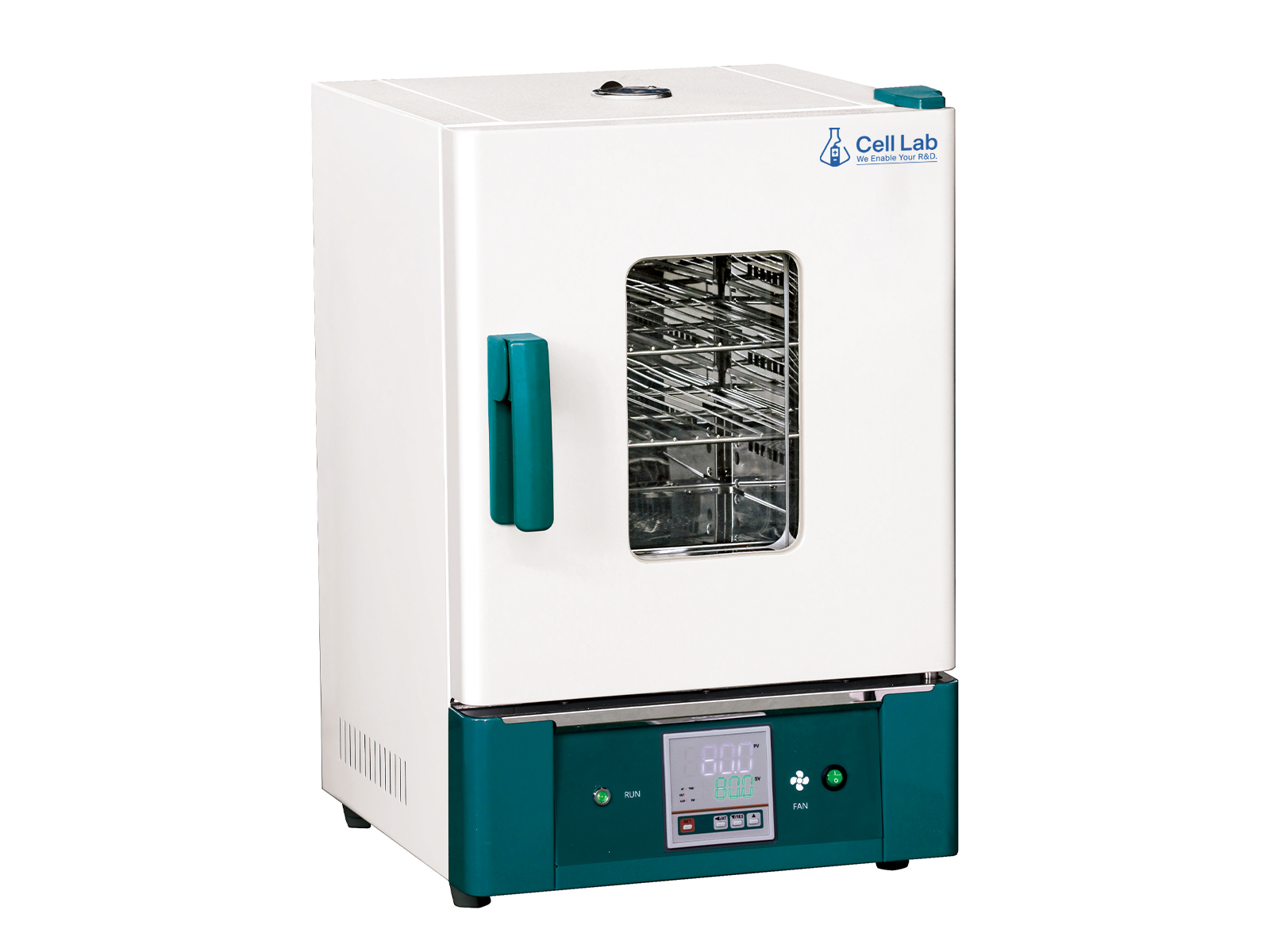

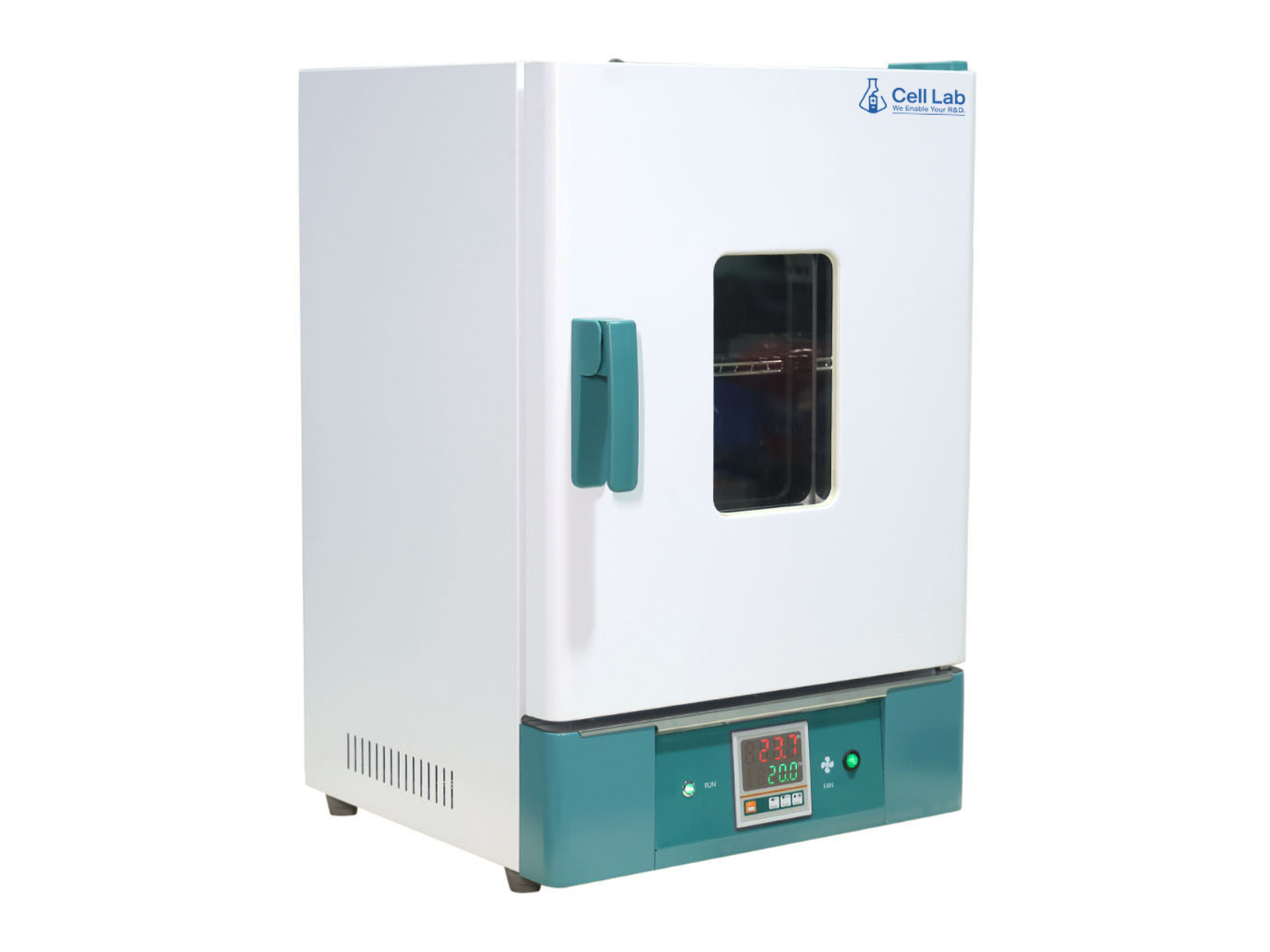

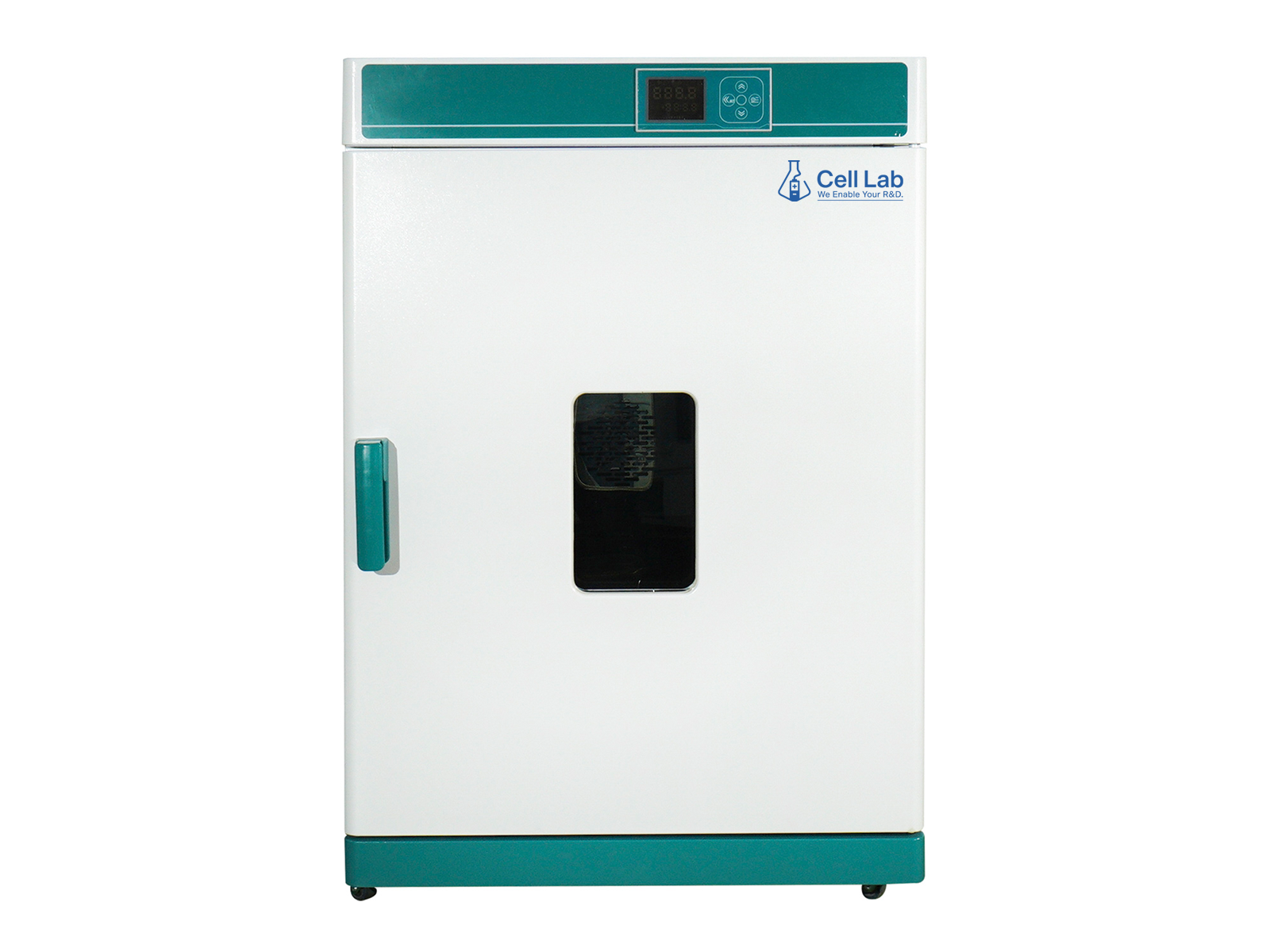

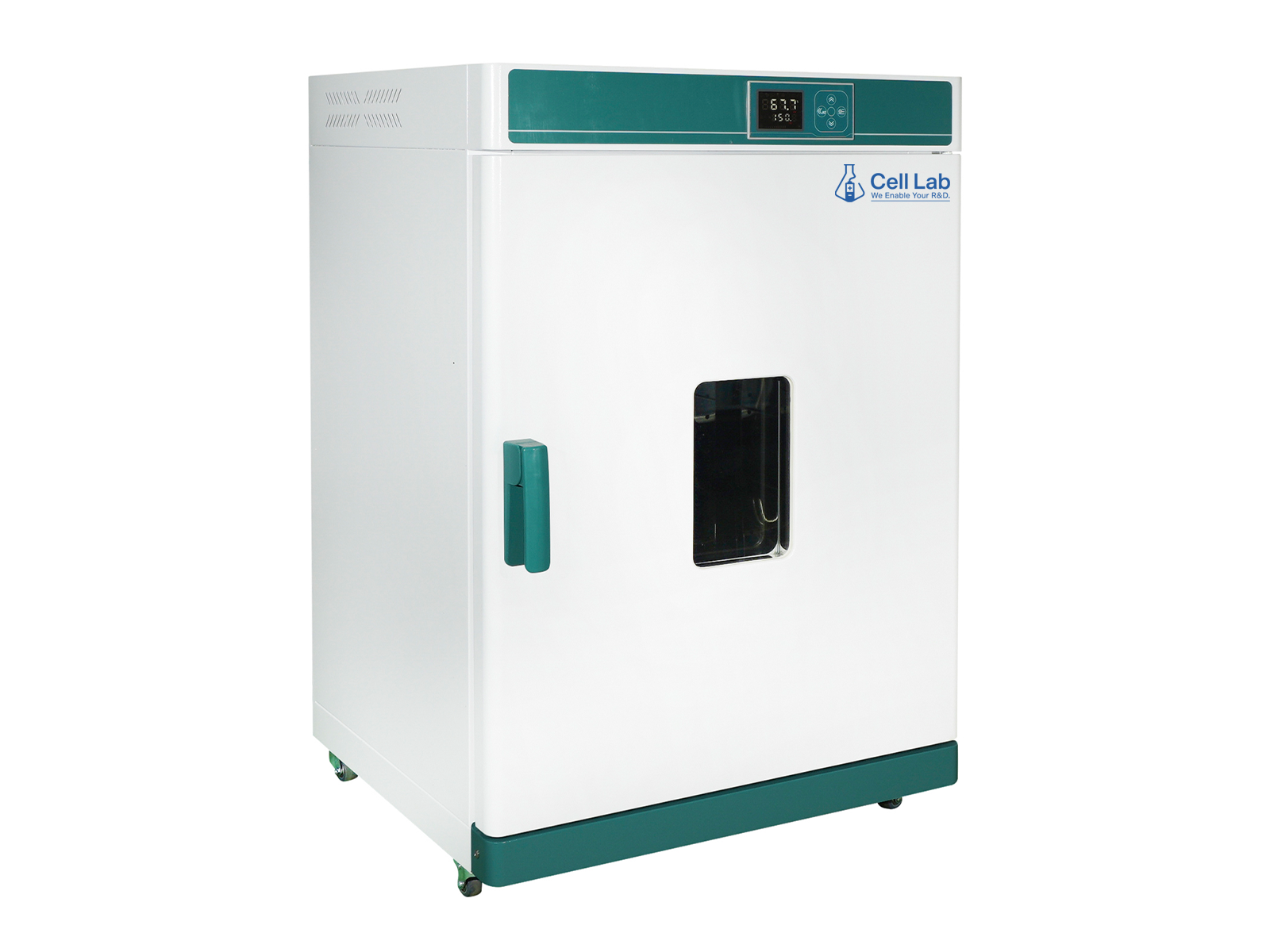

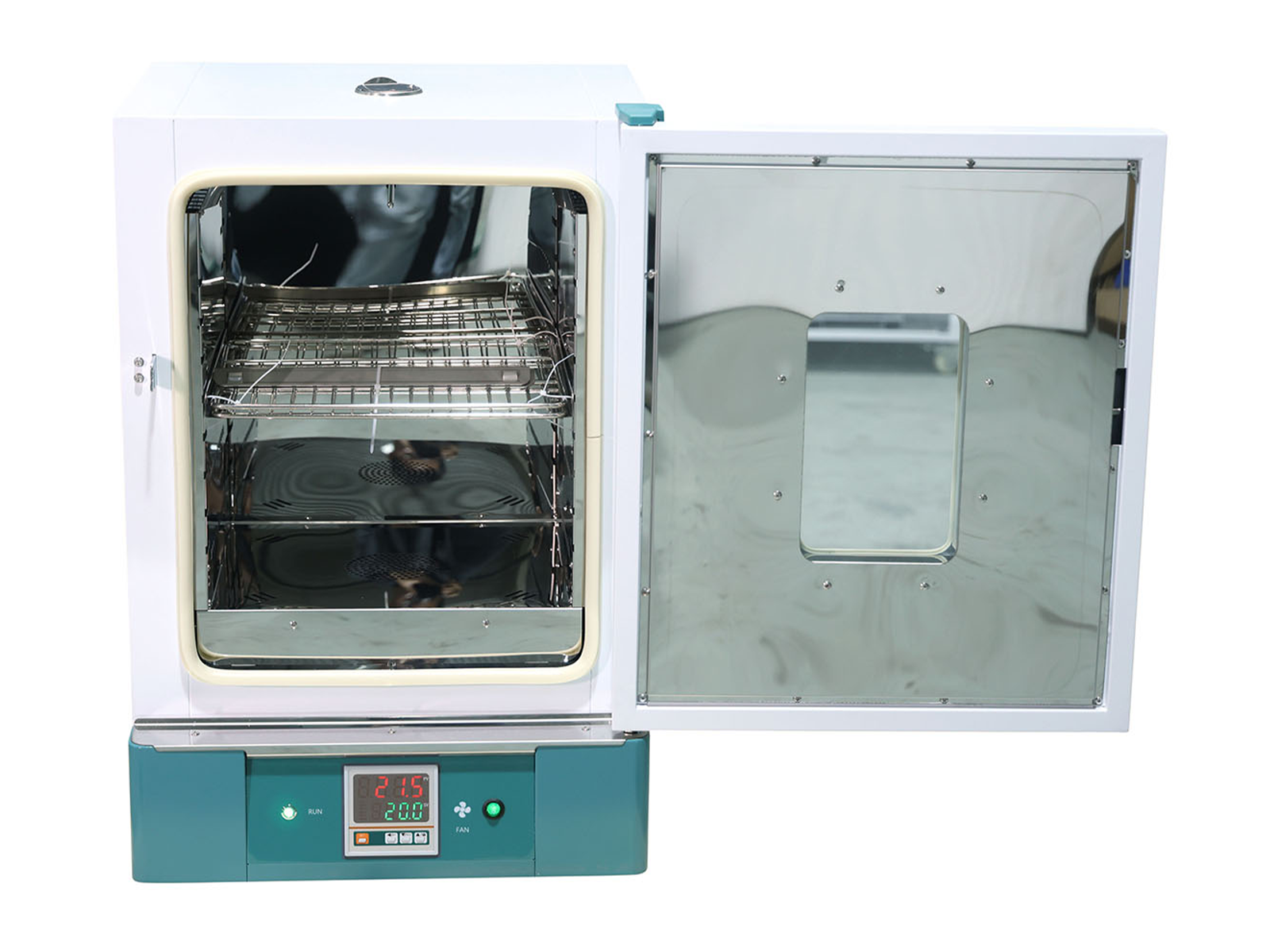

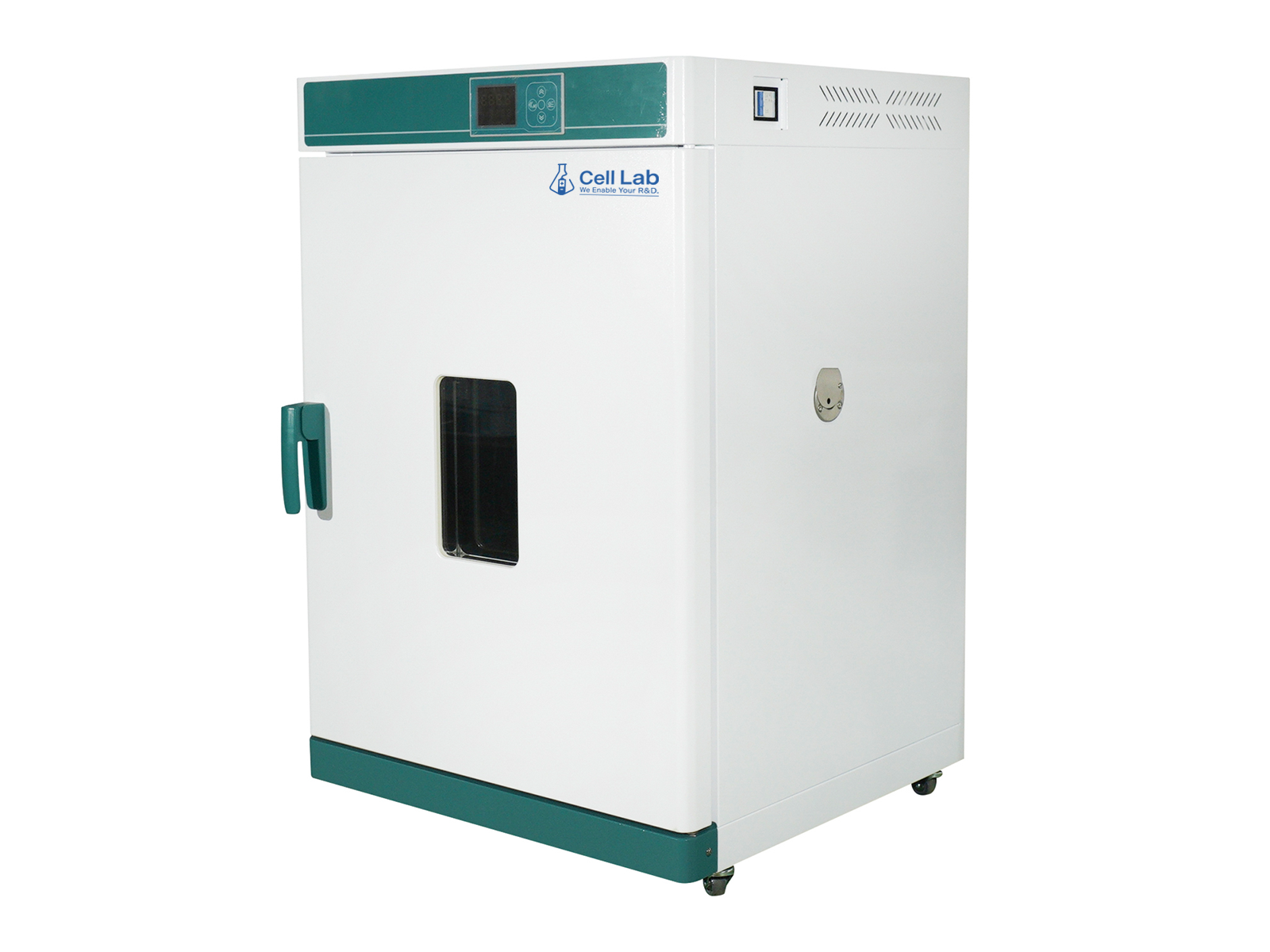

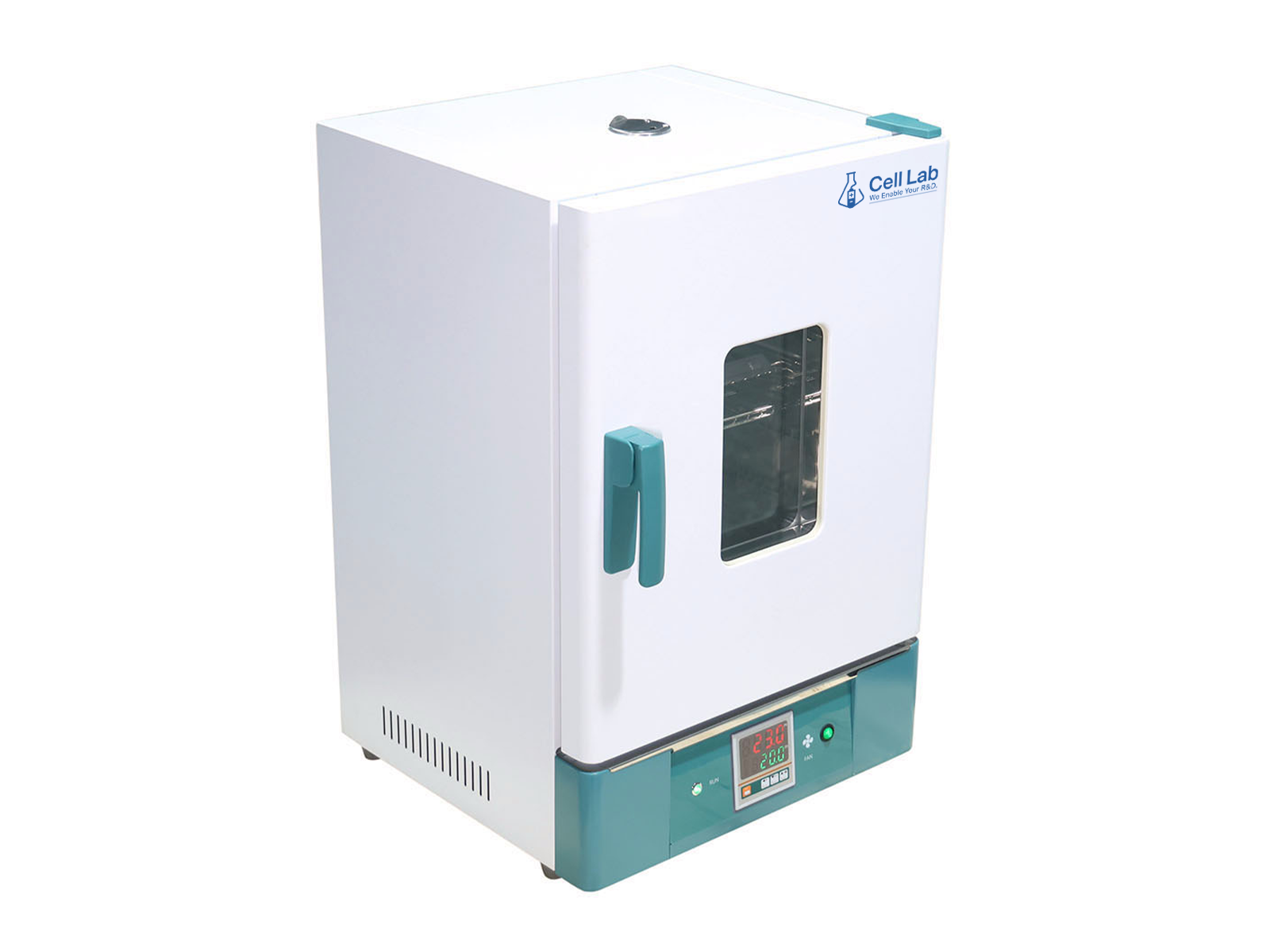

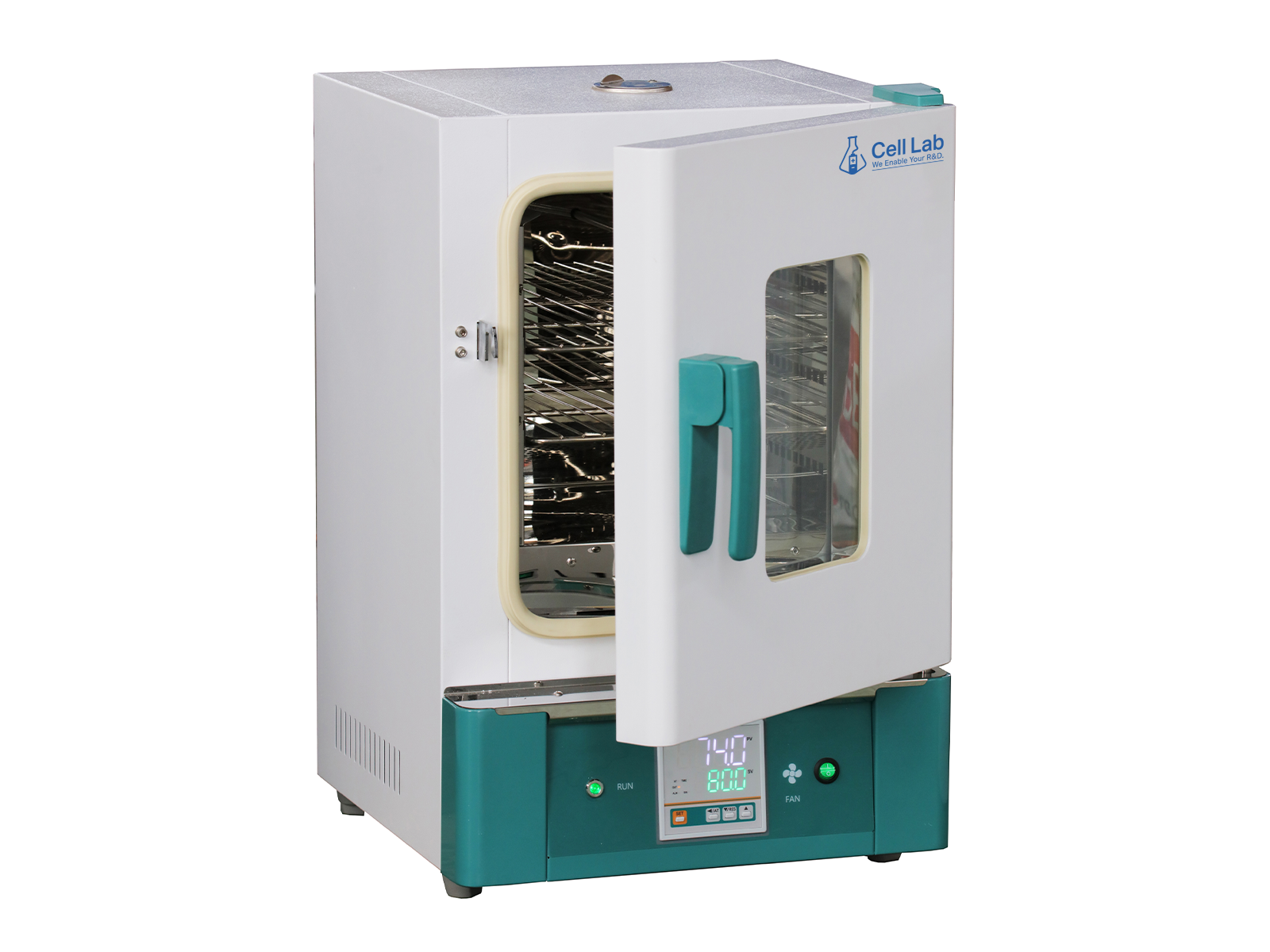

Cell Lab Forced Air Drying Oven [PID Control | Uniform Heating | 30–625 L]

High-efficiency convection oven for precise drying, baking, and heat treatment

The Cell Lab™ Forced Air Drying Oven is engineered for uniform, reliable, and energy-efficient drying of samples, powders, and glassware. Featuring a forced convection airflow system, PID intelligent temperature control, and multi-layer thermal protection, it ensures consistent results across a wide range of laboratory and industrial applications — from analytical drying to wax processing and material heat treatment.

Key Features

• Uniform Air Circulation System
Equipped with dual horizontal air ducts for even temperature distribution, ensuring that every sample receives consistent thermal exposure. Forced convection accelerates drying efficiency and enhances result repeatability.

• Intelligent PID Control with LED or LCD Display
Both A and B series models use two-section PID temperature controllers with touch-button settings and digital displays. The B series features a programmable LCD interface, four-speed fan control, and independent high-precision temperature limiter for enhanced process stability.

• Robust and Durable Construction
Built with a SUS304 stainless-steel inner chamber and cold-rolled steel outer casing, coated with electrostatic powder paint for superior corrosion resistance. CE-certified rock wool insulation ensures minimal heat loss and operational safety.

• Advanced Safety System
Includes over-temperature alarms (sound and light), sensor deviation correction, and automatic power cut-off at abnormal readings. The B series adds a digital limiter, auto fan-speed regulation, and parameter lock for sensitive laboratory use.

• Multiple Capacity Options
Available in volumes from 30 L to 625 L, with custom shelf configurations, adjustable spacing, and reinforced racks (15 kg per layer) to accommodate a wide range of samples and container types.

Technical Parameters:


Model

DO0030A

DO0031A

DO0032A

DO0033A

DO0034A

DO0035A

DO0036A

DO0030B

DO0031B

DO0032B

DO0033B

DO0034B

DO0035B

DO0036B

 Cycle Mode

Forced convection


Function

Temp. Range

RT+10-300℃

Temp. Resolution Ratio

0.1℃

Temp. Motion

±1℃

Temp. Uniformity

±2.5%


Structure

Inner Chamber

Mirror Stainless Steel

Outer Shell

Cold rolling steel electrostatic spraying exterior

Insulation layer

High quality rock wool board(with CE)

Heater

Stainless steel heater

Power rating

0.8kW

1.2kW

1.6kW

2.0kW

2.3kW

3.0kW

5.0kW

Exhaust hole

Φ35mmtop(with function of test hole)

Rear exhaust

Top double exhaust


Controller

Temp. control mode

Two temperature section PID intelligent

Temp. setting mode

Touch button setting

Temp. display mode

A model: Measuring temperature: display on the four digital tubes upper row, setting temperature: display on the lower row

B model: Measuring temperature display on upper LCD screen， setting temperature  display on the lower row

Timer

0-9999min(with timing wait function)

Operation function

Fixed temperature operation, timing function, auto stop.

Additional function

A model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory

 B model: High precision digital independent temperature limiter, 4
grade 3speed adjustable-speed fan (230 and 625model BE without fan speed adjustor),sensor deviation correction, temperature overshoot self-
tuning, internal parameter locking, power-off parameter memory

Sensor

PT100


Specification

Inner Chamber size(W*L*H)(mm)

310*310*310

350*350*350

400*360*450

450*420*450

500*450*550

600*500*750

660*760*1250

Exterior size (W*L*H)(mm)

450*500*690

490*540*730

540*550*830

590*610*830

640*640*930

735*835*1115

902*942*1677

Packing size (W*L*H)(mm)

540*575
*855

580*615
*895

635*625
*995

680*685
*1000

710*730
*1100

857*885*1287

1061*1000*1925

Volume

30L

45L

65L

85L

125L

230L

625L

Shelf number

5

6

8

8

11

17

11

Load per rack

15kg

Shelf space

40mm

100mm

Power rating (50/60HZ)

AC220V

AC220V

AC220V

AC220V

AC220V

AC220V

AC380V

NW/GW (kg）

33/37

37/43

44/49

50/56

60/66

94/120

150/190


Accessory

Shelf

2

Shelf frame

4

optional accessories

A model: Spare Shelf;

 B model: Spare Shelf, RS485 Interface, Printer, Program controller, U-disk storage; 3.5-inch color touch screen temperature controller

Applications & Industries

  • Pharmaceutical drying and sterilisation

  • Powder and polymer curing

  • Material testing and heat conditioning

  • Wax melting and sample pre-heating

  • Food, electronics, and research laboratories

FAQ

Q1: What is the difference between the A and B series models?
A1: The A series features standard PID control with LED display, while the B series adds programmable LCD control, independent safety limiter, and fan-speed adjustability.

Q2: Can the oven maintain uniform temperature throughout the chamber?
A2: Yes — the dual horizontal air ducts and forced convection fan ensure consistent airflow and temperature uniformity of ±2.5 %.

Q3: Does the unit include over-temperature protection?
A3: Absolutely. It has dual safety systems — a digital alarm and an independent limiter (B series only).

Q4: Is data export available?
A4: Yes. B series models support USB or RS485 data export for temperature logging and traceability.

Q5: What capacity options are available?
A5: Seven sizes ranging from 30 L to 625 L, suitable for small-scale research to industrial use.
