Cell Lab electronic control heating mantle provides precise electronic temperature regulation up to 450 °C for flasks from 50 ml to 20 L, featuring nichrome heating and continuous operation for laboratory distillation and digestion.
Cell Lab electronic control heating mantle provides precise electronic temperature regulation up to 450 °C for flasks from 50 ml to 20 L, featuring nichrome heating and continuous operation for laboratory distillation and digestion.

Cell Lab Electronic Control Heating Mantle [Up to 450 °C | Electronic Regulation | 50 ml–20 L Capacity]

Cell Lab Electronic Control Heating Mantle [Up to 450 °C | Electronic Regulation | 50 ml–20 L Capacity] Reliable electronic temperature control up to 450 °C The Cell Lab™ Electronic Control Heating Mantle provides reliable, uniform heating for round-bottom flasks...
Vendor: Cell Lab
SKU: HM01
Product type: Heating Mantle
£99.00
£99.00
Volume: 50 ml
Subtotal: £99.00
Description
Description
x

Cell Lab Electronic Control Heating Mantle [Up to 450 °C | Electronic Regulation | 50 ml–20 L Capacity]

Reliable electronic temperature control up to 450 °C

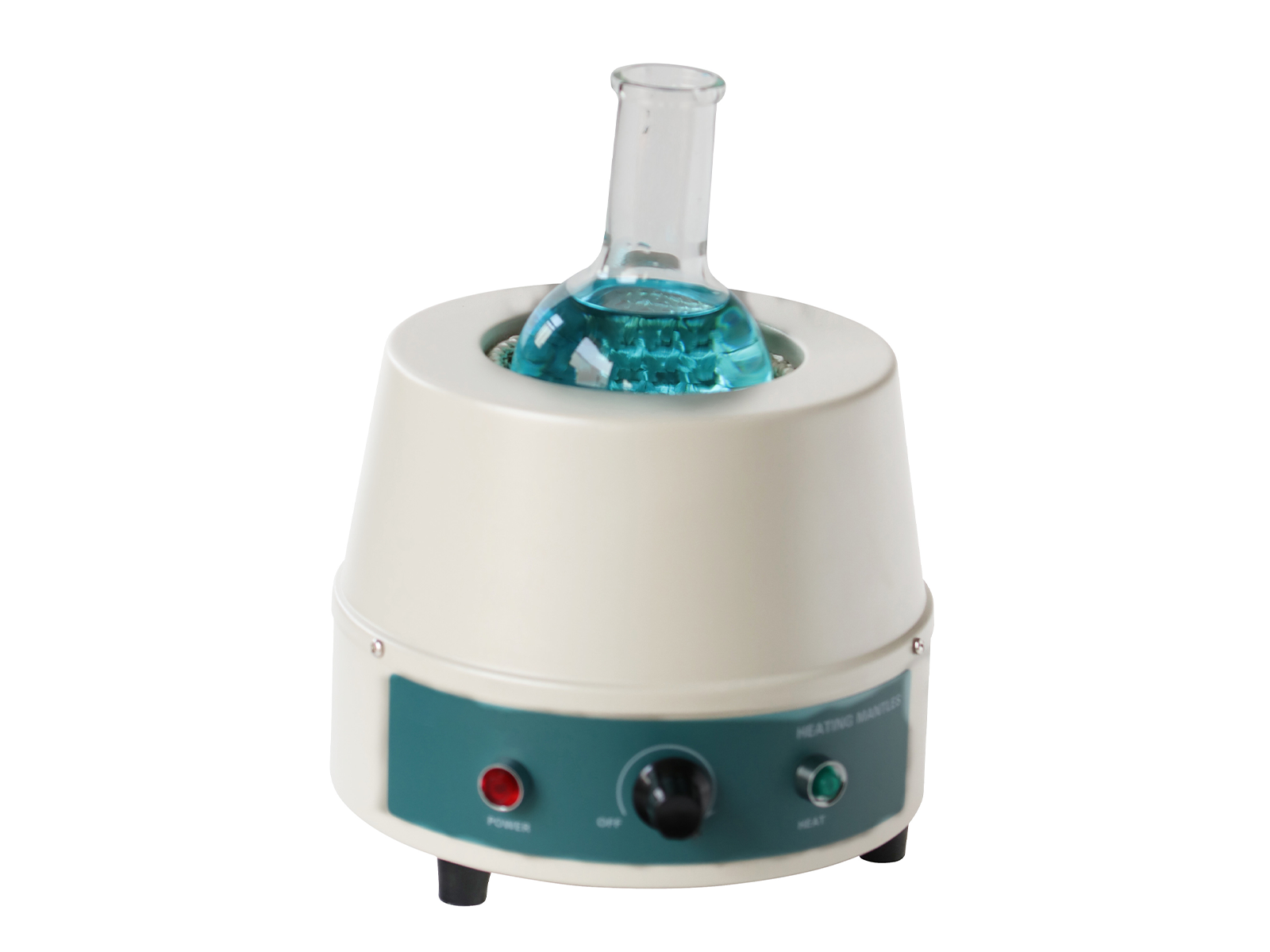

The Cell Lab™ Electronic Control Heating Mantle provides reliable, uniform heating for round-bottom flasks from 50 ml to 20 L. Designed with electronic temperature regulation and nichrome wire surface conduction, it ensures smooth, accurate heating for distillation, digestion, evaporation, and general laboratory applications where stable thermal environments are essential.

Key Features

• Electronic Temperature Control
A high-stability electronic regulation system delivers precise and even heating across the flask surface. The nichrome wire heating element maintains up to 450 °C, ideal for demanding chemical processes requiring consistent heat distribution.

• Wide Volume Compatibility
Models range from 50 ml to 20 000 ml, with optional custom volumes (4 L, 6 L, 50 L, 100 L). Suitable for both research-scale and pilot-scale heating operations in analytical, pharmaceutical, and industrial laboratories.

• Durable and Insulated Structure
Constructed with cold-rolled steel housing and high-quality aluminium silicate cotton insulation, providing excellent thermal retention, operator protection, and long-term durability under continuous use.

• Continuous Operation Mode
Designed for 24-hour working conditions, the mantle maintains a stable heating curve with smooth thermal control, ensuring reproducibility in routine procedures.

• Global Voltage Support & Compact Design
Compatible with 100–120 V / 200–240 V (50–60 Hz), suitable for international laboratories. Its compact footprint enables easy placement and stacking on benchtops for efficient workspace use.


Specifications:

  • Electronic temperature regulation mode with characteristics of stepless speed adjustable.
  • We can produce different size heating mantle as customer' s requirement. For example: 4000ml,6000ml,50 liters, 100 liters and etc.

Main Technical Parameters：



Model

HM01

HM02

HM03

HM04

HM05

HM06

HM07

HM08

HM09

HM10

Function

Capacity(ml)

50

100

250

500

1000

2000

3000

5000

10000

20000

Heating Mode

Surface heat-conduction

Surface Max. Temp.( ℃)

450℃

Structure

Heating element

Nichrome wire

Shell

Cold roller steel plate,surface spraying

Insulation Layer

High quality aluminum silicate cotton

Heat power (kW)

0.08

0.1

0.15

0.25

0.35

0.45

0.6

0.8

1.2

2.5

Controller

Working Mode

Continuous

Specification

Exterior Size (mm)

￠220×165

￠280×220

￠330×230

￠340×245

￠350×250

￠425×320

￠470×340

Packing Size (mm)

230×230×195

290×290×300

340×340×350

360×360×300

390×390×310

430×430×350

510×510×380

Voltage(V)

100～120V or 200～240V

200～240V

N.W.(Kg)

2.5

5.5

6.5

7.5

8

9.8

16

G.W. (Kg)

2.8

6

7

8

9.2

12

20

Applications & Industries

  • Organic and inorganic synthesis

  • Solvent distillation and reflux heating

  • Sample digestion and evaporation

  • General laboratory and educational heating tasks

  • Pilot-scale process development and chemical production

FAQ

Q1: What is the maximum temperature achievable?
A1: The mantle can reach up to 450 °C, providing uniform surface heating for most laboratory applications.

Q2: Can it run continuously for long periods?
A2: Yes — it is built for continuous operation with stable temperature control and over-temperature protection.

Q3: Are custom capacities available?
A3: Yes, Cell Lab offers custom sizes such as 4 L, 6 L, 50 L, and 100 L upon request.

Q4: What materials are used for insulation and safety?
A4: The mantle uses high-density aluminium silicate cotton and a cold-rolled steel shell for optimal thermal and mechanical protection.

Q5: Is it suitable for international laboratory use?
A5: Yes — the unit supports 100–240 V / 50–60 Hz, meeting global laboratory standards.
