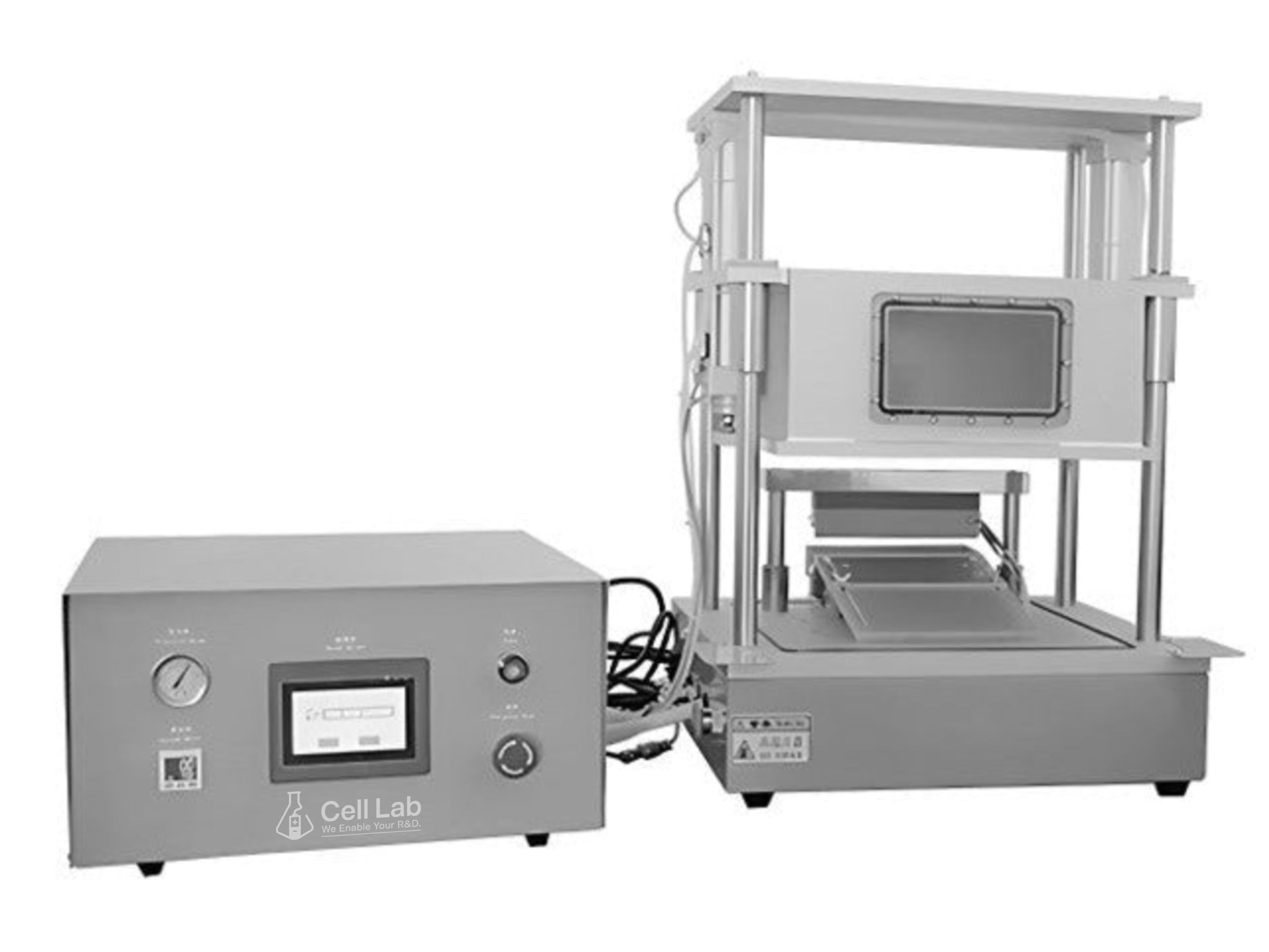

Cell Lab electrolyte degassing and vacuum sealing machine combines vacuum air removal and precision heat sealing for pouch cell research, ensuring complete electrolyte penetration and uniform sealing in lithium battery R&D.
Cell Lab electrolyte degassing and vacuum sealing machine combines vacuum air removal and precision heat sealing for pouch cell research, ensuring complete electrolyte penetration and uniform sealing in lithium battery R&D.

Cell Lab Electrolyte Degassing & Vacuum Sealing Machine [All-in-One Pouch Cell Solution | Vacuum Sealing System | Laboratory Battery Equipment]

Cell Lab Electrolyte Degassing & Vacuum Sealing Machine [All-in-One Pouch Cell Solution | Vacuum Sealing System | Laboratory Battery Equipment] Integrated vacuum degassing and precision sealing system for lithium-ion and solid-state pouch cell research The Cell Lab Electrolyte Degassing &...
Vendor: Cell Lab
SKU: CL0119
Product type: Battery Equipment
£9,690.00
£9,690.00
Subtotal: £9,690.00
Description
Description
x

Cell Lab Electrolyte Degassing & Vacuum Sealing Machine [All-in-One Pouch Cell Solution | Vacuum Sealing System | Laboratory Battery Equipment]

Integrated vacuum degassing and precision sealing system for lithium-ion and solid-state pouch cell research

The Cell Lab Electrolyte Degassing & Vacuum Sealing Machine is an advanced all-in-one system designed for electrolyte vacuum processing and pouch cell sealing in laboratory environments. By removing trapped gas after electrolyte injection, it ensures complete electrode wetting and uniform electrolyte distribution, significantly enhancing battery performance, stability, and cycle life.
Its independent vacuum chamber and precision heat-sealing system make it an ideal choice for research institutions and pilot-scale pouch cell fabrication facilities seeking reliable and reproducible cell assembly.

Key Features

  • Vacuum-Assisted Electrolyte Degassing: Efficiently eliminates trapped air and gas from the electrolyte to ensure full electrode saturation.

  • Precision Heat Sealing: Adjustable temperature, pressure, and duration settings deliver consistent, reliable pouch cell sealing.

  • Flexible Chamber Space: Accommodates multiple pouch cell sizes; custom chamber dimensions available for specific formats.

  • Independent Control Unit: Provides stable temperature and vacuum control with glovebox compatibility for moisture-sensitive operations.

  • Customisable Modular Design: Degassing and sealing modules can be separated or integrated depending on workflow requirements.

Technical Specifications:

Parameter Specification
Voltage 220V / 50Hz
Max. Power 500W
Compressed Air 0.5 – 0.8 MPa
Vacuum Holding Time 0 – 9999 s
Sealing Temperature RT – 250 °C (±2 °C control accuracy)
Sealing Pressure 0 – 7 kN/cm²
Hot Sealing Time 0 – 99 s
Sealing Blade Type Hard type (no rubber, Al case only)
Sealing Width 5 mm (customisable)
Sealing Length ≤ 200 mm
Suitable Battery Size 180 × 120 × 10 mm (customisable)
Chamber Body 12 mm aluminium with observation window
Inner Chamber Size 350 × 285 × 165 mm
Work Box Dimensions 570 × 420 × 750 mm
Control Unit Dimensions 460 × 480 × 250 mm
Net Weight Approx. 76 kg

Optional Modules: Separate vacuum chamber and heat-sealing units, inert-gas interface, or automatic temperature calibration system available upon request.

Applications & Industries

  • Lithium-ion and solid-state pouch cell manufacturing

  • Electrolyte degassing and post-filling processing

  • Pilot-scale and laboratory battery R&D

  • Quality-control testing of electrolyte infiltration

  • High-vacuum precision sealing for pouch cell packaging

FAQ

Q1: What is the main advantage of vacuum electrolyte degassing?
It ensures the electrolyte fully infiltrates the electrode structure, improving ionic contact and reducing internal resistance.

Q2: Can this system operate inside or beside a glovebox?
Yes. It features an independent control unit compatible with glovebox environments.

Q3: Is the sealing temperature adjustable?
Yes. The temperature is programmable from room temperature up to 250 °C with ± 2 °C precision.

Q4: What pouch sizes are supported?
Standard chamber fits up to 180 × 120 mm cells; larger sizes can be customised.

Q5: Can degassing and sealing be separated?
Yes. The modules can function independently for flexible workflow integration.
