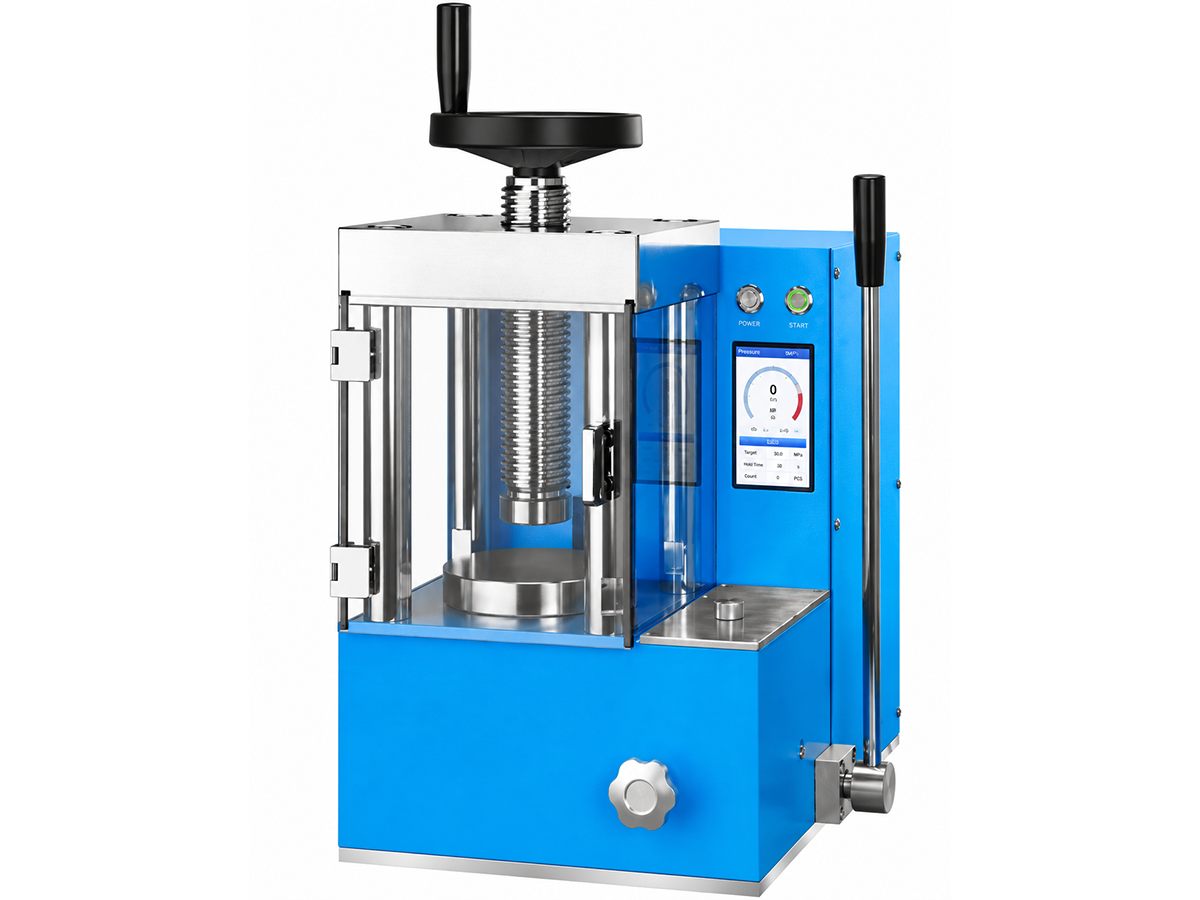

Cell Lab Electric Hydraulic Pellet Press [20T–60T]

Cell Lab Electric Hydraulic Pellet Press [20T–60T, Digital Pressure Control] Dual-mode electric and manual hydraulic pellet press with programmable pressure control for laboratory powder compaction and materials research General Description The Cell Lab Electric Hydraulic Pellet Press is designed for...
Vendor: Cell Lab
SKU: CL1035
Product type: Pellet Press Machine
£2,784.09
£2,784.09
Pressure Range: 20T
Subtotal: £2,784.09
Description
Description
x

Cell Lab Electric Hydraulic Pellet Press [20T–60T, Digital Pressure Control]

Dual-mode electric and manual hydraulic pellet press with programmable pressure control for laboratory powder compaction and materials research

General Description

The Cell Lab Electric Hydraulic Pellet Press is designed for compacting powder materials into pellets and cylindrical specimens for laboratory research, analytical testing and materials characterisation. Combining electric pressurisation with manual gradual pressurisation, this series offers flexible operation and precise control over the applied pressing force.

Available in four models with maximum pressing forces of 20, 30, 40 and 60 tons, the system features a digital pressure controller for real-time force monitoring. Its programmable gradual pressurisation function allows users to adjust the pressurisation rate, while the automatic pressure-maintaining function helps maintain the target pressure during extended pressing operations.

The four-column structure, integrated hydraulic assembly and acrylic safety shield support stable operation and help reduce the risk of oil leakage and operator exposure to moving components. With multiple piston diameters, workbench sizes and working spaces, this series accommodates a wide range of laboratory powder pressing and specimen preparation requirements.

The Cell Lab Electric Hydraulic Pellet Press is suitable for battery materials research, powder metallurgy, ceramics, chemical analysis and advanced materials development.

Key Features

1. Dual Pressurisation Modes — Supports automatic programmed electric pressurisation and manual gradual pressurisation, providing flexibility for different sample preparation procedures.

2. Digital Pressure Monitoring — The digital pressure controller displays the applied force in tons with a stated display accuracy of 0.1 ton, allowing convenient monitoring during pressing.

3. Programmable Gradual Pressurisation — Adjustable pressurisation speed enables controlled force application and helps users adapt the pressing process to different sample requirements.

4. Automatic Pressure Maintenance and Overload Protection — Automatically initiates pressurisation when the pressure falls below the control threshold, supporting long-duration pressure maintenance. The integrated pressure overload protection function adds an extra layer of operational safety.

5. Four-Column Structure with Safety Shield — The integrated hydraulic construction helps reduce oil leakage risk, while the acrylic safety door provides a physical barrier during operation.

Available Models

SKU Model Pressure Range Piston Diameter Workbench Diameter
CL1035 PCD-20S 0–20T Ø95 mm Ø120 mm
CL1036 PCD-30S 0–30T Ø110 mm Ø120 mm
CL1037 PCD-40S 0–40T Ø130 mm Ø140 mm
CL1038 PCD-60S 0–60T Ø150 mm Ø160 mm

Technical Specifications

General Parameters

Parameter Specification
Product Type Electric Hydraulic Pellet Press
Pressurisation Modes Automatic programmed pressurisation and manual gradual pressurisation
Pressure Display Digital display
Pressure Display Accuracy 0.1 ton
Pressure Stability ≤1 MPa / 10 min
Gradual Pressurisation Programmable pressurisation speed
Pressure Maintenance Automatic pressure maintenance
Pressure Protection Pressure overload protection
Safety Shield Acrylic glass safety door
Hydraulic Structure Integrated construction with reduced oil leakage risk
Number of Columns Four
Rated Power 500 W
Voltage 220 V / 110 V

Model-Specific Specifications

Parameter CL1035 CL1036 CL1037 CL1038
Model PCD-20S PCD-30S PCD-40S PCD-60S
Pressure Range 0–20T 0–30T 0–40T 0–60T
Piston Diameter Ø95 mm Ø110 mm Ø130 mm Ø150 mm
Maximum Piston Stroke 30 mm 40 mm 50 mm 50 mm
Workbench Diameter Ø120 mm Ø120 mm Ø140 mm Ø160 mm
Working Space (M × N) 112 × 160 mm 112 × 160 mm 136 × 180 mm 180 × 210 mm
Machine Dimensions (L × W × H) 305 × 390 × 440 mm 400 × 390 × 460 mm 352 × 420 × 510 mm 400 × 470 × 560 mm
Net Weight 85 kg 89 kg 115 kg 165 kg
Packing Dimensions 605 × 490 × 700 mm 605 × 490 × 700 mm 605 × 510 × 700 mm 605 × 570 × 700 mm
Gross Weight 103 kg 105 kg 132 kg 182 kg

Applications & Industries

  • Battery Materials Research — Compaction of electrode powders and preparation of specimens for material characterisation.

  • Powder Metallurgy — Forming compacted powder samples for research and testing.

  • Ceramics & Advanced Materials — Pressing ceramic powders and functional materials into test specimens.

  • Materials Science — Preparing samples for mechanical, physical and analytical evaluation.

  • Chemical Laboratories — Compacting powdered compounds for experimental analysis.

  • Minerals & Geological Research — Preparing powder specimens for laboratory testing and characterisation.

FAQ

Q1: What is the difference between the electric and manual pressurisation modes?

The machine supports automatic programmed electric pressurisation and manual gradual pressurisation. The electric mode provides automated pressure control, while the manual mode allows the operator to adjust pressure application more directly.

Q2: What pressing capacities are available?

Four models are available: PCD-20S with a maximum pressure of 20 tons, PCD-30S with 30 tons, PCD-40S with 40 tons and PCD-60S with 60 tons.

Q3: Does the machine support automatic pressure maintenance?

Yes. When the pressure falls below the pressure control threshold, the device automatically initiates pressurisation to support long-duration pressure maintenance.

Q4: What is the accuracy of the digital pressure display?

The specified pressure display accuracy is 0.1 ton.

Q5: What safety features are included?

The machine includes an acrylic glass safety door and a pressure overload protection function.

Q6: How should I choose the appropriate model?

Select the model according to the required pressing force, sample dimensions, workbench diameter and available working space. Confirm that the selected pressing die is compatible with the machine before ordering.
