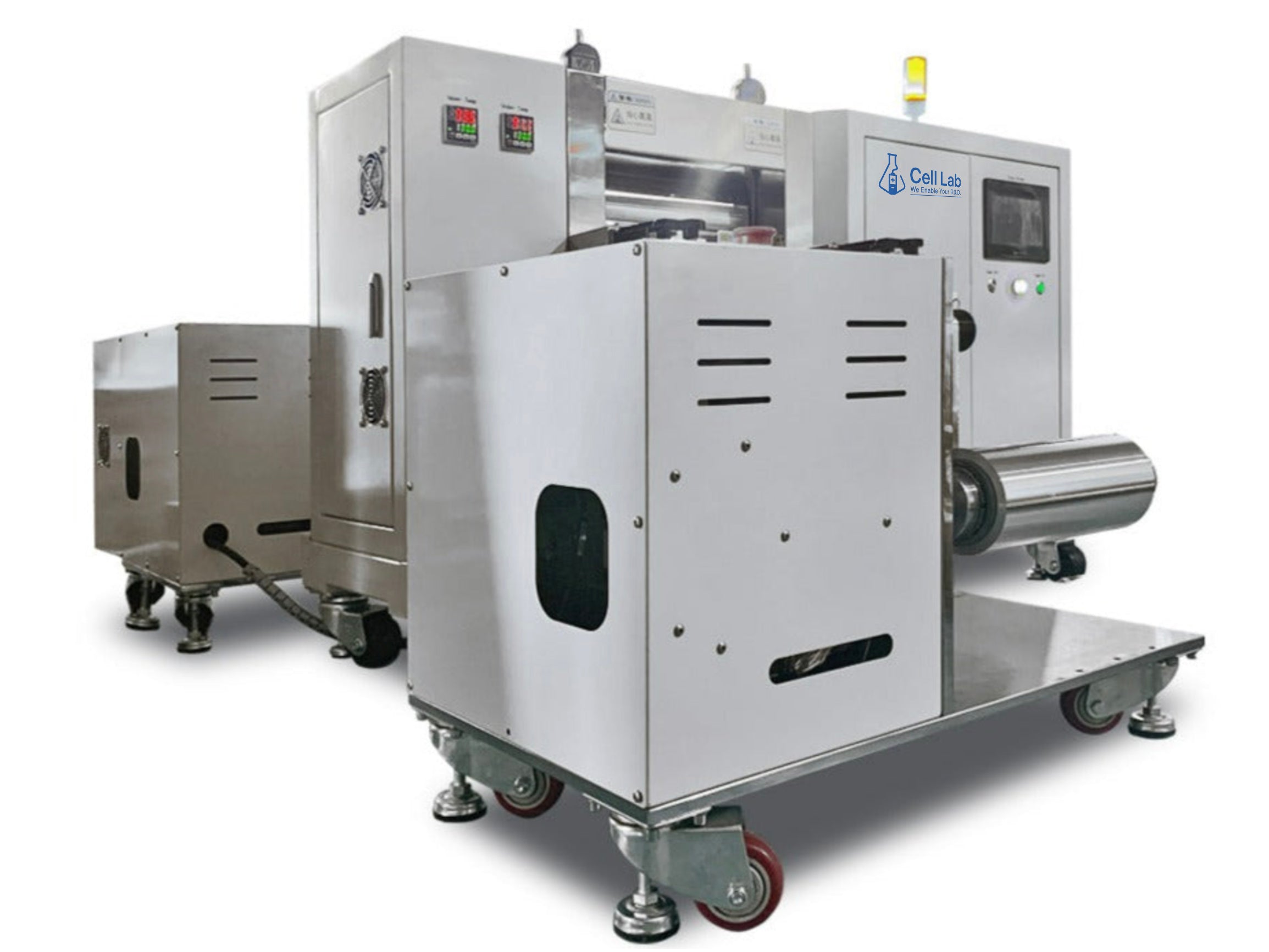

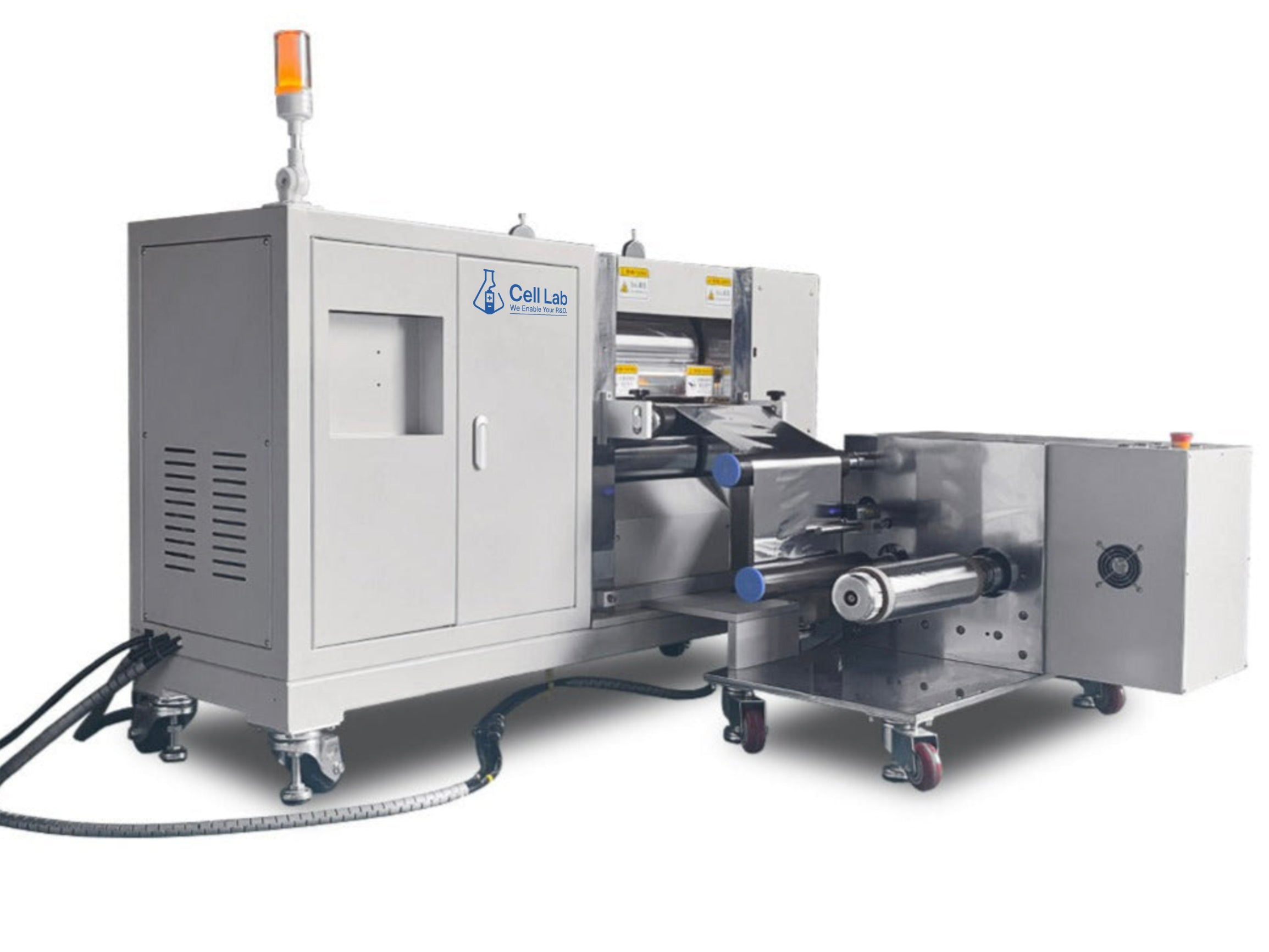

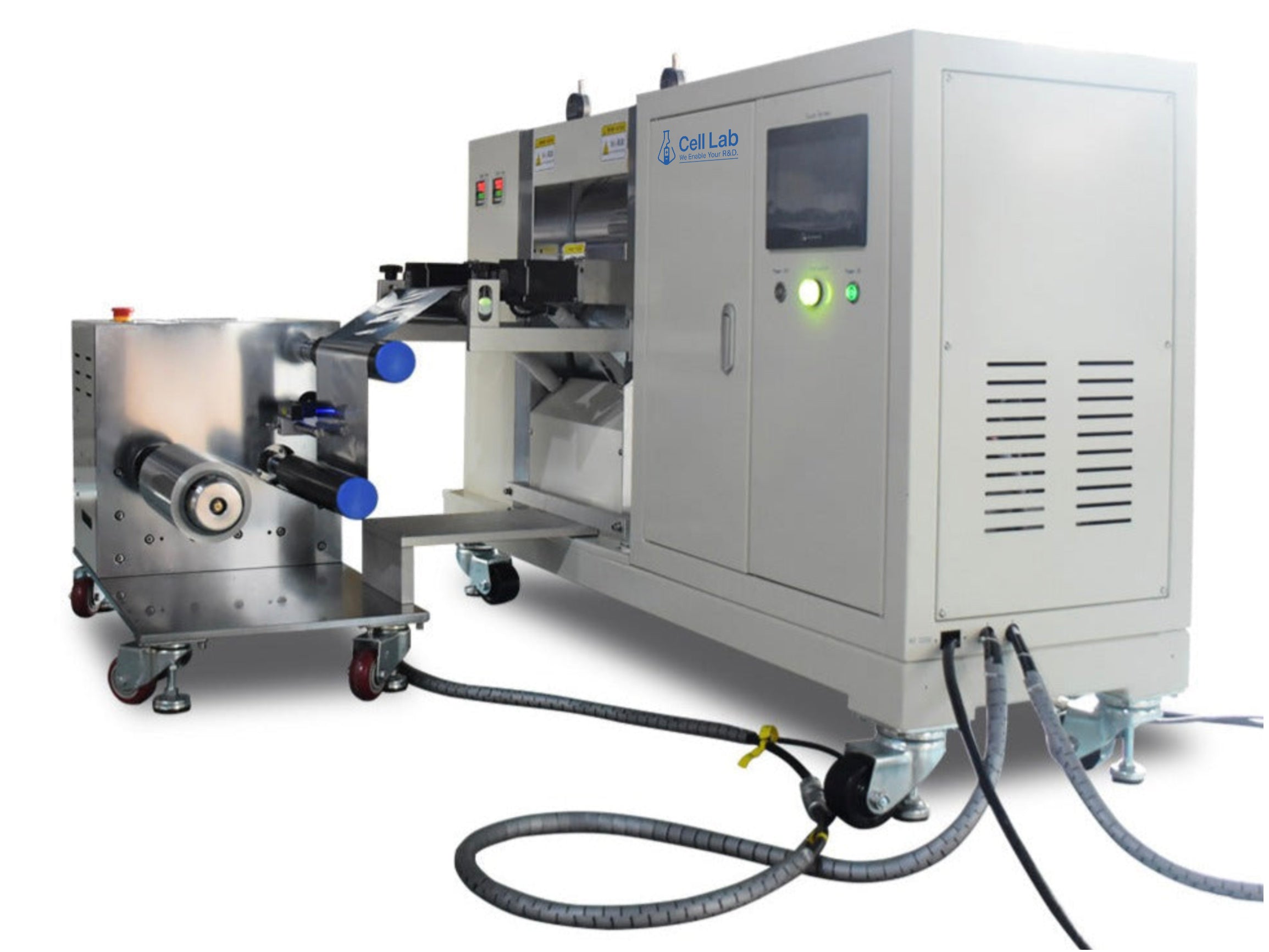

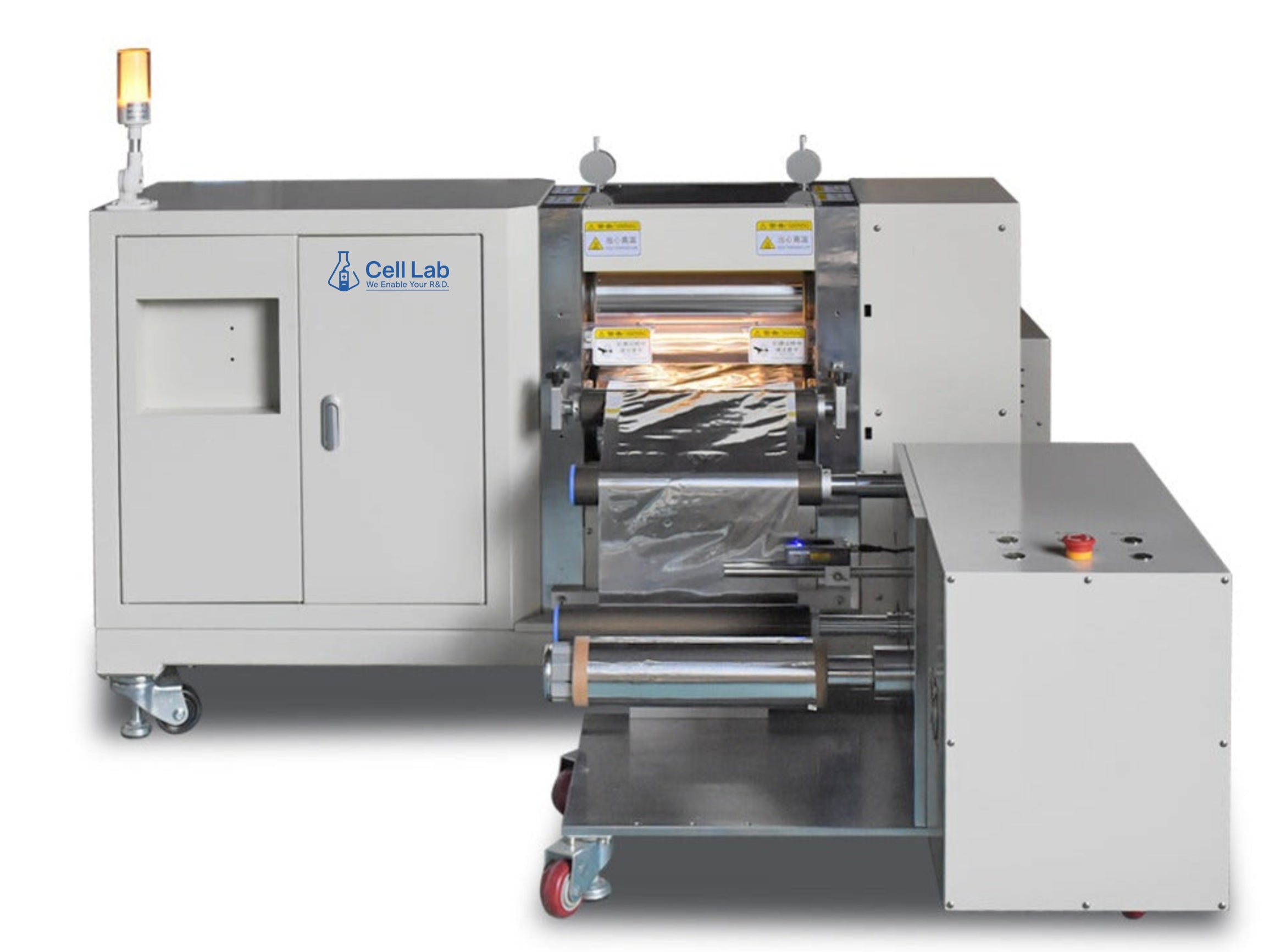

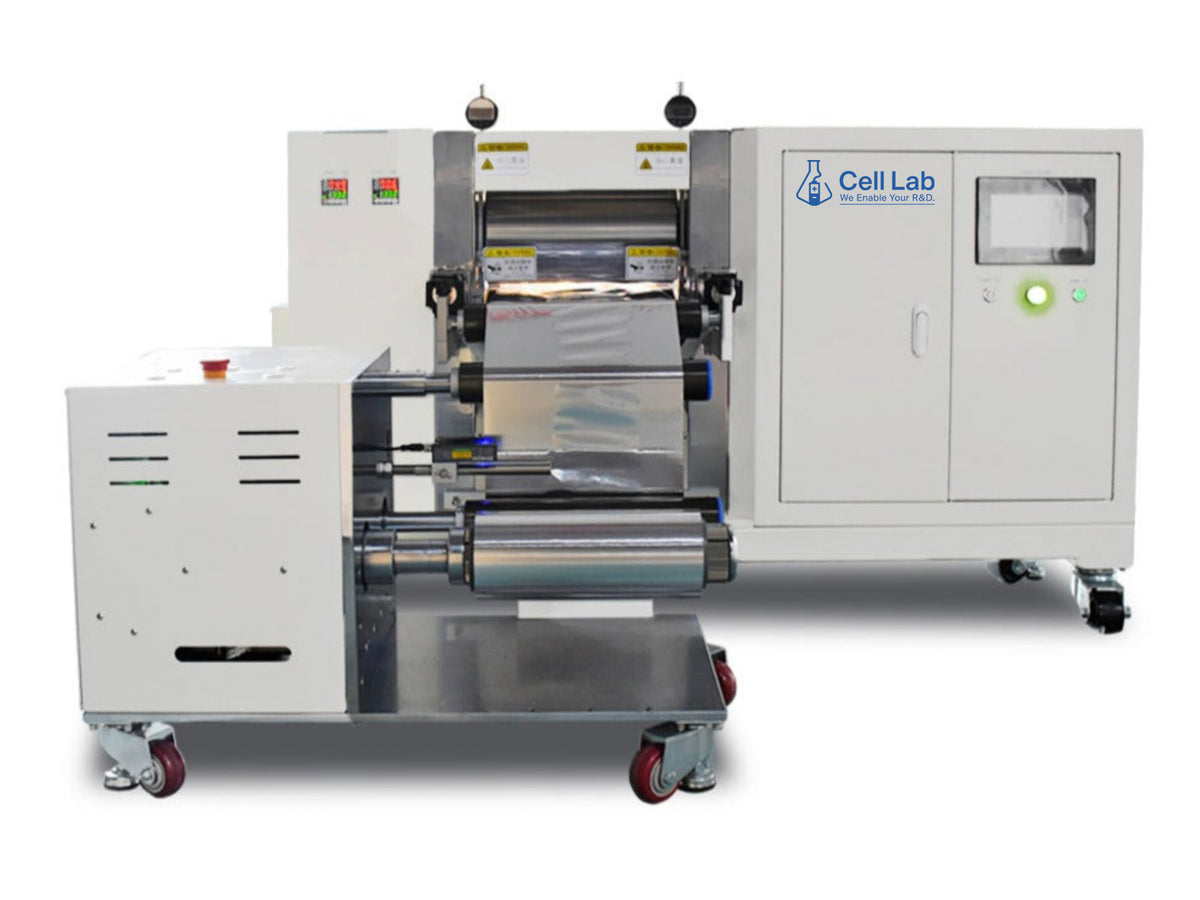

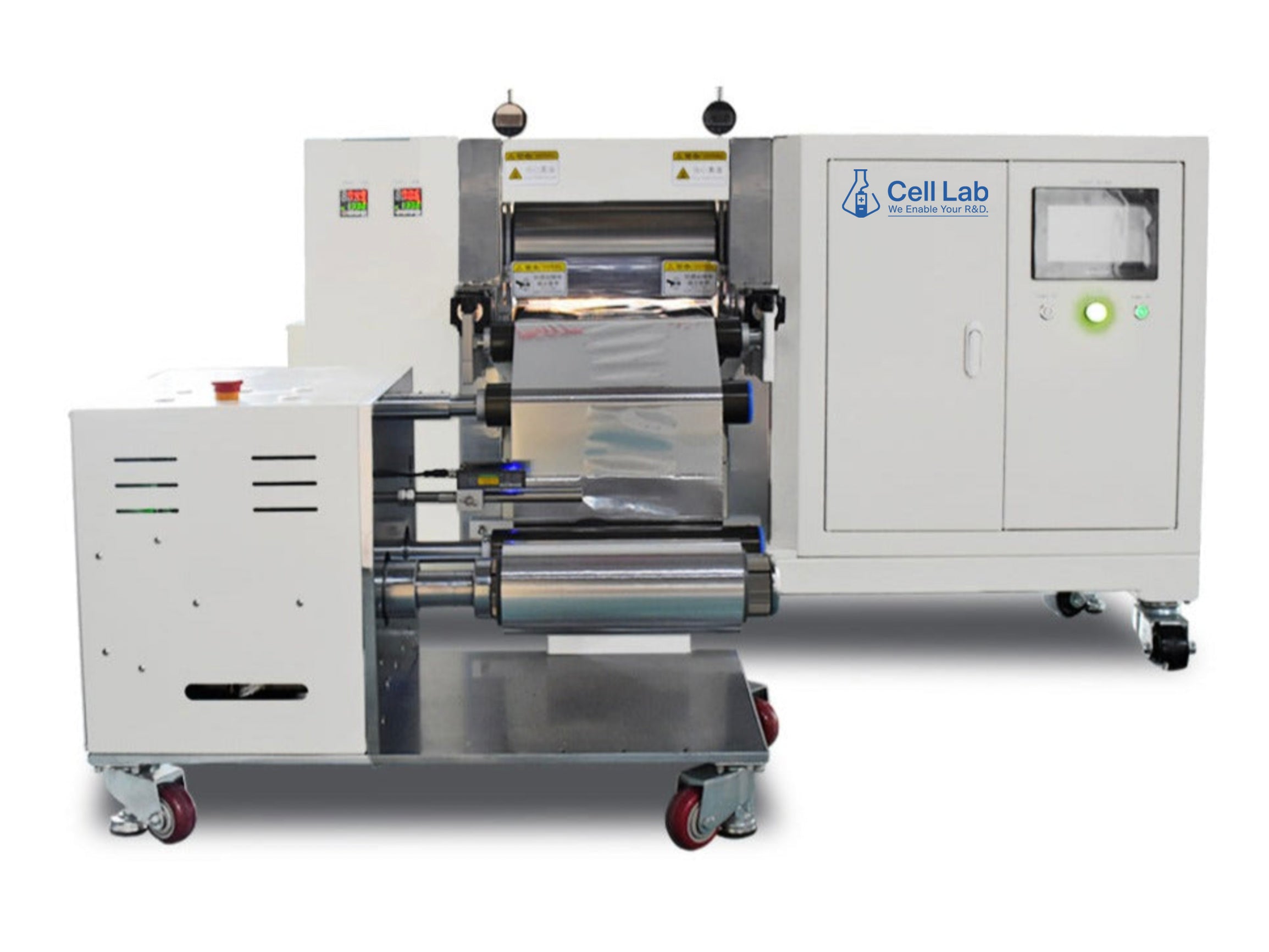

Cell Lab Electric Electrode Calendaring Machine [High Precision | 330 mm Roller Width | Battery Electrode Rolling Press]

Advanced electrode rolling system for uniform densification and superior electrochemical performance

The Cell Lab Electric Electrode Calendaring Machine is engineered for precise compression of cathode and anode materials used in lithium-ion and solid-state batteries. Featuring a hydraulic balance rolling mechanism, PLC-based programmable control, and high-hardness chromium-molybdenum rollers, it ensures both longitudinal and transverse uniformity in electrode thickness. Designed for laboratory R&D and pilot-scale production, this equipment delivers consistent density, improved adhesion, and stable mechanical integrity of electrode sheets — key factors in achieving high-performance batteries.

Key Features

  • Hydraulic Balance Rolling Mechanism: Guarantees even pressure distribution and stable rolling across the full electrode width.

  • High-Hardness Rollers: Chromium-molybdenum alloy rollers (HRC 65–70) offer exceptional wear resistance and long service life.

  • Precision Gap Control: Inclined block and digital micrometre adjustment allow micro-level control of roller spacing.

  • Programmable Control System: Integrated PLC with HMI touchscreen interface enables accurate parameter setup and repeatable process management.

  • Customisable Design: Options include heating modules, unwinding/rewinding systems, and roller width adjustments for different electrode formats.

Technical Specifications：

Parameter Specification
Voltage Supply 220V / 50Hz or 60Hz / Single Phase / 2 kW
Roller Diameter 196 mm
Roller Width 330 mm (Customisable)
Roller Material 9Cr3Mo, hard chrome-plated, HRC65–70, thickness ≥15 mm
Roller Surface Precision Round beating ≤ ±2 μm; chrome layer thickness ≥0.15 mm
Roller Gap Range 0 – 3 mm
Roller Precision ≤ ±0.002 mm
Electrode Uniformity ±0.002 mm
Rolling Speed 0.3 – 4 m/min
Max Working Pressure 40 Tons
Dimensions (L × W × H) 1400 × 500 × 1300 mm
Weight 550 kg

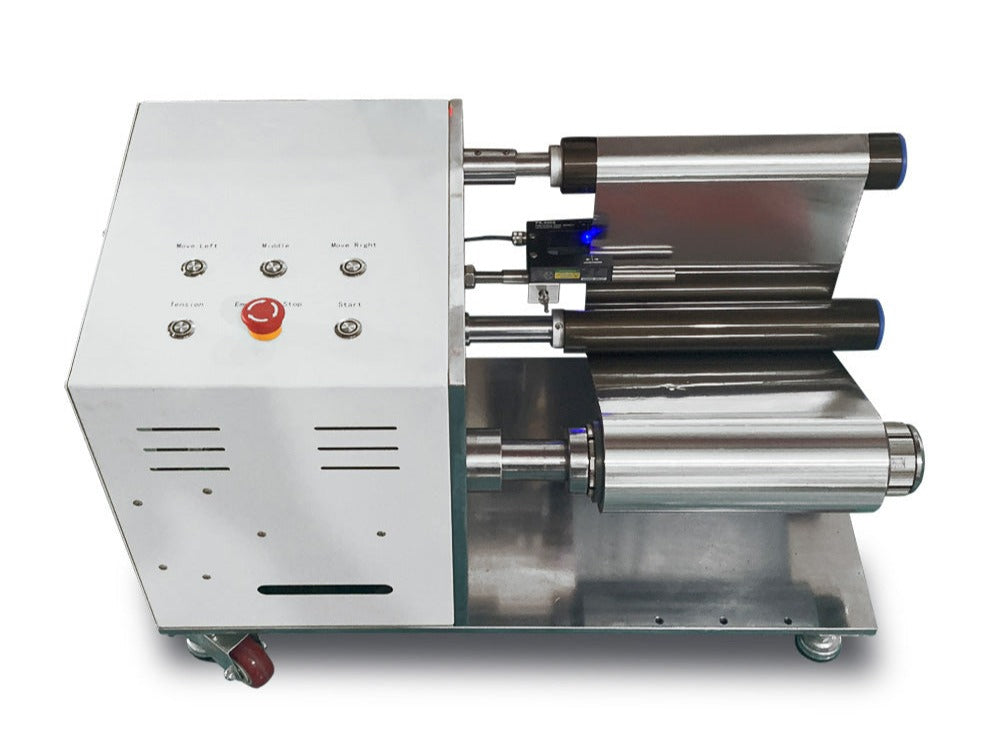

Optional Add-ons: Heating system, film unwinding & rewinding modules, and digital thickness feedback available upon request.

Applications & Industries

  • Lithium-ion and solid-state battery electrode calendaring

  • Precision thickness and density adjustment for coated foils

  • Laboratory and pilot-scale production of battery materials

  • Electrode compacting for enhanced energy density and uniformity

  • Integration with coating and slitting systems in automated lines

FAQ

Q1: What materials can be processed?
Suitable for coated copper, aluminium, and various composite electrode sheets.

Q2: How accurate is the thickness control?
Roller precision reaches ± 0.002 mm, ensuring excellent flatness and uniform density.

Q3: Can heating or rewinding modules be added?
Yes, optional heating, unwinding, and rewinding systems can be integrated for continuous processing.

Q4: What pressure range is supported?
The maximum working pressure is 40 tons, suitable for both R&D and small-scale production.

Q5: Is the system PLC-controlled?
Yes, the programmable HMI interface provides intuitive and precise process parameter control.
