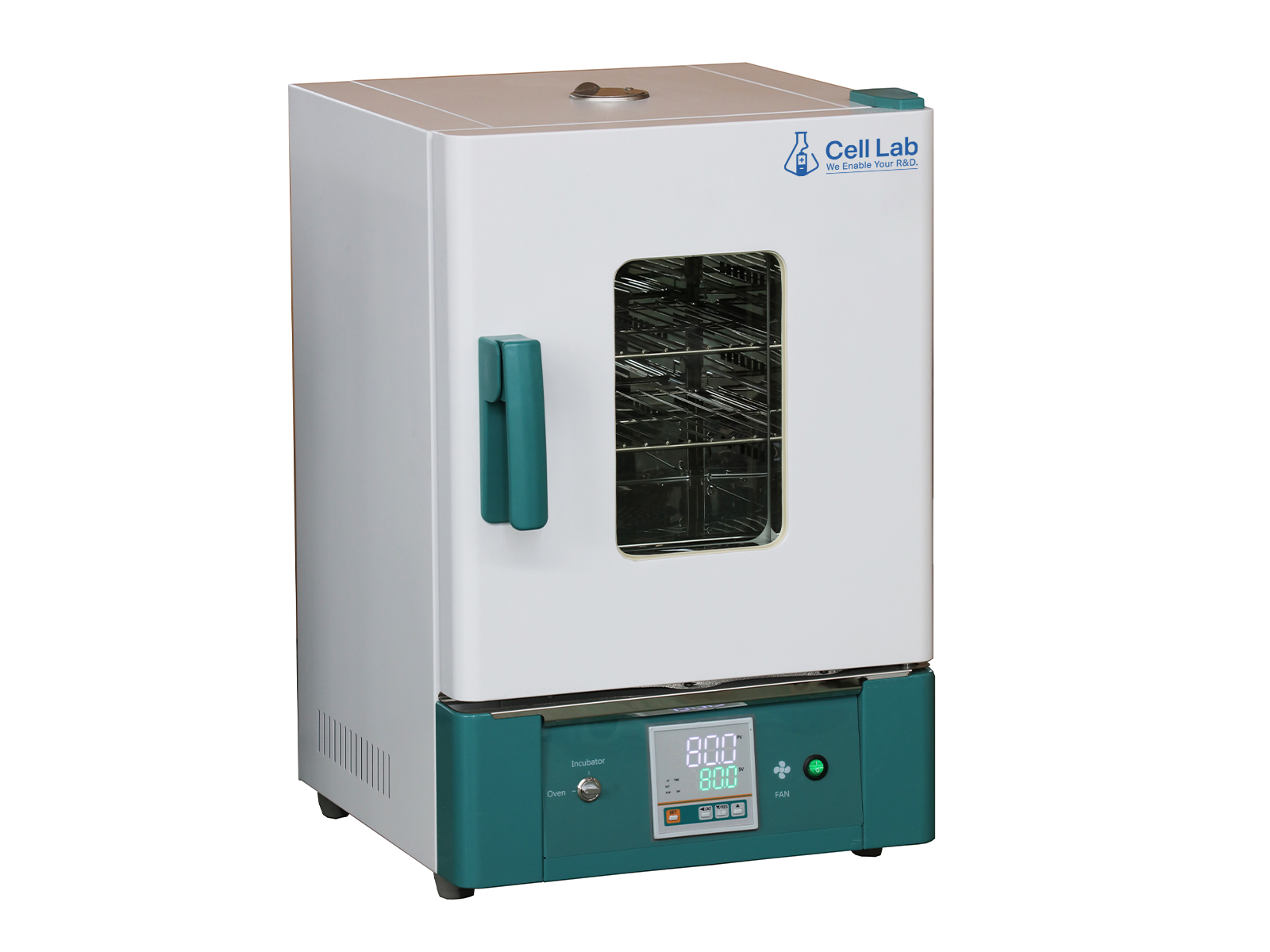

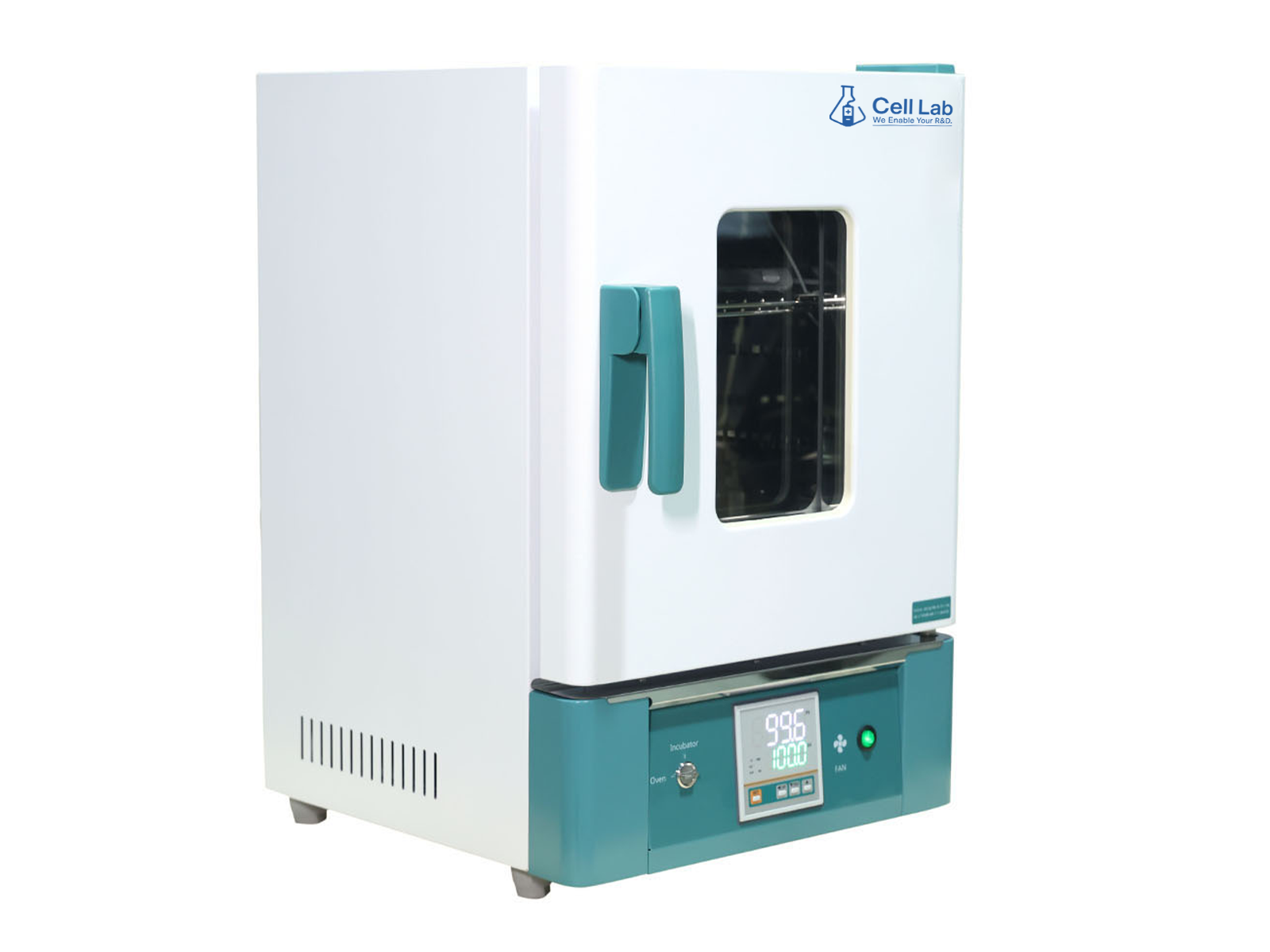

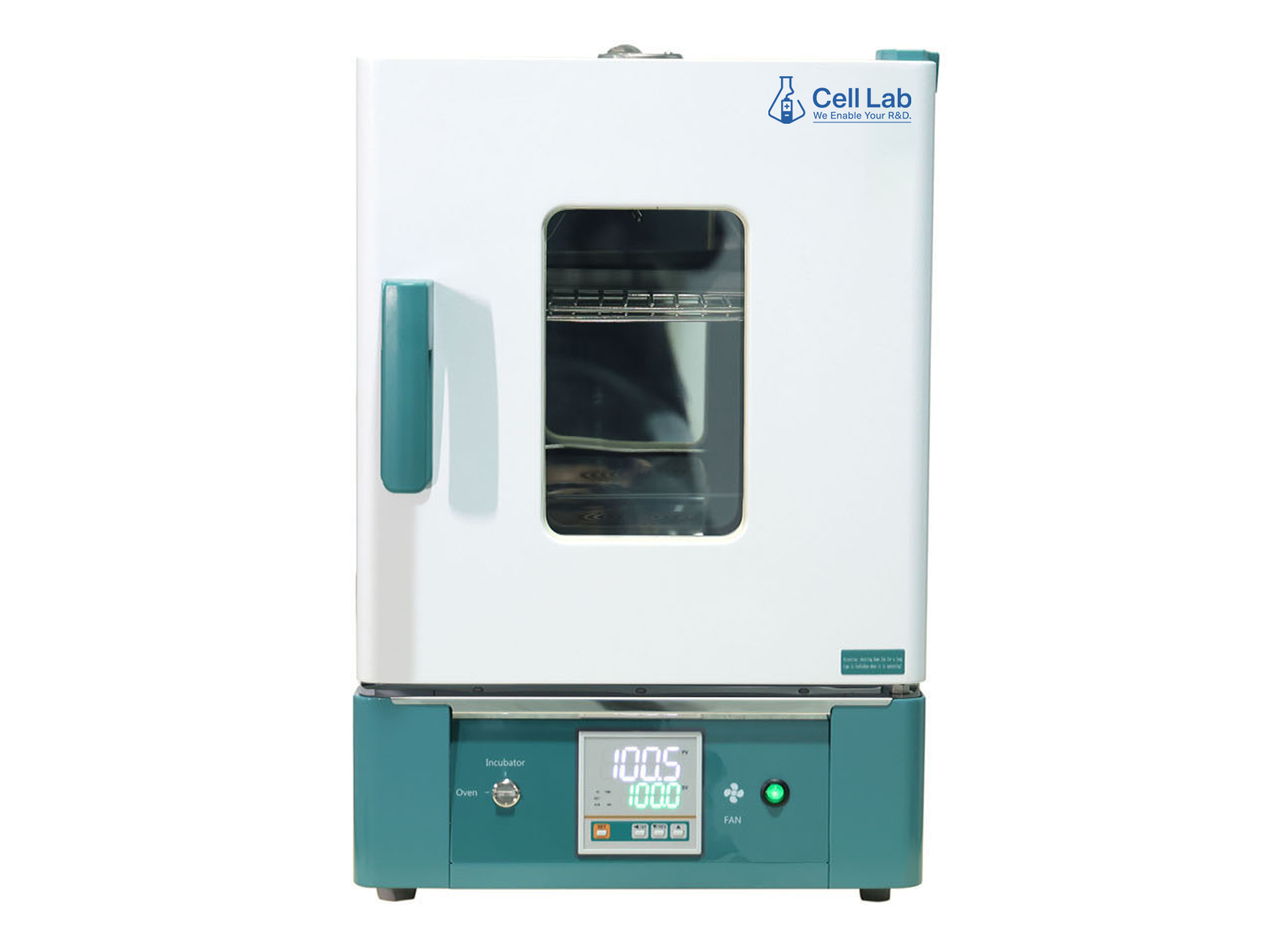

Cell Lab Drying Oven / Incubator (Double Function) [PID Control | Forced Convection | 30–230 L]

Versatile dual-function system for drying, heating, and incubation

The Cell Lab™ Dual-Function Drying Oven & Incubator combines two essential lab functions—precision drying and stable incubation—within a single chamber. Featuring forced-air convection, PID intelligent control, and dual temperature modes, it is ideal for laboratories conducting drying, heat treatment, and bacterial incubation. The upgraded B-type models include LCD controls, independent safety limiters, and multi-speed fan settings for advanced applications.

Key Features

• Dual-Mode Temperature Operation
Easily switch between incubator mode (RT+5–80°C) and drying oven mode (80–300°C), offering exceptional versatility for both biological and material laboratories.

• Efficient Forced Convection System
Dual horizontal air ducts and a high-temperature-resistant blast motor ensure rapid, even heat distribution throughout the chamber for consistent temperature uniformity.

• PID Intelligent Control System
Advanced two-stage PID controller with 0.1°C resolution, ±1°C accuracy, and programmable timer (0–9999 min) ensures stable and reproducible temperature performance.

• Comprehensive Safety Protection
Includes over-temperature alarms, sensor deviation correction, parameter lock, self-tuning, and power-off memory. The B series adds an independent digital temperature limiter and 4-grade adjustable-speed fan.

• Robust and Insulated Design
Built with a mirror-polished stainless-steel inner chamber, electrostatic-coated cold-rolled steel exterior, and CE-certified rock wool insulation, ensuring thermal stability and long service life under continuous use.

Technical Parameters:

 Model

DO0020A

DO0021A

DO0022A

DO0023A

DO0024A

DO0025A

DO0020B

DO0021B

DO0022B

DO0023B

DO0024B

DO0025B

Cycle Mode

Forced convection


Function

 Temp. range

Incubator: RT+5-80℃ Drying oven:80-300℃

Temp. Resolution Ratio

0.1℃

Temp. Motion

±1℃

Temp. Uniformity

±2.5%


Structure

Inner Chamber

Mirror Stainless Steel

Outer Shell

Cold rolling steel electrostatic spraying exterior

Customized 304: SUS 304 embossed stainless steel shell

Insulation layer

High quality rock wool board (with CE)

Heater

Stainless steel heater

Power rating

0.8kW

1.2kW

1.6kW

2.0kW

2.3kW

3.0kW

Exhaust hole

Φ35mm top(with function of test hole)


Controller

Temp. control mode

PID Two temperature section intelligent PID

Temp. setting mode

Touch button setting

Temp. display mode

A type: LED Digital Display

B model: LCD Digital display

Timer

0-9999min(with timing wait function)

Operation function

Fixed temperature operation, timing function, auto stop.

Additional function

 A model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory

B model: High precision digital independent temperature limiter, 4 grades &3 speed adjustable speed fan (DO0019A/B without fan speed adjustor), sensor
deviation correction, temperature overshoot self-tuning, internal parameter    locking, power-off parameter memory

Sensor

PT100


Specification

Inner Chamber size(W*L*H)(mm)

310*310*310

350*350*350

400*360*450

450*420*450

500*450*550

600*500*750

Exterior size (W*L*H)(mm)

460*510*695

500*550*735

550*550*840

590*610*830

636*680*915

735*835*1115

Packing size (W*L*H)(mm)

540*575
*855

580*615
*895

635*625
*995

680*685
*1000

710*730
*1100

857*885
*1287

Volume

30L

45L

65L

85L

125L

230L

Shelf number

5

6

8

8

11

17

Load per rack

15kg

Shelf space

40mm

Current rating

AC220V

AC220V

AC220V

AC220V

AC220V

AC220V

NW/GW (kg）

33/37

37/43

44/49

50/56

60/66

94/120


Accessory

Shelf

2

Shelf frame

4

optional accessories

A type: Spare shelf

B type: Spare shelf, RS485 interface, printer, Program controller, remote control, U-disk storage;

wireless SMS alarm, 3.5-inch color touch screen temperature controller, SUS304 body.



Applications & Industries

  • Bacteriological and microbial incubation

  • Material drying, resin curing, and heat treatment

  • Food and pharmaceutical quality testing

  • Temperature stability and calibration experiments

  • Educational and research laboratories

FAQ

Q1: What’s the main advantage of this dual-function oven/incubator?
A1: It integrates two thermal functions—incubation and drying—into one chamber, saving space and enabling a wide temperature range (RT+5–300°C).

Q2: How does the B-type differ from the A-type model?
A2: The B-type adds LCD display, fan speed control, independent limiter, and advanced data interfaces (RS485, USB).

Q3: Can the fan speed be adjusted?
A3: Yes. The B-series features 4-grade fan speed settings for precise airflow control.

Q4: What materials are used for the construction?
A4: The inner chamber is SUS304 stainless steel, while the exterior is cold-rolled steel with electrostatic coating or optional SUS304 embossed shell.

Q5: Is the temperature accuracy suitable for biological incubation?
A5: Yes. The PID system maintains ±1°C accuracy and uniformity of ±2.5%, ideal for microbial and biochemical processes.
