Cell Lab Double-Sided NMC811 Coated Aluminium Foil offers high capacity, uniform double-sided coating and customisable dimensions for lithium-ion battery cathode research and electrode sheet development.
Cell Lab Double-Sided NMC811 Coated Aluminium Foil offers high capacity, uniform double-sided coating and customisable dimensions for lithium-ion battery cathode research and electrode sheet development.

Cell Lab Double-Sided NMC811 Coated Aluminium Foil [High Capacity Cathode Sheet]

Cell Lab Double-Sided NMC811 Coated Aluminium Foil [Pre-Coated Cathode Foil for Lithium-Ion Battery Electrode Sheet Applications] High-capacity, research-ready NMC811 coated foil for advanced lithium-ion cell development The Cell Lab Double-Sided NMC811 Coated Aluminium Foil is a precision-manufactured cathode sheet designed...
Vendor: Cell Lab
SKU: CL0085
Product type: Battery Consumables
£279.00
£279.00
Subtotal: £279.00
Description
Description
x

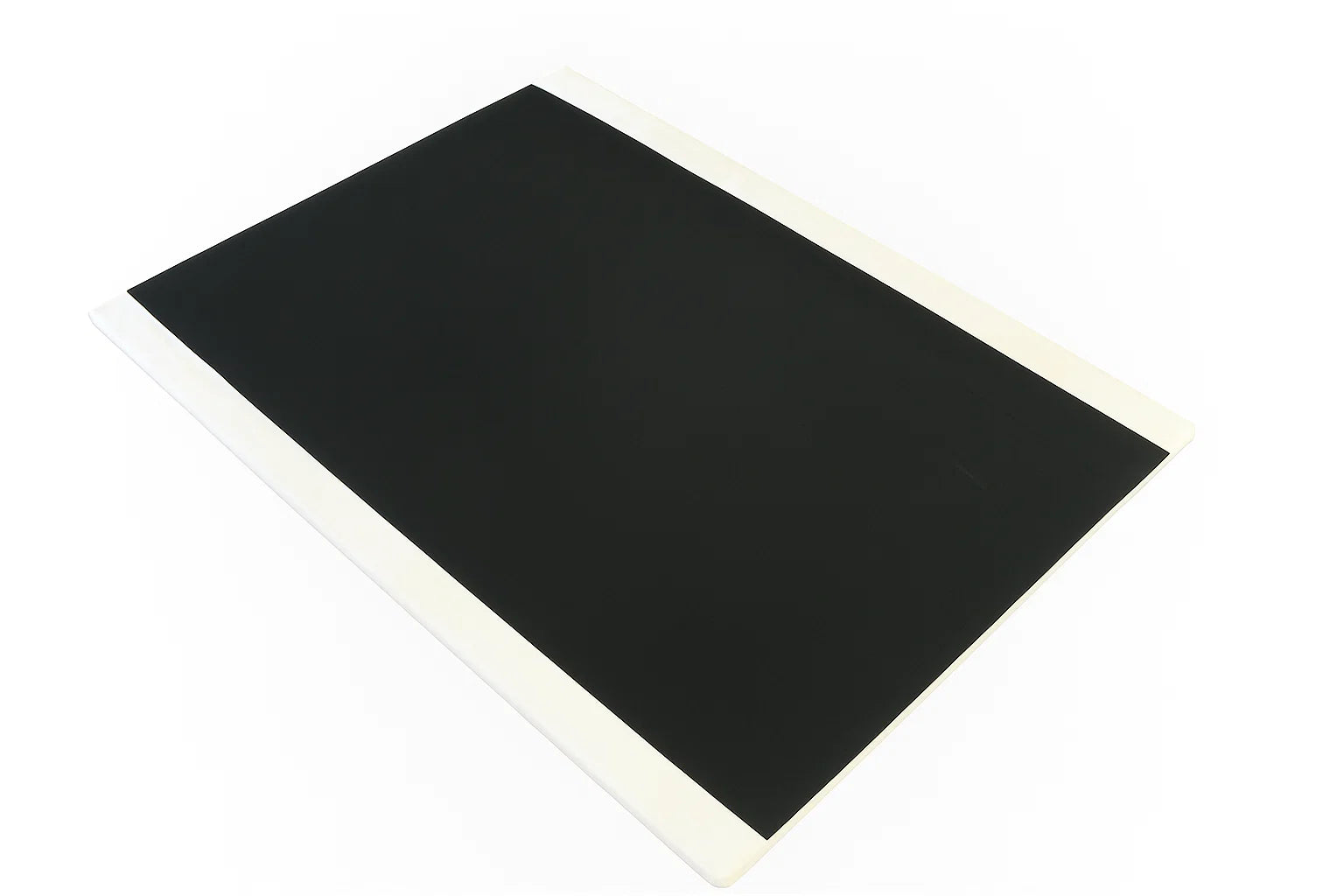

Cell Lab Double-Sided NMC811 Coated Aluminium Foil [Pre-Coated Cathode Foil for Lithium-Ion Battery Electrode Sheet Applications]

High-capacity, research-ready NMC811 coated foil for advanced lithium-ion cell development

The Cell Lab Double-Sided NMC811 Coated Aluminium Foil is a precision-manufactured cathode sheet designed for lithium-ion battery research and prototyping, including coin-cell and pouch-cell formats. Coated on both sides with LiNi₀.₈Mn₀.₁Co₀.₁O₂ (NMC811), it delivers high energy density, low heat generation, and excellent cycling stability.

Compared to traditional LiCoO₂ systems, the NMC811 composition significantly improves capacity and cost efficiency due to nickel and manganese enrichment. Each sheet provides reliable adhesion, uniform coating thickness, and optimised conductivity—ideal for laboratory R&D and pilot production of next-generation batteries. Custom coating thickness and foil dimensions are available upon request.

Key Features

  • High-Performance NMC811 Cathode – Provides specific capacity of 190 mAh/g with excellent thermal and chemical stability.

  • Double-Sided Uniform Coating – Even coating on both sides ensures consistent conductivity and electrochemical behaviour.

  • Research-Ready Design – Ideal for lithium-ion pouch and coin-cell cathode evaluation in R&D laboratories.

  • Customisable Substrate & Coating – Tailor foil thickness, coating density and dimensions to project requirements.

  • High Purity Aluminium Foil – Ensures low resistance and excellent adhesion for reliable battery fabrication.

Parameter Specification
Substrate Material Aluminium (≥99.5% purity)
Substrate Thickness 16 µm
Substrate Size 260 × 200 mm
Coating Material NMC811 (LiNi₀.₈Mn₀.₁Co₀.₁O₂)
Coating Area 260 × 175 mm
Coating Side Double-sided
Coating Density (One Side) 110 g/m²
Total Thickness 83 µm
Capacity 190 mAh/g
Pack Size 5 sheets per pack

Applications & Industries

  • Lithium-ion pouch and coin-cell cathode R&D

  • High-capacity battery and EV material development

  • Grid energy-storage system prototyping

  • Academic and industrial electrochemical testing

  • Cathode optimisation and formulation studies

FAQ

Q1: What advantage does NMC811 offer over LiCoO₂?
A1: NMC811 provides higher capacity, improved thermal stability and lower cost due to its reduced cobalt content.

Q2: Can I request custom coating thickness or foil size?
A2: Yes. Cell Lab supports customisation for coating thickness, coating density and foil dimensions.

Q3: Is the coating applied on both sides of the foil?
A3: Yes. The foil features uniform double-sided coating to maximise energy density and current distribution.

Q4: How should the product be prepared before use?
A4: Vacuum dry before cell assembly to remove residual moisture and ensure optimal electrode performance.

Q5: What applications are best suited for this product?
A5: It is ideal for lithium-ion battery R&D, including coin-cell and pouch-cell cathode fabrication and performance testing.
