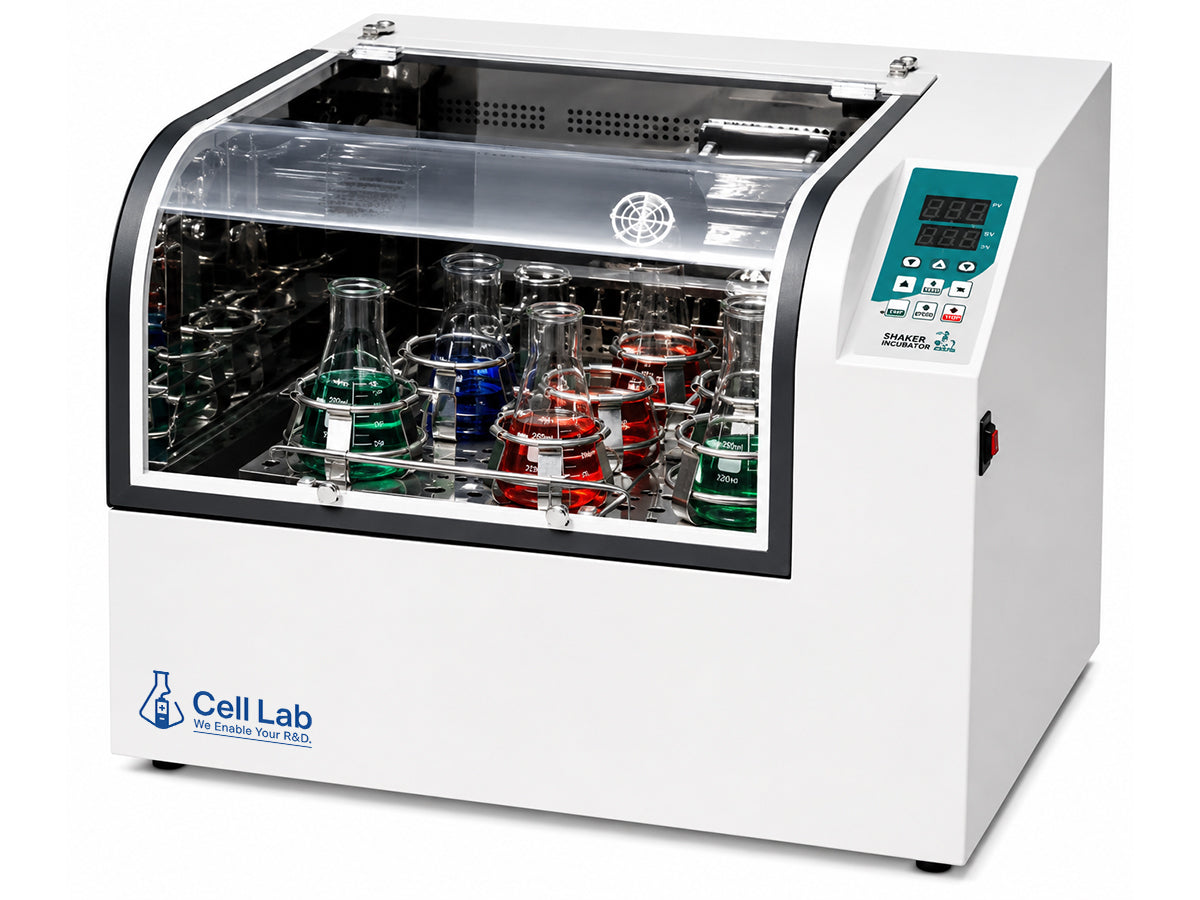

Cell Lab Desktop Constant Temperature Shaker Series

Cell Lab Desktop Constant Temperature Shaker Series [70L | LCD Programmable | 20–450 rpm] Compact laboratory shaking incubators with programmable PID control, forced air convection and precision orbital shaking for microbial culture, cell cultivation and biochemical applications. General Description The...
Vendor: Cell Lab
SKU: IB0075
Product type: Shakers
£3,519.00
£3,519.00
Temperature Range: RT +5–65 °C 550 W
Subtotal: £3,519.00
Description
Description
x

Cell Lab Desktop Constant Temperature Shaker Series [70L | LCD Programmable | 20–450 rpm]

Compact laboratory shaking incubators with programmable PID control, forced air convection and precision orbital shaking for microbial culture, cell cultivation and biochemical applications.

General Description

The Cell Lab Desktop Constant Temperature Shaker Series is designed for high-precision shaking and incubation applications in microbiology, molecular biology, fermentation, environmental testing and biochemical laboratories. Combining intelligent PID microcomputer temperature control with stable cyclotron oscillation technology, the system delivers reliable shaking performance and excellent chamber temperature uniformity for sensitive culture experiments.

The compact desktop design integrates forced air convection, intelligent refrigeration control and programmable multi-stage operation, making it suitable for laboratories requiring precise temperature and speed management within limited bench space.

Equipped with servo motor drive technology, automatic defrosting and intelligent protection systems, the incubator supports forward/reverse oscillation, ultra-low-speed startup and programmable temperature-speed-time operation for advanced laboratory workflows.

Two variants are available: a standard heated model and a refrigerated low-temperature model.

Key Features

• Intelligent multi-stage PID programming — Simultaneous control of temperature, speed and timing parameters during operation.

• Precision orbital shaking system — Stable cyclotron oscillation with adjustable 20–450 rpm shaking range.

• Intelligent refrigeration & defrost system — Automatic refrigeration control and frost-free operation improve long-term stability.

• Compact desktop laboratory design — Space-saving structure suitable for benchtop research environments.

• Advanced laboratory safety functions — Includes overspeed protection, fault self-diagnosis, parameter memory and optional UV sterilisation.

Technical Specifications

General Performance

Parameter Specification
Control mode PID microcomputer processing chip
Cycle mode Forced air convection
Oscillation mode Cyclotron oscillation
Display mode LCD display
Drive mode Single-dimensional drive
USB data download Optional
Program modes Standard / continuous / programmable
Speed range 20–450 rpm
Speed accuracy ±1 rpm
Oscillation amplitude Φ26 mm
Timer range 0–9999 min
Tray quantity 1 tray

Temperature Performance

Parameter IB0075 IB0076
Temperature range RT +5–65 °C 4–65 °C
Temperature accuracy ±0.1 °C ±0.1 °C
Temperature uniformity ±0.5 °C (37 °C) ±0.5 °C (37 °C)
Temperature fluctuation ≤0.1 °C (37 °C) ≤0.1 °C (37 °C)

Capacity Configuration

Flask Size Clamp Capacity Stick Mat Capacity
100 ml 23 pcs 30 pcs
250 ml 15 pcs 20 pcs
500 ml 9 pcs 9 pcs
1000 ml 6 pcs 8 pcs
2000 ml 4 pcs 4 pcs

Standard Configuration

Flask Type Quantity
500 ml flask clamps 3 pcs
250 ml flask clamps 3 pcs
100 ml flask clamps 4 pcs
50 ml flask clamps 4 pcs

Mechanical & Electrical

Parameter Specification
Tray size 450 × 410 mm
External dimensions 750 × 710 × 520 mm
Chamber capacity 70 L
Operating ambient temperature 5–30 °C
Power supply AC220V ±10% / 50–60 Hz

Model Variants

SKU Temperature Range Speed Range Power
IB0075 RT +5–65 °C 20–450 rpm 550 W
IB0076 4–65 °C 20–450 rpm 650 W

Additional Functions

Feature Description
Intelligent startup Ultra-low-speed startup with adjustable acceleration
Overspeed protection Automatic motor protection
Parameter memory Power failure recovery memory
Refrigeration protection Compressor overload & delayed startup
Defrost system Automatic intelligent defrosting
Safety alarms Over-temperature sound/light alarm
Optional functions UV sterilisation, LED lighting, automatic door stop
Calibration Ambient & chamber temperature correction

Applications & Industries

  • Microbial culture and incubation
  • Cell cultivation and fermentation
  • Pharmaceutical laboratories
  • Molecular biology research
  • Environmental and biochemical testing
  • University and research laboratories

SEO Keywords: desktop shaking incubator, laboratory shaker incubator, orbital incubator shaker, refrigerated shaking incubator, benchtop incubator shaker, programmable laboratory shaker

FAQ

Q1: What is the difference between IB0075 and IB0076?
IB0075 is a standard heated model, while IB0076 includes refrigeration and supports operation down to 4 °C.

Q2: Does the incubator support programmable operation?
Yes. The system supports programmable multi-stage control of speed, temperature and timing.

Q3: What shaking speed range is supported?
Both models support adjustable shaking speeds from 20–450 rpm.

Q4: Is UV sterilisation available?
Yes. UV sterilisation is available as an optional feature.
