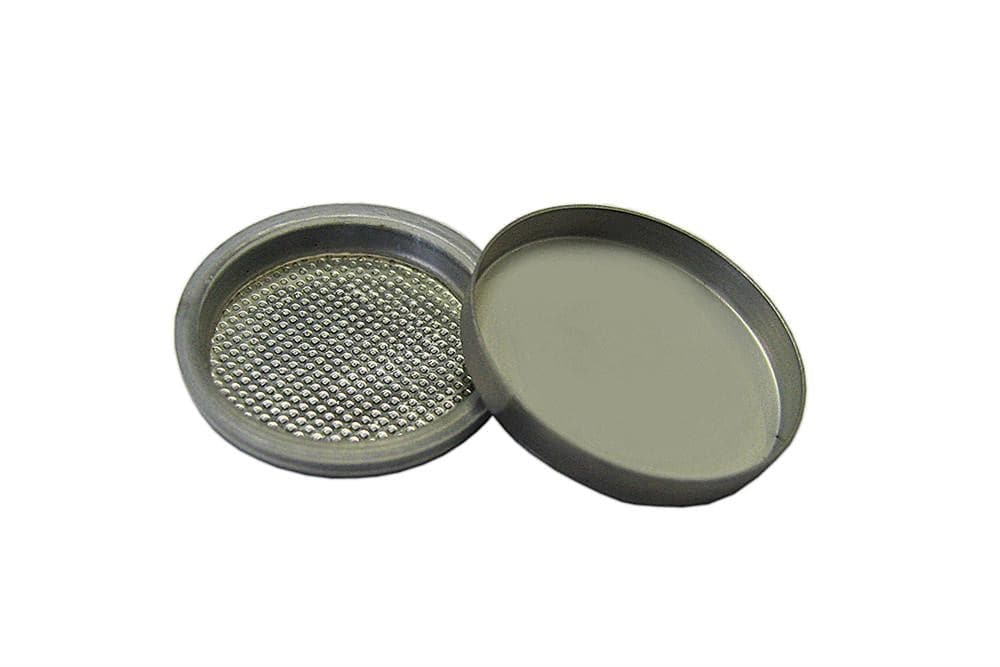

Cell Lab CR2325 Coin Cell Cases [304 Stainless Steel, 100 pcs, with Gasket] – Precision Battery Housing for Research & Prototyping

High-quality 304 stainless steel coin cell enclosures with gasket seal for reliable lithium battery assembly

The Cell Lab CR2325 Coin Cell Cases are precision-engineered battery housings manufactured from 304 stainless steel (304SS), offering superior corrosion resistance, mechanical durability, and dimensional accuracy. Each set includes anode and cathode cases along with a polypropylene O-ring gasket, ensuring secure and leak-proof sealing during laboratory coin cell fabrication.

Conforming to IEC 60086 standards, these CR2325 casings feature precise dimensions of 23 mm in diameter and 2.5 mm in height, making them ideal for lithium coin cell R&D, prototype testing, and electrochemical studies in energy storage and materials research.

Key Features

High-Precision Dimensions
Machined to exact CR2325 standards for consistent assembly, reliable sealing, and reproducible testing outcomes.

304 Stainless Steel Construction
Resistant to corrosion, electrolyte degradation, and mechanical wear for extended laboratory use.

Complete Set for Prototyping
Includes both anode and cathode casings with a matching polypropylene sealing O-ring.

Leak-Proof Design
Polypropylene gasket ensures airtight sealing and prevents electrolyte leakage during cycling.

Research-Grade Reliability
Ideal for academic and industrial laboratories conducting lithium coin cell R&D and materials evaluation.

Technical Specifications

Property Value
Material Grade 304 stainless steel (304SS)
Overall Dimensions 23 mm × 2.5 mm
Case Dimensions Cathode: O.D. 23.0 mm, I.D. 22.5 mm
Anode: O.D. 22.3 mm, I.D. 19.4 mm
Weight 2.0 g (0.1 oz) each
Sealing Gasket Polypropylene
Pack Size 100 pcs per pack

Applications & Industries

  • Lithium-ion coin cell fabrication and testing

  • Battery material research and electrochemical analysis

  • CR2325 standard cell development and prototyping

  • Academic and industrial laboratory applications

  • Custom cell assembly and electrolyte evaluation

FAQ

Q1: Are these cases reusable?
Yes, they can be reused after cleaning and drying, depending on the type of electrolyte used and testing conditions.

Q2: Can they be used with solid-state electrolytes?
Yes. The stainless steel construction is compatible with both liquid and solid electrolyte systems.

Q3: Are gaskets included in the pack?
Yes. Each set contains matching polypropylene O-ring gaskets for proper sealing.

Q4: Are CR2325 cases compatible with standard coin cell crimpers?
Yes. They fit all standard CR2325-compatible crimping machines used in laboratory settings.

Q5: Do you offer custom case materials?
Yes. Variants in titanium, aluminium, or nickel-plated steel can be supplied upon request for specialised applications.
