Cell Lab Copper Foil [High Purity, Optimised Coating Performance] – Battery-Grade Foil for Li-ion Anode Fabrication
Cell Lab Copper Foil [High Purity, Optimised Coating Performance] – Battery-Grade Foil for Li-ion Anode Fabrication High-conductivity copper current collector for lithium-ion battery research and pilot production The Cell Lab Copper Foil is a high-purity, precision-engineered current collector designed for...
- £599.00
- £599.00
- Unit price
- per
Subtotal:
£599.00
Couldn't load pickup availability
Description
xCell Lab Copper Foil [High Purity, Optimised Coating Performance] – Battery-Grade Foil for Li-ion Anode Fabrication
High-conductivity copper current collector for lithium-ion battery research and pilot production

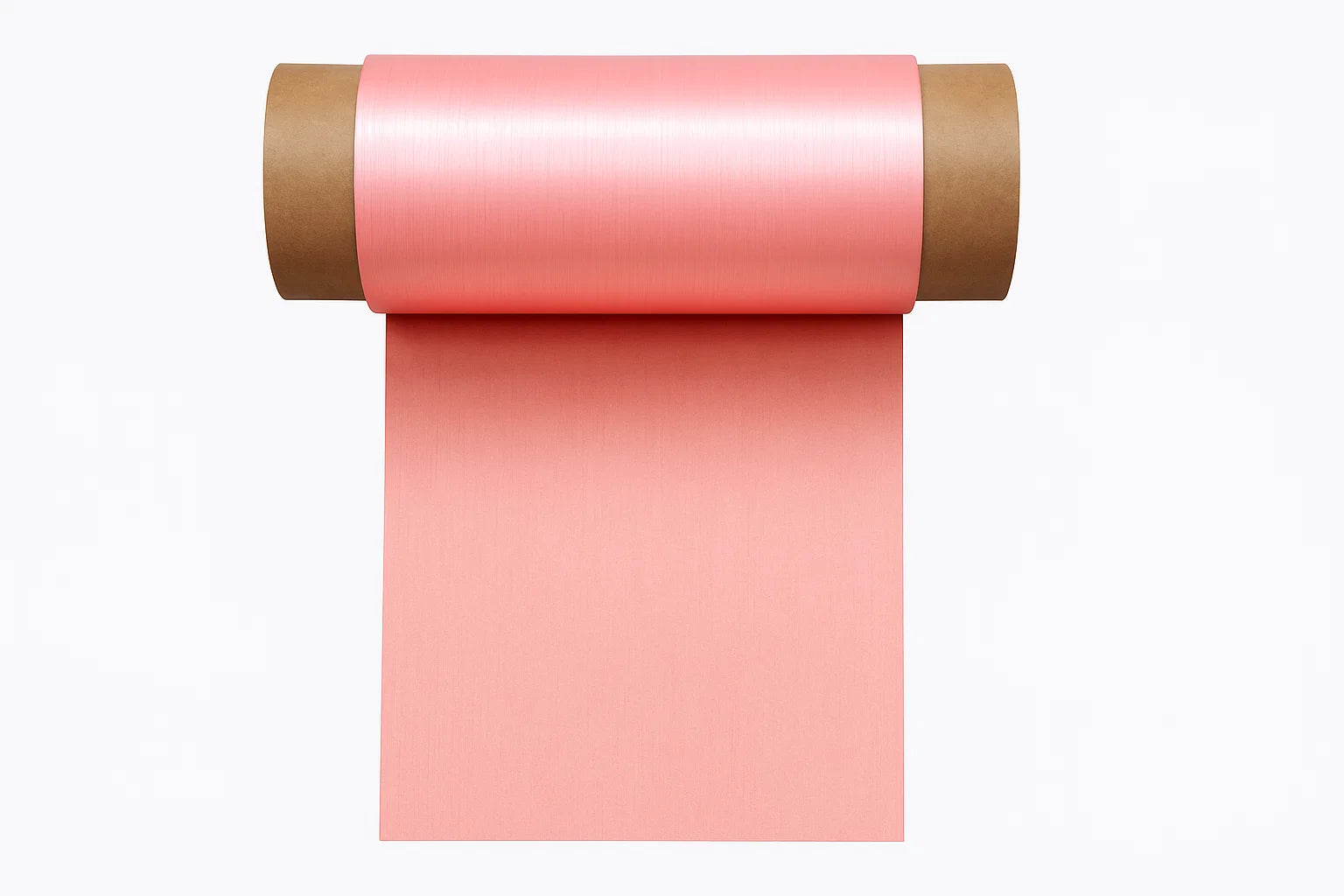

The Cell Lab Copper Foil is a high-purity, precision-engineered current collector designed for lithium-ion battery anode coating applications. Manufactured to tight tolerances with uniform surface morphology and superior tensile properties, this foil ensures excellent adhesion, conductivity, and long-term cycling reliability.
Available in 6 μm and 9 μm thicknesses, it supports both high-energy-density and general-purpose R&D applications. Each foil undergoes strict oxidation-resistance and mechanical testing to meet the rigorous standards of laboratory and pilot-scale environments. Optional carbon-coated and custom-width formats are available upon request.
Key Features
Multiple Thickness Options
Available in 6 μm and 9 μm versions to support diverse energy density and mechanical stability requirements.
Superior Surface Uniformity
Drum-side roughness Ra ≤ 0.3 μm ensures even slurry distribution and prevents cracking during electrode drying.
High Mechanical Strength and Elongation
Tensile strength ≥ 294 MPa with elongation ≥ 2.5 % provides robustness during coating, drying, and winding.
Outstanding Oxidation Resistance
Maintains stability after 1 h at 180 °C without visible oxidation, colour change, or surface degradation (9 μm models).
Customisable Dimensions and Coatings
Widths and thicknesses can be tailored to project needs; optional carbon coating available for improved interface stability.
Technical Specifications
| Product SKU# | CL0192 | CL0193 | CL0194 | CL0195 |
|---|---|---|---|---|
| Thickness (μm) | 9 | 9 | 9 | 6 |
| Width (mm) | 280 | 180 | 200 | 280 |
| Length (m) | ~200 | 300~310 | ~300 | ~330 |
| Areal Density (g/m²) | 85~90 | 85~90 | 85~90 | 53~56 |
| Density (g/cm³) | 8.9 | 8.9 | 8.9 | 8.9 |
| Tensile Strength (MPa) | ≥294 | ≥294 | ≥294 | ≥300 |
| High Temp Tensile @180°C (MPa) | ≥147 | ≥147 | ≥147 | — |
| Normal Elongation (%) | 2.5 | 2.5 | 2.5 | ≥3 |
| High Temp Elongation @180°C (%) | 2.0 | 2.0 | 2.0 | — |
| Surface Tension (dyne/cm) | 62 | 62 | 62 | ≥336 |
| Surface Roughness (Ra, μm) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Surface Roughness (Rz, μm) | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 |
| Anti-Oxidation (180°C, 1h) | Stable | Stable | Stable | — |
| Material Purity | Cu ≥99.9%Fe <0.0010%Bi <0.00020%Pb <0.0005% | Same | Same | Cu ≥99.8% |
Applications & Industries
-
Lithium-ion and solid-state battery R&D
-
Anode current collector for graphite, SiC, and Li metal electrodes
-
Pilot-line coating and calendaring verification
-
Conductive substrates for electrochemical or corrosion studies
-
Industrial-scale anode fabrication and QC testing
FAQ
Q1: Which copper foil thickness is best for lab-scale lithium-ion battery assembly?
The 9 μm foil is standard for general R&D; the 6 μm foil is preferred for high energy density applications.
Q2: Is carbon coating necessary for slurry coating?
Optional. Carbon coating enhances adhesion and interface conductivity, particularly for high-power or Si-based anodes.
Q3: Can I request custom roll dimensions?
Yes. Cell Lab provides fully customisable widths, lengths, and surface finishes to meet specific experimental setups.
Q4: Does the foil oxidise under air exposure?
No oxidation is observed after 1 h at 180 °C; however, long-term storage in dry conditions is recommended.
Q5: What is the purity level of the copper used?
≥ 99.9 % purity (2N9 grade), ensuring minimal metallic contamination and stable electrochemical behaviour.
