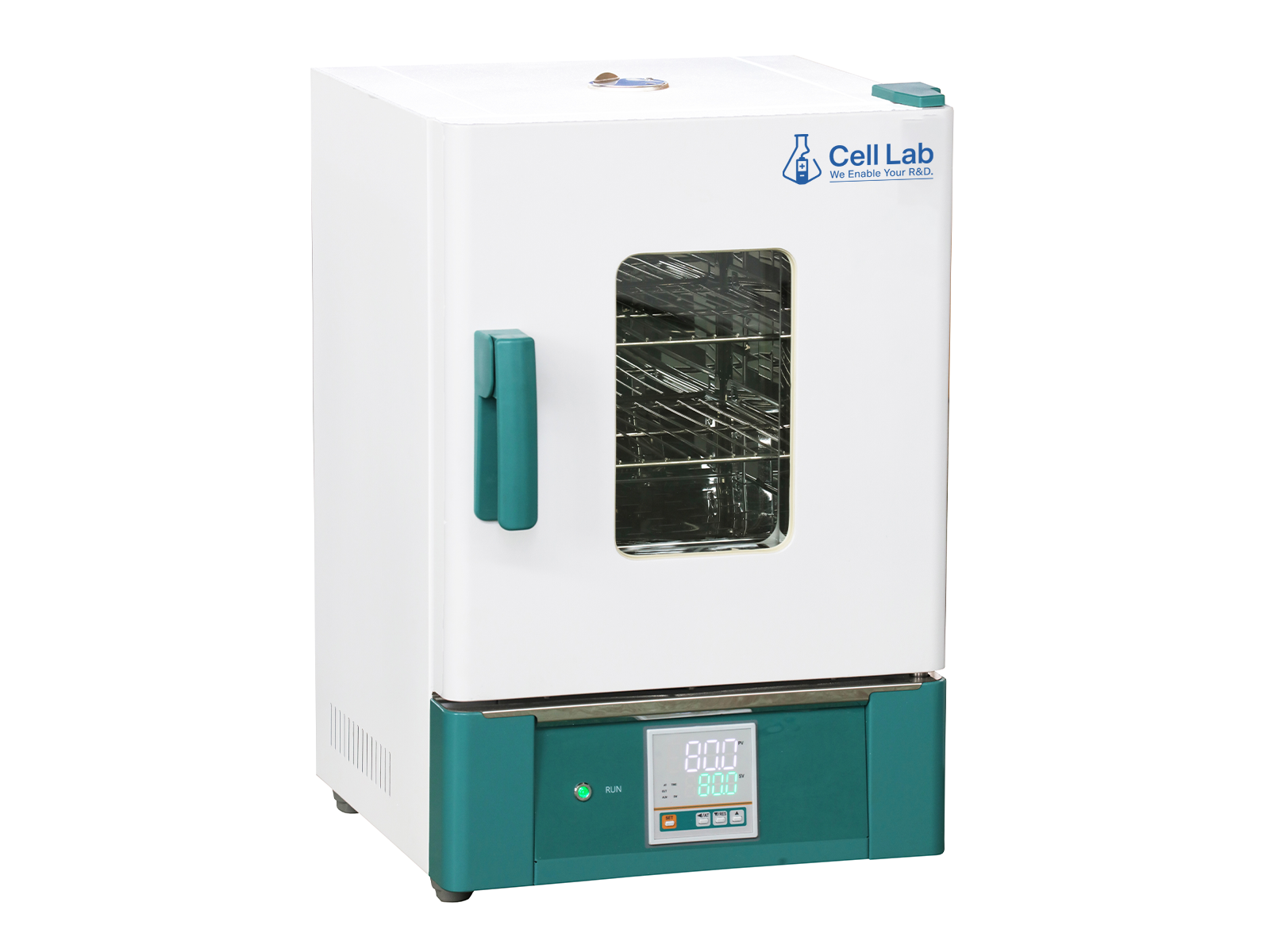

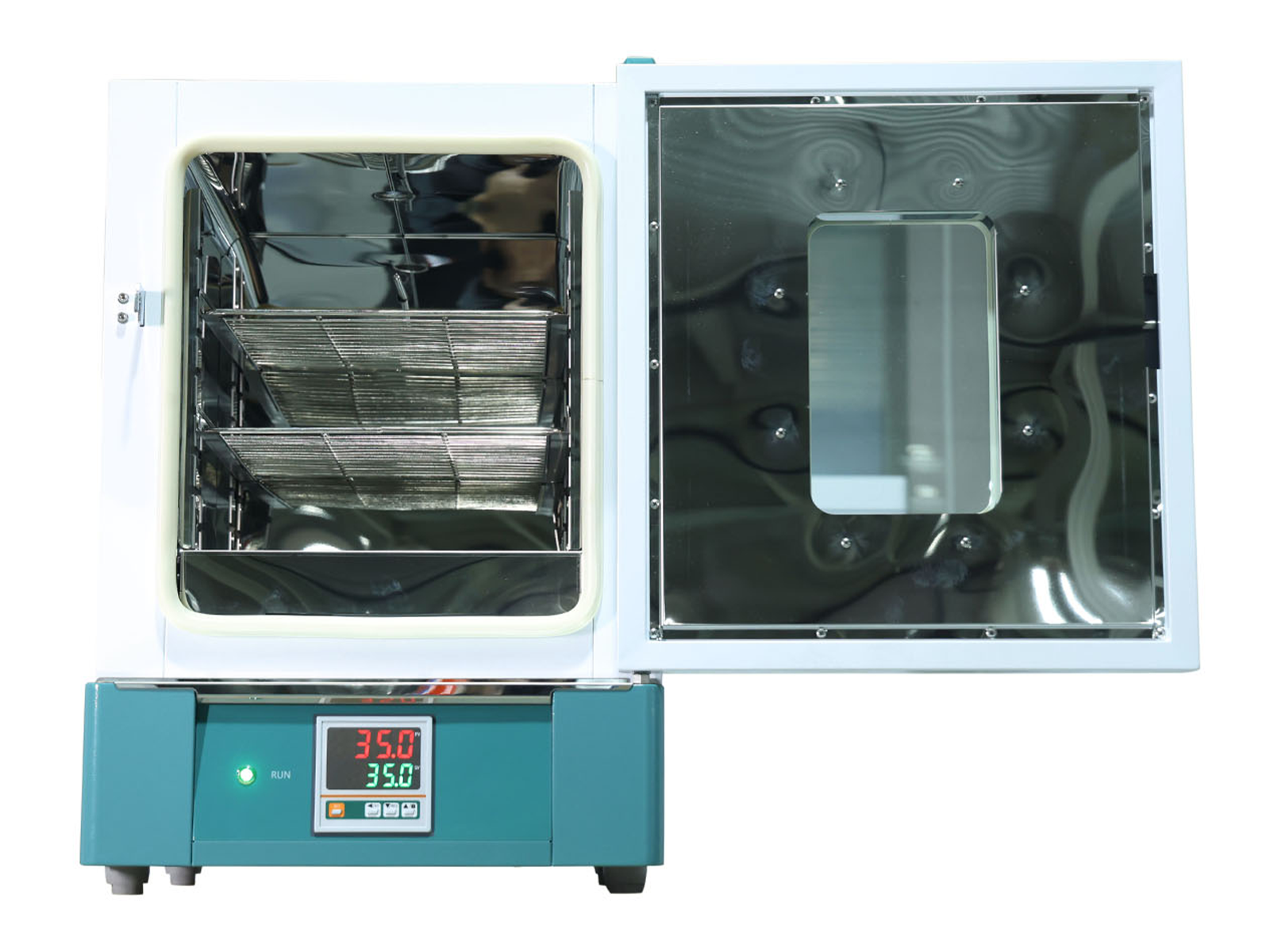

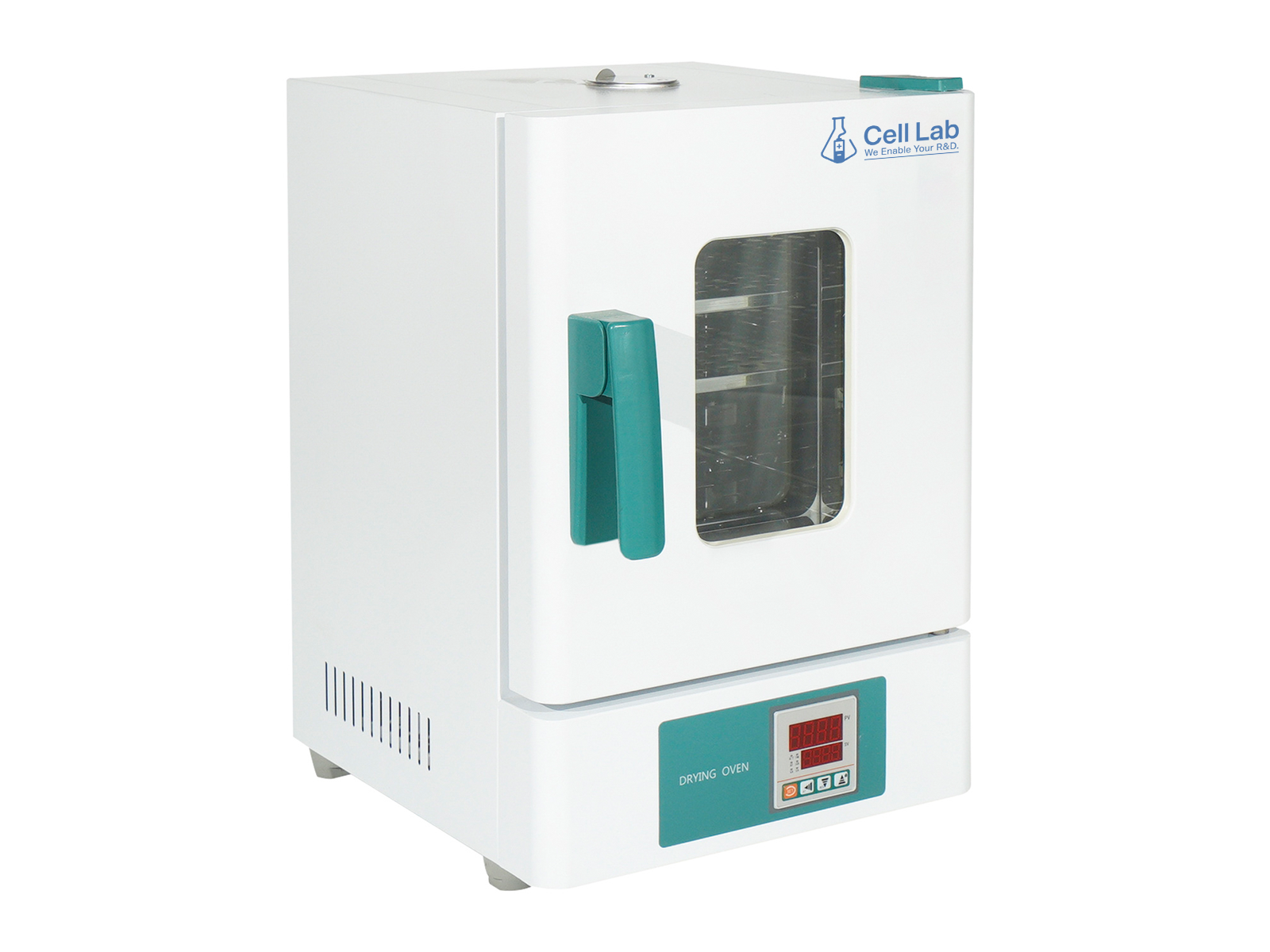

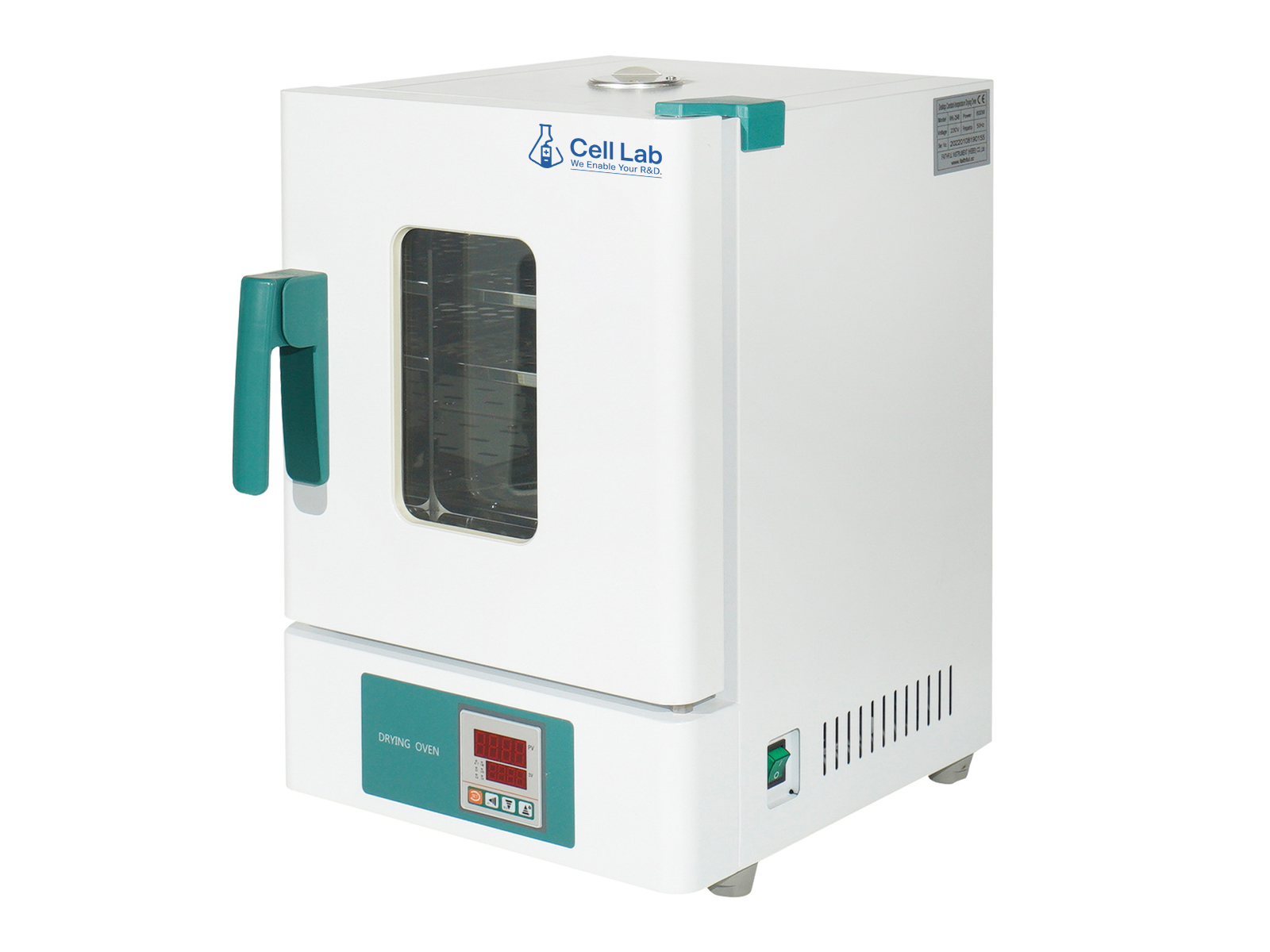

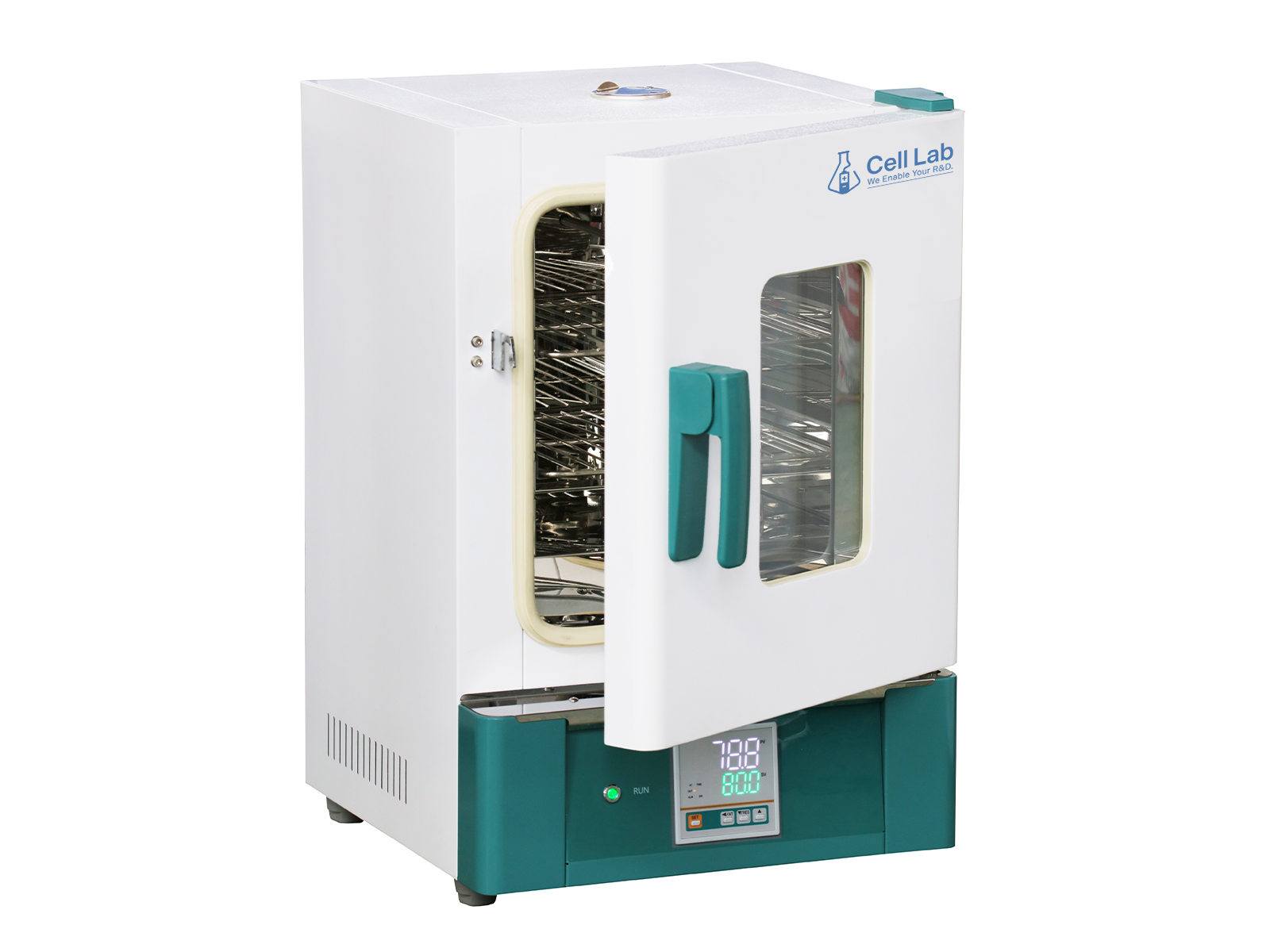

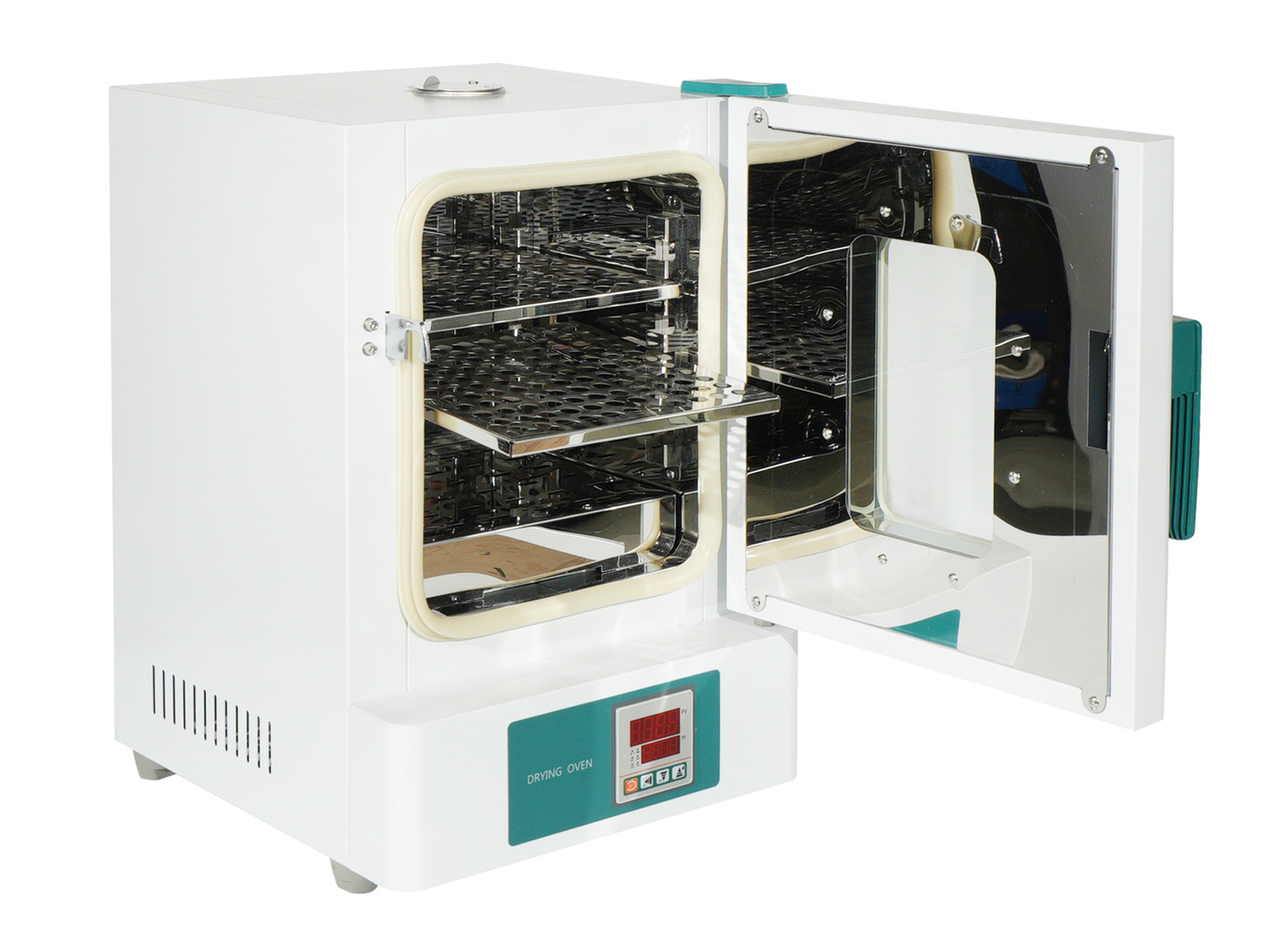

Cell Lab Constant-Temperature Laboratory Drying Oven, Lab Drying Oven & Incubator [PID Control | Natural Convection | 18 L]

Compact convection systems for precise thermal drying and biological incubation

The Cell Lab Constant-Temperature Drying Oven & Incubator series combines reliability, energy efficiency, and precise temperature regulation in a compact benchtop design. Featuring natural air convection and intelligent PID control, this dual-function system offers both high-temperature drying (Model DO0040) and low-temperature incubation (Model IB0001). Ideal for laboratories in research, healthcare, and industrial testing, it delivers stable and uniform heating for a wide range of applications.

Key Features

• Dual-Purpose Design for Drying & Incubation
Model DO0040 supports temperatures up to 300 °C for drying, sterilising, and thermal testing, while Model IB0001 maintains gentle heating up to 65 °C for microbial and enzymatic incubation. Both employ natural convection to ensure quiet, even heat distribution.

• Intelligent PID Temperature Control
Equipped with a microprocessor-based PID system, maintaining precision within ± 1 °C (oven) and ± 0.5 °C (incubator). Dual-row LED display simultaneously shows real-time and setpoint values. Built-in self-tuning, sensor deviation correction, and power-off memory guarantee long-term stability.

• Compact & Safe Benchtop Design
Features a cool-touch anti-scald handle, 9999-minute programmable timer with wait mode, and over-temperature alarm with both sound and light indicators. Perfect for daily laboratory use and safe continuous operation.

• Robust Thermal Structure
Inner chamber available in mirror-finished stainless steel (B model) or high-strength galvanised steel. The exterior shell is powder-coated cold-rolled steel with CE-compliant rock-wool insulation, ensuring exceptional heat retention and user protection.

• Flexible Shelving & Access Port
Two adjustable shelves (load 15 kg each) with six available positions and 29 mm spacing. A top-mounted Φ 35 mm port functions as both exhaust vent and sensor access for testing and gas release.

Specifications:


Model

DO0040

IB0001

Cycle Mode

Natural convection

Function

Temp. Range

RT+10-300℃

RT+5-65℃

Temp. Resolution Ratio

0.1℃

Temp. Motion

±1℃

±0.5℃

Temp. Uniformity

±3.5%

±2.0℃

Structure

Inner Chamber

B model: mirror stainless steel; without B model: High strength galvanized sheet

Outer Shell

cold rolling steel electrostatic spraying exterior

Insulation layer

High quality rock wool board(with CE)

Heater

Nickel chromium alloy heating wire

Power rating

0.6kW

0.18kW

Exhaust hole

Φ35mm top (with function of test hole)

Controller

Temp. control mode

Two temperature section intelligent PID

Temp. set mode

Touch button setting

Temp. display mode

Measuring temperature: display on the four digital

 tubes upper row ；

setting temperature: display on the lower row

Timer

0-9999min(with timing wait function)

Operation function

fixed temperature operation, timing function, auto stop

Additional function

Sensor deviation correction, temperature overshoot

 self-tuning, internal

parameter locking, power-off parameter memory

Sensor

PT100

Safety device

over temperature sound-light alarm

Specification

Inner Chamber size(W*L*H)(mm)

260*260*260

Exterior size (W*L*H)(mm)

380*455*568

Packing size (W*L*H)(mm)

515*480*640

Volume

18L

Shelf number

6

Load per rack

15kg

Shelf space

29mm

(50/60HZ)Current rating

AC220V/2.7A

AC220V/0.8A

NW/GW (kg）

27/35

Accessory

Shelf

2

optional accessories

Shelf

Applications & Industries

  • Microbial and biochemical incubation

  • Thermal drying and sterilisation testing

  • Material and coating pre-heating experiments

  • Pharmaceutical and food-safety research

  • General laboratory temperature conditioning

FAQ

Q1: Can one unit serve both drying and incubation purposes?
A1: Yes — choose DO0040 for high-temperature drying and IB0001 for low-temperature incubation; both share identical build quality.

Q2: Does the chamber maintain uniform heating without a fan?
A2: Natural convection and nickel-chromium heating ensure even, stable temperature distribution with zero airflow disturbance.

Q3: Are the models CE-compliant for safety?
A3: Yes, both models use CE-approved insulation and over-temperature alarm protection.

Q4: Can I install an external sensor or sampling tube?
A4: A Φ 35 mm top port is included for probe or gas line access.

Q5: What maintenance does the system require?
A5: Only periodic surface cleaning and calibration verification — no internal fan or moving parts reduce servicing needs.
