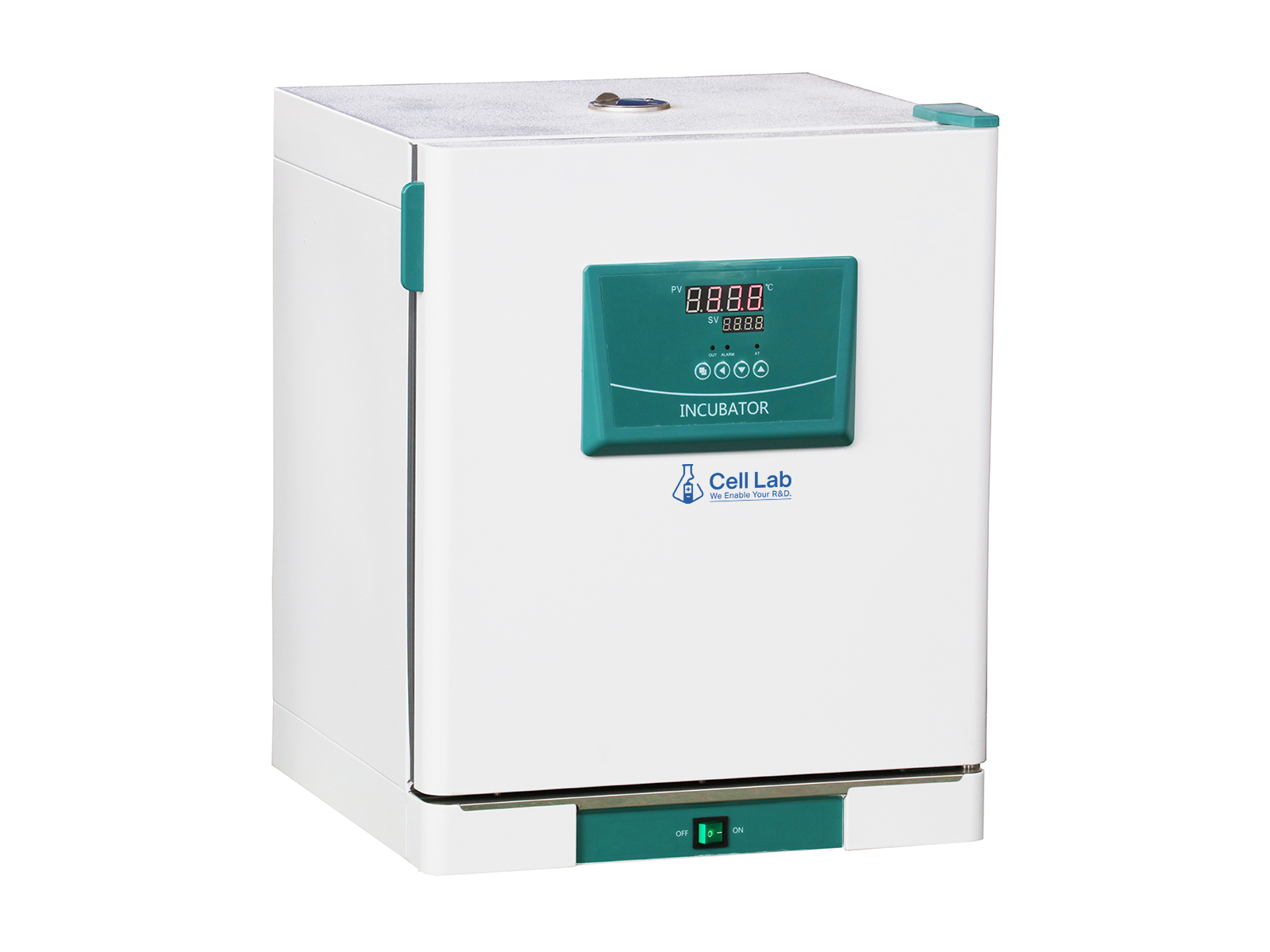

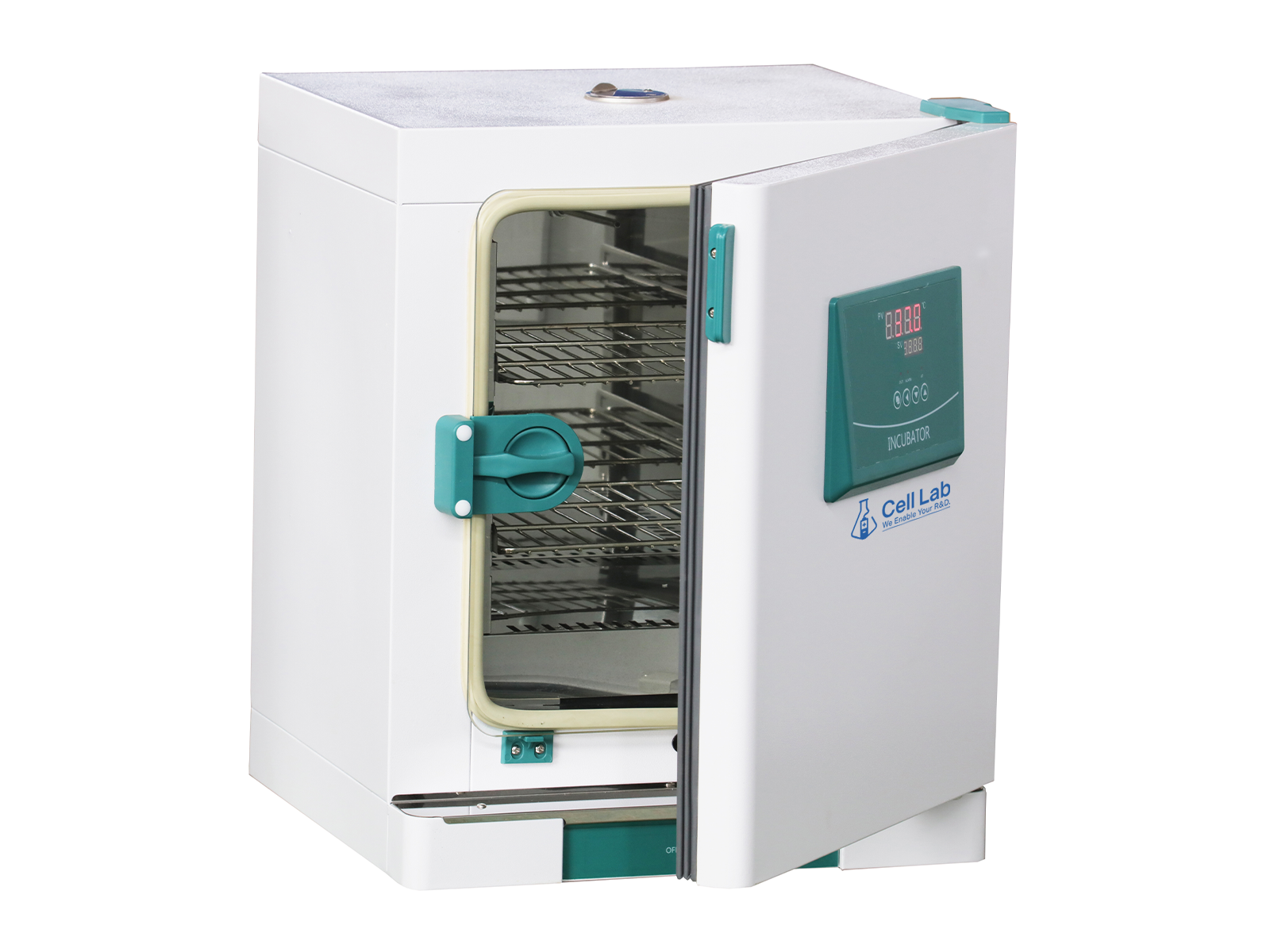

Cell Lab Compact natural-convection incubator with PID digital control (45–210 L) for microbial and bacterial culturing. Features mirror stainless steel chamber, ± 0.5 °C precision, and energy-efficient design for stable laboratory incubation.
Cell Lab Compact natural-convection incubator with PID digital control (45–210 L) for microbial and bacterial culturing. Features mirror stainless steel chamber, ± 0.5 °C precision, and energy-efficient design for stable laboratory incubation.
Cell Lab Compact natural-convection incubator with PID digital control (45–210 L) for microbial and bacterial culturing. Features mirror stainless steel chamber, ± 0.5 °C precision, and energy-efficient design for stable laboratory incubation.
Cell Lab Compact natural-convection incubator with PID digital control (45–210 L) for microbial and bacterial culturing. Features mirror stainless steel chamber, ± 0.5 °C precision, and energy-efficient design for stable laboratory incubation.

Cell Lab Constant-Temperature Incubator [PID Control | Natural Convection | 45–210 L]

Cell Lab Constant-Temperature Incubator [PID Control | Natural Convection | 45–210 L] Classical laboratory incubator for reliable microbial and bacterial culture The Cell Lab Constant-Temperature Incubator provides a stable, precisely regulated thermal environment ideal for microbial, bacterial, and biochemical culture....
Vendor: Cell Lab
SKU: IB0002
Product type: Incubator
£419.00
£419.00
Type: 45L
Subtotal: £419.00
Description
Description
x

Cell Lab Constant-Temperature Incubator [PID Control | Natural Convection | 45–210 L]

Classical laboratory incubator for reliable microbial and bacterial culture

The Cell Lab Constant-Temperature Incubator provides a stable, precisely regulated thermal environment ideal for microbial, bacterial, and biochemical culture. Designed with natural air convection and PID digital temperature control, it ensures uniform conditions from RT + 5 °C to 70 °C, maintaining consistency across small and large sample volumes.

Key Features

• PID Intelligent Temperature Control
High-precision PID microprocessor maintains resolution at 0.1 °C, accuracy ± 0.5 °C, and uniformity ± 1.5 °C. Dual-row LED display shows both real-time and setpoint values. Integrated timer (0 – 9999 min) includes wait and auto-stop functions for unattended operation.

• Ergonomic Design & User Safety
The 5°-angled front control panel improves readability, while the inner glass door adopts a secure knob design for easy access. Outer magnetic door sealing ensures energy efficiency and automatic power cut-off upon opening.

• Durable Dual-Chamber Options
Available in mirror-finished stainless steel (B-type) or galvanised-steel (G-type) chambers. The body uses cold-rolled steel with anti-corrosion electrostatic coating and high-density polyurethane insulation for reliable heat retention.

• Energy-Efficient Mica Heating System
Advanced mica electrothermal-film heaters deliver uniform, low-consumption heating throughout the chamber, supporting long-term stable operation without hot spots or overshoot.

• Multiple Capacities & Modular Shelving
Offered in 45 L, 65 L, 125 L and 210 L volumes. Each model includes two shelves (adjustable 35 mm spacing, 15 kg load each). The top Φ35 mm exhaust port doubles as a test hole for sensor probes or sampling lines.

Specifications:


 Model

IB0002

IB0003

IB0004

IB0005

IB0002B

IB0003B

IB0004B

IB0005B

 Cycle Mode

Natural convection


Function

Temp. Range

RT+5-70℃

Temp. Resolution Ratio

0.1℃

Temp. Motion

±0.5℃

Temp. Uniformity

±1.5℃


Structure

Inner Chamber

B :mirror stainless steel; without B :High strength galvanized sheet

Outer Shell

 Cold rolling steel electrostatic spraying exterior

Insulation layer

High quality foam board

Heater

Mica electrothermal film

Power Rating

0.35kW

0.45kW

0.6kW

0.7kW

Exhaust hole

Φ35mm top with function of test hole


Controller

Temp. control mode

  PID Intelligent

Temp. setting mode

Touch button setting

Temp. display mode

 Measuring temperature:  LED upper row; setting temperature: the lower row

Timer

0-9999min (with timing wait function)

Operation function

 Fixed temperature operation, timing function,auto stop.

Additional function

 Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory

Sensor

PT100

Safety device

 Over temperature sound-light alarm

Specification

Inner Chamber size(W*L*H)(mm)

350*350*350

400*350*450

500*450*550

 600*580*600

Exterior size (W*L*H)(mm)

525*480*620

575*480*720

675*580*820

775*710*870

Packing size (W*L*H)(mm)

595*562*795

645*562*885

745*662*990

845*792*1040

Volume

45L

65L

125L

210L

Shelf number

7

10

 13

14

Load per rack

15kg

Shelf space

35mm

Current rating

AC220V/1.1A

AC220V/1.1A

AC220V/2.3A

AC220V/2.7A

NW/GW (kg）

27/40

32/45

45/60

55/70


Accessory

Shelf

2

optional accessories

Shelf

Applications & Industries

  • Microbial, bacterial, and yeast cultivation

  • Food and environmental sample incubation

  • Biochemical and enzyme reaction studies

  • General laboratory thermal stabilisation tests

  • Academic and quality-control laboratories

FAQ

Q1: What is the difference between the B-type and non-B models?
A1: B-type chambers use mirror-finished stainless steel for enhanced corrosion resistance and hygiene, while non-B models use galvanised steel for general laboratory use.

Q2: How does natural convection benefit microbial incubation?
A2: It ensures stable air circulation without forced airflow, preventing sample drying and maintaining uniform heat.

Q3: Can I run it continuously for long-term incubation?
A3: Yes, the incubator supports continuous operation with overshoot protection and automatic temperature compensation.

Q4: What safety mechanisms are included?
A4: Over-temperature alarm, power-off memory, and parameter lock prevent accidental temperature drift or data loss.

Q5: Is there a built-in test hole for sensors?
A5: Yes, a Φ 35 mm top exhaust hole can serve as a sampling or sensor port.
