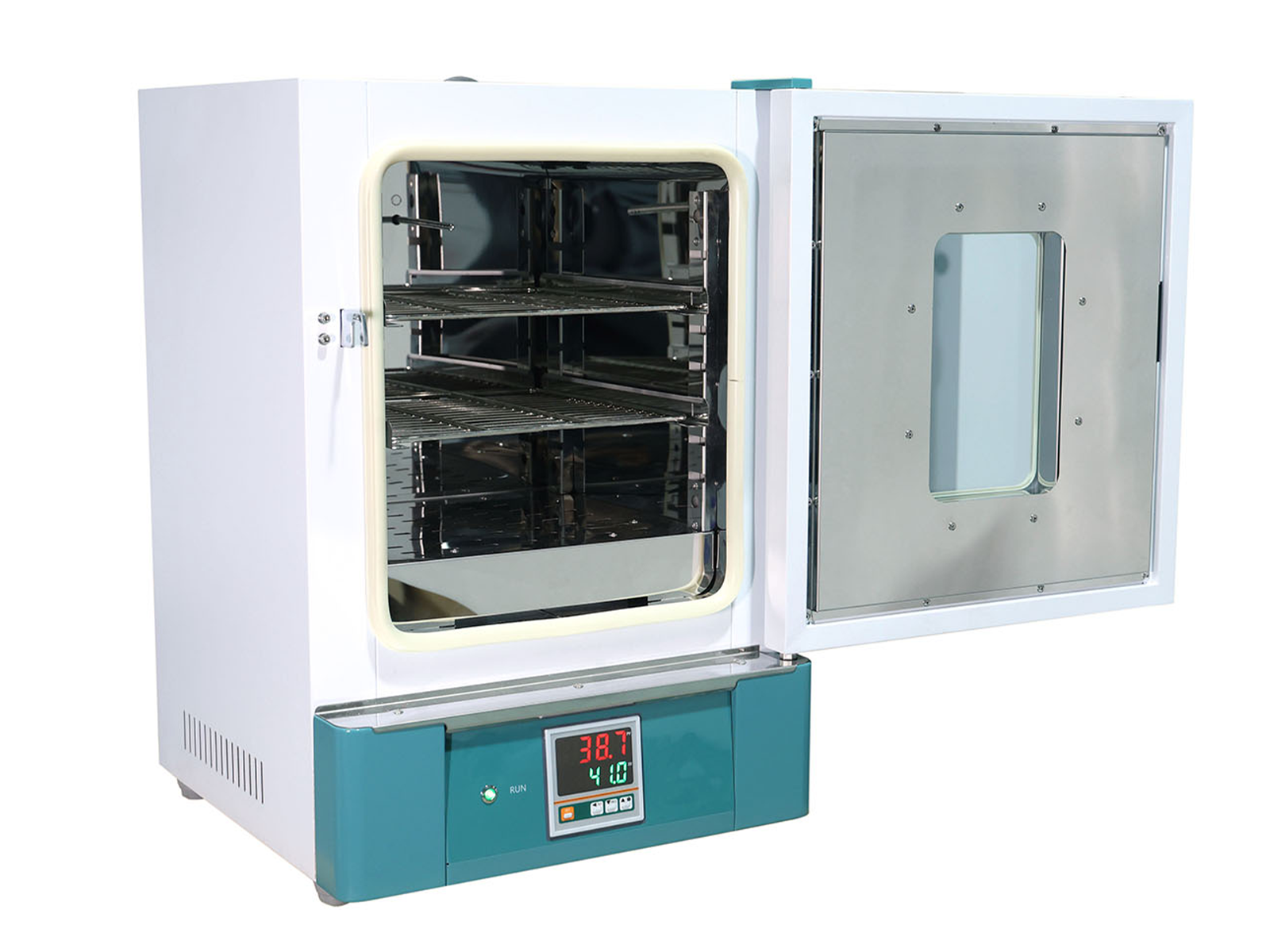

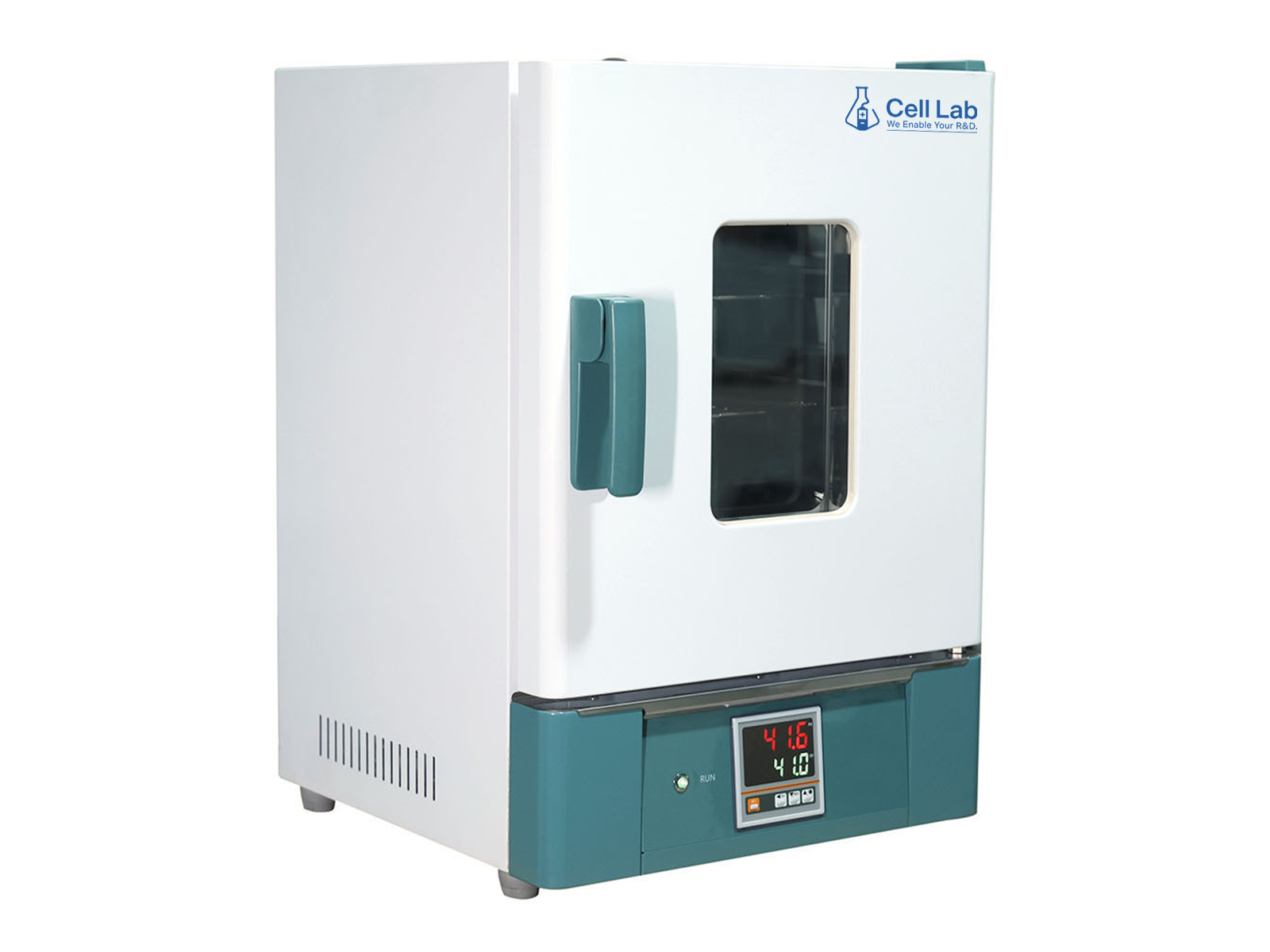

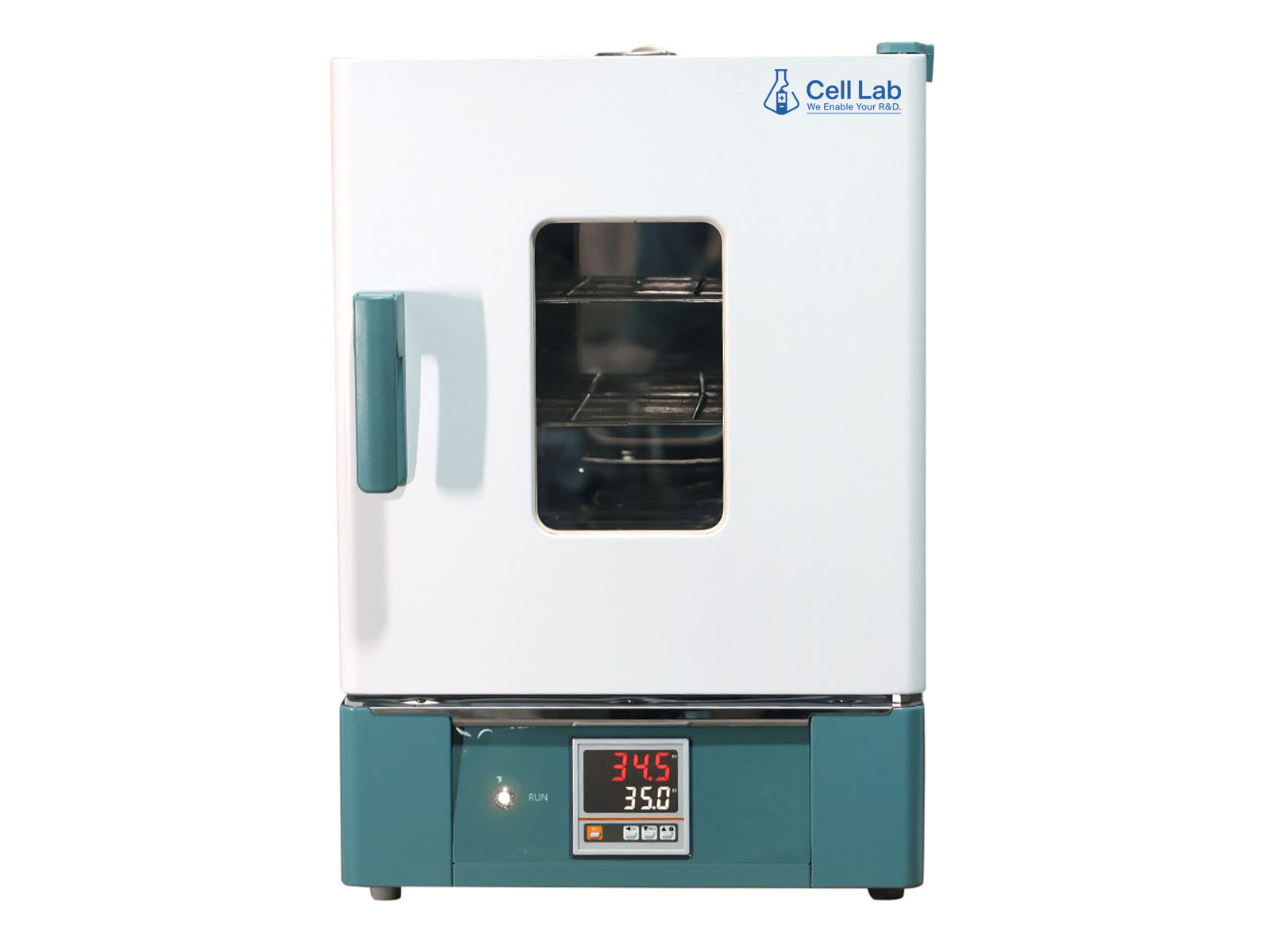

Cell Lab Constant-Temperature Drying Oven [Natural Convection | PID Control | 30–125 L]

Cell Lab Constant-Temperature Drying Oven [Natural Convection | PID Control | 30–125 L] Stable and precise drying performance for everyday laboratory applications The Cell Lab™ Constant-Temperature Drying Oven delivers quiet, reliable, and low-disturbance natural convection heating for routine drying, baking,...
Vendor: Cell Lab
SKU: DO0009A
Product type: Drying Oven
£479.00
£479.00
Volume: 30L (A model)
Subtotal: £479.00
Description
Description
x

Cell Lab Constant-Temperature Drying Oven [Natural Convection | PID Control | 30–125 L]

Stable and precise drying performance for everyday laboratory applications

The Cell Lab™ Constant-Temperature Drying Oven delivers quiet, reliable, and low-disturbance natural convection heating for routine drying, baking, and heat-treatment tasks. Designed with two-stage PID intelligent control and durable insulation, it ensures precise temperature uniformity and long-term operational safety in research, medical, and industrial laboratories.

Key Features

• Natural Convection System
Employs natural air circulation to maintain gentle, stable airflow, preventing particle disturbance while ensuring even heat distribution throughout the chamber.

• Accurate PID Temperature Control
Features a two-section PID controller with RT + 10 °C to 300 °C range, 0.1 °C resolution, and ± 1 °C accuracy, providing consistent thermal performance for reproducible results.

• High Temperature Uniformity
Uniformity within ± 3.5 % guarantees reliable outcomes during repeated drying or heat-curing processes.

• Robust Construction & Thermal Efficiency
Mirror-finished SUS304 stainless-steel inner chamber, cold-rolled electrostatic-coated outer shell, and CE-certified rock-wool insulation ensure excellent durability and energy efficiency.

• Smart Safety and Ease of Use
LED or LCD digital display with intuitive touch-button control. Built-in sound-light over-temperature alarm and independent safety limiter (B type) provide secure, continuous operation.

Technical Parameters:


Model

DO0009A

DO0010A

DO0011A

DO0012A

DO0013A

DO0009B

DO0010B

DO0011B

DO0012B

DO0013B

Cycle Mode

Natural convection

Function

Temp. Range

RT+10-300℃

Temp. Resolution Ratio

0.1℃

Temp. Motion

±1℃

Temp. Uniformity

±3.5%


Structure

Inner Chamber

Mirror Stainless Steel

Outer Shell

Cold rolling steel electrostatic spraying exterior

Insulation layer

High quality rock wool board(with CE)

Heater

Nickel chromium alloy heating wire

Power rating

0.8kW

1.2kW

1.6kW

2.0kW

2.5kW

Exhaust hole

Φ35mmtop(with function of test hole)


Controller

Temp. control mode

Two temperature section PID intelligent

Temp. setting mode

Touch button setting

Temp. display mode

A model: display on LED

B model: display on upper LCD

Timer

0-9999min(with timing wait function)

Operation function

Fixed temperature operation, timing function, auto stop.

Additional function

A model: Sensor deviation correction, temperature overshoot
self-tuning, internal parameter locking, power-off parameter
memory

B model: High precision digital independent temperature limiter,
sensor deviation correction, temperature overshoot
self-tuning, internal parameter locking, power-off
parameter memory

Sensor

PT100



Safety Device

A type: Over temperature sound-light alarm;

B type: Digital Independent Temp. limiter, Over temperature sound-light alarm.


Specification

Inner Chamber size(W*L*H)(mm)

310*310*310

350*350*350

400*360*450

450*420*450

500*450*550

Exterior size (W*L*H)(mm)

460*510*695

500*550*735

550*550*840

590*610*830

636*680*915

Packing size (W*L*H)(mm)

550*575*855

590*615*885

640*625*995

680*685*1000

710*730*1100

Volume

30L

45L

65L

85L

125L

Shelf number

5

6

8

8

11

Load per rack

15kg

Shelf space

40mm

(50/60HZ) Current rating

AC220V

AC220V

AC220V

AC220V

AC220V

NW/GW (kg）

33/37

37/43

44/49

50/60

60/66


Accessory

Shelf

2

Shelf frame

4

 optional accessories

A model: Spare Shelf;

B model: Spare Shelf, RS485 Interface, Printer,
Program controller, U-disk storage; SUSS304 body, 3.5-inch color touch screen tmperature controller.

Applications & Industries

  • General sample drying and baking operations

  • Material and component stability testing

  • Pharmaceutical and chemical processing

  • Industrial laboratories and educational facilities

  • Glassware and equipment pre-heating

FAQ

Q1: What’s the advantage of natural convection?
A1: It provides gentle, uniform heating without airflow disturbance—ideal for materials sensitive to forced air.

Q2: How accurate is temperature control?
A2: The two-stage PID system maintains ± 1 °C accuracy and ± 3.5 % uniformity.

Q3: What distinguishes the A and B models?
A3: The A type uses LED display and standard PID control; the B type adds LCD interface and an independent temperature limiter.

Q4: Is the oven suitable for continuous operation?
A4: Yes — it features CE-certified insulation and built-in over-temperature protection for long-term stability.

Q5: Can it be connected to external data systems?
A5: Yes, the B model supports RS485 and USB data interfaces for monitoring and logging.
