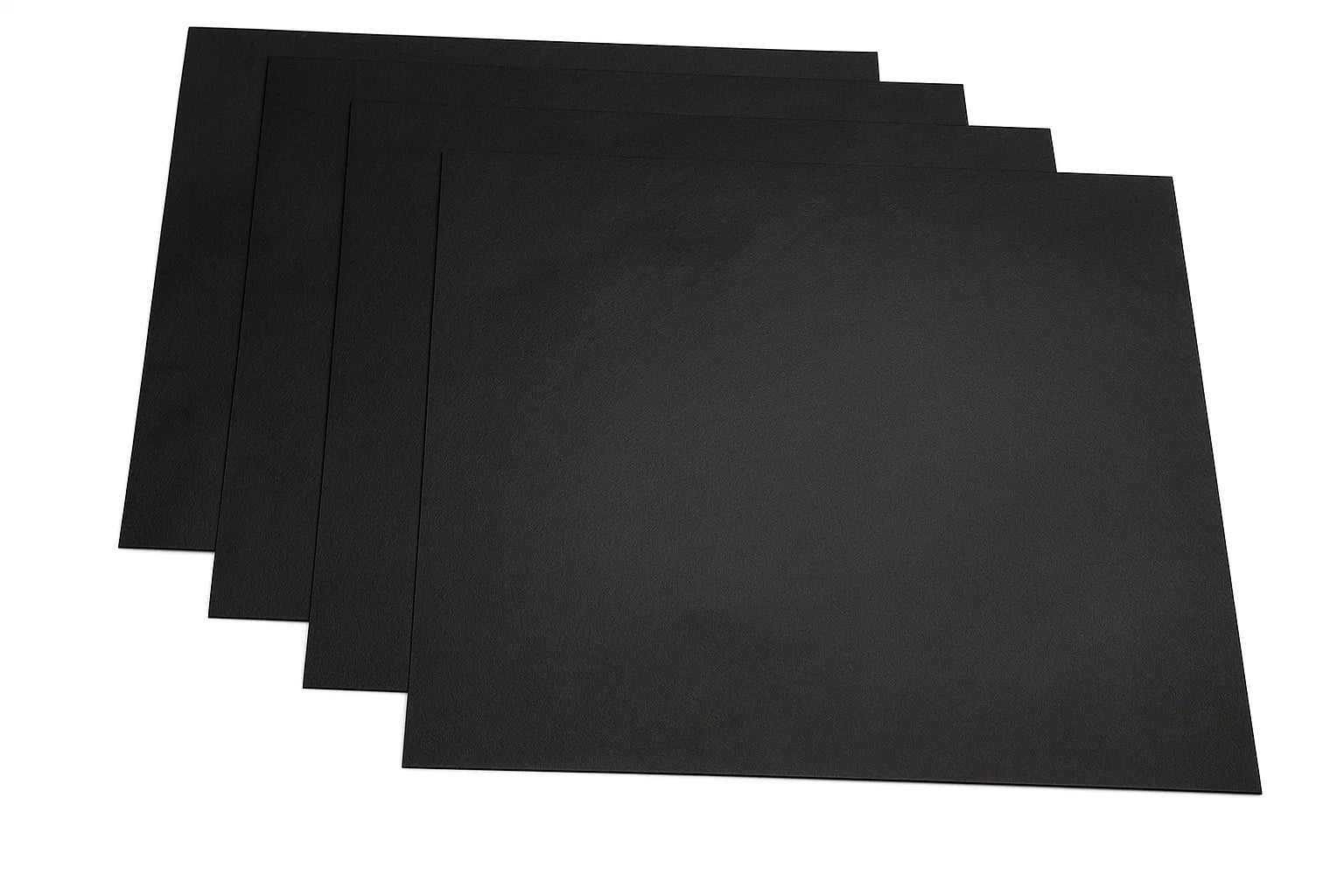

Cell Lab conductive carbon paper (200 × 200 × 0.19 mm) – high-conductivity graphite substrate for batteries, fuel cells, and supercapacitors. Flexible, porous, thermally stable, and ideal for electrochemical R&D.
Cell Lab conductive carbon paper (200 × 200 × 0.19 mm) – high-conductivity graphite substrate for batteries, fuel cells, and supercapacitors. Flexible, porous, thermally stable, and ideal for electrochemical R&D.

Cell Lab Conductive Carbon Paper [200 × 200 × 0.19 mm, for Energy & Electrochemical Research] – Flexible Graphite Substrate

Cell Lab Conductive Carbon Paper [200 × 200 × 0.19 mm, for Energy & Electrochemical Research] – Flexible Graphite Substrate for Battery, Fuel Cell & Supercapacitor Applications High-conductivity graphite-based substrate for advanced electrochemical and thermal energy research The Cell Lab...
Vendor: Cell Lab
SKU: CL0145
Product type: Battery Consumables
£99.00
£99.00
Subtotal: £99.00
Description
Description
x

Cell Lab Conductive Carbon Paper [200 × 200 × 0.19 mm, for Energy & Electrochemical Research] – Flexible Graphite Substrate for Battery, Fuel Cell & Supercapacitor Applications

High-conductivity graphite-based substrate for advanced electrochemical and thermal energy research

The Cell Lab Conductive Carbon Paper is a lightweight, flexible, and highly conductive graphite substrate designed for a wide range of electrochemical applications, including batteries, fuel cells, supercapacitors, and catalytic systems. Manufactured from high-purity graphite fibres, it offers excellent electrical conductivity, high porosity (78%), and outstanding mechanical and thermal stability.

This carbon paper ensures uniform current distribution and efficient gas/electrolyte transport, making it ideal for electrode fabrication, catalyst support, and electrochemical characterisation. With its thin, durable structure (0.19 mm) and customisable sizing, it is well suited for both academic and industrial R&D across energy conversion, flexible electronics, and environmental systems.

Key Features

Versatile Electrochemical Substrate
Suitable for use in lithium-ion batteries, fuel cells, supercapacitors, and water-splitting or catalytic systems.

High Electrical Conductivity
Low in-plane resistivity of 5.8 mΩ/cm and through-plane resistivity of 80 mΩ/cm enable efficient current flow.

Flexible & Mechanically Robust
At only 0.19 mm thick, the paper is durable yet flexible for integration in multi-layered or bendable devices.

Excellent Thermal Conductivity
Graphite network provides 21 W/(m·K) in-plane and 1.7 W/(m·K) through-plane thermal conductivity at room temperature.

Customisable Dimensions
Standard sheet size 200 × 200 mm; custom thickness or geometry available upon request for specialised R&D use.

Technical Specifications

Parameter Value
Size 200 × 200 mm (customisable)
Thickness 0.19 mm
In-Plane Resistivity 5.8 mΩ/cm
Through-Plane Resistivity 80 mΩ/cm
In-Plane Thermal Conductivity (R.T.) 21 W/(m·K)
Through-Plane Thermal Conductivity (R.T.) 1.7 W/(m·K)
Porosity 78%
Volume Density 0.44 g/cm³

Applications & Industries

  • Lithium-ion and sodium-ion battery electrodes

  • Proton exchange membrane (PEM) fuel cells and microbial fuel cells

  • Supercapacitor current collector or electrode base

  • Electrocatalysis, water splitting, and CO₂ reduction research

  • Flexible electronics and heat management materials

FAQ

Q1: Is this carbon paper suitable for high-temperature use?
Yes. It maintains structural integrity and conductivity up to 400 °C in inert atmospheres.

Q2: Can it be used as a current collector?
Yes. It serves effectively as a conductive substrate or current collector for electrodes and catalysts.

Q3: How can it be cut or shaped?
It can be trimmed easily with precision cutters or scissors for custom electrode geometries.

Q4: Does it require surface treatment before coating catalysts?
Optional plasma or acid activation can be applied to improve wettability and catalyst adhesion.

Q5: Are different porosities or thicknesses available?
Yes. Cell Lab offers multiple grades (0.1–0.5 mm) and porosities for specific research needs.
