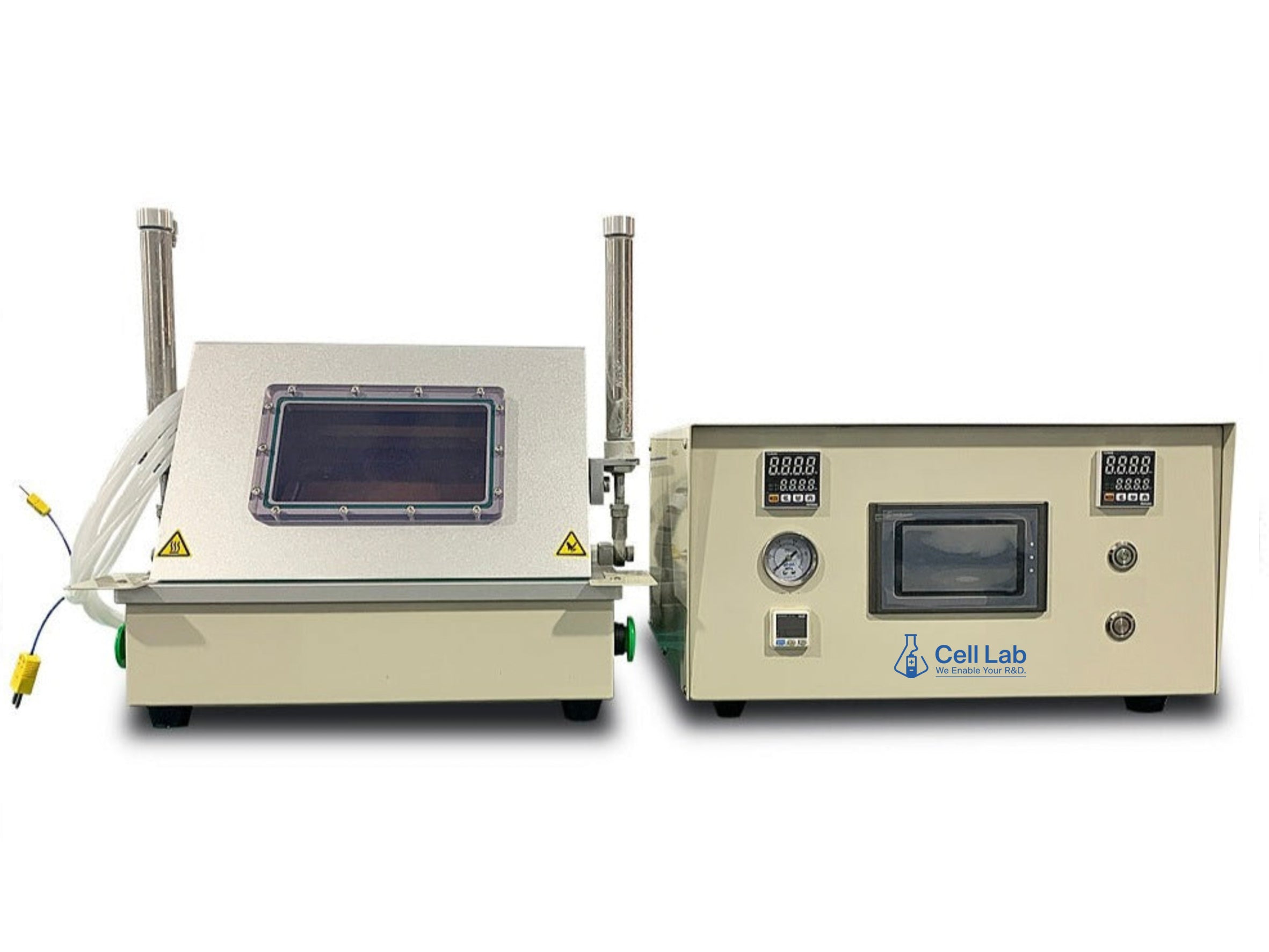

Cell Lab compact vacuum sealer for aluminium pouch cells (200 mm) offers precise edge sealing under vacuum, glovebox compatibility, and adjustable temperature and pressure for lithium battery R&D applications.
Cell Lab compact vacuum sealer for aluminium pouch cells (200 mm) offers precise edge sealing under vacuum, glovebox compatibility, and adjustable temperature and pressure for lithium battery R&D applications.

Cell Lab Compact Vacuum Sealer [200 mm | Glovebox-Compatible | Pouch Cell Edge Sealing Machine]

Cell Lab Compact Vacuum Sealer [200 mm | Glovebox-Compatible | Pouch Cell Edge Sealing Machine] High-precision vacuum sealer for aluminium-laminated pouch cells in battery R&D and prototyping The Cell Lab Compact Vacuum Sealer is engineered for pre-sealing aluminium-laminated pouch cell...
Vendor: Cell Lab
SKU: CL0111
Product type: Battery Equipment
£6,390.00
£6,390.00
Subtotal: £6,390.00
Description
Description
x

Cell Lab Compact Vacuum Sealer [200 mm | Glovebox-Compatible | Pouch Cell Edge Sealing Machine]

High-precision vacuum sealer for aluminium-laminated pouch cells in battery R&D and prototyping

The Cell Lab Compact Vacuum Sealer is engineered for pre-sealing aluminium-laminated pouch cell cases following electrolyte injection or formation. Its compact, glovebox-compatible design makes it ideal for laboratory use in lithium-ion and lithium-polymer battery development.
Equipped with precise temperature, pressure, and timing control, the unit provides reliable vacuum sealing performance with a hard sealing blade—perfect for edge sealing applications. It ensures uniform sealing quality under controlled vacuum conditions, improving pouch integrity and long-term cell stability.

Key Features

  • Glovebox-Compatible Design: Compact dimensions allow easy transfer through glovebox load ports for inert-environment operation.

  • Vacuum Pre-Sealing Function: Ensures gas-free, airtight pouch encapsulation after electrolyte injection or formation cycles.

  • Precision Process Control: Adjustable temperature (up to 250 °C), pressure, and sealing duration for consistent, repeatable results.

  • Hard Blade Sealing System: Designed specifically for aluminium pouch edge sealing; not suitable for tabbed or top sealing applications.

  • Upgradeable Performance: Optional external vacuum pump available for enhanced vacuum level and process efficiency.

Technical Specifications

Parameter Specification
Maximum Sealing Length 200 mm
Edge Sealing Width 5 mm (customisable)
Vacuum Level -95 kPa max (vacuum pump sold separately)
Sealing Blade Type Hard blade (no rubber; not suitable for tab/top seal)
Heating Temperature Room temperature to 250 °C
Temperature Accuracy ±1.5 °C
Sealing Pressure 0 – 7 kg/cm² adjustable
Heating Time 0 – 99 seconds adjustable
Voltage 220V / 50Hz
Power 600 W
Dimensions (L × W × H) 470 × 430 × 480 mm
Net Weight 50 kg

Note: Vacuum pump not included (available separately). Periodically check for oil leakage when operating inside gloveboxes.

Applications & Industries

  • Pouch cell electrolyte pre-sealing and encapsulation

  • Lithium-ion and lithium-polymer battery R&D

  • Pilot-scale pouch cell assembly and formation processes

  • Vacuum-assisted electrolyte soaking and sealing operations

  • Edge-sealing process verification and laboratory testing

FAQ

Q1: What type of sealing does this unit support?
It is designed for edge sealing of aluminium-laminated pouches and is not suitable for tabbed or top sealing applications.

Q2: Can it be used inside a glovebox?
Yes. Its compact design and sealed electronics make it suitable for glovebox installation.

Q3: Is the vacuum pump included?
No. It must be purchased separately; Cell Lab offers compatible pumps upon request.

Q4: How accurate is temperature control?
Temperature precision is maintained within ±1.5 °C, ensuring repeatable sealing performance.

Q5: What maintenance is required inside a glovebox?
Regularly inspect for oil leakage and clean sealing blades to maintain airtight integrity.
