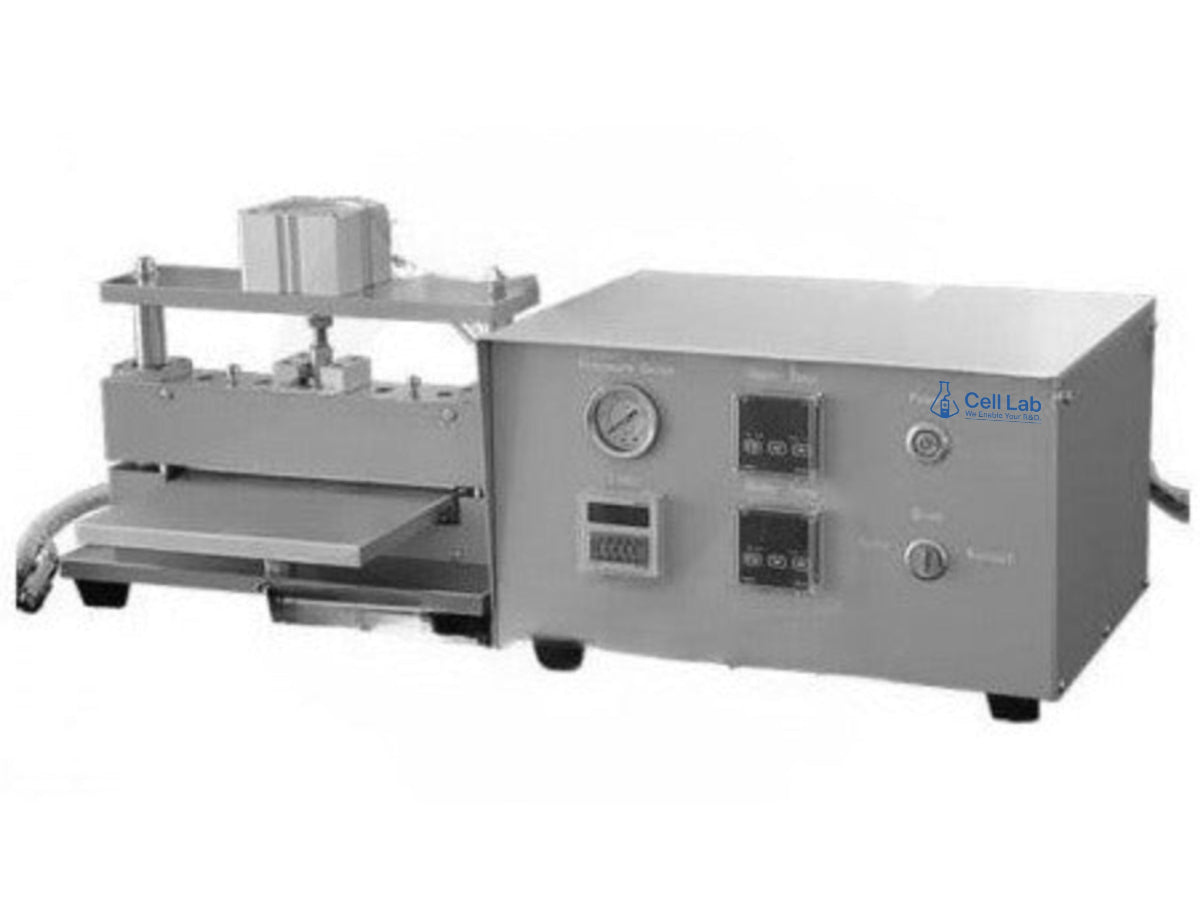

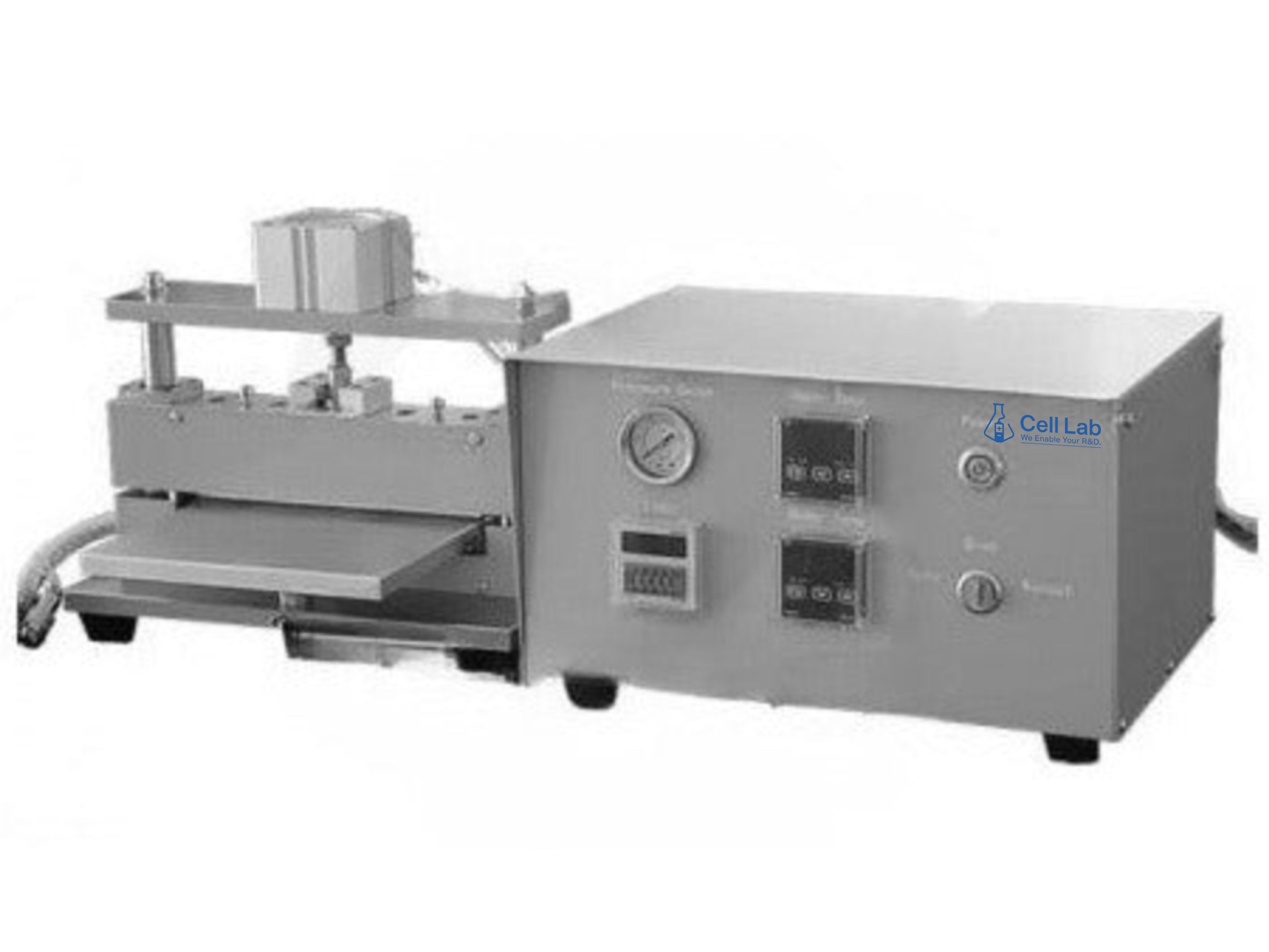

Cell Lab Compact Pouch Cell Sealing Machine [Top & Side Heat Sealer | Glovebox-Compatible | Aluminium-Laminated Pouch Sealing]

Precision dual-mode heat sealer for laboratory-scale pouch cell fabrication and research

The Cell Lab Compact Pouch Cell Sealing Machine is a high-precision sealing system designed for top and side sealing of aluminium-laminated pouch cell cases in lithium-ion and solid-state battery research. Featuring a glovebox-compatible compact body and a separate control unit, it enables safe operation within inert atmospheres. Equipped with a soft sealing blade and finely adjustable process controls, it ensures clean, uniform, and damage-free seals for advanced pouch cell R&D and pilot-scale production.

Key Features

  • Glovebox-Compatible Design: Compact split-unit configuration allows easy installation inside argon or nitrogen gloveboxes.

  • Dual Sealing Capability: Performs both top and side sealing operations with consistent temperature and pressure control.

  • Soft Sealing Blade System: Prevents film tearing and ensures a smooth, reliable seal on aluminium-laminated foils.

  • Precise Process Control: Adjustable sealing temperature (up to 250 °C), time, and pressure for repeatable, high-quality results.

  • Customisable Configuration: Sealing length and width can be tailored to match specific cell formats or laboratory needs.

Technical Specifications:

Parameter Specification
Voltage 220V / 50Hz, Single Phase
Power 800W
Suitable Battery Size Top sealing ≤200mm, Side sealing ≤200mm
Sealing Length 200mm (customisable)
Sealing Thickness 0.17 – 0.3mm (depends on Al film thickness)
Sealing Width 6mm (customisable)
Sealing Pressure 0.5 – 0.7 MPa (adjustable)
Sealing Temperature Room temperature to 250°C, ±2°C accuracy
Sealing Time 0 – 99 seconds (adjustable)
Sealing Blade Type Soft sealing blade
Dimensions (Working Unit) 315 × 150 × 290 mm
Dimensions (Controller) 320 × 240 × 220 mm
Weight 40 kg

Optional Features: Custom sealing blade width, integrated pressure feedback system, and extended-length sealing jaws available upon request.

Applications & Industries

  • Lithium-ion and solid-state battery pouch cell assembly

  • Top and side sealing of aluminium-laminated films

  • Laboratory and pilot-line pouch cell production

  • Post-injection electrolyte encapsulation

  • Research environments requiring glovebox-compatible sealing

FAQ

Q1: Can this sealer be used inside a glovebox?
Yes. The compact body and separate control unit make it ideal for glovebox or inert-gas operation.

Q2: What sealing functions does it support?
It supports both top and side sealing with adjustable pressure, temperature, and time settings.

Q3: Is the sealing blade replaceable or customisable?
Yes. Soft sealing blades can be replaced or customised to suit various aluminium-film thicknesses.

Q4: What materials can be sealed?
It is designed for aluminium-laminated pouch films used in lithium-ion or polymer cells.

Q5: What is the temperature control accuracy?
The temperature is precisely maintained within ± 2 °C for uniform sealing performance.
