Cell Lab Compact Battery Coin Cell Crimper [0–2T, Portable Design]

Cell Lab Compact Battery Coin Cell Crimper [0–2T, Portable Design]

Lightweight Sealing Machine for CR2032, CR2025, CR2016 & Optional Dies

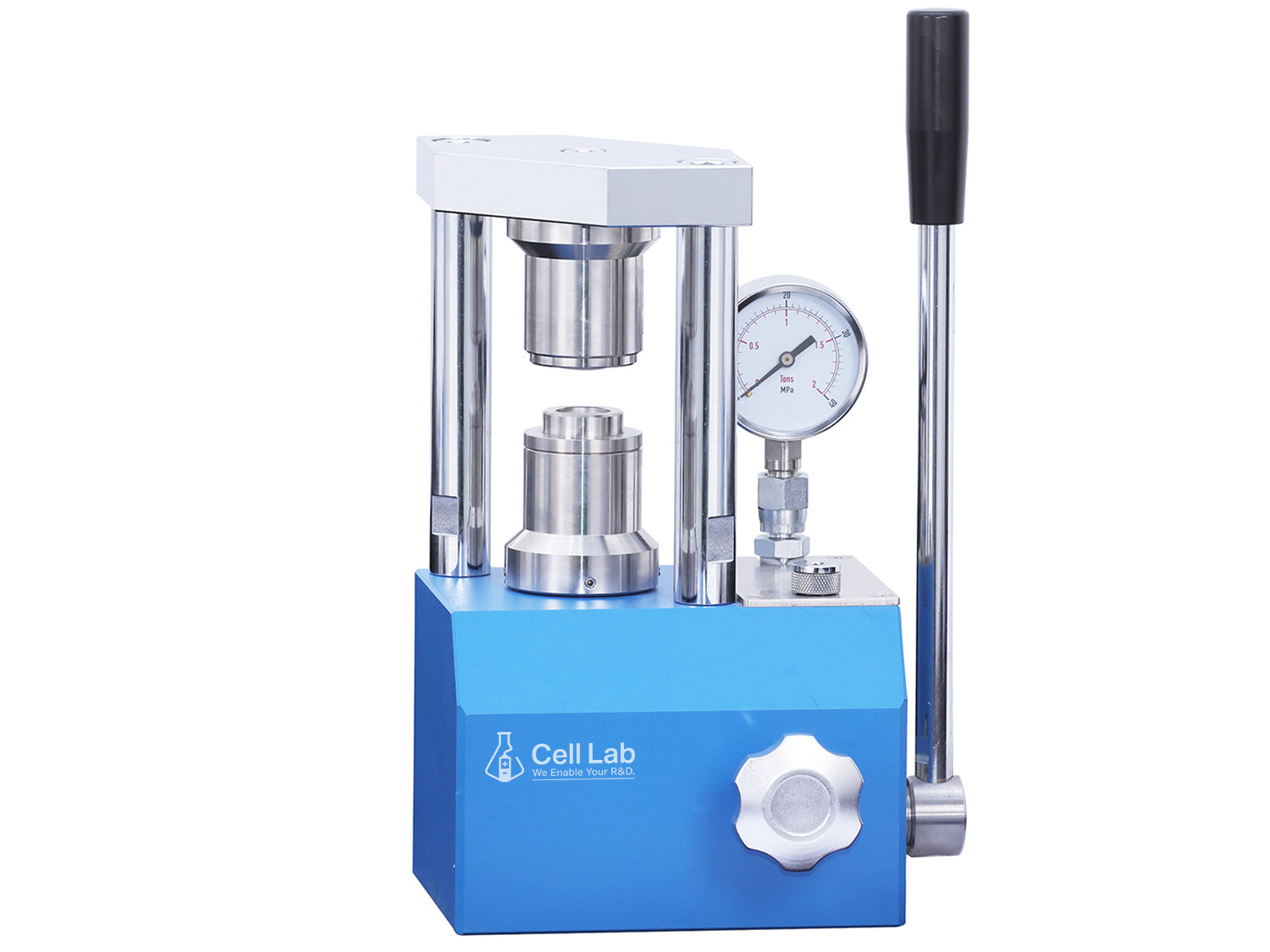

The Cell Lab Compact Battery Coin Cell Crimper is a lightweight, glove-box-compatible sealing machine designed for laboratory-scale coin cell assembly. With adjustable sealing lines, it can seal standard CR2032, CR2025, and CR2016 coin cells without die changes. Optional die sets extend compatibility to CR2325, CR2450, AG3, AG5 and allow for safe disassembling of used coin cells.

Thanks to its compact design (only 12 kg), this crimper can easily fit into glove box chambers for moisture- and oxygen-sensitive battery research. It ensures reliable and uniform sealing, making it essential for lithium-ion, solid-state, and other experimental coin cell fabrication.

Key Features

• Versatile sealing – Standard dies for CR2032, CR2025, CR2016; optional dies for CR1220, CR2325, CR2450, AG3, AG5.

• Disassembling function – Optional die sets available for safely disassembling various coin cell sizes.

• Compact & glove-box compatible – Lightweight 12 kg design fits through glove box chambers.

• Stable sealing pressure – 0.8–1.2T sealing ensures consistent crimping quality.

• Low maintenance – Durable steel construction with simple cleaning requirements.

Specifications

Applications & Industries

• Battery R&D – Laboratory coin cell sealing for lithium-ion and solid-state research.

• Educational labs – Compact tool for teaching electrochemistry and energy storage.

• Glove box environments – Moisture- and oxygen-sensitive material testing.

• Quality control – Small-batch assembly for coin cell evaluation and analysis.

FAQ

Q1: Which coin cell sizes are supported by default?
A: The crimper includes dies for CR2032, CR2025, and CR2016.

Q2: Can I use it for disassembling cells?
A: Yes. Optional disassembling dies are available for CR2032, CR2025, CR2016, CR1220, CR2325, CR2450, AG3, and AG5.

Q3: Is this crimper glove-box compatible?
A: Yes. Its compact 210 × 165 × 290 mm dimensions and 12 kg weight make it suitable for glove box installation.

Q4: What is the recommended sealing pressure?
A: Sealing is best performed at 0.8–1.2T.

Q5: What maintenance is required?
A: Keep the unit clean and store it in a dry environment. Periodically check seals if used in a glove box to prevent oil leakage.
