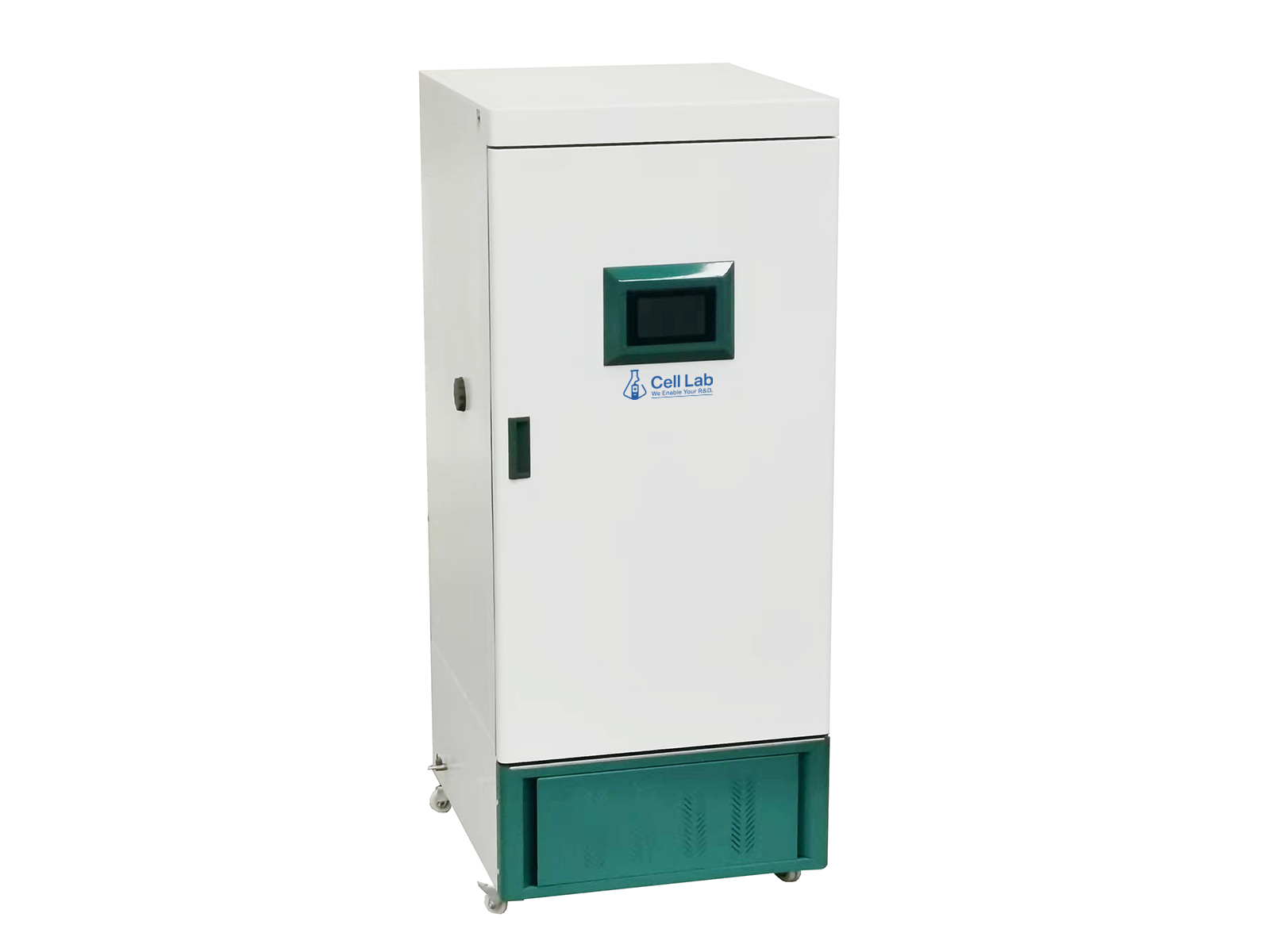

Cell Lab Programmable plant and microbial growth chamber with full-spectrum LED lighting (0–30 000 Lux) and PID temperature control (0–65 °C). Ensures uniform conditions for biological and environmental research.
Cell Lab Programmable plant and microbial growth chamber with full-spectrum LED lighting (0–30 000 Lux) and PID temperature control (0–65 °C). Ensures uniform conditions for biological and environmental research.

Cell Lab Climate Chamber with Illumination [Programmable Light]

Cell Lab Climate Chamber with Illumination [Programmable Light & Temperature Control] Precision environmental chamber for light-regulated biological and plant research The Cell Lab Climate Chamber with Illumination delivers advanced environmental control for plant growth, microbial incubation, insect breeding, and tissue...
Vendor: Cell Lab
SKU: IB0008
Product type: Incubator
£3,129.00
£3,129.00
Type: 250L (220V/50HZ)
Subtotal: £3,129.00
Description
Description
x

Cell Lab Climate Chamber with Illumination [Programmable Light & Temperature Control]

Precision environmental chamber for light-regulated biological and plant research

The Cell Lab Climate Chamber with Illumination delivers advanced environmental control for plant growth, microbial incubation, insect breeding, and tissue culture studies. With 30-segment programmable settings for temperature, light, and timing, this system provides precise simulation of natural environmental conditions in 250 L, 350 L, and 450 L models.

Key Features

• 7-Inch Touchscreen with Programmable Operation
Full-colour LCD controller supports 30-section scheduling for temperature and illumination cycles. Features include fixed-temperature operation, automatic start/stop, real-time data curves, USB export, and on-screen history viewing for full traceability.

• Full-Spectrum LED Lighting (0 – 30 000 Lux)
Top-mounted LED panels provide uniform, low-heat illumination with multiple intensity levels for photoperiodic or photosynthetic studies. Standard configuration includes four adjustable LED layers with removable partitions.

• Precise Temperature Control with Forced Convection
Dual-mode operation allows 0 – 65 °C (no light) or 10 – 65 °C (with light) ranges. Rear micropore airflow and front circulation ensure ± 1 °C motion accuracy and ± 1 °C uniformity throughout the chamber.

• Robust Structure and Efficient Cooling System
Inner chamber built from SUS304 stainless steel; outer shell coated with electrostatic cold-rolled steel. Integrated air-cooled hermetic compressor (R134a coolant) and automatic defrost provide reliable long-term performance.

• Comprehensive Safety and Diagnostics
Includes PT100 sensor, menu lock, deviation correction, power-failure memory, and loop self-diagnosis. Automatic cut-off protects against over- and under-temperature. Optional CO₂ control, wireless SMS alarms, and PC connectivity expand laboratory management options.

Specifications:




Model (250 L)

Model (350 L)

Model (450 L)

Model (220V/50HZ)

IB0008

IB0011

IB0014

Model (220V/60HZ)

IB0009

IB0012

IB0015

Cycle Mode

Forced convection,Rear micropore. Supply air in front of the plate

Function

Tem. Range

Without illumination: 0-65℃;with illumination: 10-65℃

Tem. Resolution Ratio

0.1℃

Tem. Motion

±1℃

Tem. Uniformity

±1.0℃

Illuminance (LX)

Full spectrum0~30000L many degrees for adjusting

Structure

Inner Chamber

SUS304satinless steel sheet

Outer Shell

cold rolling steel electrostatic spraying exterior

Thermal Insulation Material

Polyurethane

Light barrier

Standard four layer full spectrum LED lamp board

Heater

Stainless steel heating tube

Power Rating

2.0kW

2.2kW

2.5kW

Compressor

Air-cooled hermetic compressor

Coolant

R134A

Defrosting Structure

Automatic

Leading wire hole

The outer diameter of standard infation port interface is 10mm

Controller

Tem. control mode

30 sections program

Tem. setting mode

Touch screen settings

Tem. display mode

7.0 inch true color touch screen display

Operation Function

Fixed temperature operation, timing function,auto stop

Program Pattern

Standard configuration

Sensor

Pt100

Additional Function

Make an appointment to switch on and off, query the historical temp.perature data curve, store and export the U disk data, correct the deviation, lock the menu key, power failure compensation, power failure memory, circuit self diagnosis and intelligent defrosting

Safety Device

Over temp.perature will automaltially cut off the heating, long-term under temp perature cut off the refrigeration systemp.,protect the sample; loop self diagnosis

Specification

Inner Chamber size(W*L*H)(mm)

600*500*840

630*580*960

630*670*1100

Exterior size (W*L*H)(mm)

794*726*1600

824*806*1720

824*896*1860

Packing size (W*L*H)(mm)

893*863*1850

943*923*1960

823*1033*2110

Volume

250L

350L

450L

Load Per Rack

15KG

Shelf Space

120mm

Current Rating （50/60Hz）

AC220V/9.1A

AC220V/10A

AC220V/11.5A

NW/GW (kg）

220/250

250/290

300/340

Accessories

Shelf

4

Shelf plate

8

Optional accessories

Light barrier, USB interface and upper computer software, wire SMS alarm, co2 concentration control

Applications & Industries

  • Plant physiology and seedling development

  • Microbial and tissue culture studies

  • Insect and ecological environment simulation

  • Photoperiodic and photosynthesis research

  • Biotechnological and pharmaceutical R&D

FAQ

Q1: Can I simulate day–night light cycles?
A1: Yes, programmable scheduling allows independent temperature and light control for full circadian simulation.

Q2: Is humidity control included?
A2: This model focuses on temperature and illumination; for humidity regulation, see Cell Lab Climate Chamber with Humidity Control.

Q3: What type of lights are used?
A3: High-efficiency full-spectrum LED panels provide uniform 0 – 30 000 Lux illumination with low heat output and long service life.

Q4: Can it store and export environmental data?
A4: Yes, USB interface supports real-time logging and export of temperature and illumination records for GLP documentation.

Q5: Is CO₂ enrichment available?
A5: Yes, optional CO₂ control and monitoring modules are available for tissue culture and photosynthetic research.
