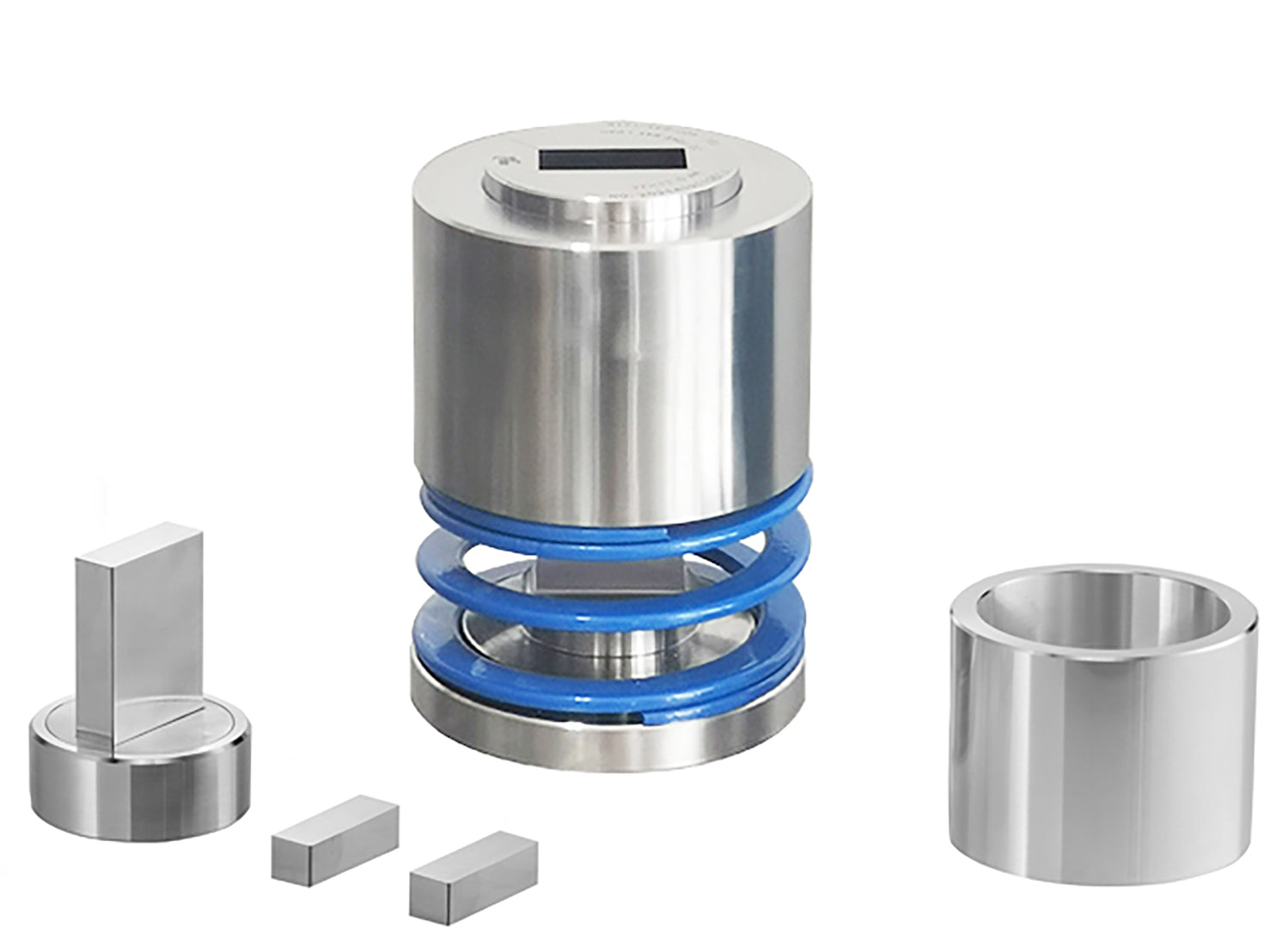

Cell Lab bidirectional pressing die sets (18×80 mm rectangular & 12×12 mm square) — alloy steel dies with HRC60–62 hardness, designed for uniform pellet formation in R&D and QC.
Cell Lab bidirectional pressing die sets (18×80 mm rectangular & 12×12 mm square) — alloy steel dies with HRC60–62 hardness, designed for uniform pellet formation in R&D and QC.

Cell Lab Bidirectional Pressing Die Sets [Rectangular 18×80 mm & Square 12×12 mm]

Cell Lab Bidirectional Pressing Die Sets [Rectangular 18×80 mm & Square 12×12 mm] Precision-engineered steel die sets for uniform rectangular and square pellet pressing General Description Cell Lab Bidirectional Pressing Die Sets are specialised tools for producing rectangular and square...
Vendor: Cell Lab
SKU: CL0608
Product type: Pellet Press Die Set
£829.00
£829.00
Reference Sample Size: 12×12 mm
Subtotal: £829.00
Cell Lab bidirectional pressing die sets (18×80 mm rectangular & 12×12 mm square) — alloy steel dies with HRC60–62 hardness, designed for uniform pellet formation in R&D and QC.

Cell Lab Bidirectional Pressing Die Sets [Rectangular 18×80 mm & Square 12×12 mm]

£829.00
Cell Lab bidirectional pressing die sets (18×80 mm rectangular & 12×12 mm square) — alloy steel dies with HRC60–62 hardness, designed for uniform pellet formation in R&D and QC.

Cell Lab Bidirectional Pressing Die Sets [Rectangular 18×80 mm & Square 12×12 mm]

£829.00
Reference Sample Size: 12×12 mm
Description
Description
x

Cell Lab Bidirectional Pressing Die Sets [Rectangular 18×80 mm & Square 12×12 mm]

Precision-engineered steel die sets for uniform rectangular and square pellet pressing

General Description

Cell Lab Bidirectional Pressing Die Sets are specialised tools for producing rectangular and square solid pellets from powder materials. Manufactured from Cr12MoV alloy tool steel with indenter hardness up to HRC60–62, these die sets provide superior durability and resistance under high pressure.

Available in 18×80 mm (rectangular) and 12×12 mm (square) formats, they are widely used in pharmaceuticals, materials science, powder metallurgy, and analytical chemistry where precise and uniform pellet formation is required. The bidirectional design ensures balanced pressure distribution for consistent compaction.

Key Features

  1. Durable alloy tool steel — Constructed from Cr12MoV with HRC60–62 hardness for long service life.

  2. Bidirectional pressure system — Provides uniform compaction across rectangular and square samples.

  3. Versatile formats — Available in 18×80 mm (rectangular) and 12×12 mm (square) sample cavities.

  4. Laboratory-grade design — Ideal for material analysis, spectroscopy, and powder compaction.

  5. Customisable options — Larger or specialised sizes available upon request.

Specifications:

Product No. Sample Shape Reference Sample Size Cavity Depth (mm) Die Material Indenter Hardness Dimensions (mm) Weight
CL0607 Rectangular 18×80 mm 40 Cr12MoV Alloy Tool Steel HRC60–62 Φ88 × 175 3 kg
CL0608 Square 12×12 mm 40 Cr12MoV Alloy Tool Steel HRC60–62 Φ88 × 175 3 kg

Sample shape:

Diagram of press die:

    Applications & Industries

    • Pharmaceuticals — Tablet and pellet formation for controlled analysis.

    • Materials science — Compacting powder samples for R&D and testing.

    • Analytical chemistry — Preparing uniform pellets for spectroscopy and XRF.

    • Powder metallurgy — Forming square and rectangular compact samples.

    • Academic & industrial labs — Standardised pellet pressing for reproducible results.

    FAQ

    Q1: What is the advantage of a bidirectional die?
    It ensures balanced compression from both ends, producing uniform pellets with reduced internal stress.

    Q2: Can these dies be used with different powders?
    Yes. They are suitable for ceramics, metallic powders, and pharmaceutical materials.

    Q3: How should the dies be maintained?
    Clean and dry after each use; apply light oil to prevent rust during long-term storage.

    Q4: Are these dies consumables?
    Yes. They are considered consumables; warranty only covers manufacturing defects.

    Q5: Is customisation available?
    Yes. Larger rectangular or square cavities can be made to order.
