Precision semi-automatic grooving system for cylindrical lithium-ion battery case forming

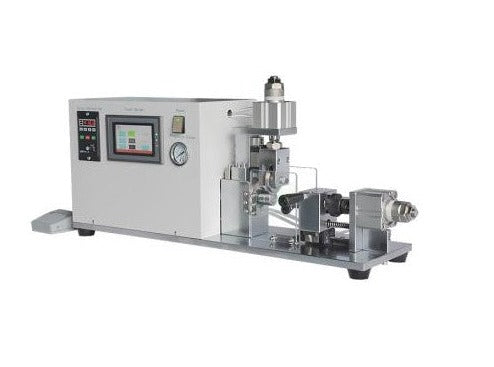

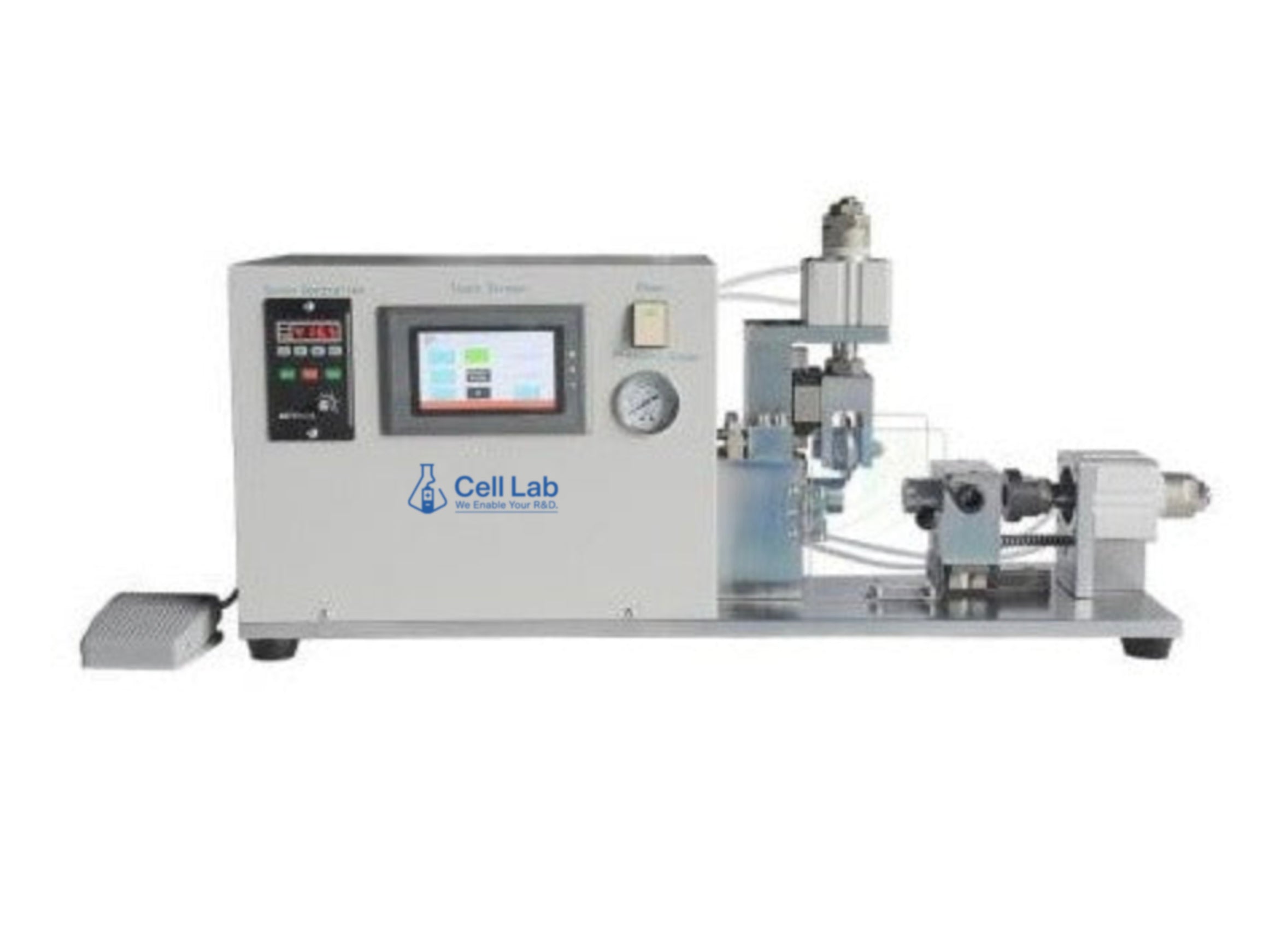

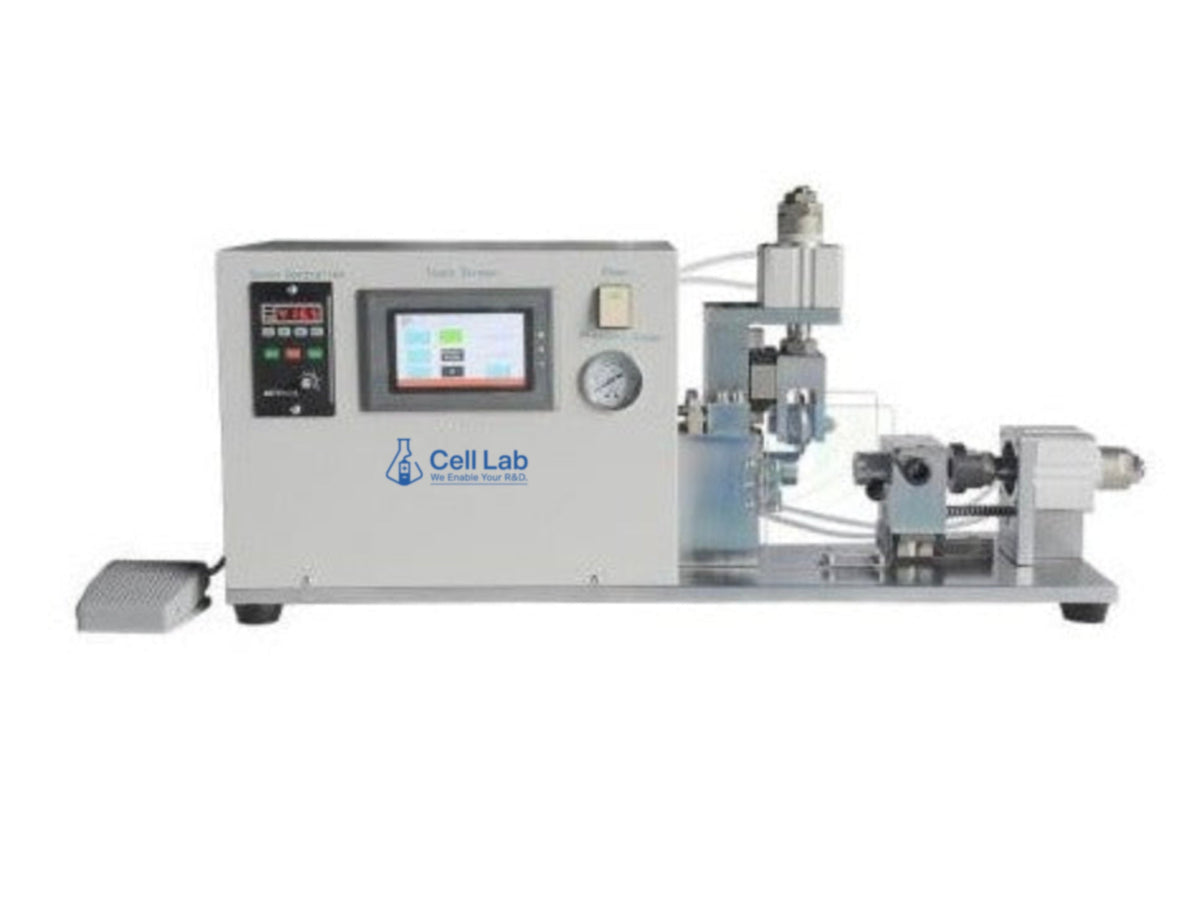

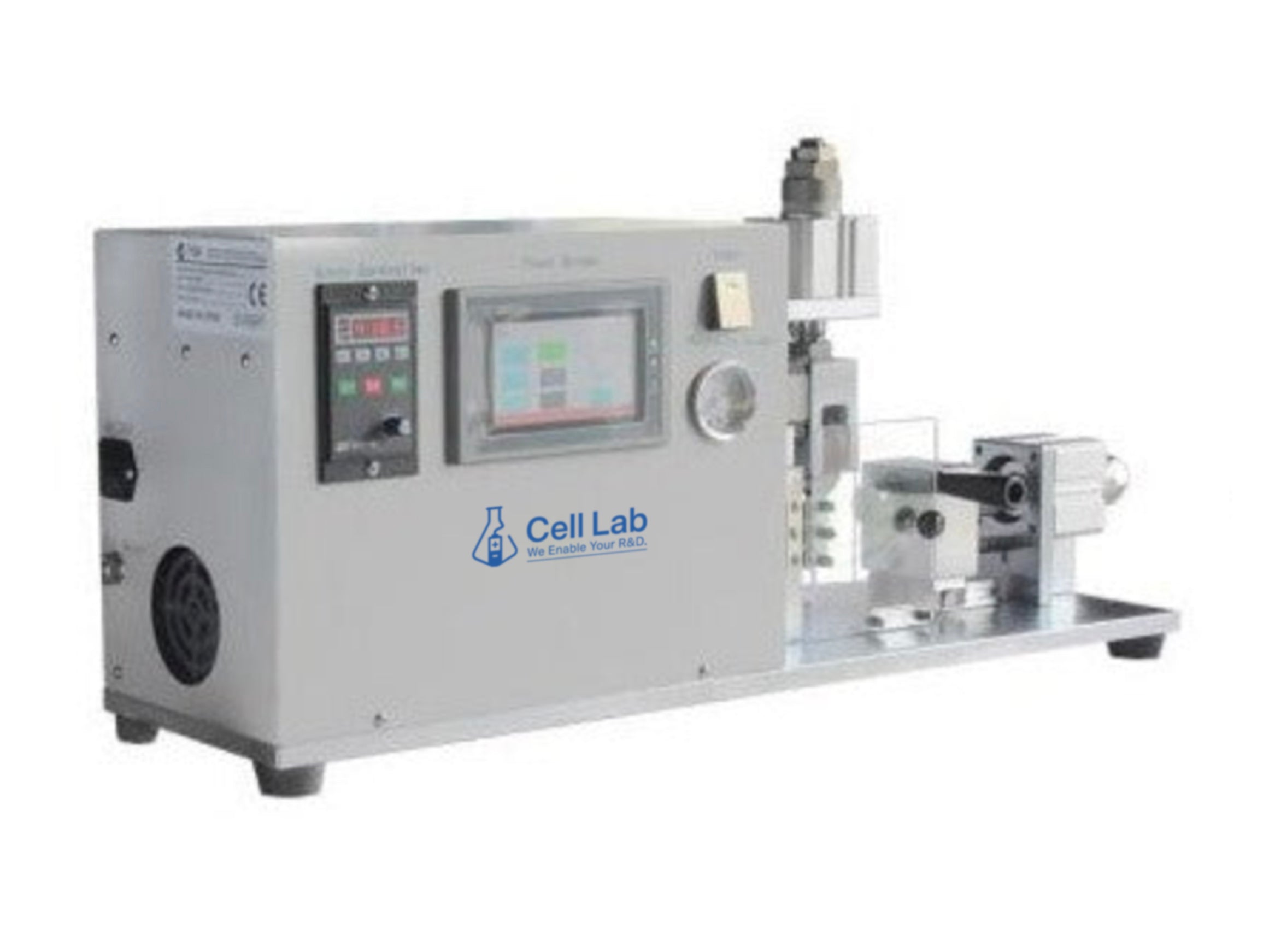

The Cell Lab Benchtop Semi-Auto Battery Grooving Machine is engineered for precise and repeatable formation of rolling grooves on cylindrical steel or aluminium battery cases, ensuring tight sealing and uniform mechanical strength. Suitable for multiple cell formats—including CR123, 18650, 26650, 32650 and 21700—this compact semi-automatic system enables accurate depth and width adjustment for reliable results in laboratory and pilot-scale production.

Key Features

• Wide Cell Format Compatibility:
  Supports CR123, 18650, 26650, 32650, and 21700 formats via interchangeable grooving dies (customisable).

• Adjustable Groove Dimensions:
  Rolling groove depth 1.2–2.0 mm and width 1.1–1.5 mm can be finely tuned according to die and material requirements.

• High Precision Performance:
  Delivers grooving accuracy up to ±0.1 mm for consistent case geometry and sealing performance.

• Semi-Automatic Operation:
  Manual-assisted process achieves up to 400 cells per hour, ideal for laboratory or small-batch production.

• Compact and Stable Design:

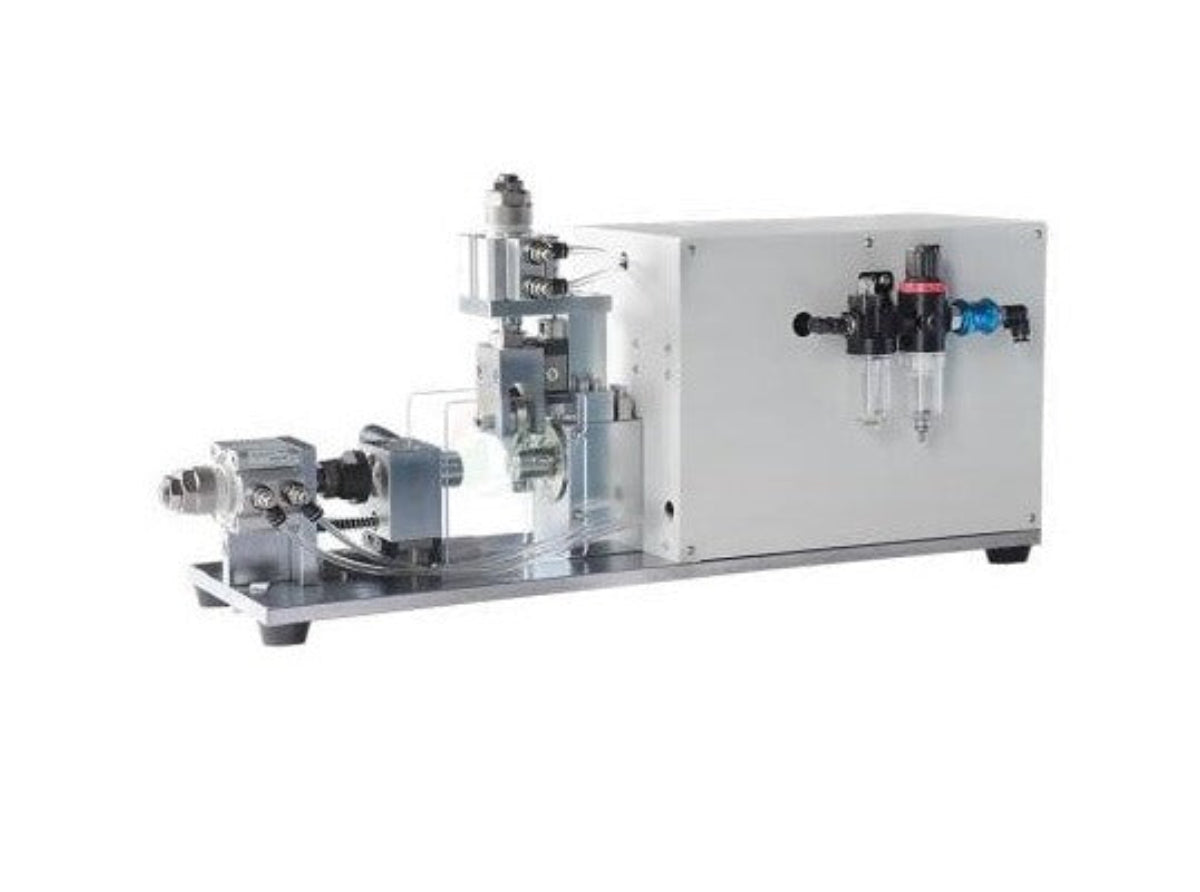

  Benchtop layout with integrated compressed-air system (0.5–0.7 MPa) ensures smooth, vibration-free operation.

Technical Specifications

Note: Custom grooving dies for non-standard cell formats or alternative case materials are available upon request.

Applications & Industries

• Cylindrical lithium-ion and lithium-metal battery case forming

• Laboratory and pilot-scale cell assembly lines

• Precision mechanical forming for 18650 / 21700 / 26650 cells

• R&D equipment for structural and sealing process validation

FAQ

Q1: Which cell types are supported?
Standard dies are included for CR123, 18650, 26650, 32650, and 21700; other sizes can be custom-made.

Q2: What is the grooving accuracy?
It achieves ±0.1 mm accuracy, ensuring consistent groove dimensions and tight seal tolerances.

Q3: How fast can it operate?
Throughput reaches up to 400 cells per hour under semi-automatic operation.

Q4: Is it suitable for aluminium and steel cases?
Yes. It is compatible with both aluminium and stainless-steel cylindrical battery cases.

Q5: Can it be used inside a lab environment?
Absolutely. Its compact footprint and air-driven design make it ideal for laboratory R&D and pilot-scale lines.
