xCell Lab Benchtop Electrode Slitting Machine [Battery Electrode Slitting | Cylindrical & Pouch Cell Preparation | 300 mm Width]
High-precision slitting system for anode and cathode sheet processing in battery R&D

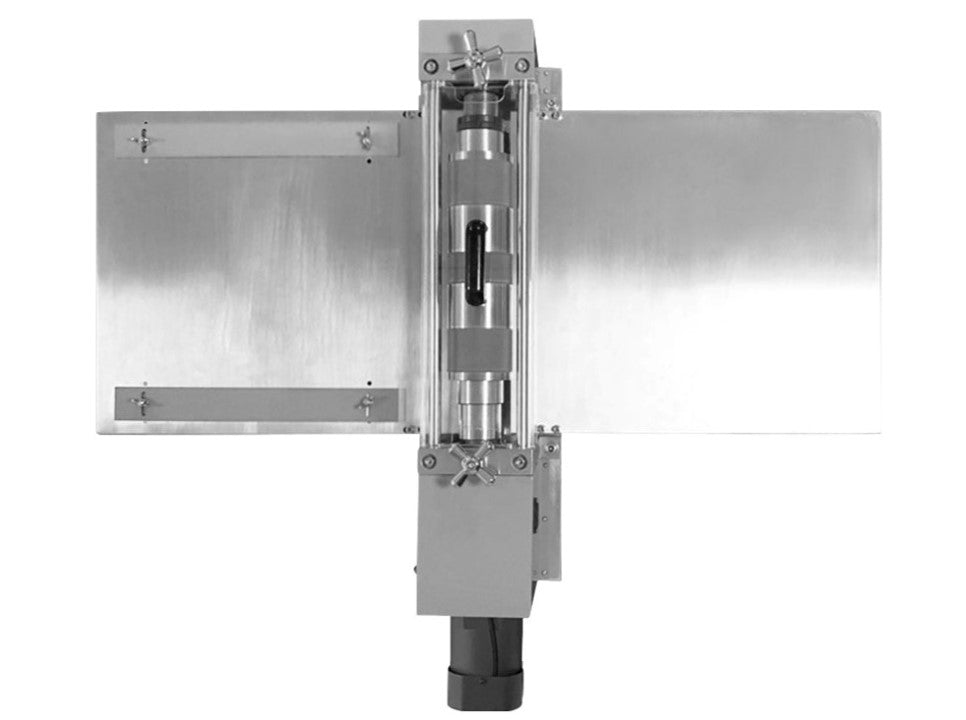

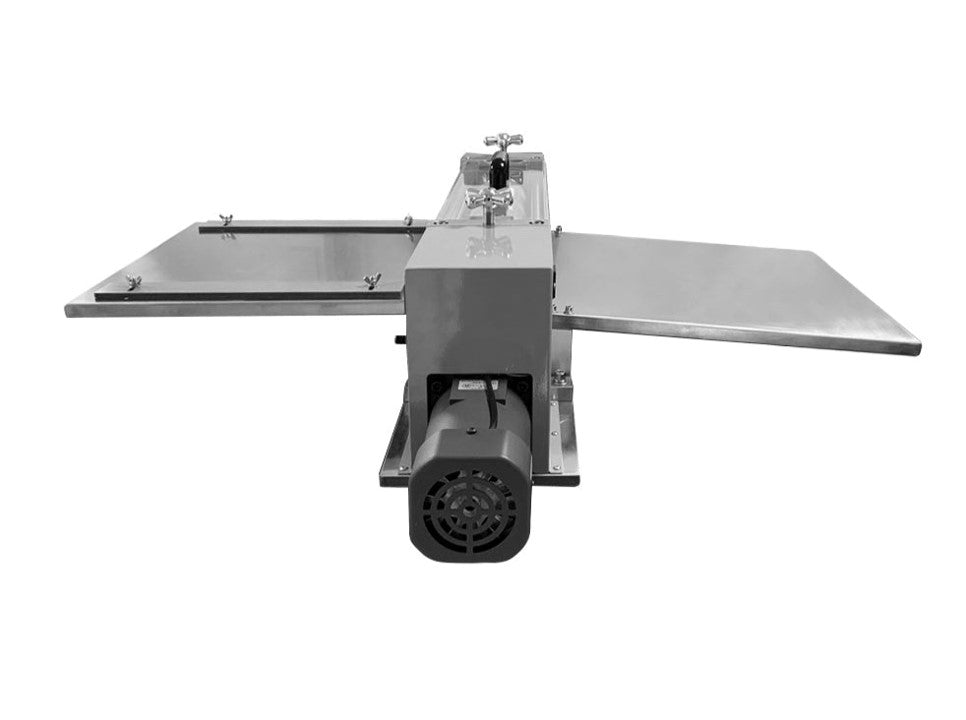

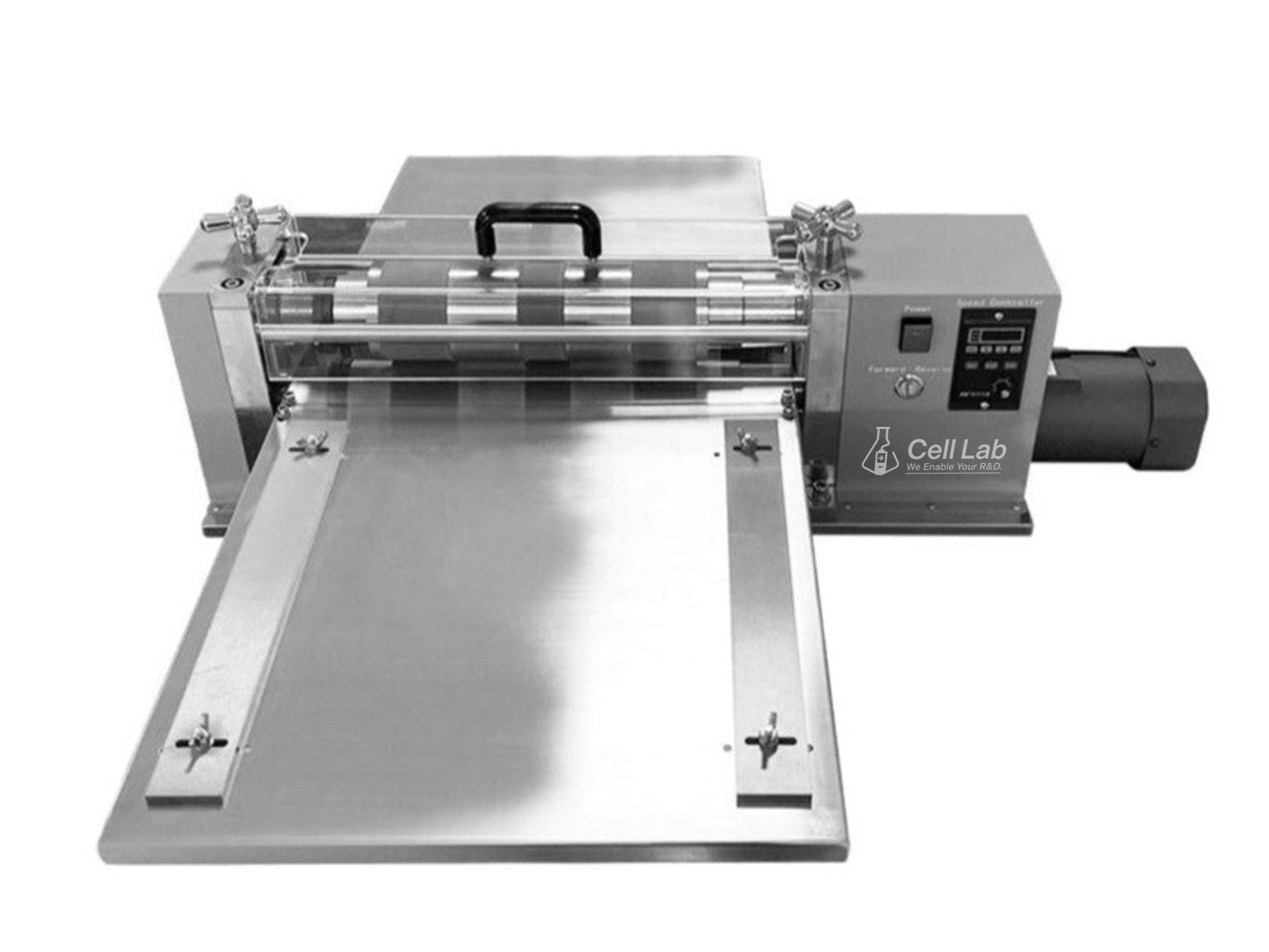

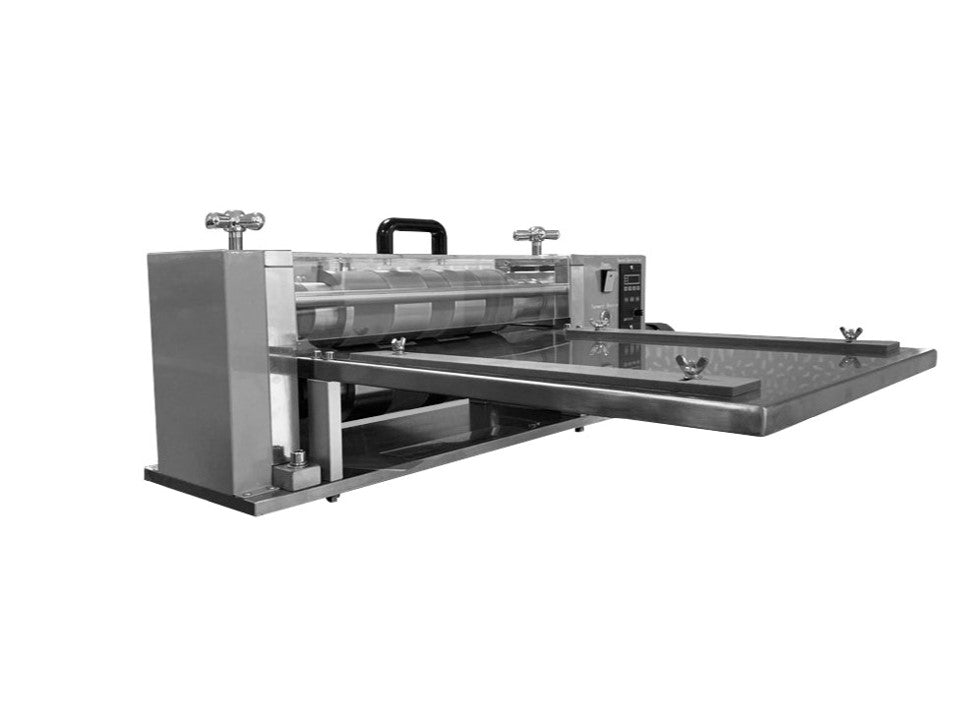

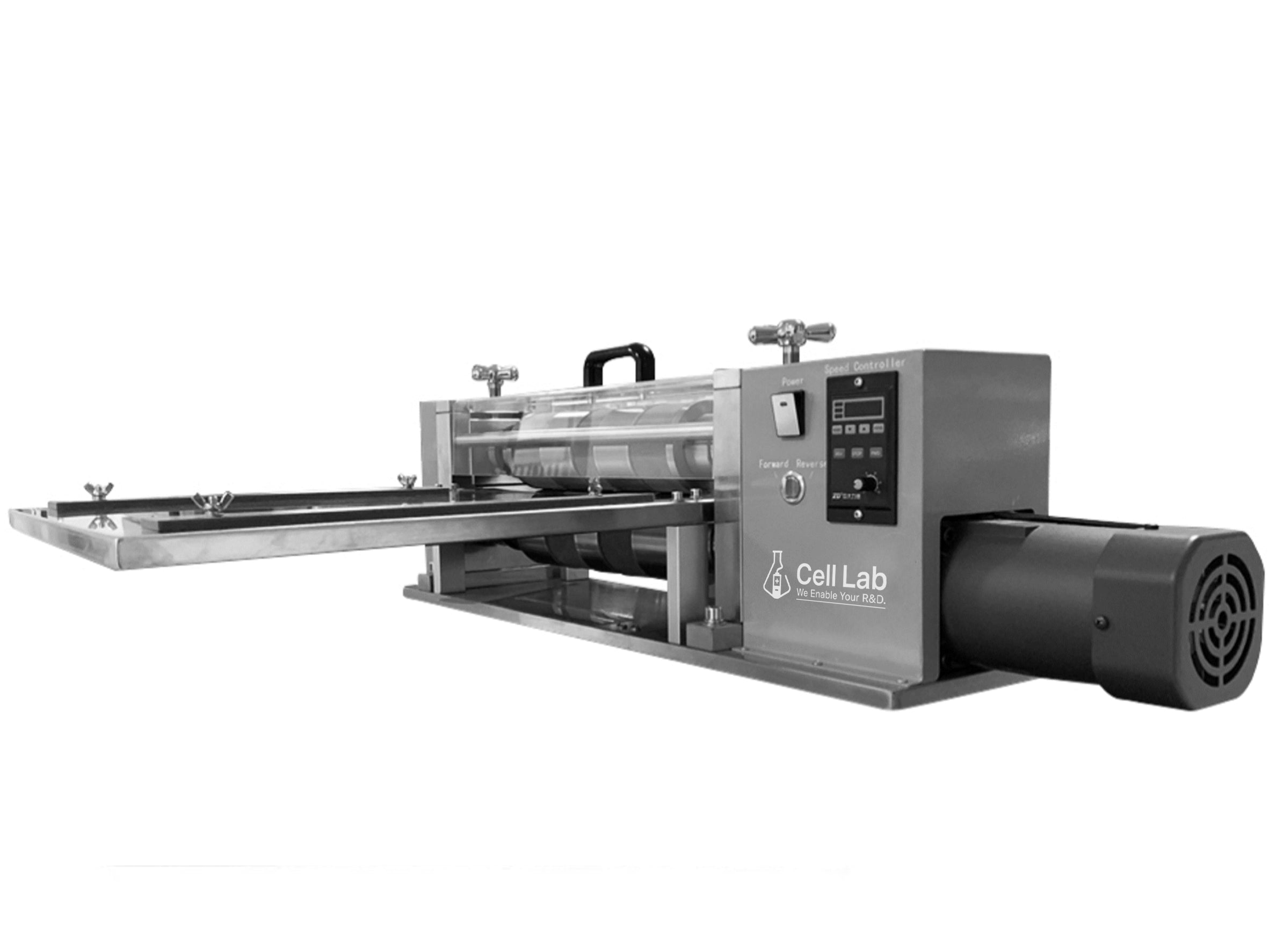

The Cell Lab Benchtop Electrode Slitting Machine is designed for precise and efficient cutting of electrode sheets after calendaring in lithium-ion battery manufacturing. Suitable for both cylindrical and pouch cell formats, it supports slitting of coated copper and aluminium foils, ensuring clean, uniform edges and dimensional consistency. With adjustable blade widths and compatibility across a wide thickness range, this compact and durable machine is ideal for laboratory and pilot-scale cell fabrication.
Key Features
-
Supports Cylindrical & Pouch Cell Formats: Handles coated Cu and Al foils as well as soft metal substrates for diverse R&D use.
-
Customisable Slitting Width: Equipped with a standard 58 mm blade; other widths are available upon request for flexible production.
-
Wide Thickness Range: Designed to slit electrode sheets from 50 μm to 400 μm, covering typical R&D material dimensions.
-
Compact Benchtop Design: Weighing 60 kg, the unit provides stability and precision in small laboratory spaces.
-
Reliable Warranty & Support: Includes one-year limited warranty with lifetime technical assistance from Cell Lab.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Slitting Width | 300 mm (customisable) |
| Compatible Materials | Coated Cu/Al foil or soft metallic foil |
| Slitting Thickness Range | 50–400 μm |
| Slitting Blade | 58 mm wide blade (customisable) |
| Voltage | 220V / 50Hz |
| Net Weight | 60 kg |
| Dimensions | 1050 × 900 × 400 mm |
Applications & Industries
-
Lithium-ion and solid-state battery electrode slitting
-
Cylindrical and pouch cell preparation
-
R&D and pilot-scale battery assembly lines
-
Copper and aluminium foil precision cutting
-
Academic and industrial materials research
FAQ
Q1: What electrode types can this slitting machine handle?
It is compatible with both anode (Cu) and cathode (Al) foils, as well as other thin metallic sheets.
Q2: Can I customise the blade width?
Yes. The standard 58 mm blade can be replaced with custom widths upon request.
Q3: Is the machine suitable for pouch cell electrodes?
Absolutely. It is designed to accommodate both cylindrical and pouch cell formats.
Q4: What is the typical slitting accuracy?
The system ensures clean, repeatable cuts with high edge precision and minimal burr formation.
Q5: Does it require complex installation?
No. The benchtop design allows quick setup and operation in standard lab environments.
