Cell Lab Benchtop Electrode Calendering Machine [Heated Roller Press]

Cell Lab Benchtop Electrode Calendering Machine [Heated Roller Press] Precision roller calender with adjustable speed and heating for advanced electrode densification The Cell Lab Benchtop Electrode Calendering Machine is purpose-built for compacting coated electrodes in lithium-ion and solid-state battery research....
Vendor: Cell Lab
SKU: CL0147
Product type: Battery Equipment
£6,988.00
£6,988.00
Style: 100mm roller width
Subtotal: £6,988.00
Description
Description
x

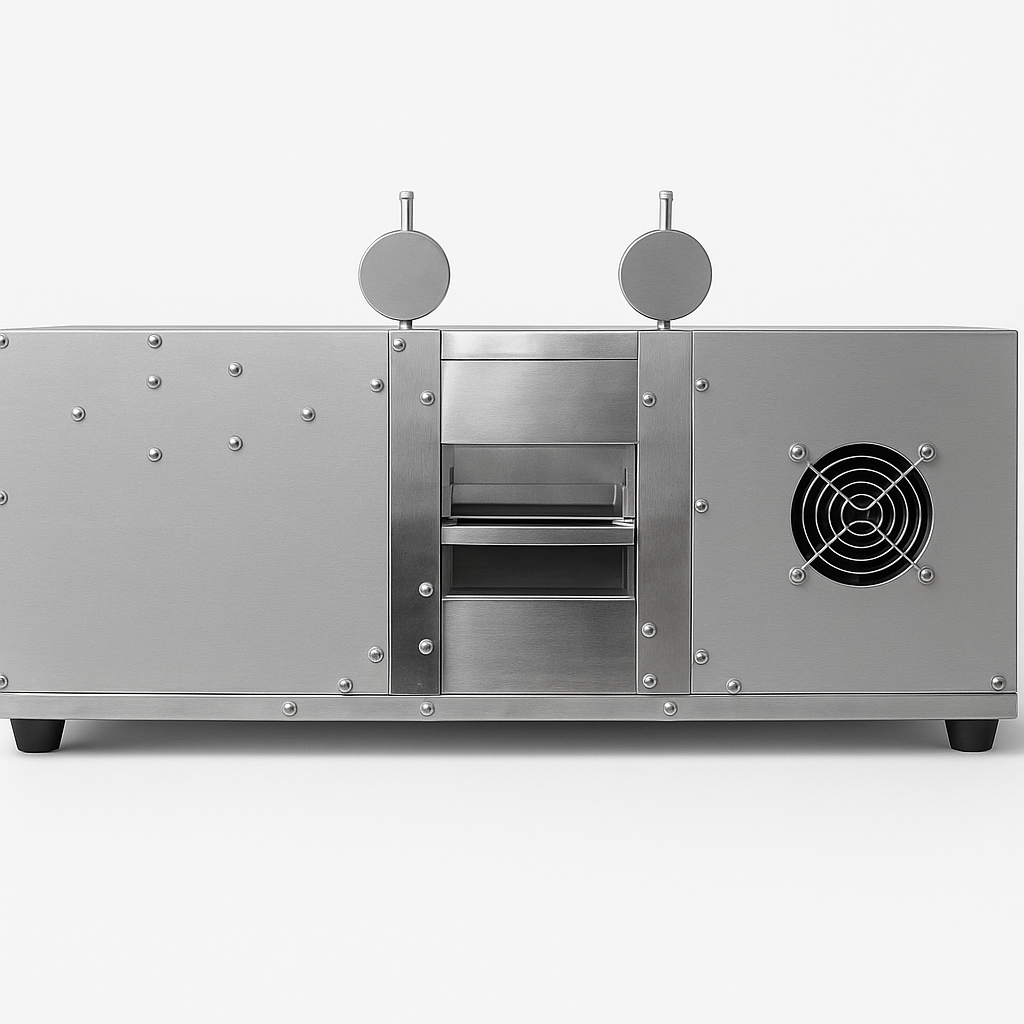

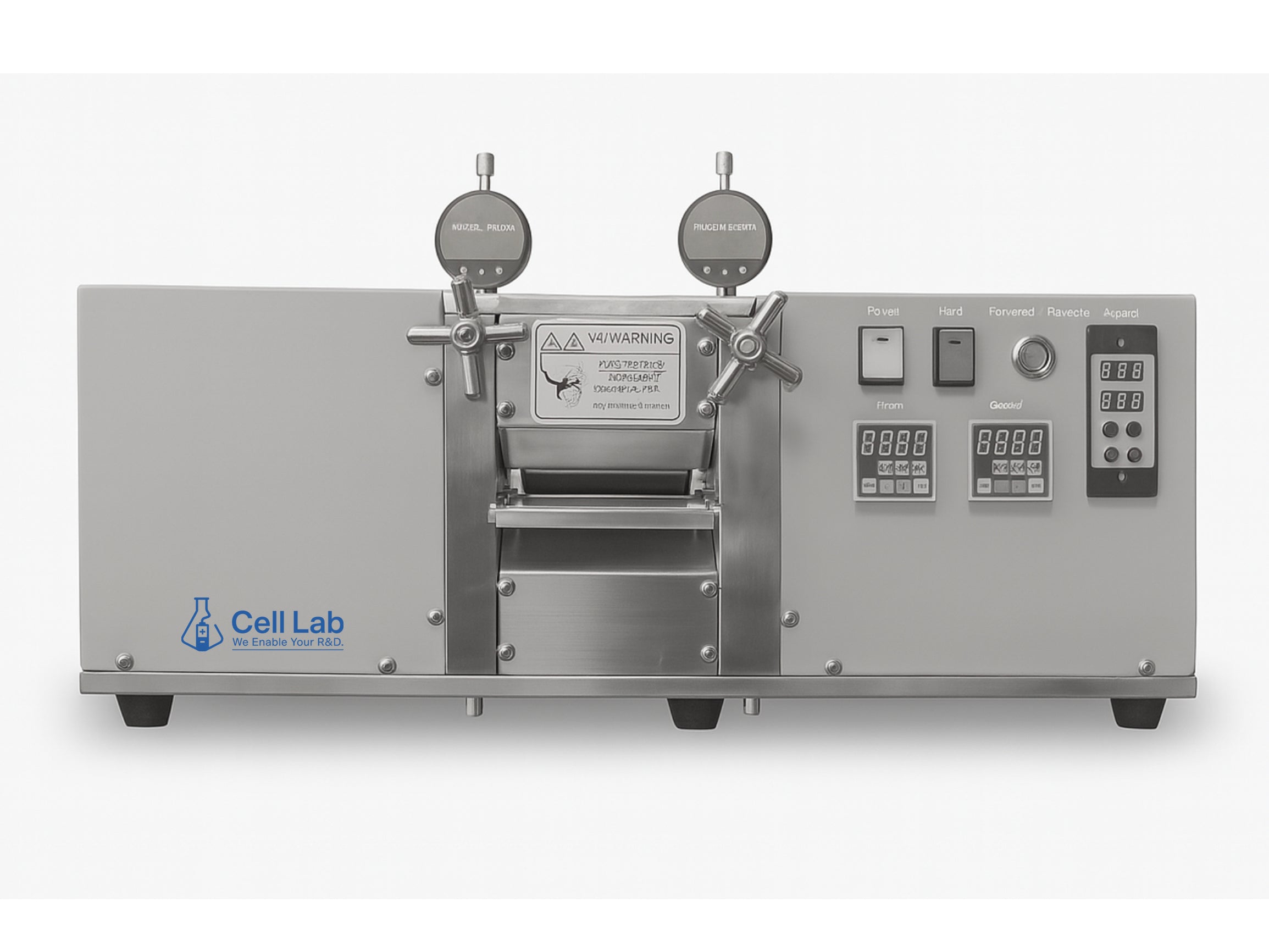

Cell Lab Benchtop Electrode Calendering Machine [Heated Roller Press]

Precision roller calender with adjustable speed and heating for advanced electrode densification

The Cell Lab Benchtop Electrode Calendering Machine is purpose-built for compacting coated electrodes in lithium-ion and solid-state battery research. Combining precise roller-gap control, variable speed, and integrated heating up to 120 °C, it delivers uniform electrode thickness and enhanced active-material density. Its benchtop footprint and glovebox compatibility make it ideal for R&D laboratories and pilot-scale cell fabrication. Multiple roller widths and materials are available to support a wide range of research needs.

Key Features

  • Adjustable Roller Widths: Available in 100 mm, 200 mm, and 250 mm models; custom options up to 300 mm upon request.

  • Heating Capability: Built-in heating system reaches 120 °C to improve coating uniformity and interlayer bonding.

  • Precision Gap Control: Roller gap adjustable from 0 – 2 mm with ≤ 2 µm accuracy for consistent calendaring results.

  • Variable Speed Drive: Rolling speed adjustable between 0 – 40 mm/s to handle diverse electrode types.

  • Customisable Options: Roller width, material, and heating configuration can be tailored for specialised applications.

Technical Specifications:

Specification 100mm Model 200mm Model 250mm Model
Voltage 220V (Optional) 220V (Optional) 220V (Optional)
Roller Diameter 96mm 96mm 96mm
Roller Width Max 100mm Max 200mm Max 250mm
Roller Hardness HRC62 HRC62 HRC62
Roller Gap 0~2mm 0~2mm 0~2mm
Roller Precision ≤2μm ≤2μm ≤2μm
Rolling Speed 0~40 mm/s 0~40 mm/s 0~40 mm/s
Temperature Range Up to 120°C Up to 120°C Up to 120°C
Dimension (L×W×H) 670×225×300 mm 700×220×330 mm 750×220×330 mm
Weight 70kg 80kg 90kg
Warranty One year limited warranty with lifetime product support
Note Roller width can be customised upon request: 150mm, 160mm, 200mm, 250mm
