Cell Lab Battery Coin Cell Crimper [Hydraulic, Max. 8 Tons]

Cell Lab Battery Coin Cell Crimper [Hydraulic, Max. 8 Tons] Precision Sealing for Standard & Special-Sized Coin Cells The Cell Lab Battery Coin Cell Crimper is a lightweight, robust sealing machine engineered for consistent coin-cell sealing across CR2032, CR2025, and...
Vendor: Cell Lab
SKU: CL0591
Product type: Battery Tools
£2,459.00
£2,459.00
Subtotal: £2,459.00
Description
Description
x

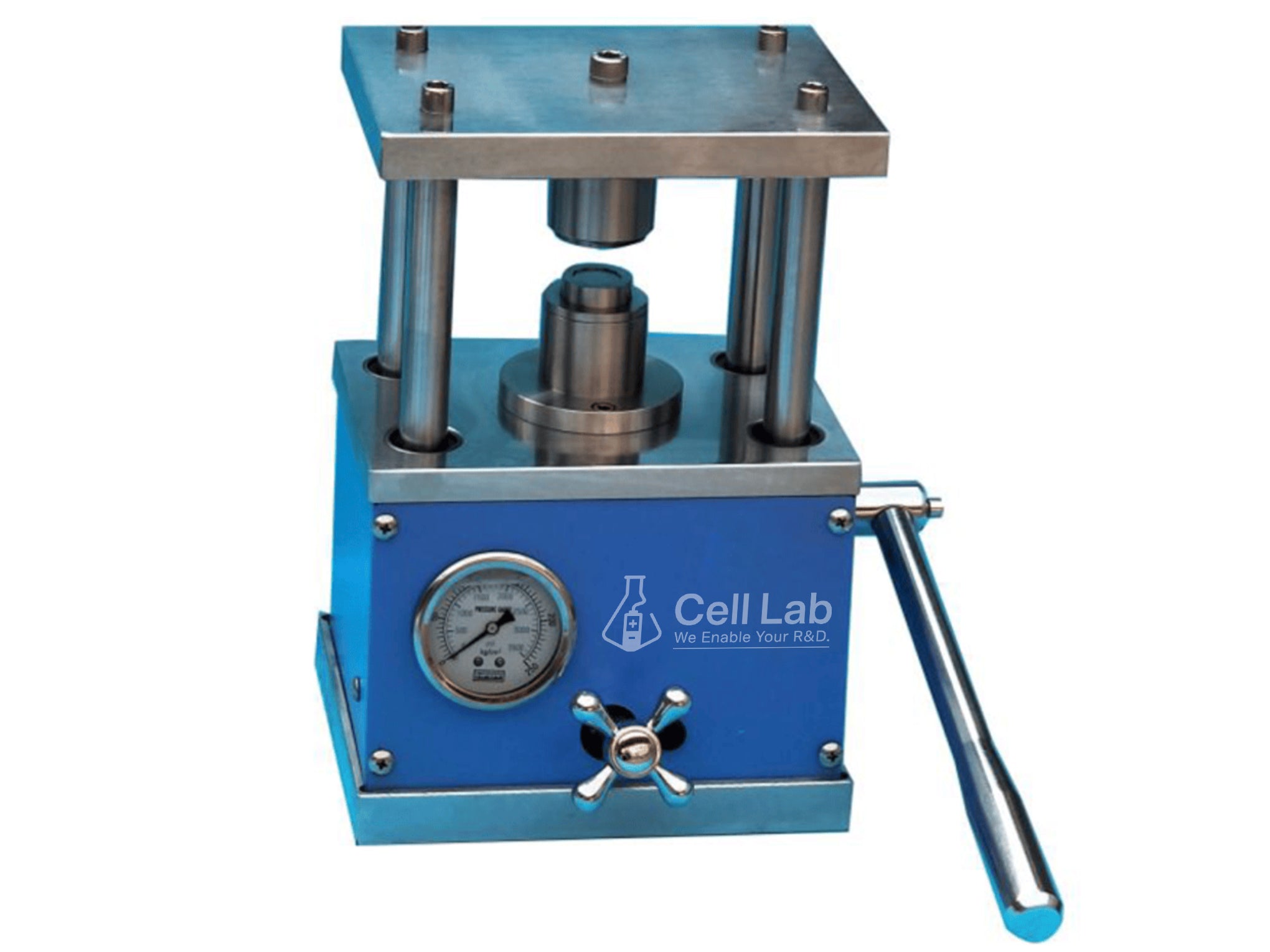

Cell Lab Battery Coin Cell Crimper [Hydraulic, Max. 8 Tons]

Precision Sealing for Standard & Special-Sized Coin Cells

The Cell Lab Battery Coin Cell Crimper is a lightweight, robust sealing machine engineered for consistent coin-cell sealing across CR2032, CR2025, and CR2016 cells without die replacement. With optional die sets, it also accommodates CR2325, CR2450, AG3, AG5, and other special-sized cases, making it versatile for R&D and pilot-scale applications. Built with a heavy-duty steel frame and PTFE anti-corrosion core, this crimper ensures secure sealing and long-term durability.

Key Features

  • Versatile die compatibility – Standard die supports CR2032, CR2025, and CR2016; optional die sets available for CR1220, CR2325, CR2450, AG3, and AG5.

  • Heavy-duty frame design – Steel body construction ensures stability and long lifespan under repeated use.

  • Anti-corrosion protection – PTFE core prevents coin cell short-circuiting and extends tool reliability.

  • Efficient hydraulic system – Max. 8 metric ton hydraulic pump with automatic pressure relief for consistent sealing pressure.

  • User-friendly operation – Adjustable sealing line, replaceable dies for disassembly, and integrated aluminium tray to prevent accidental oil leakage.

Specifications

Parameter Value
Product Code CL0591
Crimping Die Standard die set for CR2032, CR2025, CR2016
Optional die sets for CR1220, CR2325, CR2450, AG3, AG5
Max Pressure 8 metric tons hydraulic pump with auto pressure relief
Recommended CR20XX sealing pressure: 850–1000 psi
Effective piston area: 11.34 cm²
Dimensions With handle horizontal: 280 × 280 × 333 mm
Without handle: 228 × 176.8 × 333 mm
Tray: 330 × 230 mm
Net Weight 26 kg
Shipping Weight 45 kg
Construction Heavy-duty steel frame, PTFE core, aluminium tray
Warranty One-year limited warranty with lifetime support (excluding rust/damage from improper storage/maintenance)

Applications & Industries

  • Battery R&D laboratories – Prototyping and testing of lithium coin cells.

  • Electronics & energy storage – CR20XX and specialty coin cell sealing.

  • Pilot-scale production – Flexible tooling for multiple cell sizes.

  • Glovebox use – Compatible with controlled environments (seal check recommended to prevent oil leakage).

FAQ

Q1: Which coin cell sizes can be sealed with this crimper?
A: By default, CR2032, CR2025, and CR2016 can be sealed. With optional dies, CR1220, CR2325, CR2450, AG3, and AG5 are supported.

Q2: Do I need to change dies for CR20XX series cells?
A: No, CR20XX cells can be sealed by adjusting the sealing line without changing the die.

Q3: Can this machine be used inside a glovebox?
A: Yes, but it is recommended to periodically check the seal to avoid potential oil leakage.

Q4: What is the maximum pressure of this crimper?
A: It uses an 8-ton hydraulic pump with automatic pressure relief; recommended sealing pressure for CR20XX cells is 850–1000 psi.

Q5: What optional accessories are available?
A: Optional die sets for disassembly and crimping of CR1220, CR2325, CR2450, AG3, and AG5 coin cells.
