Cell Lab Automatic Vacuum Heated Press [25T, 300 °C]

Cell Lab Automatic Vacuum Heated Press [25T, 300 °C, Dual Heating Plates]

Precision Heated Press with Vacuum Chamber for Polymers, Ceramics & Battery Films

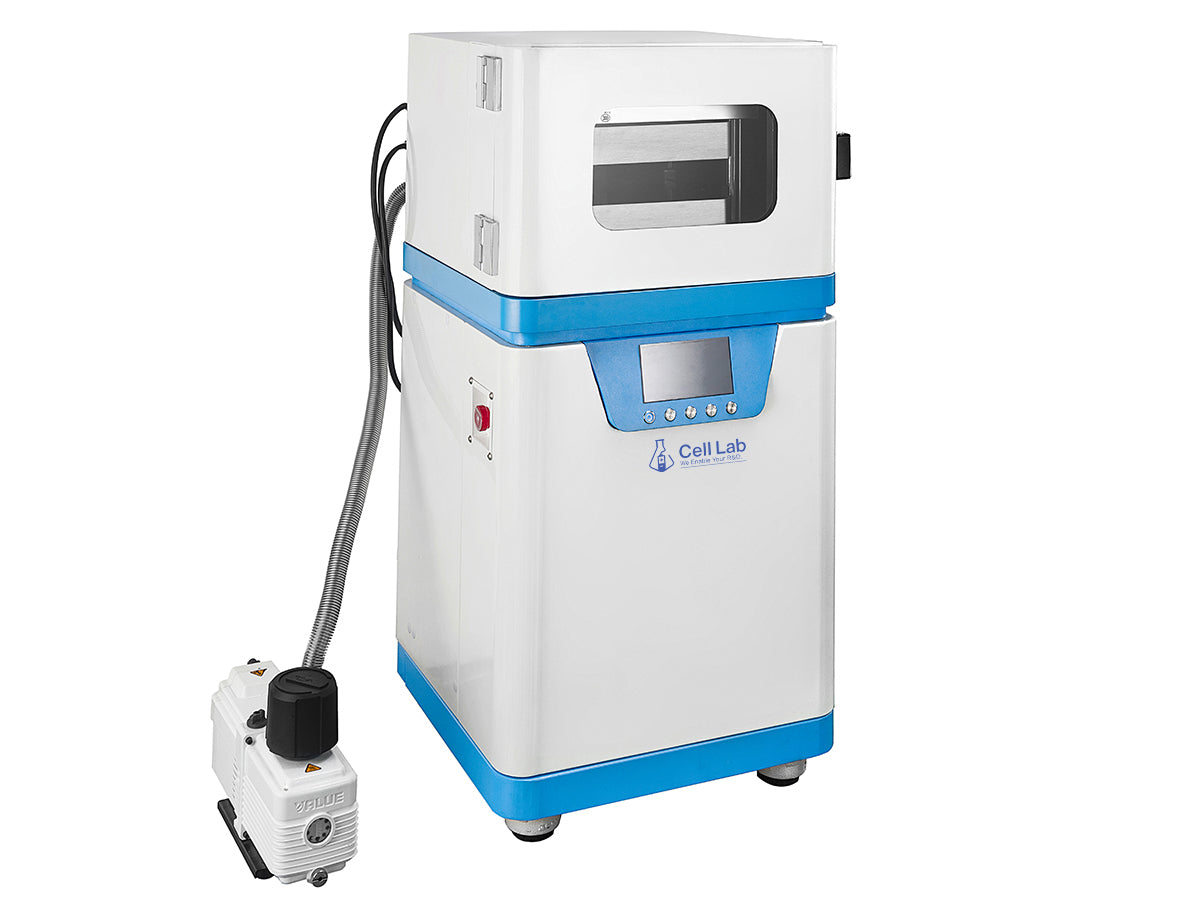

The Cell Lab 25-Ton Automatic Vacuum Heated Lab Press is engineered for advanced pressing of polymer films, ceramic powders, battery electrodes, and membrane sheets under precise thermal and vacuum conditions. Equipped with dual flat heating plates (available in 180 × 180 mm or 200 × 200 mm), the press achieves stable heating up to 300 °C, controlled with high accuracy.

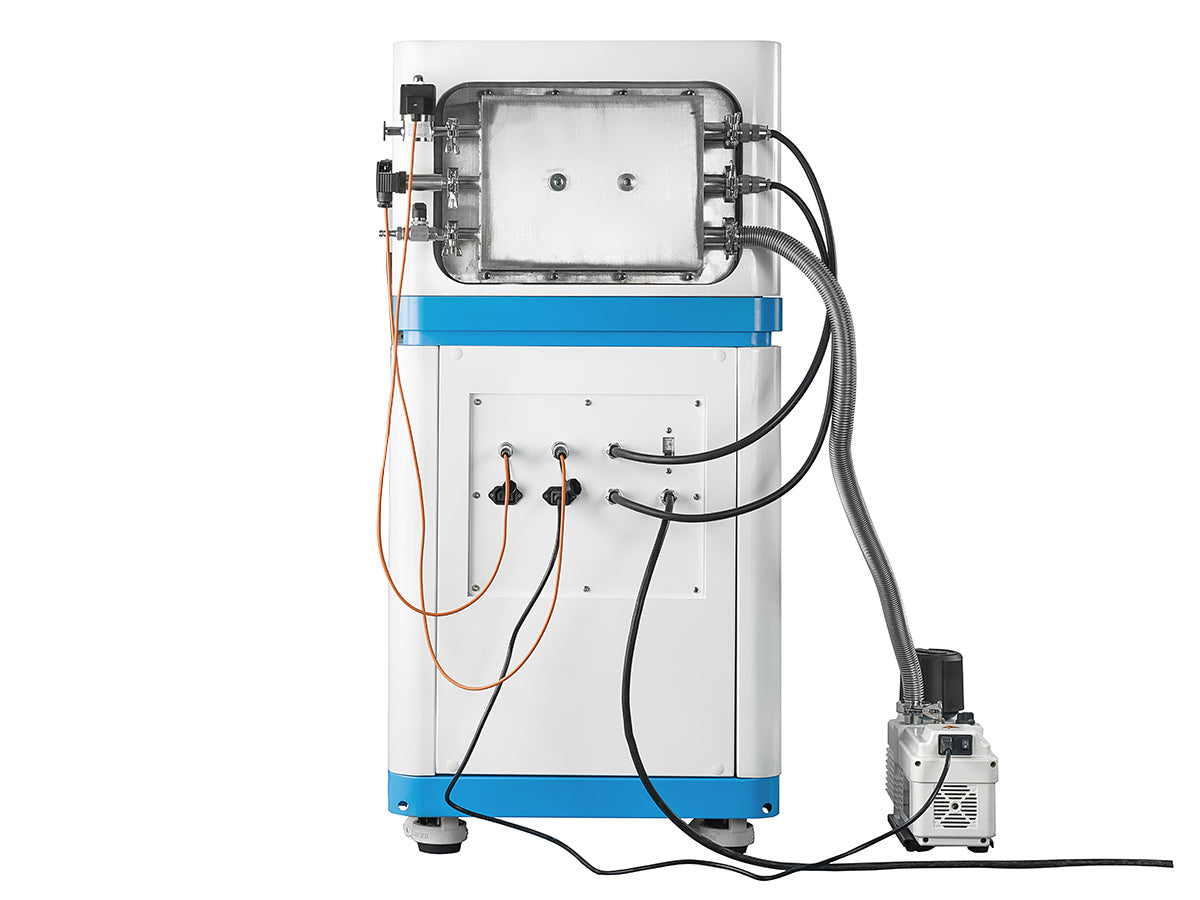

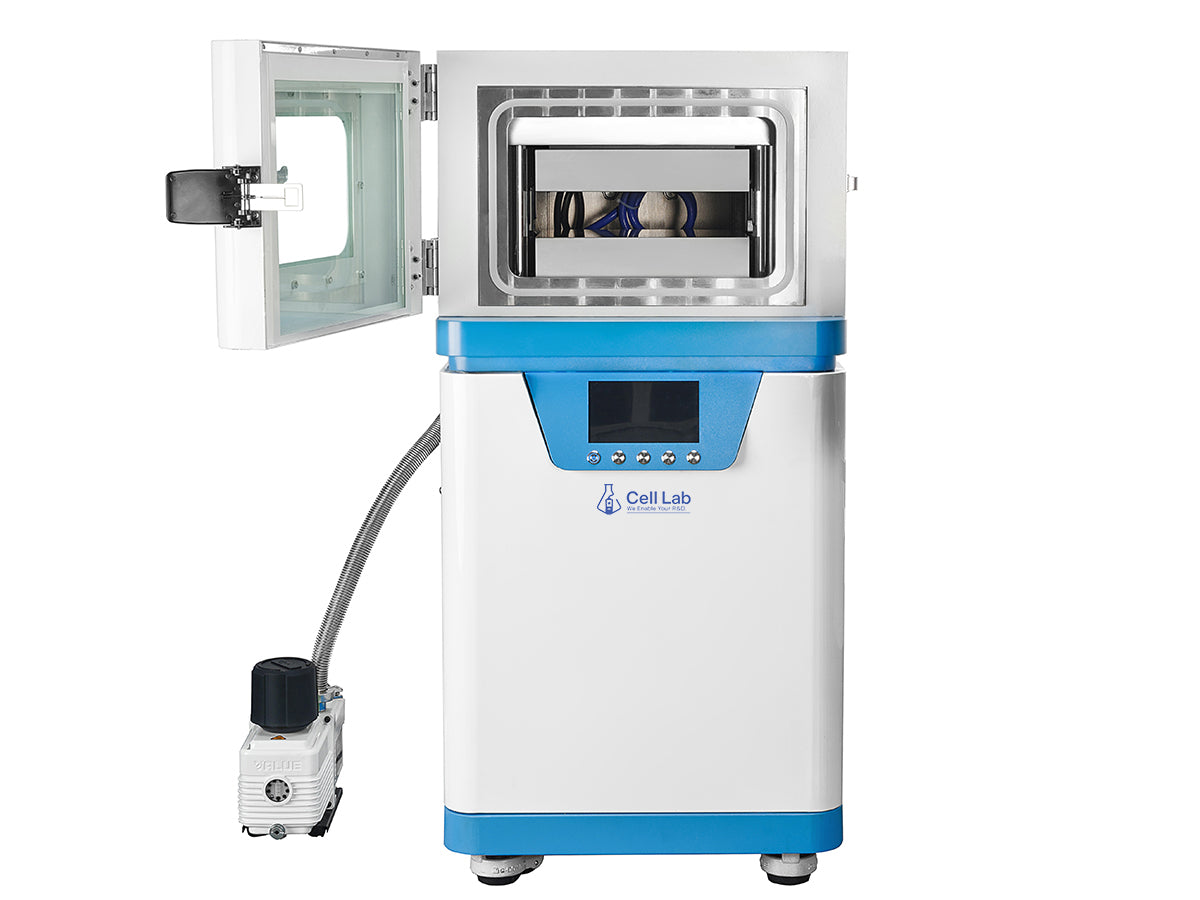

An integrated vacuum chamber (400 × 400 × 400 mm working space) provides high-purity processing conditions with an ultimate vacuum degree of -0.1 MPa, ensuring minimal contamination and enhanced reproducibility. The automatic pressure maintenance and programmable control enable long-duration, stable pressing cycles, making this system suitable for both R&D and pilot-scale production.

Key Features

• 25-ton pressing capacity – Stable, high-force pressing for powders, electrodes, and films.

• Dual heated plates – 180 × 180 mm or 200 × 200 mm flat plates, up to 300 °C.

• Vacuum chamber design – Large 400 × 400 × 400 mm working space with -0.1 MPa ultimate vacuum.

• Automatic control – Programmable pressure maintenance (no time limit or up to 999 min 59 s).

• Flexible configurations – Available with or without included vacuum pump, to suit different lab setups.

Specifications

Applications & Industries

• Battery R&D – Electrode sheet pressing under vacuum for lithium-ion and solid-state batteries.

• Polymer research – Heated lamination and film compaction with controlled vacuum.

• Ceramics & minerals – Precision powder compaction for high-purity ceramic pellets.

• Material science & catalysis – Research applications requiring stable heated pressing.

• Pharmaceuticals – Laboratory-scale formulation under inert/vacuum conditions.

FAQ

Q1: What is the maximum pressing force?
A: The system delivers up to 25 tons of pressing capacity, suitable for electrodes, polymers, and ceramics.

Q2: How accurate is the temperature control?
A: Dual plates heat independently up to 300 °C, ensuring uniform and stable heating.

Q3: Is the vacuum pump included?
A: Both model CL0720 (200 × 200 mm) and model CL0721 (180 × 180 mm), the pump is included.

Q4: Can the press hold pressure continuously?
A: Yes. Depending on the variant, it supports unlimited holding or programmed time up to 999 min 59 s.

Q5: What is the working space size?
A: Both variants have a vacuum chamber of 400 × 400 × 400 mm with a 300 × 350 mm hatch.
