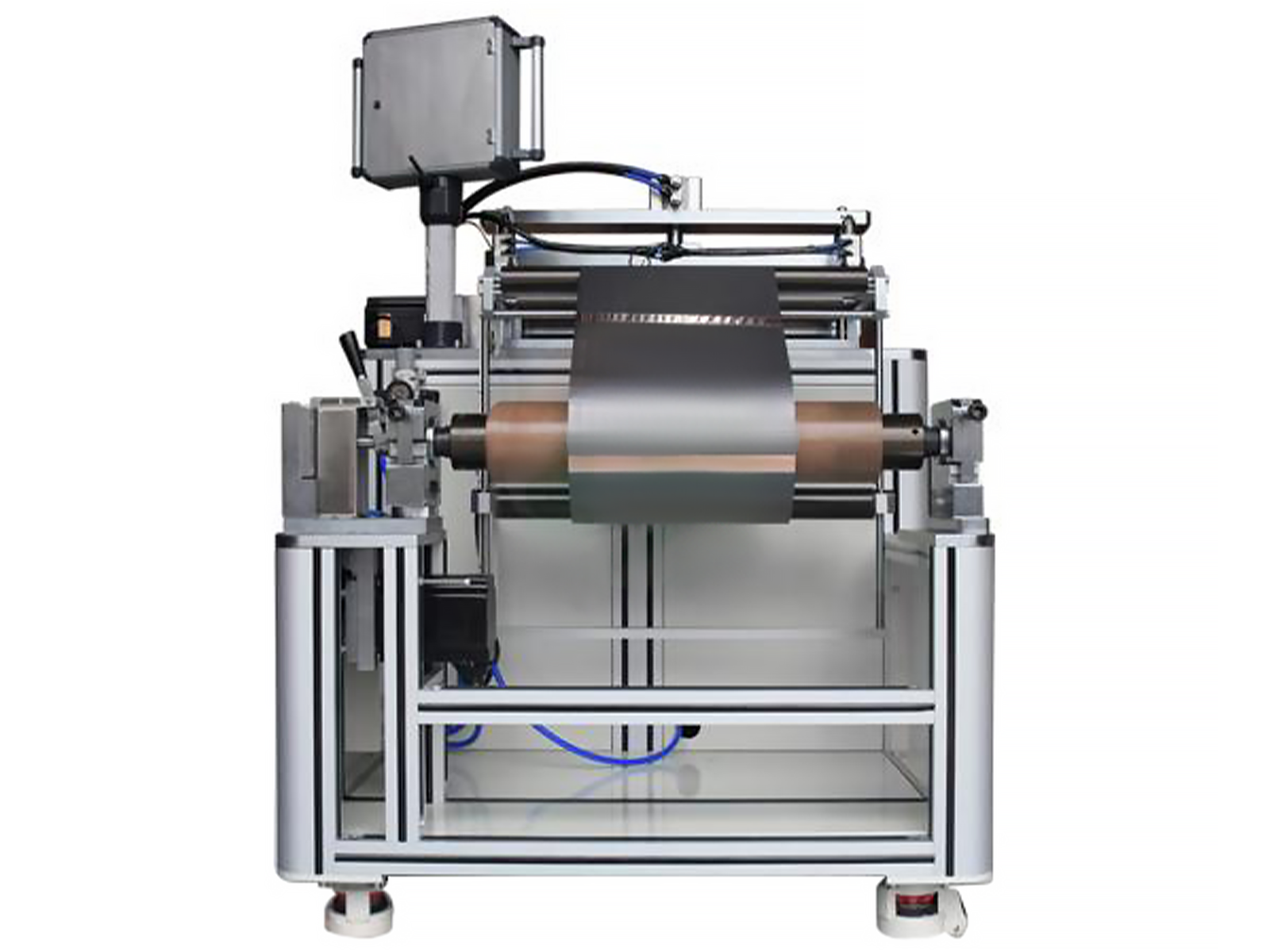

Cell Lab automatic shear cutter machine for lithium-ion electrodes and aluminium films delivers ±0.5 mm precision, 500 mm width capacity, and programmable control for high-throughput battery production.

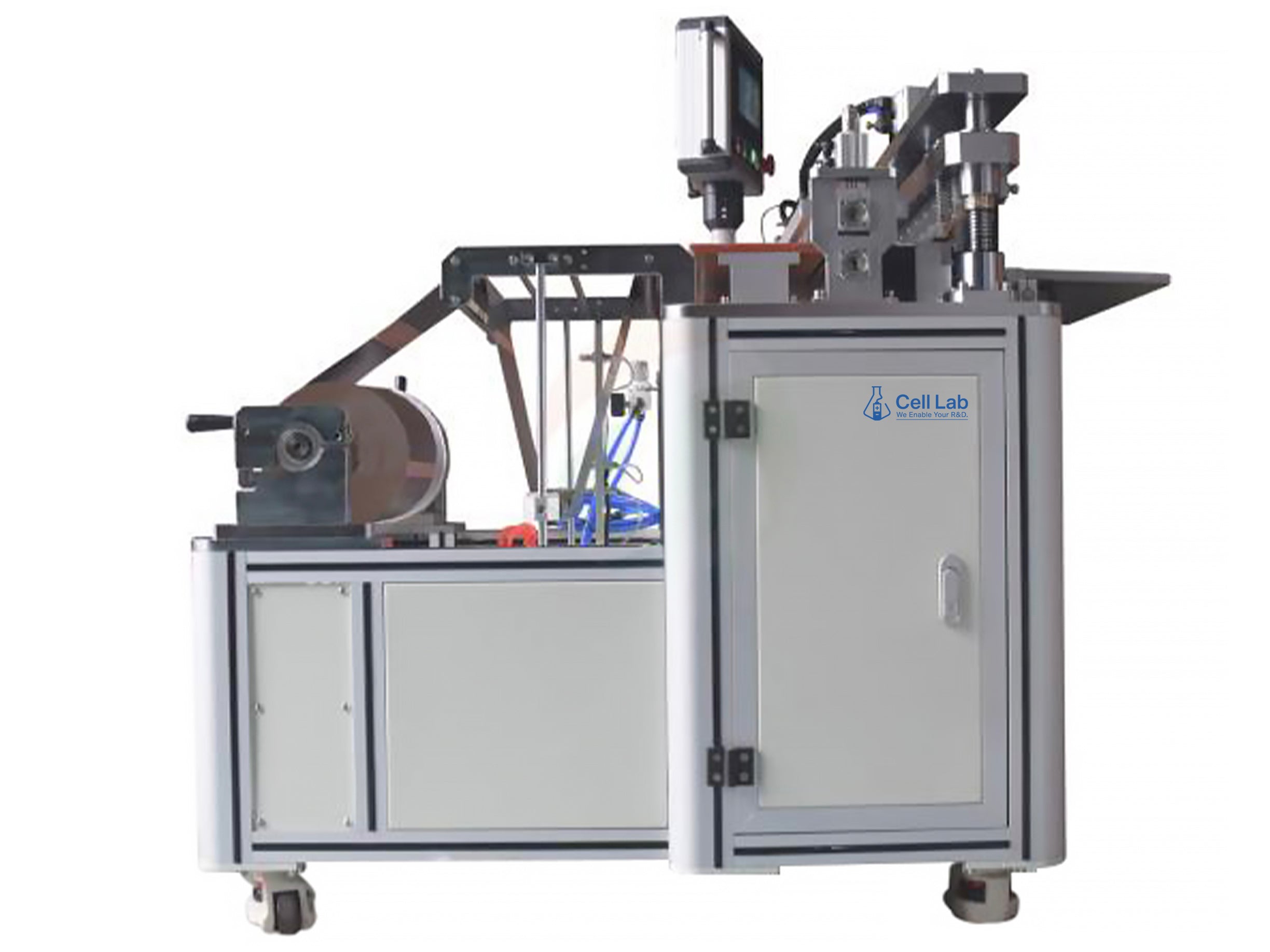

Cell Lab automatic shear cutter machine for lithium-ion electrodes and aluminium films delivers ±0.5 mm precision, 500 mm width capacity, and programmable control for high-throughput battery production.
Cell Lab automatic shear cutter machine for lithium-ion electrodes and aluminium films delivers ±0.5 mm precision, 500 mm width capacity, and programmable control for high-throughput battery production.
Cell Lab automatic shear cutter machine for lithium-ion electrodes and aluminium films delivers ±0.5 mm precision, 500 mm width capacity, and programmable control for high-throughput battery production.

Cell Lab Automatic Shear Cutter Machine [For Lithium-Ion Electrode & Film Cutting]

Cell Lab Automatic Shear Cutter Machine [For Lithium-Ion Electrode & Film Cutting] High-speed, precision shear cutting system for battery electrode and film processing The Cell Lab Automatic Shear Cutter Machine is engineered for precision cutting of lithium-ion battery electrodes and...
Vendor: Cell Lab
SKU: CL0090
Product type: Battery Equipment
£13,364.48
£13,364.48
Subtotal: £13,364.48
Cell Lab automatic shear cutter machine for lithium-ion electrodes and aluminium films delivers ±0.5 mm precision, 500 mm width capacity, and programmable control for high-throughput battery production.

Cell Lab Automatic Shear Cutter Machine [For Lithium-Ion Electrode & Film Cutting]

£13,364.48
Cell Lab automatic shear cutter machine for lithium-ion electrodes and aluminium films delivers ±0.5 mm precision, 500 mm width capacity, and programmable control for high-throughput battery production.
Cell Lab automatic shear cutter machine for lithium-ion electrodes and aluminium films delivers ±0.5 mm precision, 500 mm width capacity, and programmable control for high-throughput battery production.

Cell Lab Automatic Shear Cutter Machine [For Lithium-Ion Electrode & Film Cutting]

£13,364.48
Description
Description
x

Cell Lab Automatic Shear Cutter Machine [For Lithium-Ion Electrode & Film Cutting]

High-speed, precision shear cutting system for battery electrode and film processing

The Cell Lab Automatic Shear Cutter Machine is engineered for precision cutting of lithium-ion battery electrodes and aluminium laminated films after coating or roll pressing. It ensures clean, uniform edges across large-format sheets, providing excellent dimensional consistency for pouch cell fabrication. With programmable logic control, adjustable parameters, and durable industrial construction, this machine is optimised for high-throughput electrode processing in pilot and production-scale environments.

Key Features

  • Wide Cutting Width: Handles up to 500 mm electrode width for large-format or multi-cell production lines.

  • High Accuracy: Achieves ±0.5 mm precision and flatness for consistent electrode dimensions and clean edges.

  • Programmable Control: Adjustable cutting length, quantity, and speed enable precise production management.

  • Dual-Purpose Design: Compatible with both coated electrode sheets and aluminium laminated films.

  • Industrial Reliability: PLC-controlled system with robust frame ensures long service life and operational stability.

Technical Specifications:

Parameter Specification
Max. Electrode Width 500 mm
Cutting Length 0.25 – 10 m adjustable
Cutting Quantity 1 – 9999 adjustable
Cutting Speed 1 – 8 m/min adjustable
Cutting Accuracy ±0.5 mm
Cutting Flatness ±0.5 mm
Voltage 220V / 50Hz
Power 1500 W
Dimensions (L × W × H) 1060 × 910 × 1350 mm
Weight 380 kg
Warranty One-year limited warranty with lifetime support

Applications & Industries

  • Lithium-ion battery electrode sheet cutting

  • Aluminium laminated film trimming

  • Pouch cell fabrication and assembly lines

  • Pilot-scale and industrial-scale R&D

  • Thin-film and flexible electronics manufacturing

FAQ

Q1: What materials can this shear cutter handle?
It is suitable for both coated copper/aluminium electrodes and aluminium laminated pouch cell films.

Q2: Can I customise the cutting length or speed?
Yes. Both parameters can be programmed directly via the control interface for different materials or process speeds.

Q3: What is the typical cutting accuracy?
The machine maintains ±0.5 mm cutting precision and flatness under normal operating conditions.

Q4: Is the system compatible with continuous roll processing?
Yes, it can be integrated into roll-to-roll electrode processing lines for automated cutting workflows.

Q5: Does Cell Lab provide installation or technical support?
Yes. Professional technical guidance and lifetime after-sales support are provided for all Cell Lab machinery.
