xCell Lab Automatic Pouch Cell Top and Side Heat Sealer [Automatic Battery Sealing Machine | Touchscreen Control | Precision Heat Sealing System]
High-precision automated heat sealing system for pouch cell production and R&D applications

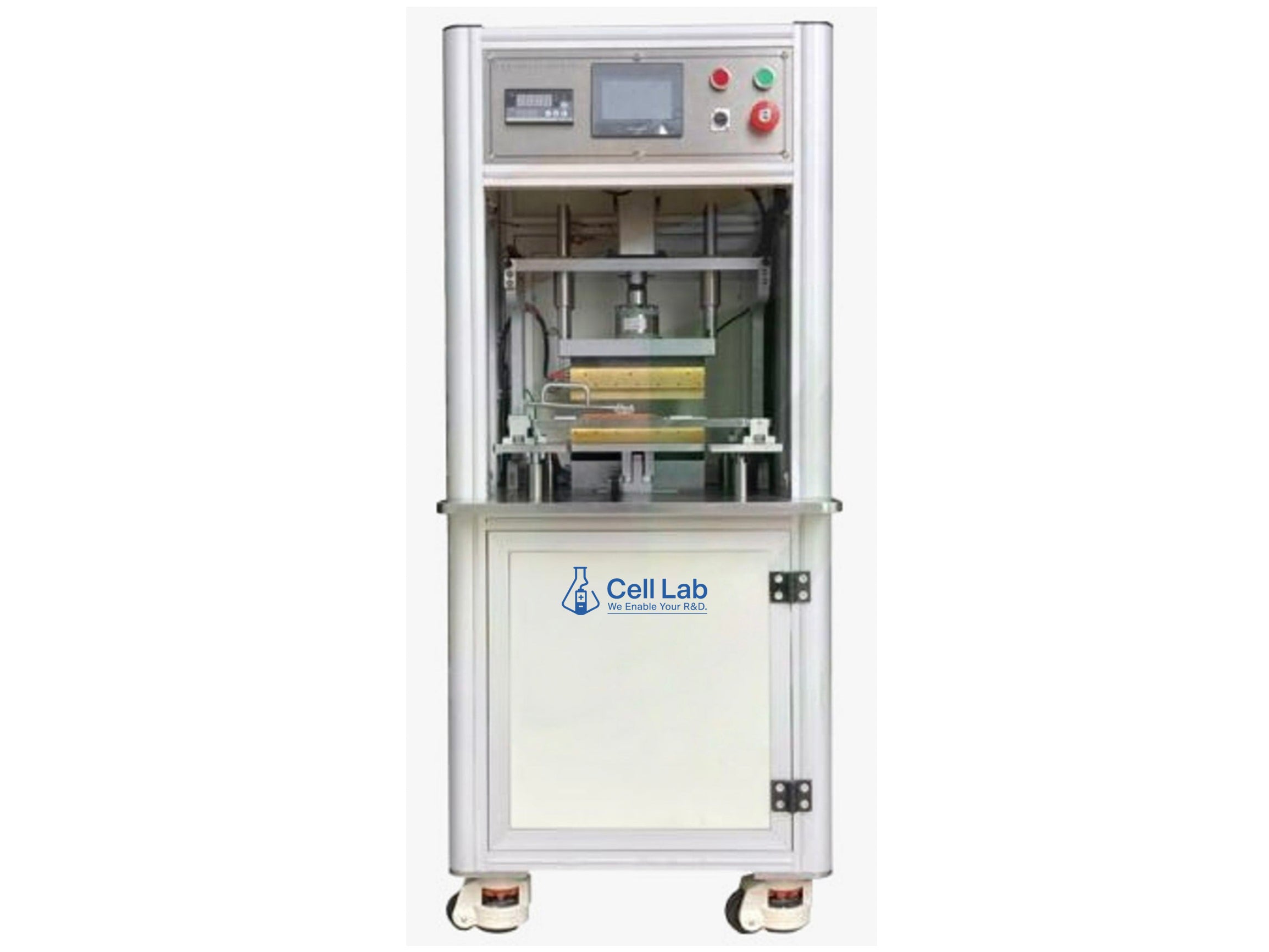

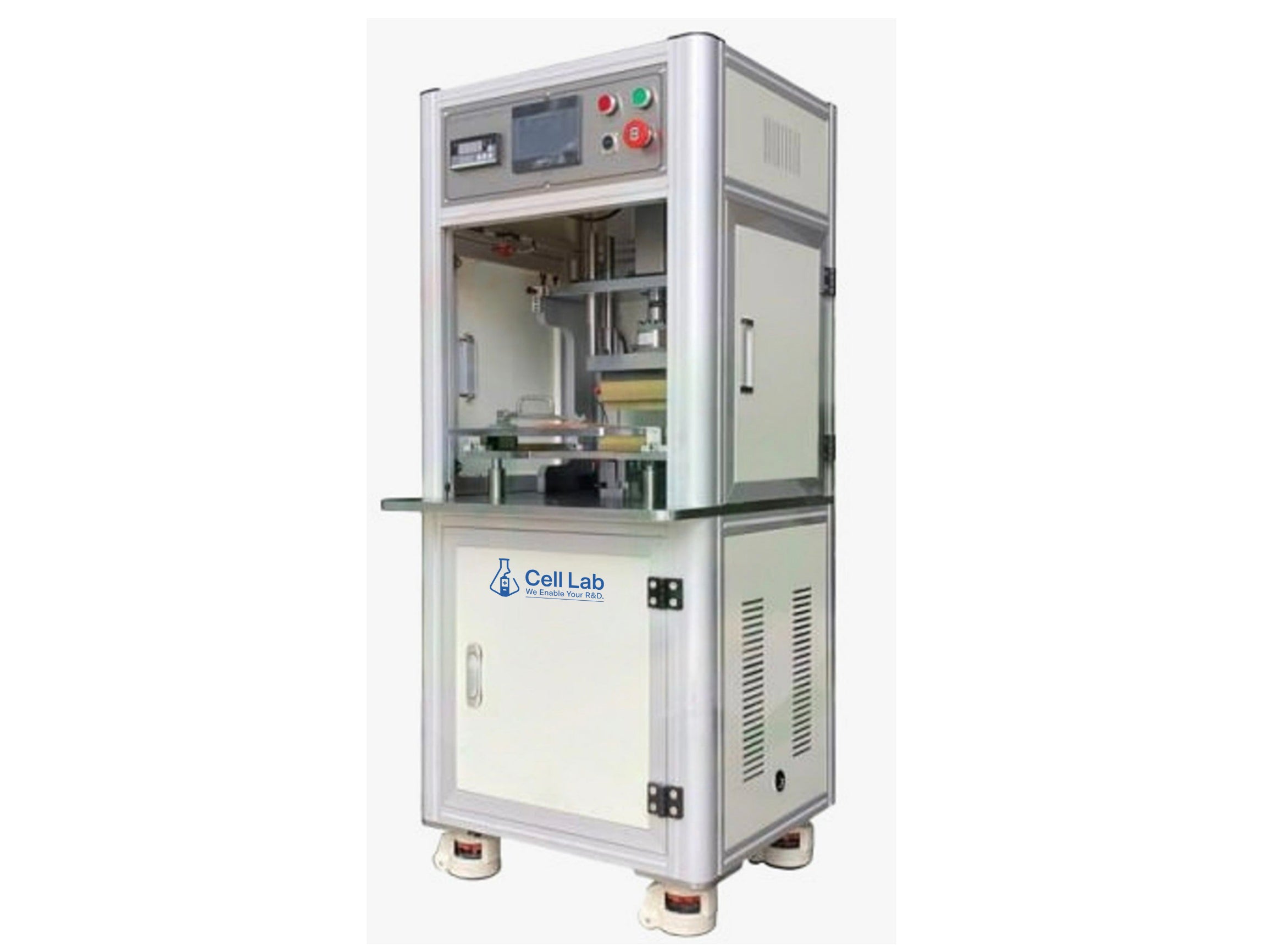

The Cell Lab Automatic Pouch Cell Top and Side Heat Sealer is a high-accuracy single-station system designed for top and side sealing of aluminium-laminated pouch cell casings. Equipped with a PLC touchscreen control interface, it provides precise adjustment of temperature, pressure, and sealing duration, ensuring consistent seal integrity and repeatability. Integrated USB data logging enables process traceability and quality management. Ideal for both research laboratories and pilot-scale battery manufacturing, this system delivers superior control, reliability, and sealing performance.
Key Features
-
Touchscreen Parameter Control: Intuitive interface for adjusting sealing pressure, temperature, and time with fine precision.
-
High Sealing Accuracy: Parallelism ≤ 0.02 mm ensures uniform sealing quality; sealing pressure adjustable from 5–250 kg.
-
Integrated Data Logging: USB export allows direct sealing record storage for QA documentation and traceability.
-
Versatile Application Range: Suitable for pouch cells up to 200 × 200 mm and thicknesses between 5–25 mm.
-
Customisable Design: Sealing width, temperature range, and mechanical dimensions can be tailored for specific battery formats.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Power Supply | 220V / 50Hz (Customisable) |
| Total Power | 2.5 kW (Based on actual configuration) |
| Air Supply | 0.5–0.7 MPa, 100 L/min |
| Applicable Battery Range | ≤200 mm (L) × ≤200 mm (W), 5–25 mm (Thickness) |
| Sealing Width | 5 mm (Customisable) |
| Sealing Head Parallelism | ≤0.02 mm |
| Heating Tube Power | 800 W |
| Temperature Range | RT to 300°C (±3°C) |
| Sealing Pressure | 5–250 kg (Adjustable via touchscreen) |
| Sealing Time | 0–99 sec (Adjustable via touchscreen) |
| Output | ≥1 PPM |
| Equipment Dimensions (L×W×H) | 570 × 550 × 1320 mm (Customisable) |
| Equipment Weight | 150 kg |
Applications & Industries
-
Pouch cell aluminium-laminated film sealing
-
Lithium-ion and solid-state cell packaging
-
Pilot and laboratory-scale pouch cell assembly
-
Top and side sealing for energy-storage R&D
-
Precision quality control and battery prototyping
FAQ
Q1: What pouch cell sizes can this sealer handle?
It supports pouch cells up to 200 × 200 mm with thicknesses ranging from 5–25 mm.
Q2: How is sealing quality monitored?
Real-time pressure, temperature, and time control ensure uniform sealing; data can be logged via USB for QA tracking.
Q3: Can the sealing width be customised?
Yes. The sealing width and temperature range can be configured to suit specific pouch designs and materials.
Q4: Is it suitable for production-scale lines?
Yes. It is ideal for pilot lines or integration into semi-automated pouch-cell production systems.
Q5: What safety features are included?
The system features enclosed heat zones, emergency stop functionality, and automatic pressure release for operator safety.
