xCell Lab Automatic Pouch Cell Case Forming Machine [Servo Punching | Roll-Feeding | Laminated Film Forming Equipment]
Fully automated servo-driven forming system for high-precision aluminium-laminated pouch cell case production

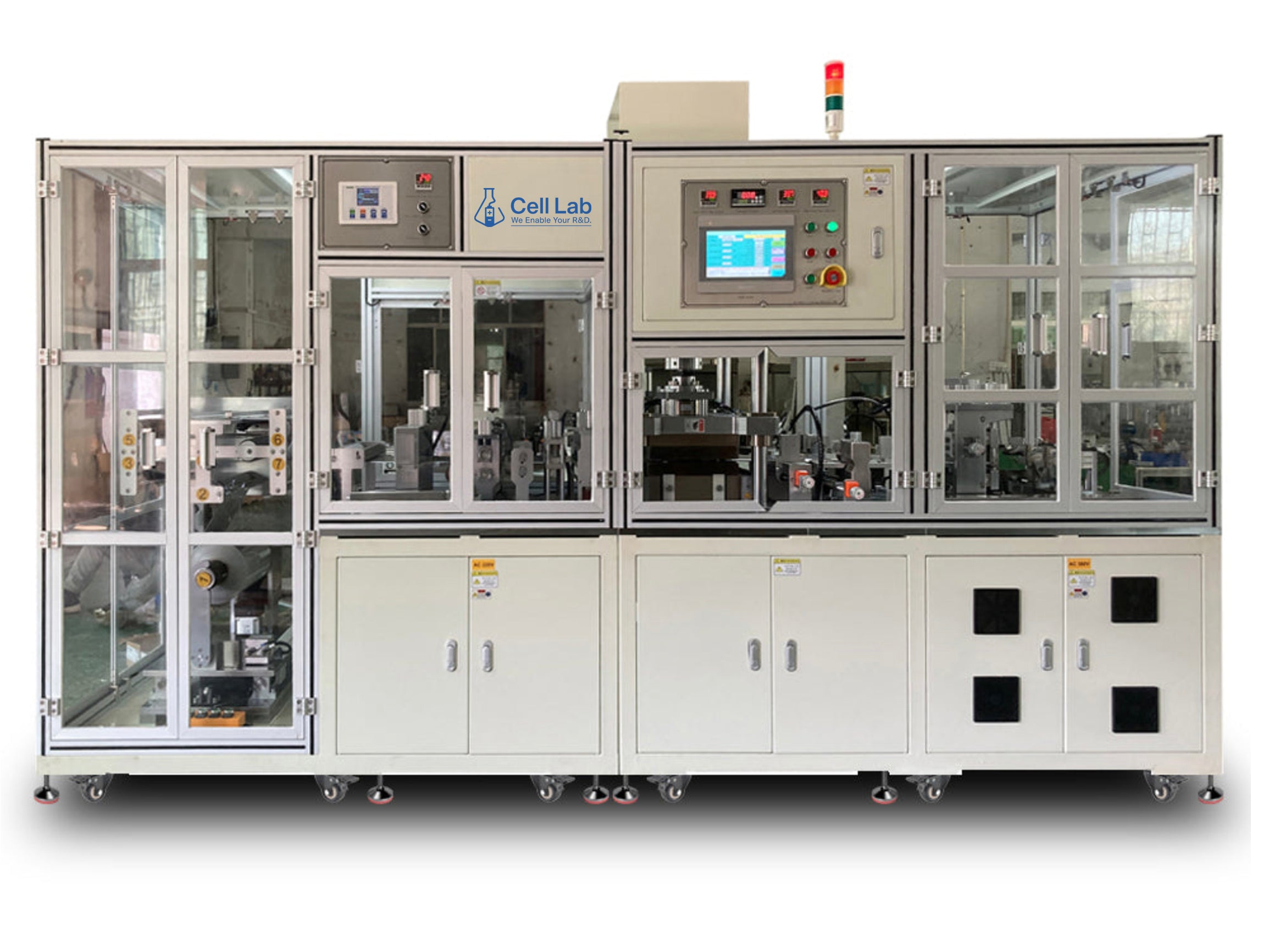

The Cell Lab Automatic Pouch Cell Case Forming Machine is an advanced servo-controlled system engineered for precision punching and forming of battery pouch cases from laminated film rolls. Integrating automatic film feeding, static-removal, dust-cleaning, preheating, servo punching, trimming, and collection, it delivers wrinkle-free and defect-free pouches for high-performance lithium-ion and solid-state cell assembly. Designed for pilot and production-scale manufacturing, it ensures exceptional repeatability, accuracy, and surface integrity.
Key Features
-
Fully Automated Film Handling: Servo-driven roll feeding with automatic alignment, static elimination, and dust removal for clean, stable film processing.
-
High-Precision Servo Punching: ±0.15 mm dimensional tolerance and smooth, wrinkle-free pouch corners after forming.
-
Flexible Mould Compatibility: Accommodates multiple aluminium-laminated film formats and pouch dimensions for varied R&D or production requirements.
-
Intelligent Tension Control System: Electric proportional valves and servo-feedback loops maintain optimal film tension during continuous operation.
-
Centralised Touchscreen Interface: Modular HMI integrates control of transport, cutting, punching, and real-time data for simplified operation and customisation.
Technical Specifications:
| Specification | Value |
|---|---|
| Power Supply | 380V, 12kW (Customisable) |
| Max Film Size | L350 × W200 mm |
| Punching Depth Accuracy | ±0.1 mm |
| Overall Punching Dimension Accuracy | ±0.15 mm |
| Max Punch Pressure | 3T |
| Punching Method | Servo punching |
| Mold Life | 1,000,000 times |
| Transport Method | Servo transport (touch screen set) |
| Transport Accuracy | ±0.1 mm |
| Cutting Mode / Adjustment | Servo cutting / screen adjustable |
| Cutting Accuracy | ±0.2 mm |
| Cutter Life | 1,000,000 times (repairable) |

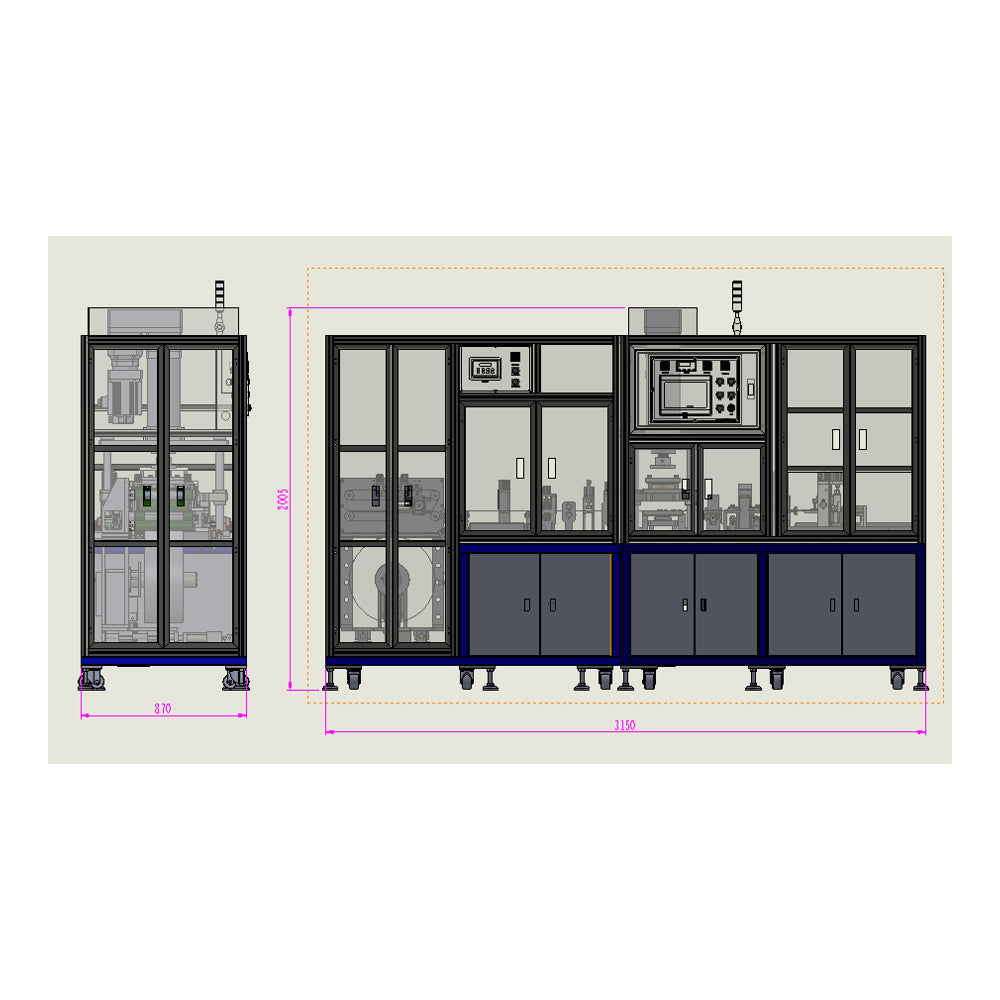

| Overall Dimensions (L×W×H) | 3200 × 1000 × 2000 mm |
| Weight | 1500 kg |
Applications & Industries
-
Lithium-ion and solid-state pouch cell manufacturing
-
Aluminium-laminated film case forming and trimming
-
Pilot-scale and automated battery production lines
-
Precision packaging for energy-storage R&D
-
High-accuracy forming for battery enclosure materials
FAQ
Q1: What materials can this machine process?
It is optimised for aluminium-laminated films used in pouch cell packaging.
Q2: What pouch sizes are supported?
The system accommodates films up to 350 × 200 mm and can be customised for other formats.
Q3: How accurate is the punching process?
Punching dimensional accuracy reaches ± 0.15 mm, ensuring tight tolerances for electrode stacking and sealing.
Q4: Can the moulds be replaced or repaired?
Yes. Moulds and cutters have a lifespan of 1 million cycles and can be refurbished or replaced.
Q5: Is it suitable for production lines?
Yes. It integrates seamlessly into automated pouch-cell production systems for continuous forming and high-throughput operation.
