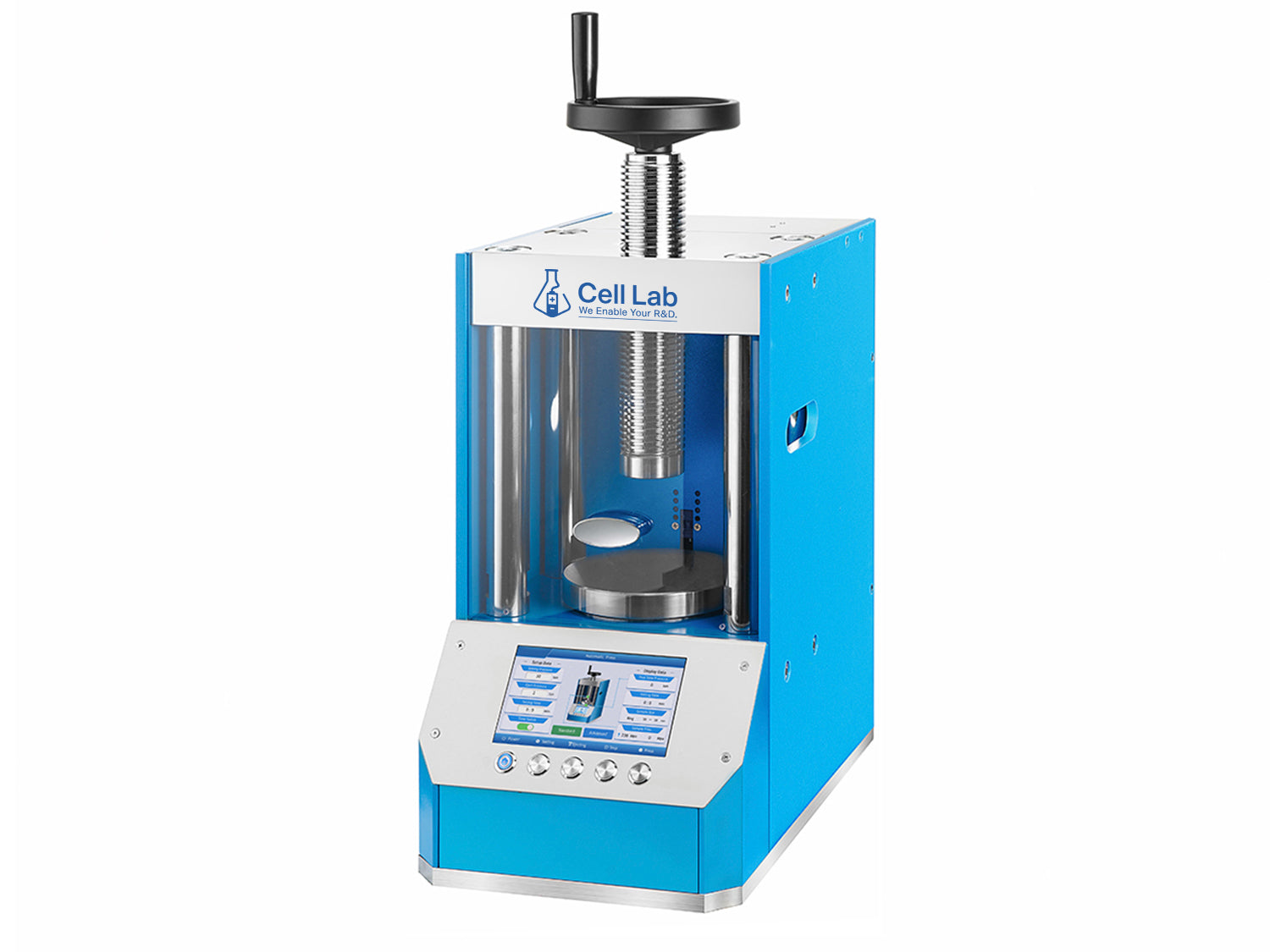

Cell Lab Automatic Hydraulic Lab Pellet Press [20–60 Ton]

Cell Lab Automatic Hydraulic Lab Pellet Press [20–60 Ton, Programmable] Precision Automatic Pellet Press for FTIR, XRF & Battery Materials The Cell Lab Automatic Hydraulic Pellet Press series (20T–60T) is designed for precise, programmable powder pressing in FTIR/XRF analysis, battery...
Vendor: Cell Lab
SKU: CL0694
Product type: Pellet Press Machine
£3,169.00
£3,169.00
Style: 20T
Subtotal: £3,169.00
Description
Description
x

Cell Lab Automatic Hydraulic Lab Pellet Press [20–60 Ton, Programmable]

Precision Automatic Pellet Press for FTIR, XRF & Battery Materials

The Cell Lab Automatic Hydraulic Pellet Press series (20T–60T) is designed for precise, programmable powder pressing in FTIR/XRF analysis, battery electrode research, ceramics, metallurgy, and catalysis. Unlike manual presses, these automatic presses allow users to set target pressures, pressure ramp rates, and holding times. The system automatically controls both the increase and release of pressure, ensuring repeatable compaction with high accuracy.

Equipped with a 4.3" LCD interface and plexiglass safety enclosure, these presses provide reliable performance and enhanced operator protection. Available in four models (20T, 30T, 40T, 60T), the series covers a wide range of laboratory and pilot-scale pressing needs.

Key Features

  • Programmable pressure control – Set pressure ramp-up, holding, and release profiles for reproducible compaction.

  • Extended hold time – Maintain set pressure for up to 999 minutes 59 seconds.

  • Wide pressure range – Models from 20T to 60T accommodate different materials and sample sizes.

  • Digital interface – 4.3" LCD for intuitive operation and process monitoring.

  • Safety built-in – Transparent plexiglass safety cover for secure operation.

Specifications

Model Product No. Pressure Range Pressure Hold Time LCD Display Safety Feature Stage Travel Distance Working Area (W × D) Dimensions (L × W × H) Net Weight Power Supply
20T Automatic Press CL0694 0–20 tons 0–999m59s 4.3" LCD Plexiglass safety cover 30 mm 140 × 160 mm 230 × 390 × 420 mm 65 kg 220V / 50 Hz
30T Automatic Press CL0695 0–30 tons 0–999m59s 4.3" LCD Plexiglass safety cover 30 mm 140 × 160 mm 230 × 390 × 420 mm 95 kg 220V / 50 Hz
40T Automatic Press CL0696 0–40 tons 0–999m59s 4.3" LCD Plexiglass safety cover 50 mm 175 × 180 mm 280 × 460 × 550 mm 150 kg 220V / 50 Hz
60T Automatic Press CL0697 0–60 tons 0–999m59s 4.3" LCD Plexiglass safety cover 50 mm 185 × 220 mm 300 × 520 × 580 mm 180 kg 220V / 50 Hz

Applications & Industries

  • Battery research – Fabrication of electrode and solid-state battery pellets.

  • FTIR / XRF sample preparation – High-pressure pressing for analytical testing.

  • Ceramics & metallurgy – Compaction of powders into dense pellets.

  • Catalysis & material science – Reproducible pressing for experimental studies.

  • Pharmaceutical R&D – Laboratory-scale powder pelletisation.

FAQ

Q1: What is the advantage of automatic control compared to manual presses?
A: Automatic control ensures reproducibility by precisely managing pressure increase, hold, and release. This reduces operator variability and improves accuracy.

Q2: How long can the press hold pressure?
A: The press can maintain set pressure for up to 999 minutes 59 seconds, suitable for extended tests.

Q3: What safety features are included?
A: All models include a plexiglass safety cover to protect the operator during pressing.

Q4: What sample sizes can be accommodated?
A: Working areas range from 140 × 160 mm to 185 × 220 mm, depending on the model.

Q5: What is the warranty policy?
A: One-year limited warranty covering manufacturing defects. Damage due to misuse or rust is excluded.
