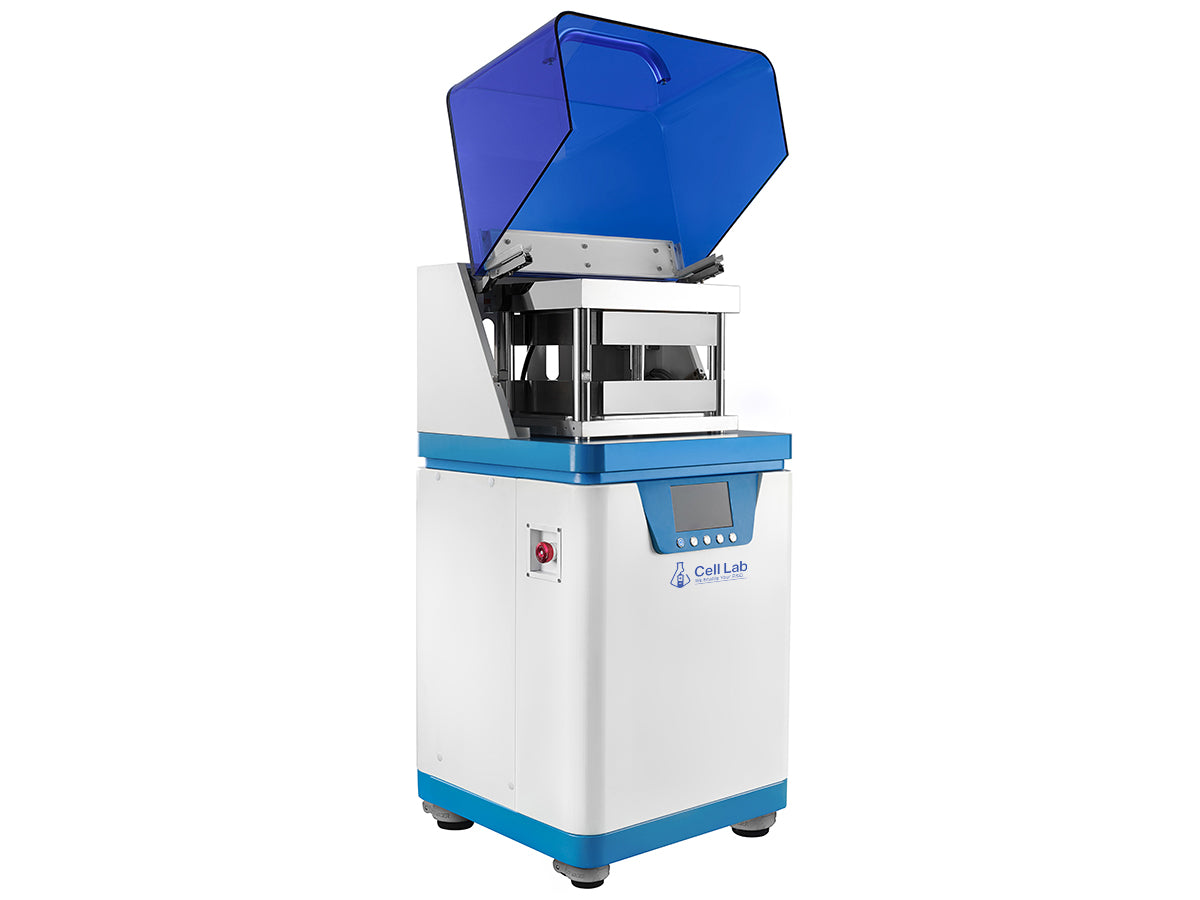

Cell Lab automatic hot press with 60 ton capacity, dual 500×500 mm heating platens and programmable control for battery, composite and material research applications.

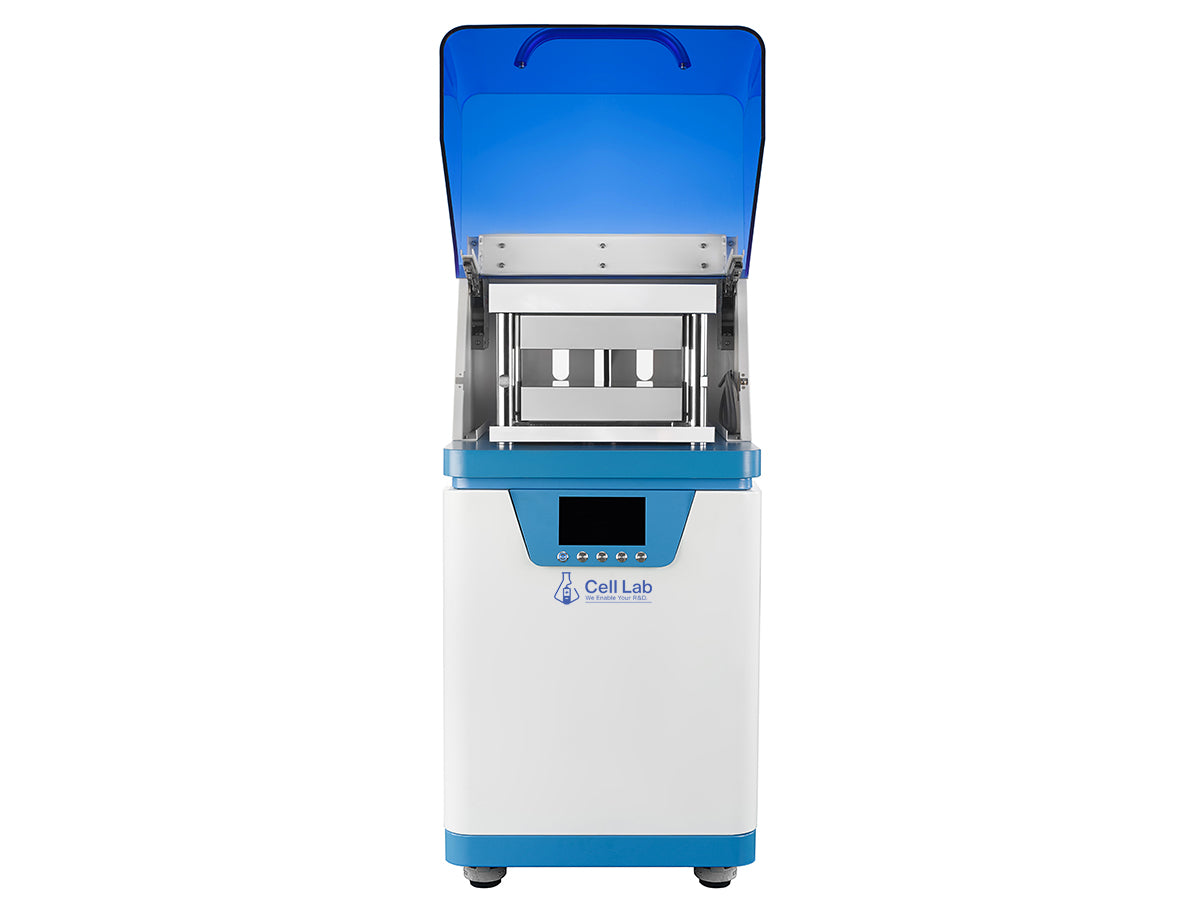

Cell Lab automatic hot press with 60 ton capacity, dual 500×500 mm heating platens and programmable control for battery, composite and material research applications.

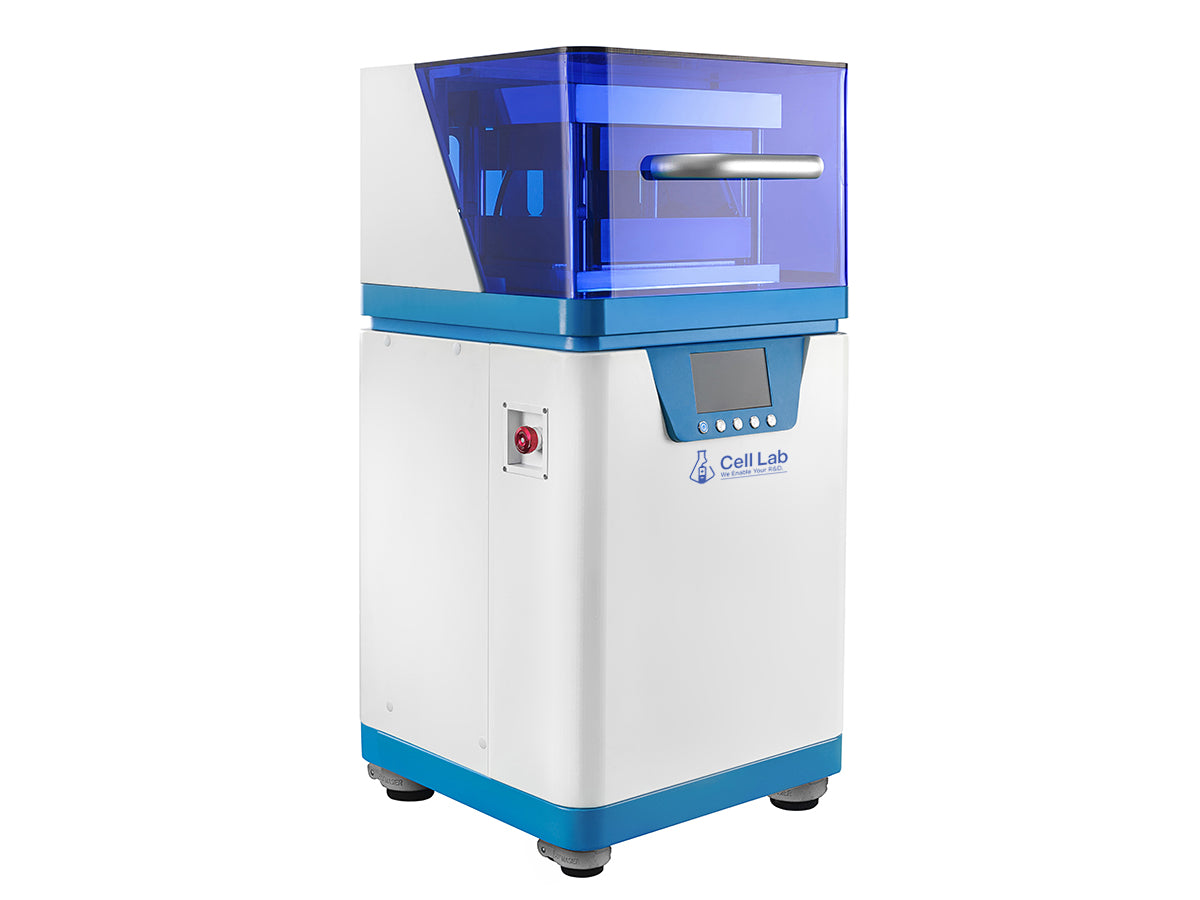

Cell Lab automatic hot press with 60 ton capacity, dual 500×500 mm heating platens and programmable control for battery, composite and material research applications.

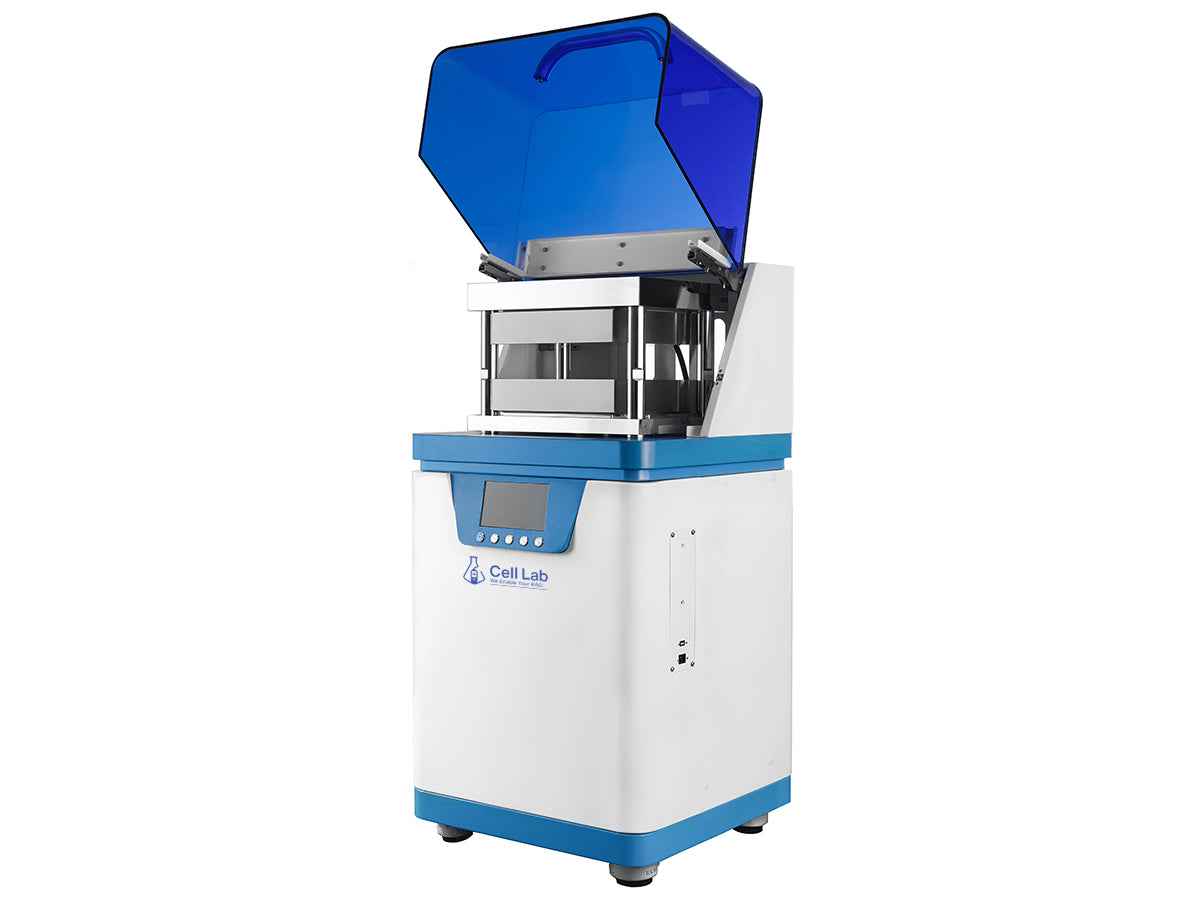

Cell Lab automatic hot press with 60 ton capacity, dual 500×500 mm heating platens and programmable control for battery, composite and material research applications.

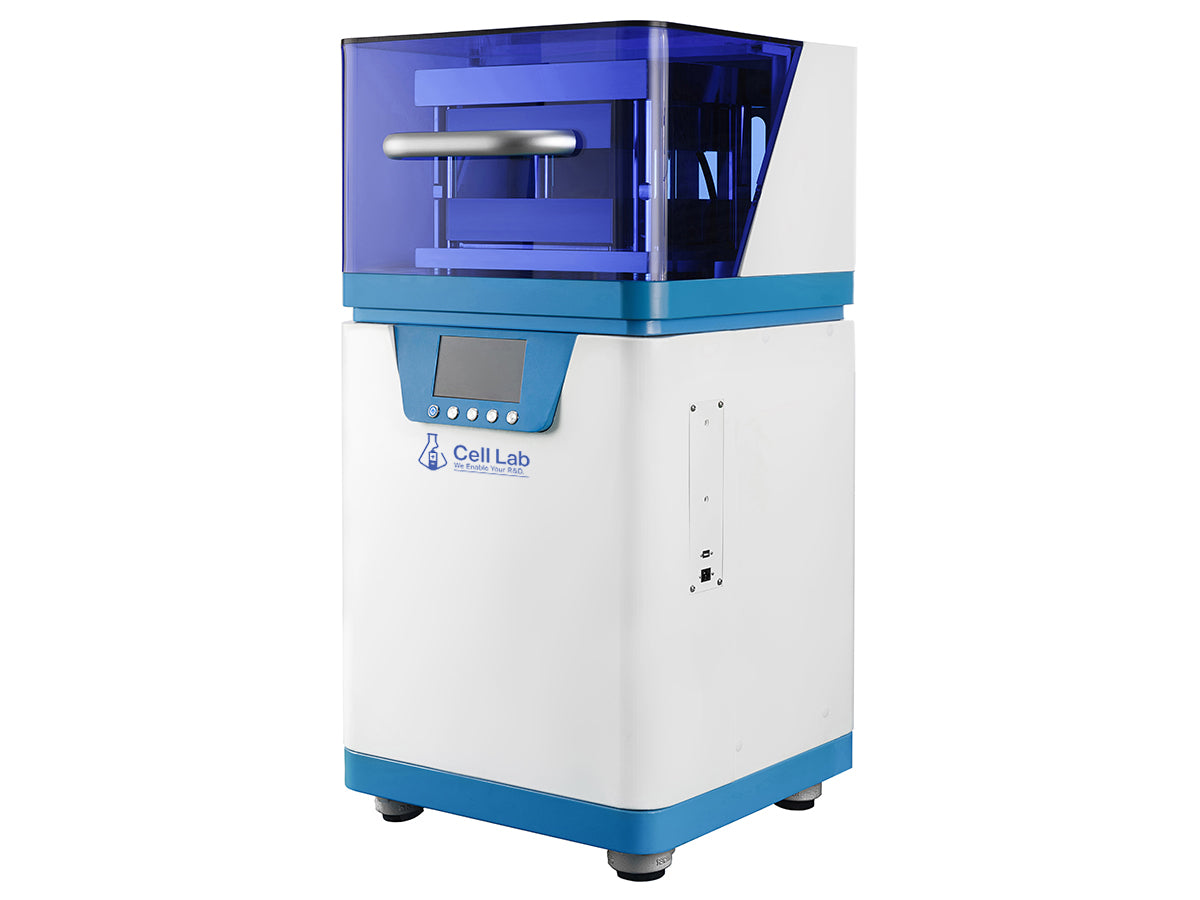

Cell Lab automatic hot press with 60 ton capacity, dual 500×500 mm heating platens and programmable control for battery, composite and material research applications.

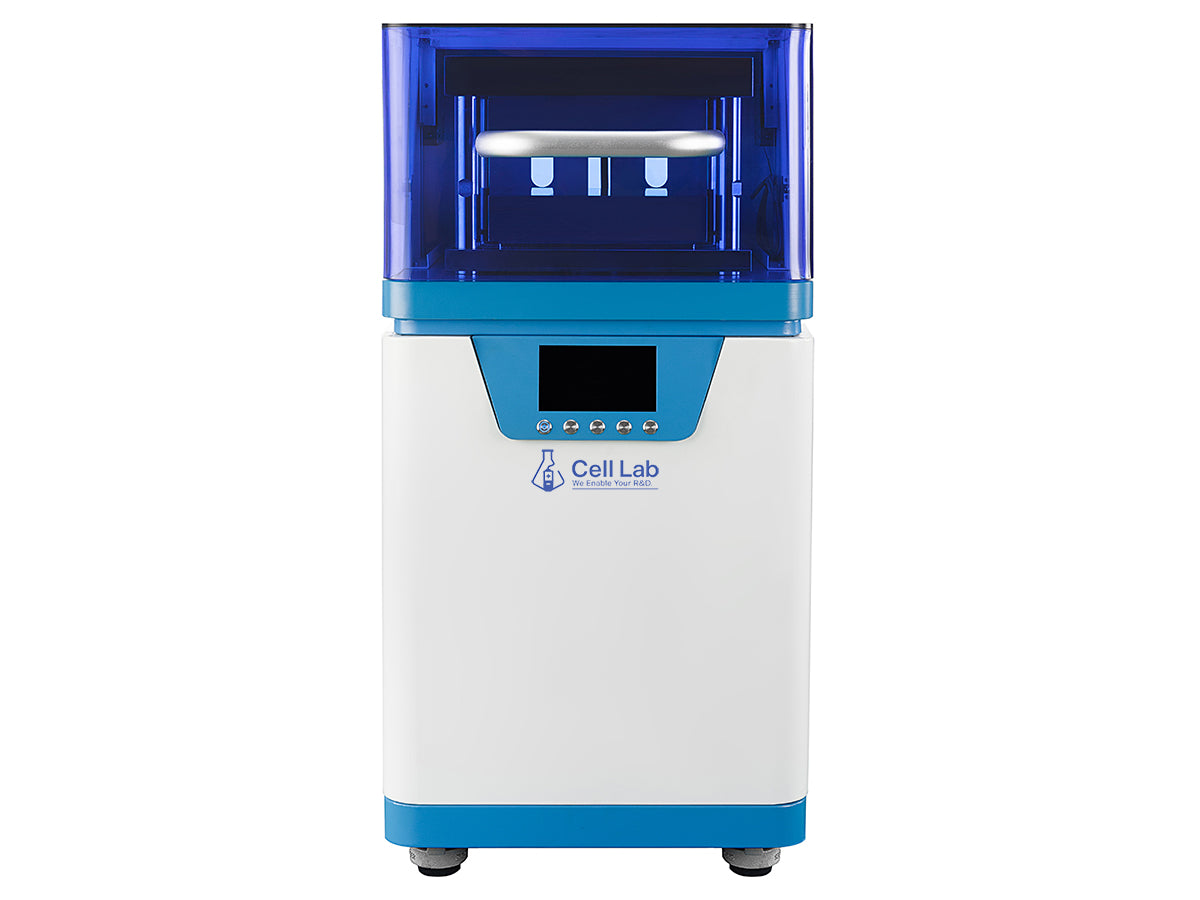

Cell Lab automatic hot press with 60 ton capacity, dual 500×500 mm heating platens and programmable control for battery, composite and material research applications.
Cell Lab automatic hot press with 60 ton capacity, dual 500×500 mm heating platens and programmable control for battery, composite and material research applications.
Cell Lab automatic hot press with 60 ton capacity, dual 500×500 mm heating platens and programmable control for battery, composite and material research applications.
Cell Lab automatic hot press with 60 ton capacity, dual 500×500 mm heating platens and programmable control for battery, composite and material research applications.
Cell Lab automatic hot press with 60 ton capacity, dual 500×500 mm heating platens and programmable control for battery, composite and material research applications.
Cell Lab automatic hot press with 60 ton capacity, dual 500×500 mm heating platens and programmable control for battery, composite and material research applications.
Cell Lab automatic hot press with 60 ton capacity, dual 500×500 mm heating platens and programmable control for battery, composite and material research applications.

Cell Lab Automatic Hot Press [50 T, 300 °C/500 °C, 400×400 mm]

Cell Lab Automatic Hot Press [50 T, 300 °C/500 °C, 400×400 mm Heating Platens] High-capacity programmable hydraulic hot press with dual large-area heated platens for advanced material forming, lamination and battery research General Description The Cell Lab Automatic Hot Press is...
Vendor: Cell Lab
SKU: CL0897
Product type: Pellet Press Machine
£18,999.00
£18,999.00
Heating Temperature: Room temp. to 300°C
Subtotal: £18,999.00
Description
Description
x

Cell Lab Automatic Hot Press [50 T, 300 °C/500 °C, 400×400 mm Heating Platens]

High-capacity programmable hydraulic hot press with dual large-area heated platens for advanced material forming, lamination and battery research

General Description

The Cell Lab Automatic Hot Press is a next-generation, fully programmable hydraulic heat press designed for large-area material forming, lamination, powder compaction and battery electrode preparation. Featuring dual 400 ×400 mm heating platens, up to 50 ton pressing force, and maximum temperatures of 300 °C or 500 °C, this system delivers exceptional uniformity, precision and repeatability.

The press integrates independent programmable control of pressure, temperature and cooling, allowing up to 18 process segments for complex pressing cycles. Its 7-inch touch screen interface, real-time curve display and USB data export enable complete process monitoring and traceability. With integrated safety systems, water-cooling capability and optional computer control, it is ideal for advanced research and pilot-scale production.

This automatic hot press is widely used in battery research, composite materials, polymer processing, powder metallurgy and industrial material development.

Key Features

• High pressing capacity up to 50 tons — precision pressure control with 0.01 T accuracy.

• Large dual heating platens (400 ×400 mm) — ideal for large samples, electrode sheets and composite laminates.

• High temperature capability up to 500 °C — available in 300 °C and 500 °C configurations.

• Fully programmable multi-stage control — up to 18 programmable pressure, heating and cooling steps.

• Intelligent control and data recording — real-time curve display with USB export and computer control capability.

Technical Specifications

General Parameters

Parameter Specification
Model PP-600F-F
Pressure range 0.01–50 T
Pressure accuracy 0.01 T
Display 7-inch touch screen
Control Fully automatic programmable control

Heating System

Parameter Specification
Heating platen size 400 × 400 mm
Heating temperature options RT–300 °C / RT–500 °C
Heating power 4 kW (300 °C) / 6 kW (500 °C)
Temperature control Programmable multi-stage

Cooling & Control

Parameter Specification
Cooling method Water cooling (manual or programmable)
Program segments Up to 18 segments
Speed regulation Adjustable pressurisation and heating rate
Curve display Yes
Data export USB
Remote control Computer control supported

Mechanical Specifications

Parameter Specification
Working space 520 × 100 mm (L x H)
Power supply 220 V / 50Hz
Product dimensions 680 × 680 × 1280 mm
Net weight 1080 kg
Package size 900 × 800 × 1400 mm
Gross weight 1200 kg

Safety Features

  • Acrylic safety protective door with automatic shut-off
  • Emergency stop button
  • Dual safety protection system
  • Industrial-grade electrical components

Applications & Industries

  • Battery electrode pressing
  • Solid-state battery production
  • Polymer and composite lamination
  • Powder metallurgy
  • Ceramic material forming
  • Advanced materials research

FAQ

Q1: Is this hot press fully automatic?
Yes, it supports fully programmable pressure, temperature and cooling control.

Q2: What is the maximum pressing force?
Up to 60 tons with precision control.

Q3: Can process data be exported?
Yes, via USB or computer connection.

Q4: What platen size is included?
Dual heating platens sized 400 × 400 mm.
