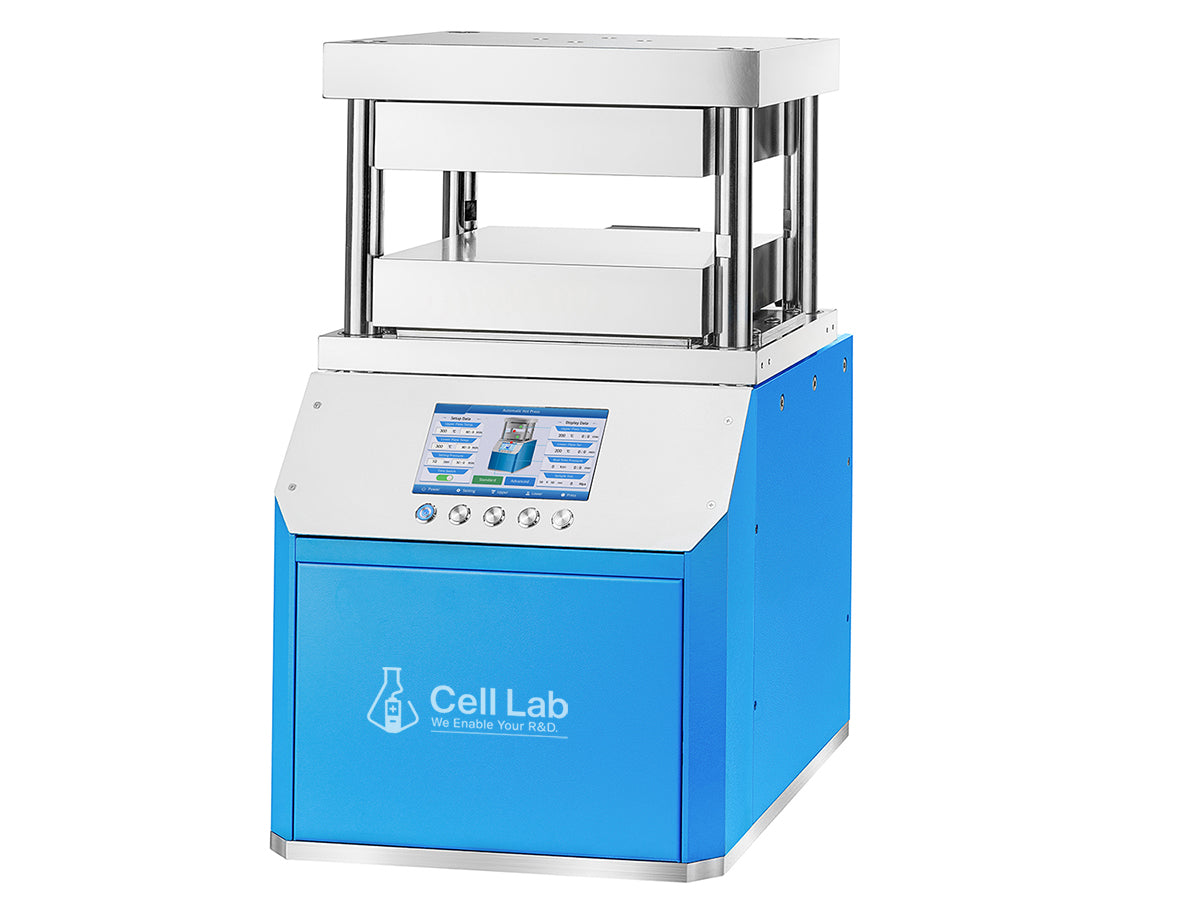

Cell Lab Automatic Hot Press [30T, 300/500 °C, 300 × 300 mm]
Cell Lab Automatic Hot Press [30T, 300/500 °C, 300 × 300 mm] Fully programmable automatic hot press with precise pressure–temperature control for powder compaction, sintering and advanced material research. General Description The Cell Lab Automatic Hot Press is a high-performance, fully...
- £10,619.00
- £10,619.00
- Unit price
- per
Subtotal:
£10,619.00
Description
xCell Lab Automatic Hot Press [30T, 300/500 °C, 300 × 300 mm]
Fully programmable automatic hot press with precise pressure–temperature control for powder compaction, sintering and advanced material research.
General Description
The Cell Lab Automatic Hot Press is a high-performance, fully programmable hydraulic hot press designed for powder compaction, material forming, lamination and thermal pressing applications. Featuring up to 30-ton pressing force, precise temperature control up to 500 °C, and a 20-stage programmable pressurisation process, it delivers exceptional stability and repeatability for laboratory and pilot-scale material processing.
Equipped with a 7-inch touch screen, real-time pressure profile display and multi-stage heating or cooling programmes, it allows users to precisely control pressure, temperature and dwell time throughout the entire hot pressing cycle. Optional water-cooled rapid cooling further enhances process efficiency and sample throughput.
This automatic hot press is widely used in battery materials, ceramics, composites, polymers, powder metallurgy and functional materials R&D.
Key Features
• Fully automatic hydraulic hot press up to 30 tons – Accurate pressure control with 0.1-ton resolution for reproducible compaction results.
• High-temperature capability up to 500 °C – Available heating ranges RT–300 °C (3 kW) or RT–500 °C (4.5 kW).
• 20-stage programmable pressurisation – Customisable pressure profiles with on-screen curve display.
• Precision temperature control – ±0.1 °C temperature control accuracy with programmable dwell times.
• Advanced thermal management – Multi-stage heating/cooling programmes with optional water-cooled rapid cooling.
Technical Specifications
General Parameters
| Item | Specification |
|---|---|
| Instrument model | PP-600E |
| Pressure range | 0–30.0 T |
| Pressure accuracy | 0.1 T |
| Pressurisation process | 20-stage programmed pressurisation with pressure profile display |
| Pressure holding time | Up to 32,768 s per stage or continuous operation |
| Constant temperature time | 1 s – ∞ |
| Temperature control accuracy | ±0.1 °C |
| Display screen | 7-inch touch screen |
Heating & Cooling
| Item | Specification |
|---|---|
| Heating temperature options | RT–300 °C (3 kW) / RT–500 °C (4.5 kW) |
| Heating method | Multi-stage heating or cooling programme |
| Heat insulation | Imported heat insulation board / panel |
| Cooling method | Water-cooled rapid cooling (water chiller optional) |
Mechanical & Electrical
| Item | Specification |
|---|---|
| Power supply | 220 V / 50 Hz, customisable |
| Working space | 300 × 70 mm |
| Press plate size | 300 × 300 mm (M × N) |
| Product dimensions | 400 × 500 × 680 mm (L × W × H) |
| Net weight | 300 kg |
| Package dimensions | 725 × 620 × 890 mm (L × W × H) |
| Gross weight | 336 kg |
Applications & Industries
-
Battery electrode and solid-state electrolyte pressing
-
Powder metallurgy and ceramic compaction
-
Polymer and composite lamination
-
Functional materials and advanced materials R&D
-
Laboratory hot pressing and pilot-scale material forming
(SEO keywords: automatic hot press, hydraulic hot press, laboratory hot press, powder press machine, heated press, programmable hot press)
FAQ
Q1: Is the press fully programmable?
Yes. The CL0880 supports 20-stage programmable pressurisation with real-time pressure profile display.
Q2: What temperature options are available?
Two heating configurations are available: RT–300 °C (3 kW) and RT–500 °C (4.5 kW).
Q3: Can pressure and temperature be controlled simultaneously?
Yes. Pressure, temperature and holding time can be independently programmed and synchronised.
Q4: Is rapid cooling supported?
Yes. Optional water-cooled rapid cooling can significantly reduce cycle time.
