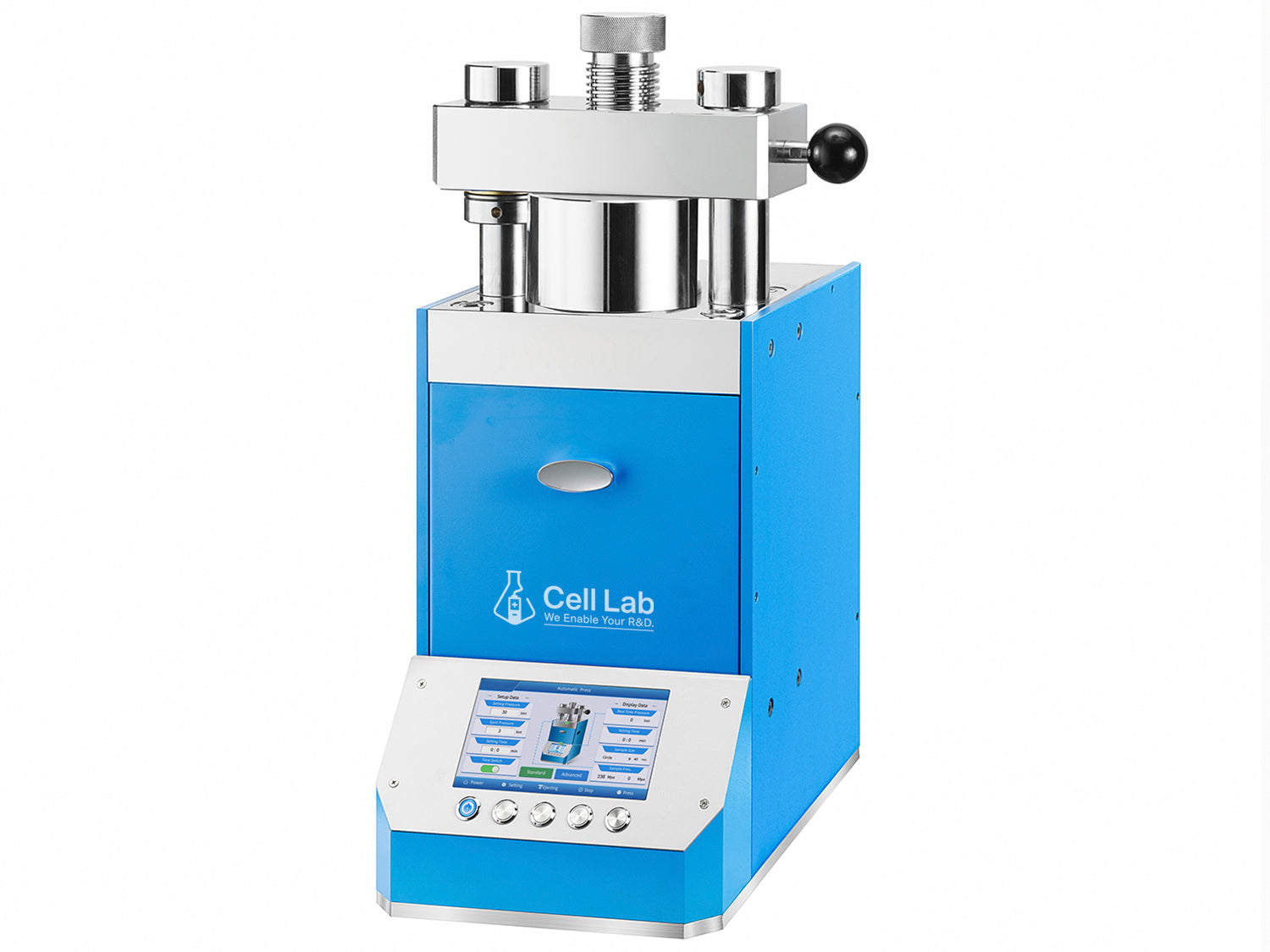

Cell Lab Automatic Hot Isostatic Press (HIP) [20T & 40T, 200 °C]

High-Pressure, High-Temperature Powder Compaction System

The Cell Lab Automatic Hot Isostatic Press (HIP) series is designed for advanced materials processing under simultaneous high temperature and high isostatic pressure. Using a liquid transfer medium as the pressure-transmitting agent, HIP ensures uniform compaction in all directions, producing dense and homogeneous billets with minimal distortion or cracking.

With programmable control of pressurisation, holding, and timed pressure release, the system provides reliable performance for powder metallurgy, ceramics, battery electrode R&D, and specialised alloy fabrication.

Available in 20-ton and 40-ton models, the HIP system offers precise temperature control up to 200 °C and a maximum isostatic pressure of 300 MPa, making it suitable for both research and small-scale production.

Key Features

  • Simultaneous heat & pressure – Ensures full densification and uniform microstructure.

  • Programmable operation – Automatic pressurisation, pressure holding, and timed release.

  • 7" LCD interface – Real-time monitoring and control with user-friendly display.

  • High isostatic pressure – Chamber supports up to 300 MPa for advanced materials research.

  • Compact benchtop design – Fits laboratory environments while providing industrial-grade capability.

Specifications

Parameter CL0718 (20T HIP) CL0719 (40T HIP)
Pressure Range 0–20 Tons 0–40 Tons
Piston Diameter Ø130 mm (chrome plated) Ø150 mm
Working Process Programmed pressurisation – programmed holding – timed release Same
Pressure Holding Time Unlimited Unlimited
Display 7" LCD 7" LCD
Heating Temperature RT – 200 °C RT – 200 °C
Max Isostatic Pressure 300 MPa 300 MPa
Isostatic Pressure Chamber Ø30 × 150 mm Ø40 × 150 mm
Cylinder Travel Distance 50 mm 50 mm
Outer Dimensions (L × W × H) 280 × 460 × 660 mm 280 × 460 × 660 mm
Net Weight 180 kg 180 kg
Power Supply 220V / 50 Hz 220V / 50 Hz
Power 1800 W 1800 W
Warranty One-year limited (misuse excluded) One-year limited (misuse excluded)

Applications & Industries

  • Powder Metallurgy – Densification of metal powders into high-strength billets.

  • Battery R&D – Compacting solid-state electrolytes and electrode materials.

  • Ceramics & Refractories – Producing dense ceramic preforms with minimal porosity.

  • Specialty Alloys – Fabrication of high-performance materials with uniform structure.

  • Advanced Materials Science – Research into novel composites and functional materials.

FAQ

Q1: What is the maximum isostatic pressure?
A: Both models reach up to 300 MPa inside the chamber.

Q2: What is the maximum heating temperature?
A: The system operates from room temperature to 200 °C.

Q3: Can I run custom pressure programs?
A: Yes, the system supports programmable pressurisation, holding, and timed release cycles.

Q4: What’s the difference between the 20T and 40T models?
A: The main differences are piston diameter (Ø130 mm vs Ø150 mm) and sample chamber size (Ø30 × 150 mm vs Ø40 × 150 mm).

Q5: Is this suitable for glove box use?
A: Yes, but ensure periodic seal inspection to avoid leaks.
