xCell Lab Automatic Film Coater with Heating Dryer [250 mm Vacuum Film Coating Machine for Battery Electrode Applications]
Integrated precision coating and drying system for lithium-ion battery and ceramic film R&D

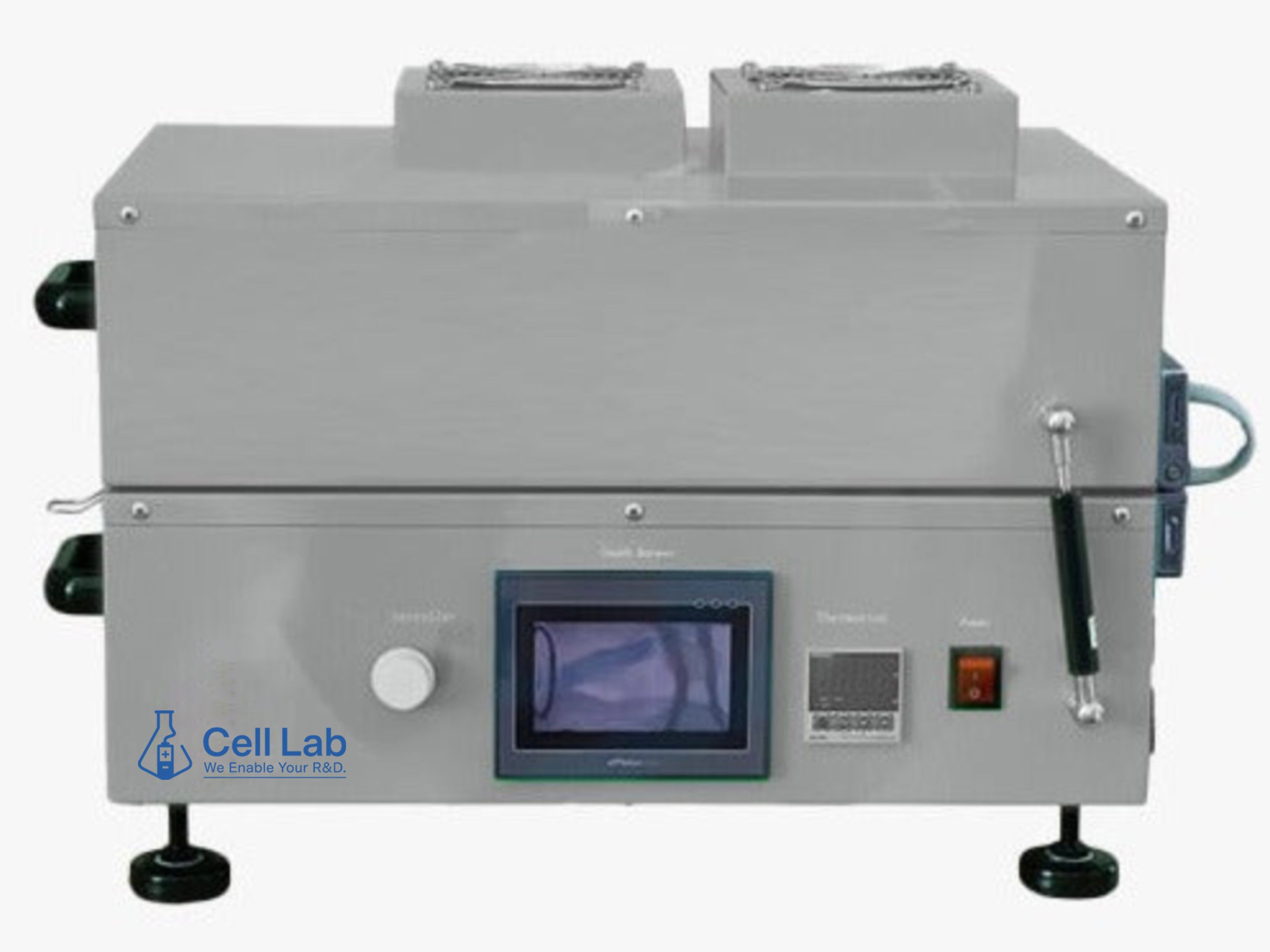

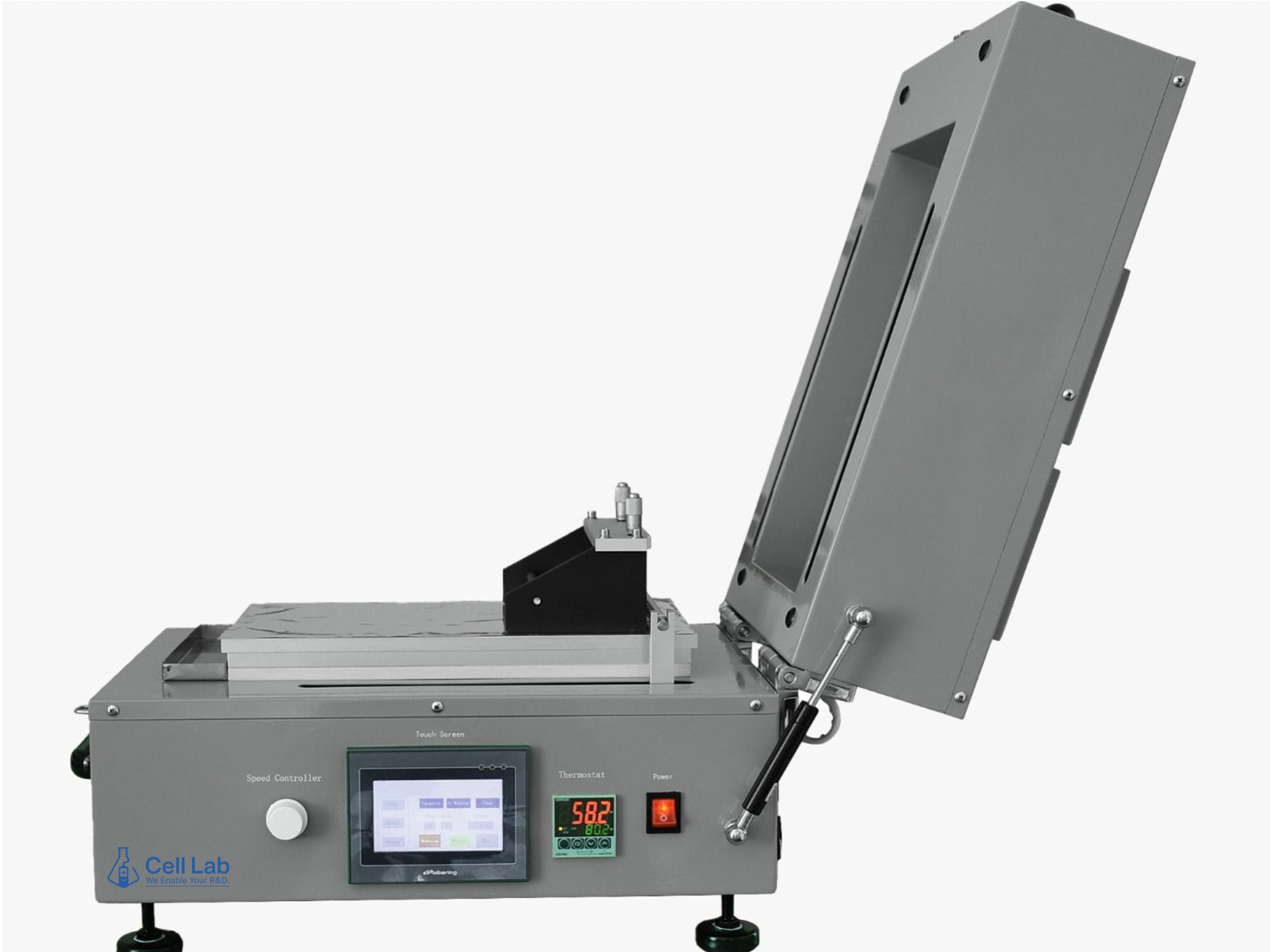

The Cell Lab Automatic Film Coater with Heating Dryer is a compact, benchtop vacuum film coating system engineered for uniform slurry deposition on various substrates. Featuring an integrated vacuum pump, aluminium vacuum chuck, and top-mounted heating dryer, this coater ensures stable fixation, consistent thickness, and precise temperature control—making it ideal for lithium-ion battery electrode coating, ceramic tape casting, and polymer or oxide slurry drying.
The system includes a micrometre-adjustable film applicator (250 mm width) for accurate film thickness control and a programmable traverse mechanism for smooth, consistent coating motion. The built-in digital heating system supports controlled drying up to 130 °C, ensuring repeatable and high-quality film results across a wide range of research applications.
Key Features
-
Integrated Vacuum System – Built-in pump and aluminium vacuum chuck securely hold flexible or thin substrates.
-
Digital Heating Dryer (up to 130 °C) – Uniform top heating for efficient slurry or electrode film drying.
-
Micrometre Film Applicator (250 mm Width) – Precision thickness adjustment from 0–6 mm for consistent coating quality.
-
Variable Coating Speed (0–120 mm/s) – Step-less control with ±10 mm/s accuracy ensures reproducibility.
-
Versatile Applications – Suitable for lithium-ion electrodes, ceramic tape casting, and advanced thin-film materials.
Specifications:
| Parameter | Specification |
|---|---|
| Coating Width | 250 mm (customisable) |
| Coating Stroke | 10 – 300 mm adjustable |
| Coating Speed | 0 – 120 mm/s, step-less (accuracy: 10 mm/s) |
| Vacuum Plate | Aluminium, built-in vacuum system |
| Vacuum Plate Dimensions | 415 × 300 × 32 mm |
| Film Applicator Thickness Range | 0 – 6 mm adjustable |
| Heating System | Top-mounted; room temp. to 130°C |
| Temperature Control Accuracy | ±1°C |
| Max. Heating Rate | 10°C/min |
| Power Supply | 220V / 50Hz |
| Machine Dimensions (L × W × H) | 550 × 450 × 320 mm |
| Net Weight | ~70 kg |
Applications & Industries
-
Lithium-ion and solid-state battery R&D
-
Electrode slurry coating and drying studies
-
Ceramic tape casting and oxide film deposition
-
Polymer electrolyte and separator coating
-
Thin-film research and precision material processing
FAQ
Q1: What materials can this film coater handle?
A1: It supports lithium-ion slurry, ceramic suspensions, polymer gels, and other liquid or semi-solid coating materials.
Q2: How is substrate fixation achieved?
A2: The integrated vacuum pump and aluminium chuck securely hold substrates to ensure flat, uniform coating.
Q3: What is the maximum drying temperature?
A3: The top-mounted digital heating system allows controlled drying up to 130 °C with ±1 °C accuracy.
Q4: Can the coating width and stroke be customised?
A4: Yes. Both the coating width (up to 250 mm or beyond) and stroke can be tailored to specific research needs.
Q5: What are typical applications?
A5: It is ideal for lithium-ion electrode fabrication, ceramic tape casting, and precision film coating in R&D settings.
