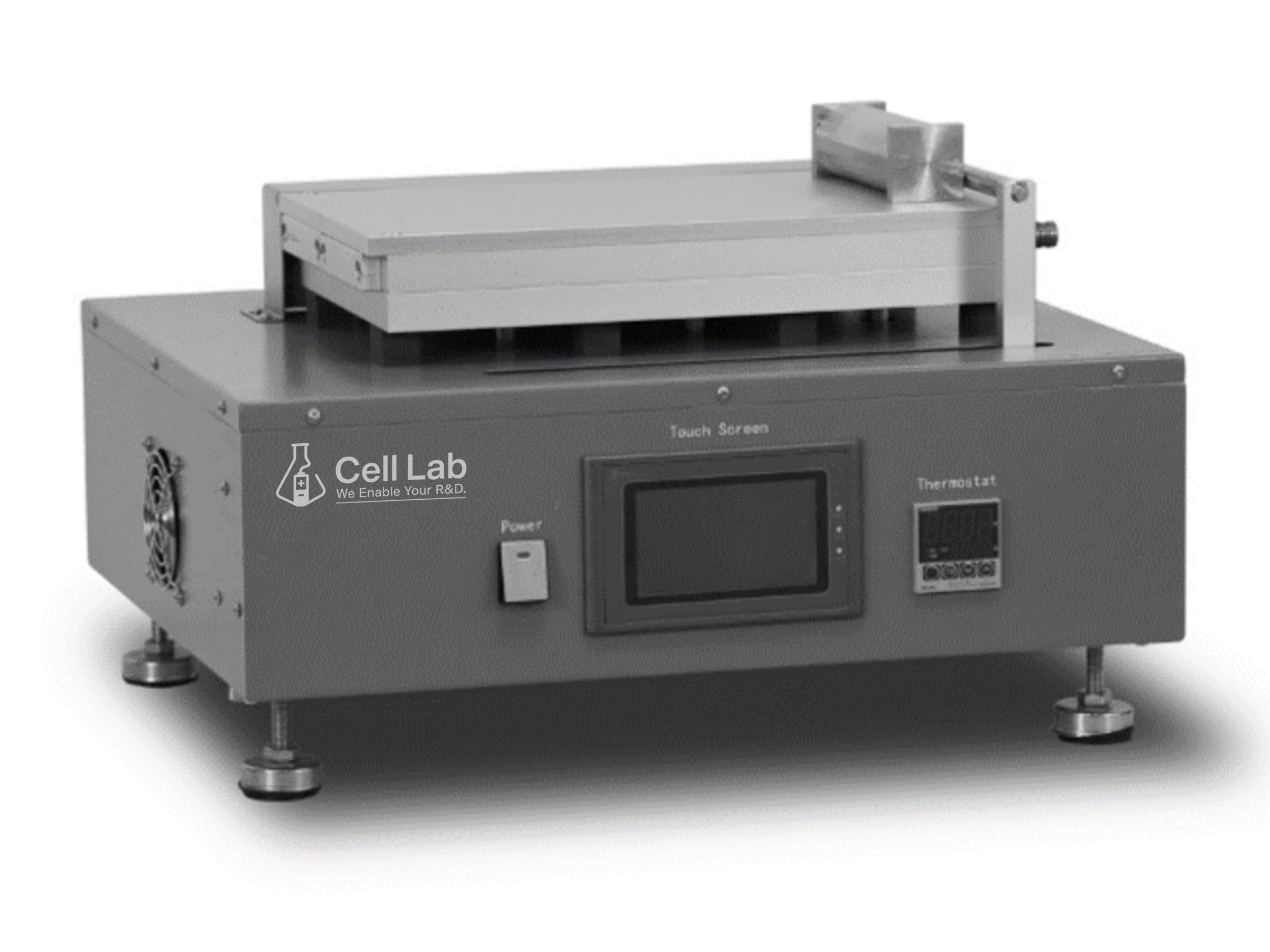

Cell Lab automatic film coater (100 mm width, heating + vacuum system) – precision electrode coating machine for lithium-ion battery R&D. Adjustable applicator (0.01–3.5 mm), digital heating to 130 °C, built-in pump.
Cell Lab automatic film coater (100 mm width, heating + vacuum system) – precision electrode coating machine for lithium-ion battery R&D. Adjustable applicator (0.01–3.5 mm), digital heating to 130 °C, built-in pump.

Cell Lab Automatic Film Coater with Heating Dryer [100 mm Coating Width, Built-in Vacuum Pump] – Precision Electrode Coating System for Battery R&D

Cell Lab Automatic Film Coater with Heating Dryer [100 mm Coating Width, Built-in Vacuum Pump] – Precision Electrode Coating System for Battery R&D High-accuracy automatic coating system with integrated heating and vacuum platform for electrode fabrication The Cell Lab Automatic...
Vendor: Cell Lab
SKU: CL0213
Product type: Battery Equipment
£4,490.00
£4,490.00
Subtotal: £4,490.00
Description
Description
x

Cell Lab Automatic Film Coater with Heating Dryer [100 mm Coating Width, Built-in Vacuum Pump] – Precision Electrode Coating System for Battery R&D

High-accuracy automatic coating system with integrated heating and vacuum platform for electrode fabrication

The Cell Lab Automatic Film Coater with Heating Dryer is a high-precision coating instrument designed for laboratory and pilot-scale lithium-ion battery electrode preparation. It combines automatic film coating, bottom heating, and a built-in vacuum pump within a single compact system, ensuring uniform coating, rapid drying, and stable substrate fixation.

This system includes a micrometre-adjustable film applicator (0.01–3.5 mm) and a digital temperature-controlled heating dryer (up to 130 °C) for superior process repeatability. The integrated vacuum chuck and oil-less pump ensure flat, secure fixation of electrodes, even when handling soft or thin foils. With its smooth traverse pusher and customisable coating width (up to 300 mm), this coater delivers professional-grade performance for battery research, thin-film materials, and nanotechnology applications.

Key Features

Integrated Heating & Drying System
Equipped with a precision-controlled heating plate (RT–130 °C) for fast, even, and efficient slurry drying.

Micrometre-Adjustable Applicator
Allows fine control of coating thickness from 0.01 mm to 3.5 mm, ensuring consistency across electrode films.

Built-in Vacuum Plate & Pump
Oil-free vacuum system provides firm substrate fixation—ideal for flexible or thin electrode materials.

Smooth Coating Motion
Traverse pusher ensures uniform coating speed and film smoothness over the entire substrate area.

Customisable Coating Width
Standard 100 mm coating area; optional extension available up to 300 mm for larger-scale projects.

Technical Specifications

Parameter Specification
Power Supply AC 220V / 50Hz, Single Phase
Coating Area Standard 100 mm (customisable to 300 mm)
Coating Stroke Adjustable from 10 – 250 mm
Coating Speed 0 – 100 mm/s, step-less transmission
Coating Speed Accuracy ±10 mm/s
Vacuum Plate Dimensions 365 × 200 × 30 mm
Heating System Bottom heating, digital controller
Heating Temperature Range RT – 130°C
Heating Accuracy ±1°C
Max. Heating Rate 10°C/min
Film Applicator 100 mm wide, adjustable 0.01 – 3.5 mm
Traverse Mechanism Included for consistent coating motion
Dimensions (L × W × H) 500 × 350 × 320 mm
Net Weight Approx. 40 kg

    Applications & Industries

    • Lithium-ion and sodium-ion battery electrode coating

    • Polymer film, thin-film and functional material coating

    • Research on nanomaterial or slurry-based deposition

    • Pilot-scale energy storage material fabrication

    • Laboratory drying and precision coating studies

    FAQ

    Q1: What substrates can be used with this coater?
    Compatible with metal foils (Al, Cu), polymer films (PET, PP), and other flat sheet materials.

    Q2: Can the coating width or stroke be customised?
    Yes. The system can be configured for widths up to 300 mm and strokes up to 250 mm.

    Q3: Does it include a heating system?
    Yes. Integrated bottom heating up to 130 °C with PID temperature control ensures uniform drying.

    Q4: Is it suitable for glove box operation?
    Yes. Its compact size and closed heating system make it ideal for inert-environment use.

    Q5: What applications beyond batteries can it support?
    It’s widely used in coating polymers, conductive films, sensors, and perovskite thin-film research.
