Cell Lab Aluminium Laminated Film Forming Machine [Precision Pouch Cell Forming Equipment]

Cell Lab Aluminium Laminated Film Forming Machine [Precision Pouch Cell Forming Equipment]

High-accuracy forming system for aluminium laminated film in battery and flexible electronics production

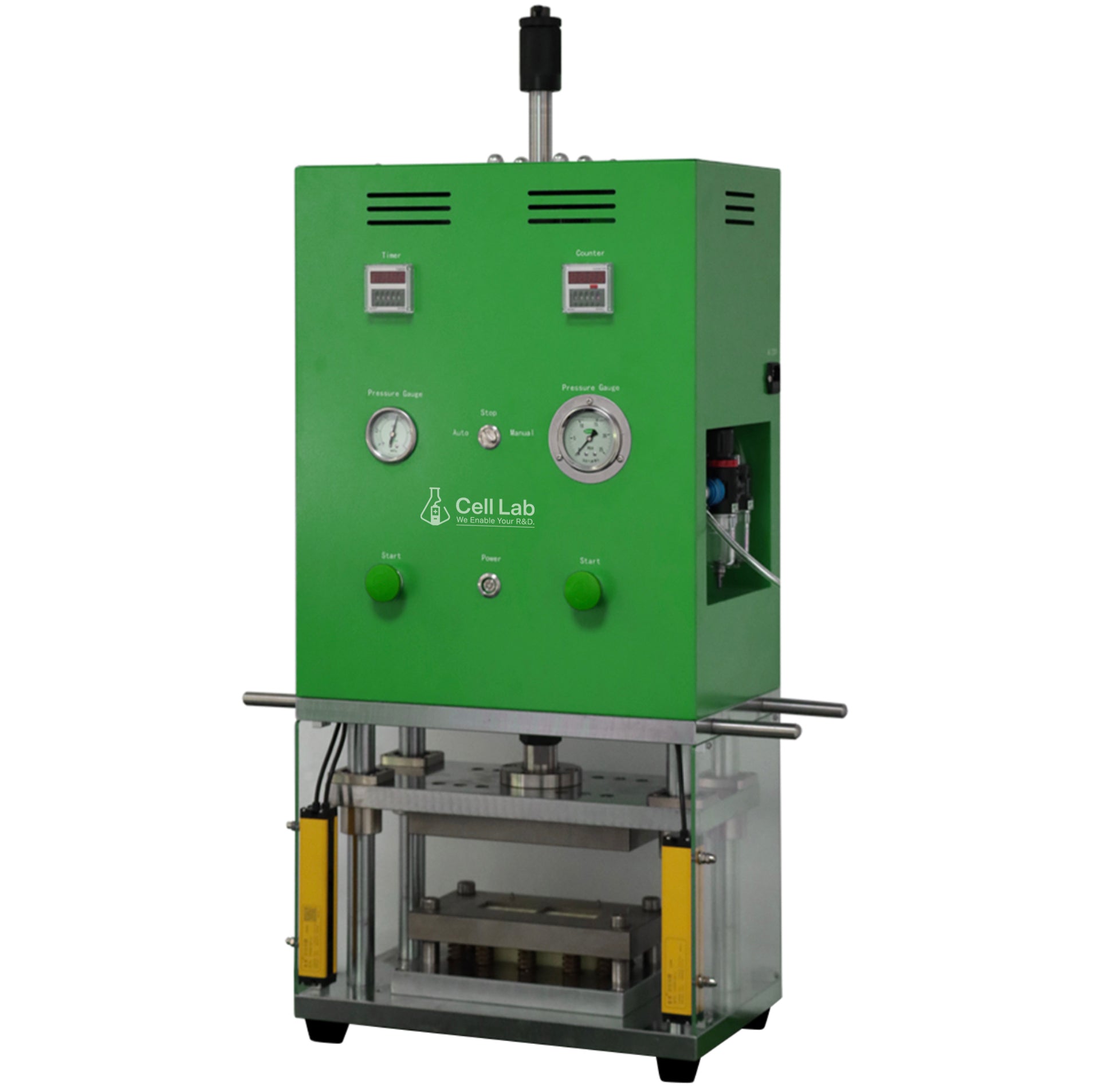

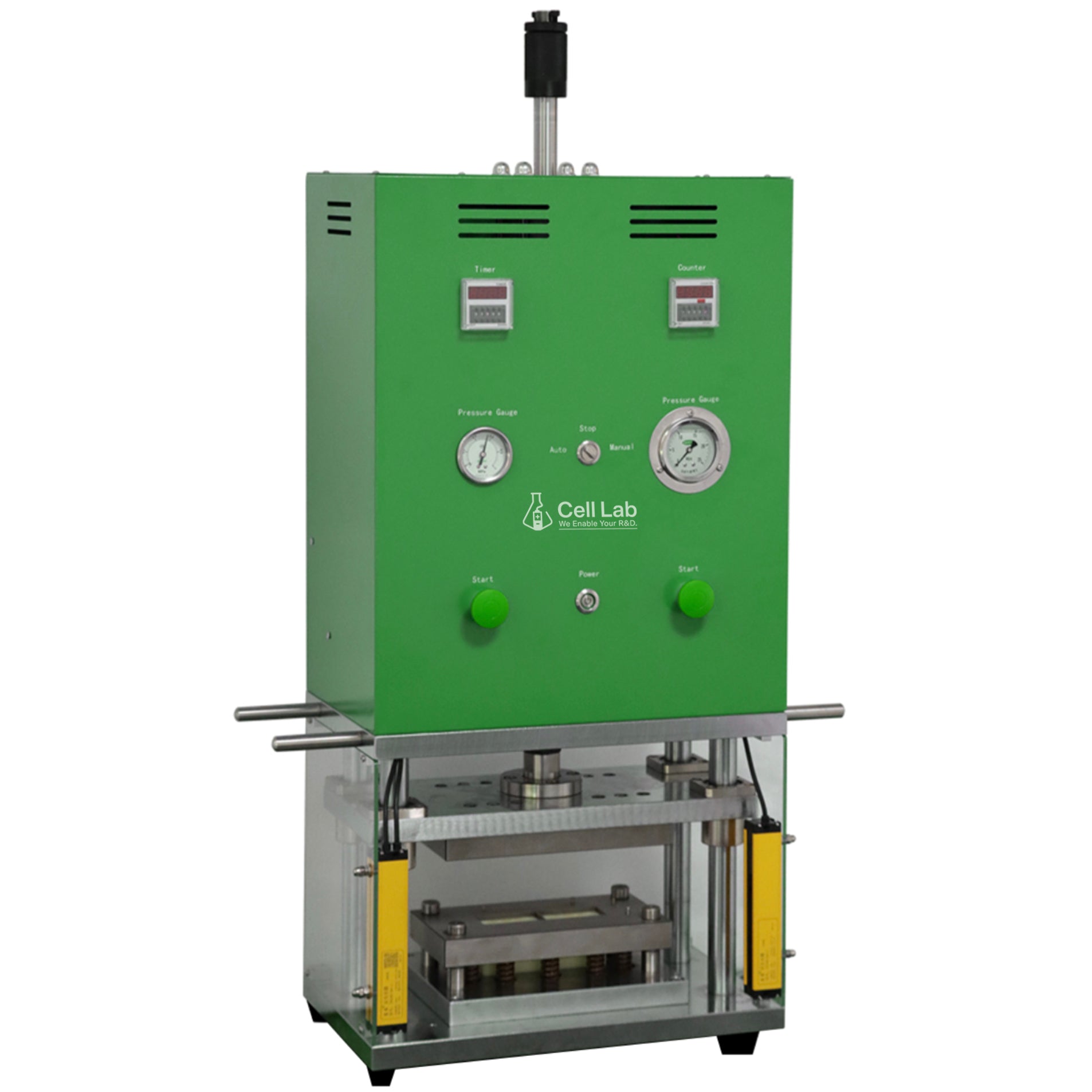

The Cell Lab Aluminium Laminated Film Forming Machine is a precision-engineered system designed for shaping and forming aluminium-laminated films used in lithium-ion pouch cells, flexible electronics, and other advanced encapsulation processes. Built with a robust steel frame and a high-precision die assembly, it delivers consistent forming results, minimises material waste, and ensures long-term die stability under repeated use.

Ideal for both research laboratories and pilot-scale production, this machine offers a forming area of 300 × 280 mm and a punching depth of ≤ 6 mm, achieving a throughput of up to 200 pieces per hour. With optimised mould design and reliable pneumatic control, it ensures uniform deformation, smooth surface finish, and outstanding repeatability for pouch film processing.

Key Features

• High Forming Accuracy – Maintains exceptional dimensional precision with die flatness ≤ 0.02 mm and surface roughness ≤ 0.4 µm.

• Efficient Production Capacity – Capable of 100–200 pcs/hour for pilot or small-scale production environments.

• Stable Punching Force (5 T) – Ensures consistent pressure delivery and mould alignment throughout forming cycles.

• Reduced Material Waste – Optimised mould design improves material utilisation and lowers edge trimming losses.

• Customisable Design – Film size, depth, and forming configuration can be tailored for specific R&D or production needs.

Specifications:

Applications & Industries

• Lithium-ion and solid-state pouch cell manufacturing

• Flexible electronic and film packaging industries

• Pilot-line pouch film forming and material testing

• Protective encapsulation for thin-film devices

• Research institutions and R&D facilities focusing on battery materials

FAQ

Q1: What is the primary use of this forming machine?
A1: It is designed for shaping aluminium-laminated films used in pouch cell casings and flexible electronic packaging.

Q2: How accurate is the forming process?
A2: The die maintains a flatness tolerance of ≤ 0.02 mm and a mirror surface finish with ≤ 0.4 µm roughness.

Q3: What is the typical output rate?
A3: The system supports continuous production of 100–200 pieces per hour, depending on the film thickness and mould size.

Q4: Can it be customised for different film sizes?
A4: Yes. The forming area, punching depth, and die configuration can be customised to your specific application.

Q5: Is this suitable for pilot-scale manufacturing?
A5: Absolutely. Its accuracy, durability, and output capacity make it ideal for both laboratory and pilot-line production.
