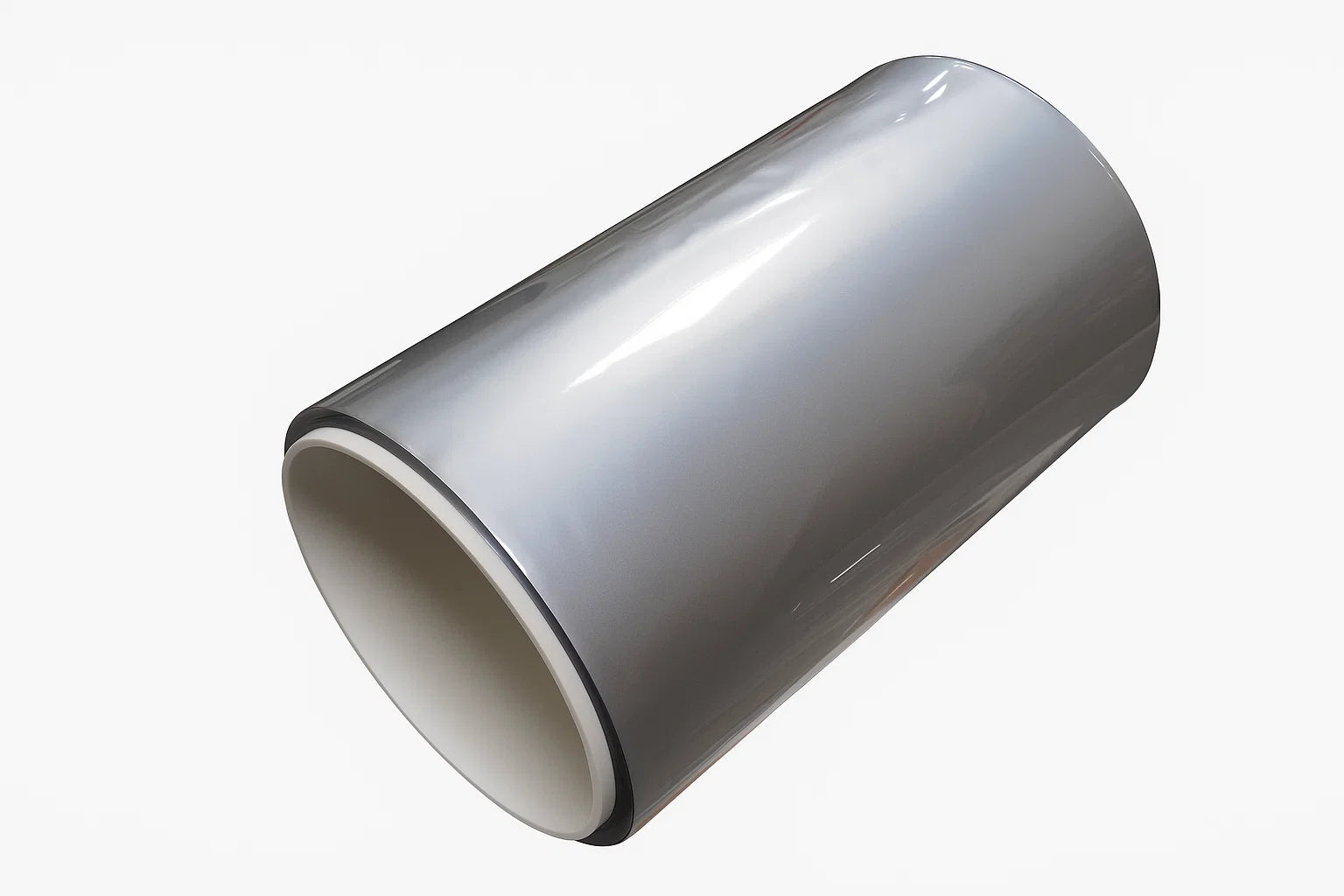

Cell Lab Aluminium Laminated Film [Battery Pouch Barrier Film, 88 µm Thickness, 400 mm Width]

Cell Lab Aluminium Laminated Film [Battery Pouch Barrier Film, 88 µm Thickness, 400 mm Width] High-barrier aluminium composite film for pouch cell encapsulation and battery packaging The Cell Lab Aluminium Laminated Film is a premium, multi-layer barrier material developed for...
Vendor: Cell Lab
SKU: CL0087
Product type: Battery Consumables
£299.00
£299.00
Subtotal: £299.00
Description
Description
x

Cell Lab Aluminium Laminated Film [Battery Pouch Barrier Film, 88 µm Thickness, 400 mm Width]

High-barrier aluminium composite film for pouch cell encapsulation and battery packaging

The Cell Lab Aluminium Laminated Film is a premium, multi-layer barrier material developed for pouch cell encapsulation in lithium-ion battery research and production. Combining oriented nylon, aluminium foil, and polypropylene layers, this advanced composite structure offers excellent mechanical strength, moisture resistance, and heat-sealing performance.

Engineered for maximum protection against environmental degradation, the film minimises water vapour transmission and prevents electrolyte evaporation, thereby improving pouch cell stability and cycle life. It meets battery-grade standards and conforms to JIS A8079/A8021 aluminium specifications, ensuring full electrochemical compatibility for high-performance energy applications.

Key Features

  • Optimised Multilayer Design – Oriented nylon, aluminium foil, and polypropylene composite structure enhances durability and stability.

  • Excellent Moisture Barrier – Extremely low water vapour transmission rate extends pouch cell lifespan.

  • High Laminate Strength – Superior bonding between layers ensures reliable sealing under pressure.

  • Heat Seal Ready – Strong, uniform heat sealing at 180–190 °C for efficient pouch cell packaging.

  • Battery-Grade Purity – Aluminium layer conforms to JIS A8079/A8021 standards for optimal electrochemical safety.

Technical Specifications:

Parameter Specification
Layers (Outside to Inside) Oriented Nylon (0.015 mm ±10%) → Adhesive (3.3–4.8 g/m²) → Aluminium Foil (0.035 mm ±10%) → Extrusion Layer (0.020 mm ±10%) → Polypropylene (0.015 mm ±10%)
Total Thickness 88 μm ±10%
Width 400 mm ±0.5 mm
Length 10 m
Moulding Depth ≥5.0 mm
Electrical Insulation Good
Heat Sealing Condition 180–190 °C
Laminate Strength (Nylon/Al) >3 N/15 mm
Laminate Strength (Al/CPP) >5 N/15 mm
Heat Seal Strength >30 N/15 mm at 190 °C, 1 MPa, 3 s



Applications & Industries

  • Lithium-ion and solid-state pouch cell packaging

  • High-barrier flexible battery film for R&D and pilot production

  • Moisture-sensitive energy storage devices

  • Advanced material research and packaging development

  • Commercial and laboratory-scale battery module assembly

FAQ

Q1: What materials make up this laminated film?
A1: It is composed of oriented nylon, aluminium foil, and polypropylene layers bonded through specialised adhesives and extrusion layers.

Q2: Can it be used for both lithium-ion and solid-state batteries?
A2: Yes. Its high moisture resistance and heat stability make it suitable for both conventional and solid-state pouch cells.

Q3: What is the sealing temperature range?
A3: The film provides reliable heat sealing at 180–190 °C under 1 MPa pressure.

Q4: How does it improve pouch cell lifespan?
A4: By reducing water vapour transmission and protecting against oxidation and electrolyte degradation.

Q5: Is custom width or thickness available?
A5: Yes. Cell Lab can provide customised sizes, thicknesses, and laminate configurations upon request.
