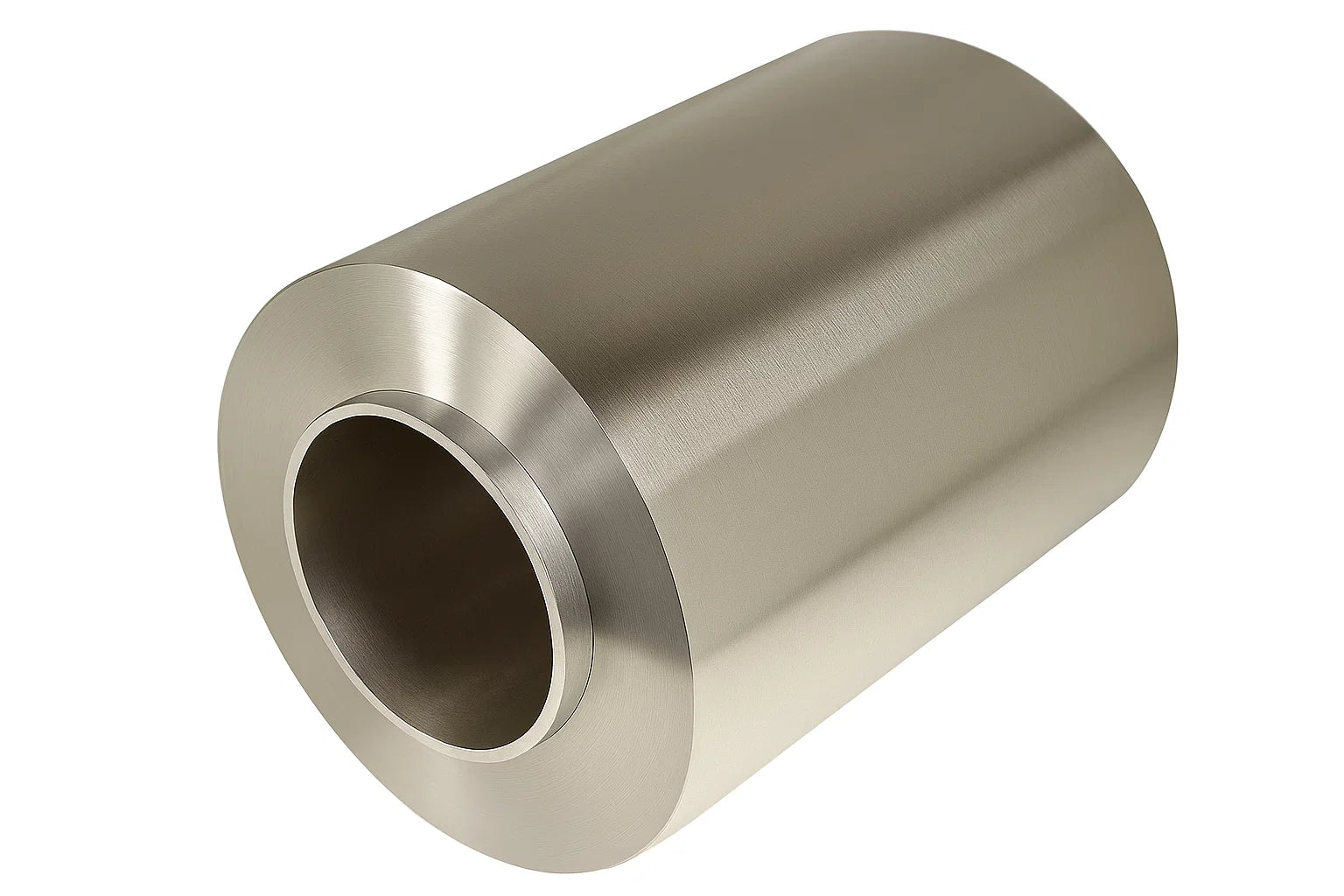

Cell Lab Aluminium Foil Roll [12 μm, 300 mm Width, 5 kg] – High-Purity Battery Grade Foil for Li-ion Cathodes & Electrode Coating
Cell Lab Aluminium Foil Roll [12 μm, 300 mm Width, 5 kg] – High-Purity Battery Grade Foil for Li-ion Cathodes & Electrode Coating High-conductivity and oxidation-resistant current collector for battery R&D and pilot-scale production The Cell Lab Aluminium Foil Roll...
- £357.20
- £357.20
- Unit price
- per
Subtotal:
£357.20
Couldn't load pickup availability
Description
xCell Lab Aluminium Foil Roll [12 μm, 300 mm Width, 5 kg] – High-Purity Battery Grade Foil for Li-ion Cathodes & Electrode Coating
High-conductivity and oxidation-resistant current collector for battery R&D and pilot-scale production
The Cell Lab Aluminium Foil Roll is a high-purity, battery-grade current-collector substrate engineered for lithium-ion cathode fabrication. Featuring excellent electrical and thermal conductivity, this foil provides a stable foundation for coating active materials such as LiFePO₄, LiCoO₂, and NMC. Its smooth surface and uniform thickness ensure superior slurry coating performance and adhesion consistency across electrodes.
Optimised for research labs and industrial pilot-scale lines, this aluminium foil demonstrates outstanding oxidation resistance, mechanical strength, and surface uniformity, enabling precise and repeatable electrode production.
Key Features
Industry-Standard 12 μm Thickness
Balances high power density with sufficient mechanical stability for Li-ion electrode R&D and scale-up.
Exceptional Surface Uniformity
Transverse and vertical surface-density variation ≤ 0.003 g / 40 × 40 mm ensures uniform slurry coating and calendaring.
High Mechanical Strength
Maintains tensile strength > 140 kgf/mm² at room temperature and > 120 kgf/mm² after thermal treatment (1200 °C, 1 h).
Superior Oxidation Resistance
No oxidation observed after 30 min at 200 °C, ensuring durability in drying and baking processes.
Customisable Coating Options
Optional pre-coating with carbon or cathode slurry available for enhanced research efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| SKU | CL0219 |
| Pack Size | 5 kg per roll |
| Material | Aluminium (≥99.5% purity) |
| Dimensions (L x W x T) | 170 m × 300 mm × 12 μm |
| Density | 2.7 g/cm³ |
| Areal Density | 30–34 g/m² |
| Surface Density Uniformity (T/V) | ≤0.003 g / 40×40 mm |
| Extensibility | < 0.5% |
| Tensile Strength (Room Temp) | > 140 kgf/mm² |
| Tensile Strength (After 1200°C, 1 h) | > 120 kgf/mm² |
| Anti-Oxidation (200°C, 30 mins) | No oxidation |
| Coating Performance | Uniform tension on both sides, suitable for slurry coating |
Applications & Industries
-
Lithium-ion battery R&D and prototype production
-
Cathode current collector substrate (LiFePO₄, LiCoO₂, NMC, LiMn₂O₄ systems)
-
Electrode calendaring and slurry coating tests
-
Pilot production for energy storage devices
-
Material science and conductive foil research
FAQ
Q1: Is this foil compatible with standard battery slurry coating machines?
Yes, the 12 μm foil is universally compatible with most lab and pilot-scale coating equipment.
Q2: Can it be used for high-temperature electrode drying?
Yes, it maintains strength and oxidation resistance up to 200 °C for 30 minutes.
Q3: Is custom carbon coating available?
Yes, Cell Lab can provide carbon-coated foil or pre-slit rolls on request.
Q4: What applications beyond Li-ion batteries is this foil suitable for?
It is also used in solid-state batteries, capacitors, and energy harvesting devices.
Q5: How should the foil be stored?
Store in a dry, dust-free environment to prevent surface oxidation and contamination.
