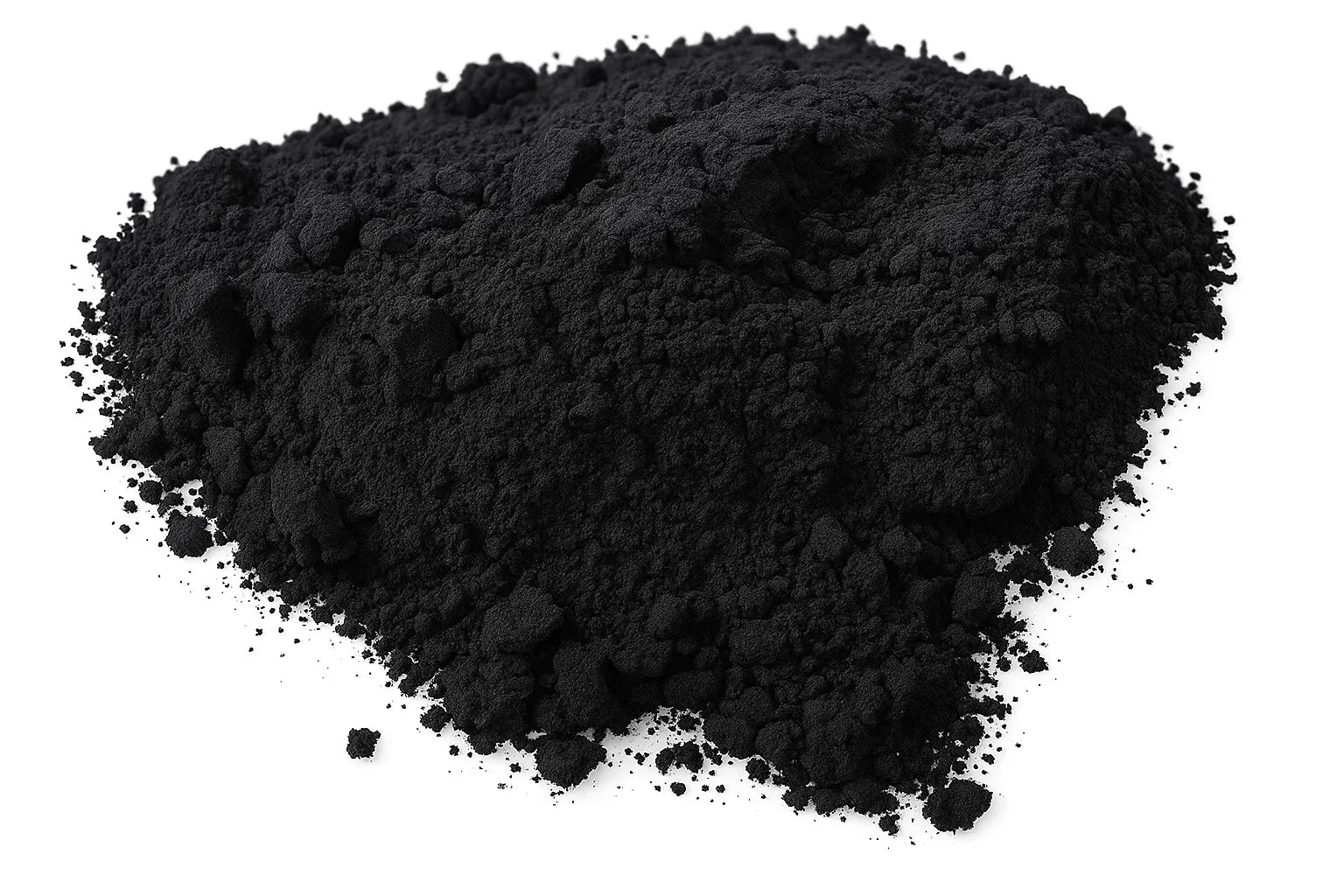

Cell Lab acetylene black nano powder – high-purity conductive carbon for lithium-ion batteries and supercapacitors. Nano-sized 35–40 nm particles deliver superior conductivity, purity, and electrode stability.
Cell Lab acetylene black nano powder – high-purity conductive carbon for lithium-ion batteries and supercapacitors. Nano-sized 35–40 nm particles deliver superior conductivity, purity, and electrode stability.

Cell Lab Acetylene Black Nano Powder [High-Purity Conductive Additive]

Cell Lab Acetylene Black Nano Powder [High-Purity Conductive Additive] Superior conductivity and thermal stability for next-generation lithium battery development The Cell Lab Acetylene Black Nano Powder is a high-purity conductive carbon material produced via the thermal decomposition of acetylene gas....
Vendor: Cell Lab
SKU: CL0232
Product type: Battery Consumables
£82.64
£82.64
Subtotal: £82.64
Description
Description
x

Cell Lab Acetylene Black Nano Powder [High-Purity Conductive Additive]

Superior conductivity and thermal stability for next-generation lithium battery development

The Cell Lab Acetylene Black Nano Powder is a high-purity conductive carbon material produced via the thermal decomposition of acetylene gas. This process yields uniform nano-scale carbon particles with excellent electrical conductivity, low impurity content, and stable chemical performance.

Engineered for battery R&D, this acetylene black is widely used as a conductive additive in lithium-ion battery cathodes and anodes, as well as in supercapacitors, fuel cells, and polymer composites. Its fine structure improves electron transport pathways and enhances electrochemical stability, resulting in higher specific capacity and improved cycle life.

Key Features

High Conductivity and Low Resistivity
Ensures efficient charge transfer and reduced internal resistance in battery electrodes.

Nano-Scale Particle Size (35–40 nm)
Uniform particle morphology increases surface contact area for better slurry dispersion and conductivity.

Excellent Stability and Purity
Low heating loss (≤0.2%) and ash content (≤0.2%) minimise side reactions and maintain batch consistency.

Enhanced Electrode Performance
Improves cycling stability, rate capability, and power density in lithium-ion and sodium-ion systems.

Versatile Applications
Ideal for lithium batteries, supercapacitors, fuel cells, and advanced composite materials.

Technical Specifications

Product Name Acetylene Black Nano Powder
Brand Cell Lab
SKU CL0232
Package 50 g per bottle
Appearance Black powder
Particle Size 35 – 40 nm
Specific Volume 16 – 17 ml/g
Iodine Absorption ≥90 g/kg
Oil Absorption ≥250 ml/100 g
Resistivity ≤1.8 Ω/m
pH 9 – 10
Heating Loss ≤0.2%
Ash Content ≤0.2%
Impurity N/A

Applications & Industries

  • Cathode and anode conductive additive in lithium-ion and sodium-ion batteries

  • Supercapacitor and solid-state electrolyte formulations

  • Conductive polymer composites and EMI shielding coatings

  • Fuel cell and catalyst support structures

  • Additive for paints, plastics, and anti-static films

FAQ

Q1: What makes acetylene black superior to regular carbon black?
Acetylene black has a smaller particle size, higher conductivity, and greater structural stability, ideal for electrochemical use.

Q2: Can it be used directly in slurry formulations?
Yes. It disperses easily in NMP or aqueous binder systems such as PVDF, LA133, or CMC/SBR.

Q3: Is it suitable for both cathode and anode materials?
Yes. It enhances electronic pathways in both positive and negative electrode designs.

Q4: How should it be stored?
Store in a cool, dry environment. Avoid moisture and direct sunlight to maintain conductivity.

Q5: Does it contain any metal impurities?
No. It is refined to ≤0.2% total ash content, with negligible metallic residue.
