Cell Lab 99% High Alumina Ceramic Roller Mill Jar [0.5 L – 15 L Capacity Range]

High Durability and Superior Chemical Resistance for Efficient Milling Applications

General Description

Cell Lab 99% High Alumina Ceramic Roller Mill Jars are designed for long-lasting, high-efficiency grinding of hard and brittle materials in laboratory and industrial settings. Made from premium 99% Al₂O₃ ceramic, these jars exhibit outstanding hardness, abrasion resistance and chemical stability — ideal for applications in materials research, battery development, and chemical processing. Each jar comes with a leak-proof lid, silicone gasket and secure clamp for safe, smooth operation on roller mill or planetary ball mill systems.

Key Features

  • High Purity Material Construction – Manufactured from 99% alumina ceramics for maximum chemical inertness and wear resistance.

  • Excellent Abrasion Resistance – Suitable for grinding hard, brittle and high-purity samples without contamination.

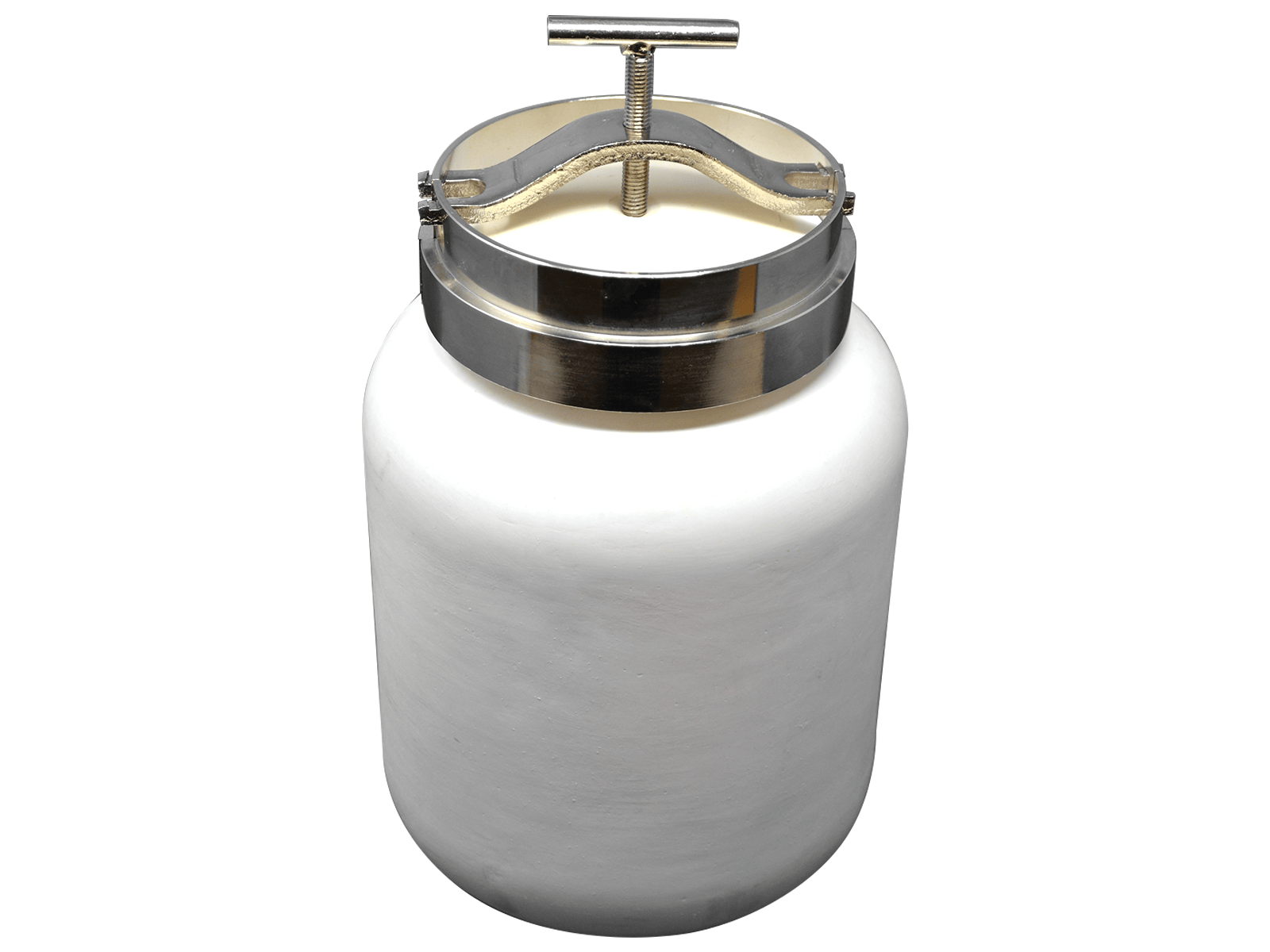

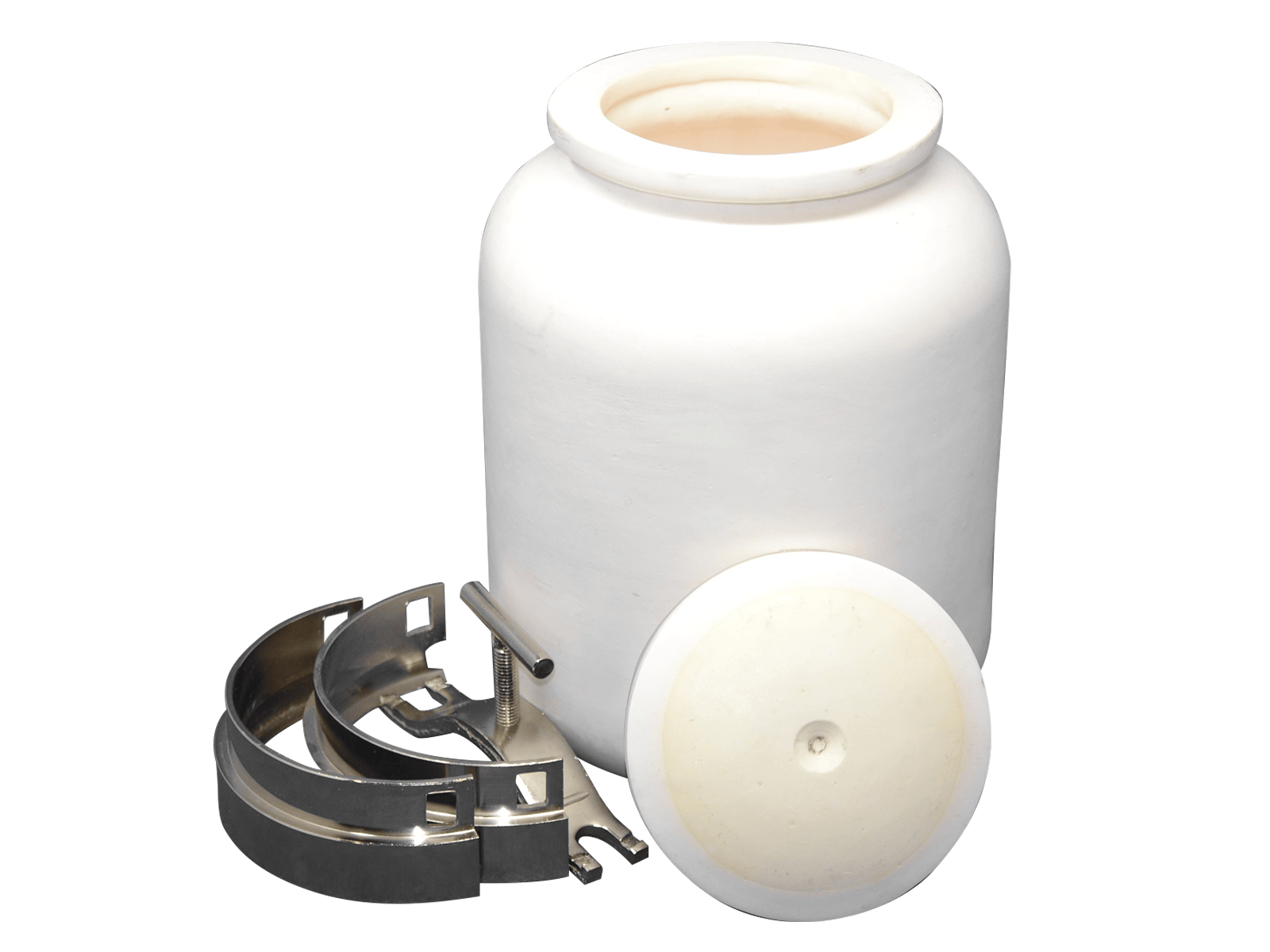

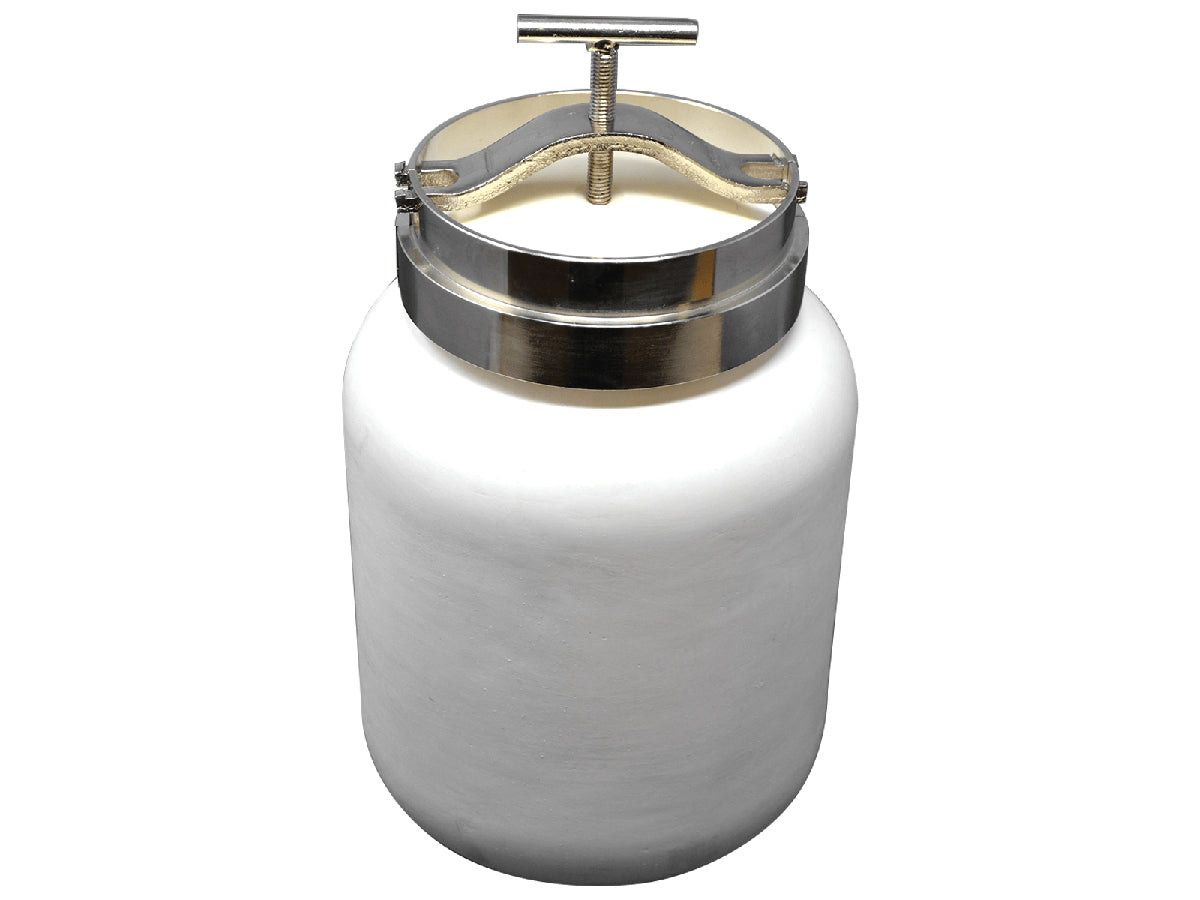

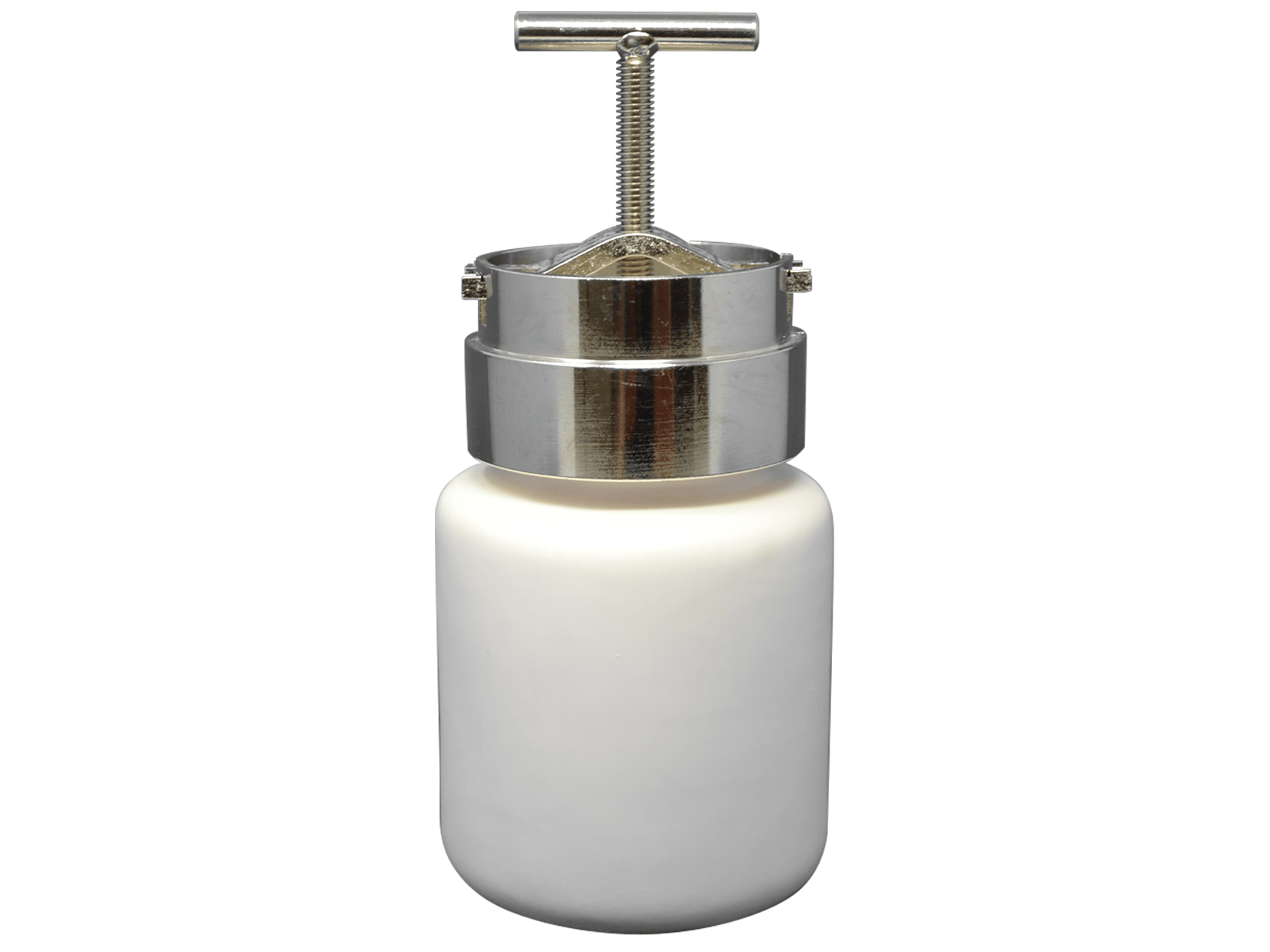

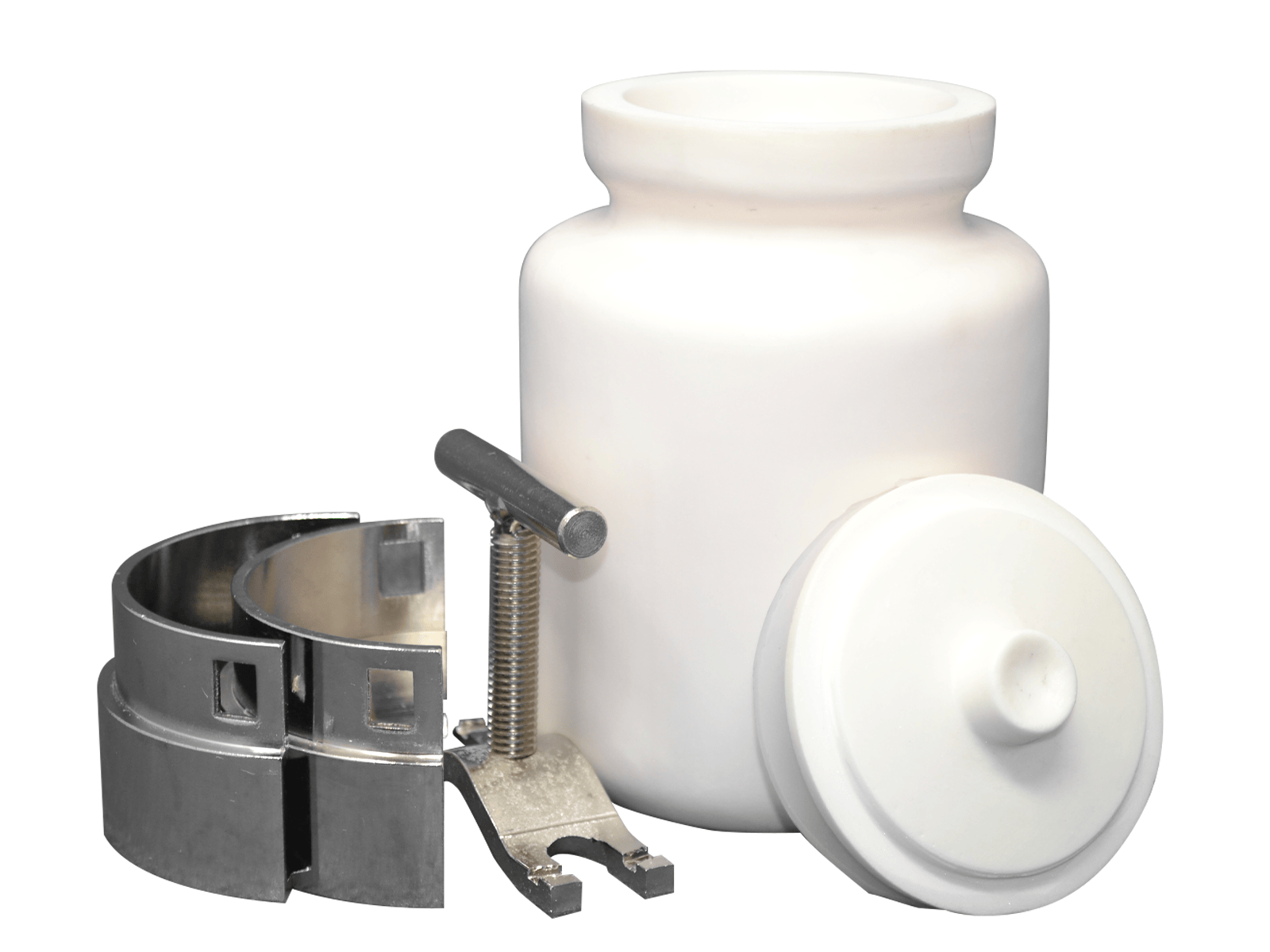

  • Safe Lock-and-Roll Design – Leak-proof seal with secure clamp and silicone gasket ensures safe operation during milling.

  • Wide Capacity Range (0.5 L – 15 L) – Available in multiple volumes for both small-scale research and pilot-scale processing.

  • Compatible Grinding Media – Optimised for use with alumina, agate, and zirconia balls (available separately).

Technical Specifications

Product No.

Volume (L)

Outer Diameter (mm)

Height (mm)

Max Loading Capacity

Shape

Attachments

CL0829

0.5 L

105

154

2/3 jar capacity

Cylindrical

Clamp, lid & silicone gasket

CL0830

1 L

120

165

CL0831

2 L

155 (6.10″)

203 (8.00″)

CL0832

3 L

180 (7.09″)

238 (9.37″)

CL0833

5 L

210

283

CL0834

10 L

245 (9.65″)

340 (13.39″)

CL0835

15 L

—

—

Material: 99% High Purity Alumina Ceramics
Recommended Media: Alumina, Agate, or Zirconia Balls (Ø 3–30 mm)
Abrasion Resistance: Excellent
Suitable Samples: Hard and brittle materials

Applications & Industries

  • Battery electrode and material synthesis

  • Ceramic and powder metallurgy research

  • Chemical and pharmaceutical processing

  • Nanomaterial dispersion and fine grinding

  • Academic and industrial R&D laboratories

FAQ

Q1: Can these alumina roller mill jars be used in planetary ball mills?
Yes, Cell Lab ceramic roller mill jars are compatible with most standard planetary and roller milling systems.

Q2: What is the recommended loading ratio of grinding media to material?
For optimal performance, load grinding media to approximately 50–60% of the jar volume and material to 30%.

Q3: How should the alumina jars be cleaned after use?
Rinse with ethanol or deionised water, wipe dry, and avoid abrasive tools to maintain the smooth ceramic surface.

Q4: Can the jar dimensions or materials be customised?
Yes, Cell Lab offers custom sizes and designs upon request for specific roller or planetary mill systems.
