Neware 8-Channel Battery Testing System [5V15A , Cell Cycler]

High-accuracy, multi-channel battery testing system designed for lithium-ion, polymer pouch, prismatic and advanced electrochemical cell evaluation.

General Description

The Neware 8-channel 5V15A Battery Testing System is a professional, high-precision battery cycler engineered for laboratory research, battery development, quality control and pilot-scale testing. Each single tester integrates 8 independent channels with closed-loop CC and CV control, enabling accurate charge–discharge testing across a wide current range up to 15A per channel.

This system supports comprehensive testing modes including CC, CV, CCCV, CP, CR, pulse testing, DCIR measurement and long-term cycling, making it suitable for lithium-ion cells, polymer pouch cells, prismatic batteries, metal-air batteries and customised electrochemical systems. With high-resolution data acquisition, flexible cut-off conditions and robust safety protections, it is widely used in battery R&D laboratories, universities, cell manufacturers and materials research institutes.

Key Features

• 8 independent high-precision channels – Each channel operates independently with dedicated CC and CV closed-loop control for stable and repeatable results.
• Wide current range up to 15A per channel – Multi-range output (300 mA to 15 A) supports small cells, pouch cells and high-current battery testing.
• Advanced charge, discharge and pulse testing – Supports CC, CV, CCCV, CP, CR, pulse cycling and DCIR measurement.
• High-resolution data acquisition and fast response – 24-bit AD, 16-bit DA with millisecond-level current response ensures accurate electrochemical analysis.

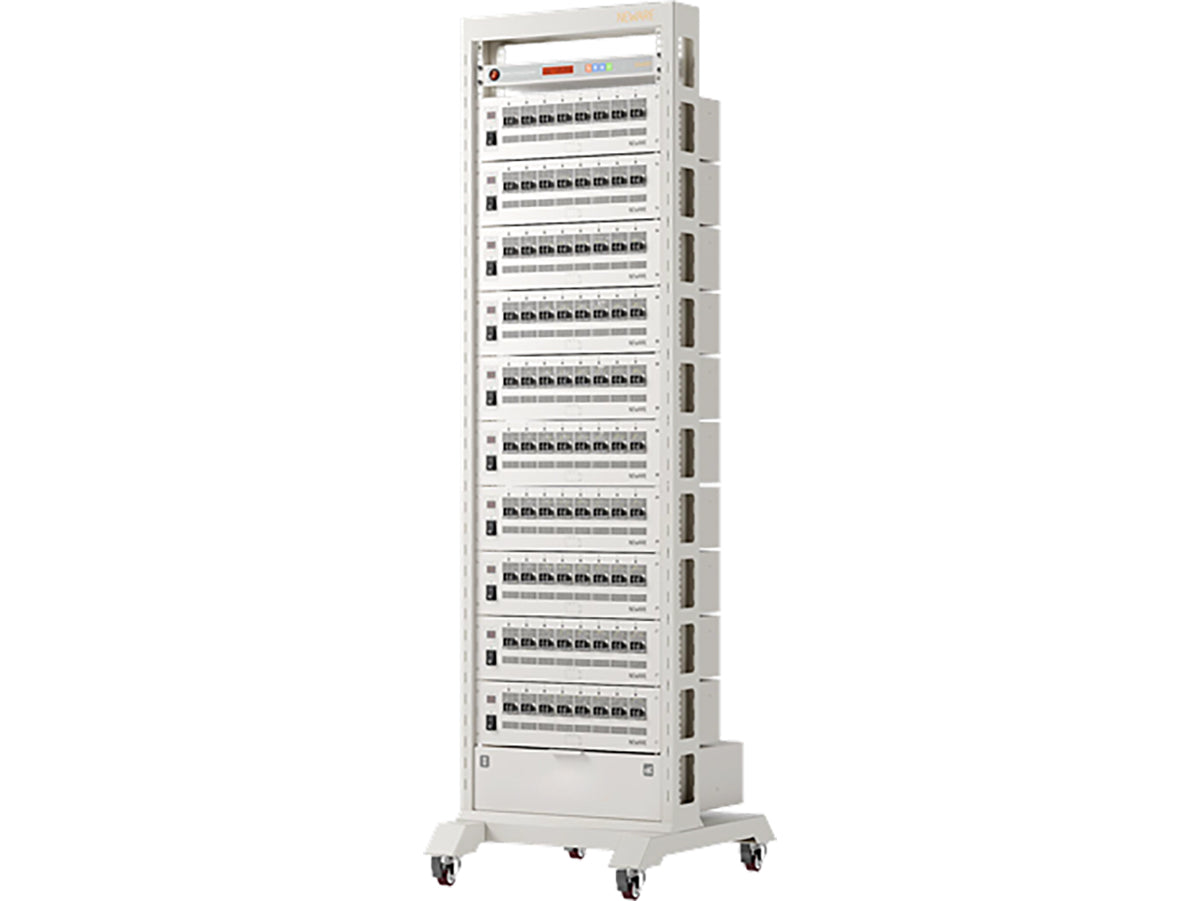

• Modular rack-mount design – Single testers or full rack configuration (up to 10 units) for scalable laboratory deployment.

System Configuration

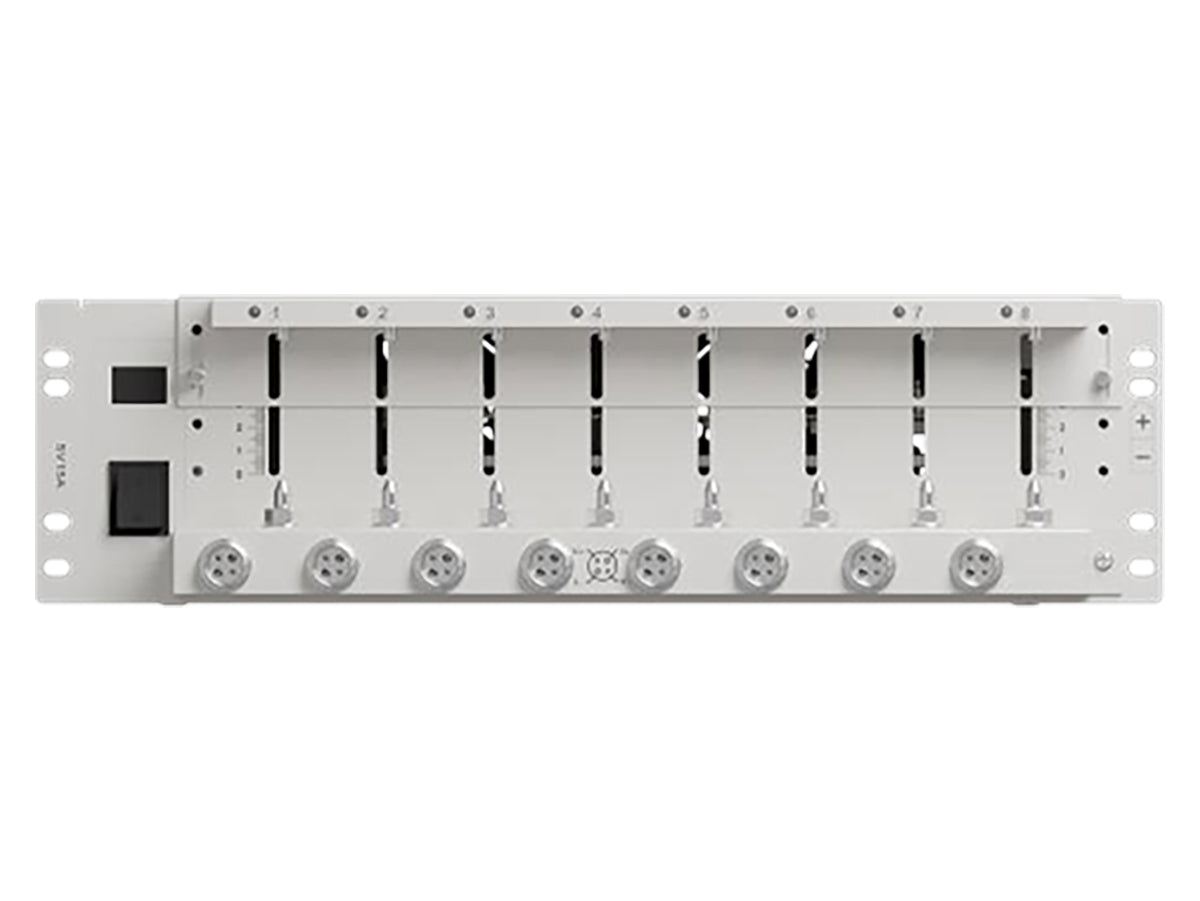

Single Tester

Item Specification
Channel configuration 8 channels
Dimensions 483 mm × 404 mm × 130 mm
Input power (single unit) 860 W

Clamp Selection

Clamp Type Application Image
Polymer pouch-cell clamps Polymer pouch cells Cell Lab 8 channels battery testing system with CC/CV control, DCIR and pulse testing, ideal for lithium-ion battery R&D and laboratory cell evaluation.
Ring connector Prismatic cells, default inner diameter ⌀ 6 mm Cell Lab 8 channels battery testing system with CC/CV control, DCIR and pulse testing, ideal for lithium-ion battery R&D and laboratory cell evaluation.
Alligator clips Swagelok cells, metal-air batteries, special moulds Cell Lab 8 channels battery testing system with CC/CV control, DCIR and pulse testing, ideal for lithium-ion battery R&D and laboratory cell evaluation.

Electrical Performance

Power Supply

Item Specification
Input AC (single unit) 220Vac ±10% / 50Hz or 110Vac ±10% / 60Hz
Input AC (full rack, 10 units) 380Vac ±10% / 50Hz (3-phase, 5-wire) or 208Vac ±10% / 60Hz (3-phase, 5-wire)
System efficiency >70%
Input impedance ≥100 MΩ
Resolution AD: 24-bit / DA: 16-bit

Voltage Performance

Item Specification
CV output range 25 mV – 5 V
Minimum discharge voltage 2 V (with 3.0 m cable)
Voltage accuracy ±0.02% of FS
Voltage stability ±0.04% of FS

Current Performance

Range Output Range per Channel CV Cut-off Current
R1 300 mA 0.6 mA
R2 3 A 6 mA
R3 6 A 12 mA
R4 15 A 30 mA
Item Specification
Current accuracy ±0.02% of FS
Current stability ±0.04% of FS

Power & Time Performance

Item Specification
Maximum output power 75 W
Power stability ±0.08% of FS
Current response time ≤1 ms (10%–90% or 90%–10%)
Current reverse time ≤10 ms
Maximum step time Up to 365 × 24 hours per step
Time format hr : min : s : ms

Data Recording & Acquisition

Item Specification
Minimum data interval 100 ms
Minimum voltage change 5 mV
Minimum current change R1: 0.2 mA / R2: 1.2 mA / R3: 2.4 mA / R4: 6 mA
Data acquisition frequency 10 Hz
Measurement method Kelvin connection (4-wire)

Pulse & Cycling Functions

Item Specification
Pulse modes Charge: CC / CP · Discharge: CC / CP
Minimum pulse width 100 ms
Maximum pulse count 32
Continuous switching Supports continuous charge or continuous discharge steps
DCIR measurement Supported
Maximum cycles 65,535
Maximum steps 254
Cycle nesting Up to 3 levels

Safety & Protection

Item Specification
Safety protection Power-off data protection, off-line operation
User-defined protections Voltage, current, delay time, temperature limits
IP protection level IP20
Channel control Independent control
Noise level <75 dB (measured at 1.0 m distance)

Applications & Industries

  • Lithium-ion battery R&D and characterisation

  • Polymer pouch, prismatic and cylindrical cell testing

  • Battery formation, ageing and cycle life evaluation

  • University laboratories and research institutes

  • Battery manufacturers and quality control labs

  • Electrochemical energy storage research

FAQ

Q1: How many channels does the system support per unit?
Each Neware 5V15A tester provides 8 fully independent channels.

Q2: Can it test high-current batteries?
Yes. Each channel supports up to 15 A output with multiple current ranges for precise control.

Q3: Does it support DCIR measurement and pulse testing?
Yes. DCIR testing and programmable pulse charge/discharge functions are fully supported.

Q4: Can multiple units be combined into a rack system?
Yes. Up to 10 testers can be integrated into one full rack configuration.

Q5: What types of batteries can be tested?
Lithium-ion cells, polymer pouch cells, prismatic batteries, metal-air batteries and customised electrochemical systems.
