Cell Lab 5L De-Ironing Filtration System [Magnetic Separation & Vacuum Filtration]
Cell Lab 5L De-Ironing Filtration System [Magnetic Separation & Vacuum Filtration] Integrated vacuum and magnetic filtration system for high-purity battery slurry preparation The Cell Lab 5L De-Ironing Filtration System combines vacuum filtration and magnetic iron removal to ensure exceptional slurry...
- £6,990.00
- £6,990.00
- Unit price
- per
Subtotal:
£6,990.00
Couldn't load pickup availability
Description

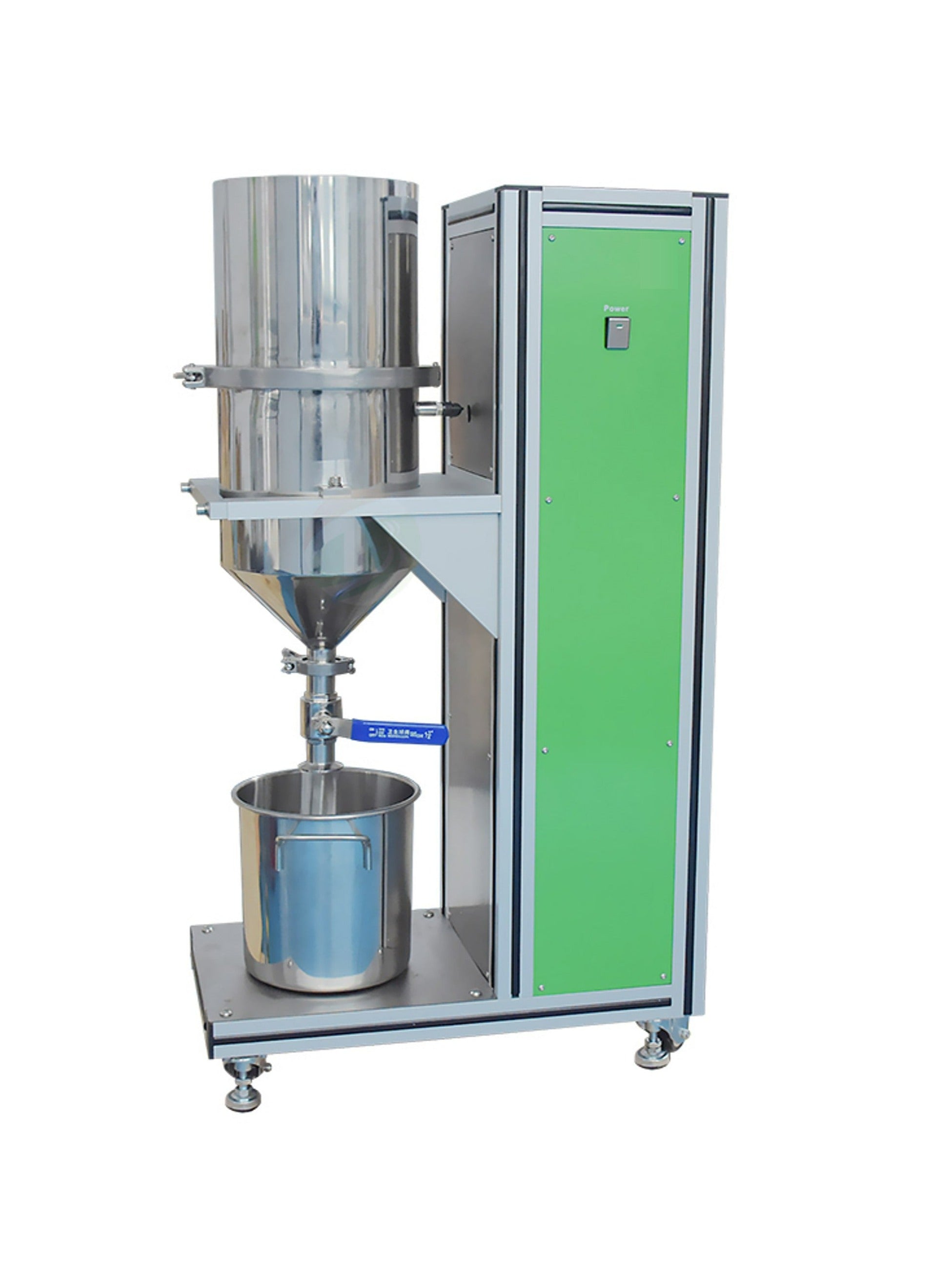

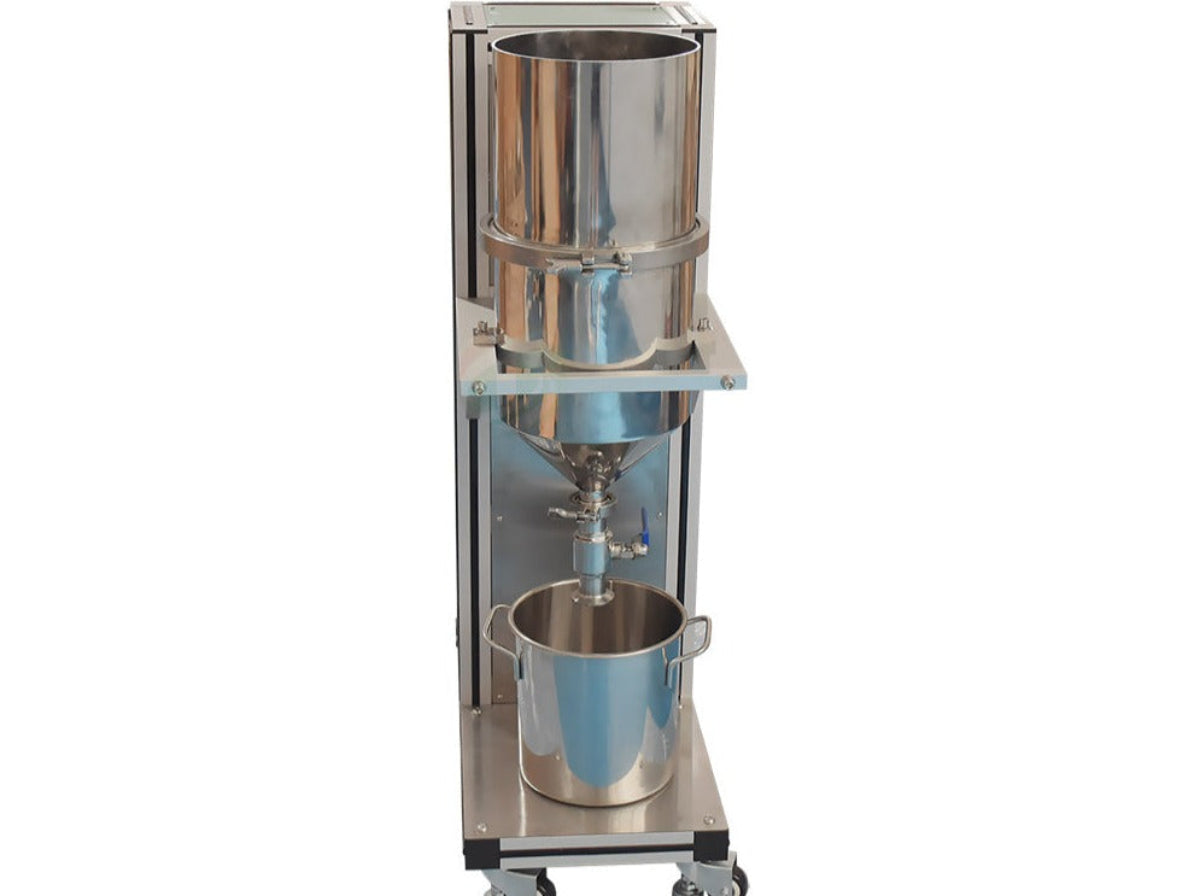

xCell Lab 5L De-Ironing Filtration System [Magnetic Separation & Vacuum Filtration]
Integrated vacuum and magnetic filtration system for high-purity battery slurry preparation
The Cell Lab 5L De-Ironing Filtration System combines vacuum filtration and magnetic iron removal to ensure exceptional slurry quality in lithium-ion and solid-state battery R&D. This compact, CE-certified unit is engineered for precise pre-coating filtration of anode and cathode materials, efficiently eliminating ferrous impurities that can compromise electrode performance. Constructed from corrosion-resistant stainless steel, it delivers consistent filtration, easy cleaning, and long-term reliability in laboratory environments.
Ideal for slurry homogenisation, particle dispersion, and purity enhancement, the system supports viscosities up to 20,000 cP, enabling stable coating quality and improved electrochemical performance in advanced material processing.
Key Features
Durable Stainless Steel Construction
All major components are built from high-grade stainless steel, providing corrosion resistance, smooth cleaning, and long service life.
Vacuum Filtration Capability
Integrates a high-efficiency vacuum chamber to accelerate filtration speed and improve slurry consistency using replaceable mesh filters.
Magnetic Iron Removal
Employs a 10,000 Gauss permanent magnet to capture ferrous contaminants; the magnet is removable for effortless cleaning and maintenance.
Adjustable Filter Compatibility
Supports filter meshes below 1000 mesh (80–120 mesh recommended), adaptable to different slurry particle sizes and viscosities.
Wide Material Compatibility
Processes high-viscosity slurries up to 20,000 cP and solid content up to 80%, making it suitable for diverse laboratory-scale formulations.
Technical Specifications
| Specification | Details |
|---|---|
| Processing Capacity | 5 L |
| Vacuum | Absolute vacuum 65 KPa |
| Filter Specification | <1000 mesh (recommended: 80–120 mesh) |
| Iron Removal Capacity | 8000–10000 Gauss |
| Slurry Viscosity | ≤ 20,000 cP |
| Solid Content | ≤ 80% |
| Power Supply | 220V / 50Hz, 100 W |
| Installation Size | 500 × 300 × 850 mm |
| Weight | 40 kg |
Applications & Industries
-
Lithium-ion and solid-state battery electrode slurry preparation
-
Cathode and anode material purification
-
High-viscosity slurry filtration and particle dispersion
-
Advanced materials and nanomaterial processing
-
Research laboratories and pilot-scale production lines
FAQ
Q1: What types of battery slurry can this system handle?
It supports both anode and cathode slurries, including high-viscosity formulations with solid content up to 80%.
Q2: How strong is the magnetic separation?
The system features a 10,000 Gauss magnet, capable of efficiently removing fine ferrous particles from the slurry.
Q3: Can the magnet be cleaned or replaced?
Yes. The magnet is fully removable, making cleaning and maintenance quick and straightforward.
Q4: What filters are compatible?
Any filter below 1000 mesh is supported, with 80–120 mesh recommended for optimal battery slurry performance.
Q5: Does it require a vacuum pump?
Yes. It connects to a standard laboratory vacuum pump to generate the required suction pressure during filtration.
