Cell Lab 500 mL Planetary Vacuum Mixer [Glovebox Compatible | Benchtop]

Cell Lab 500 mL Planetary Vacuum Mixer [Glovebox Compatible | Benchtop] Compact glovebox-compatible mixer for high-uniformity, gas-free slurry blending in R&D environments The Cell Lab 500 mL Planetary Vacuum Mixer is a precision mixing solution designed for high-viscosity and degassed...
Vendor: Cell Lab
SKU: CL0108
Product type: Battery Equipment
£3,599.00
£3,599.00
Subtotal: £3,599.00
Description
Description
x

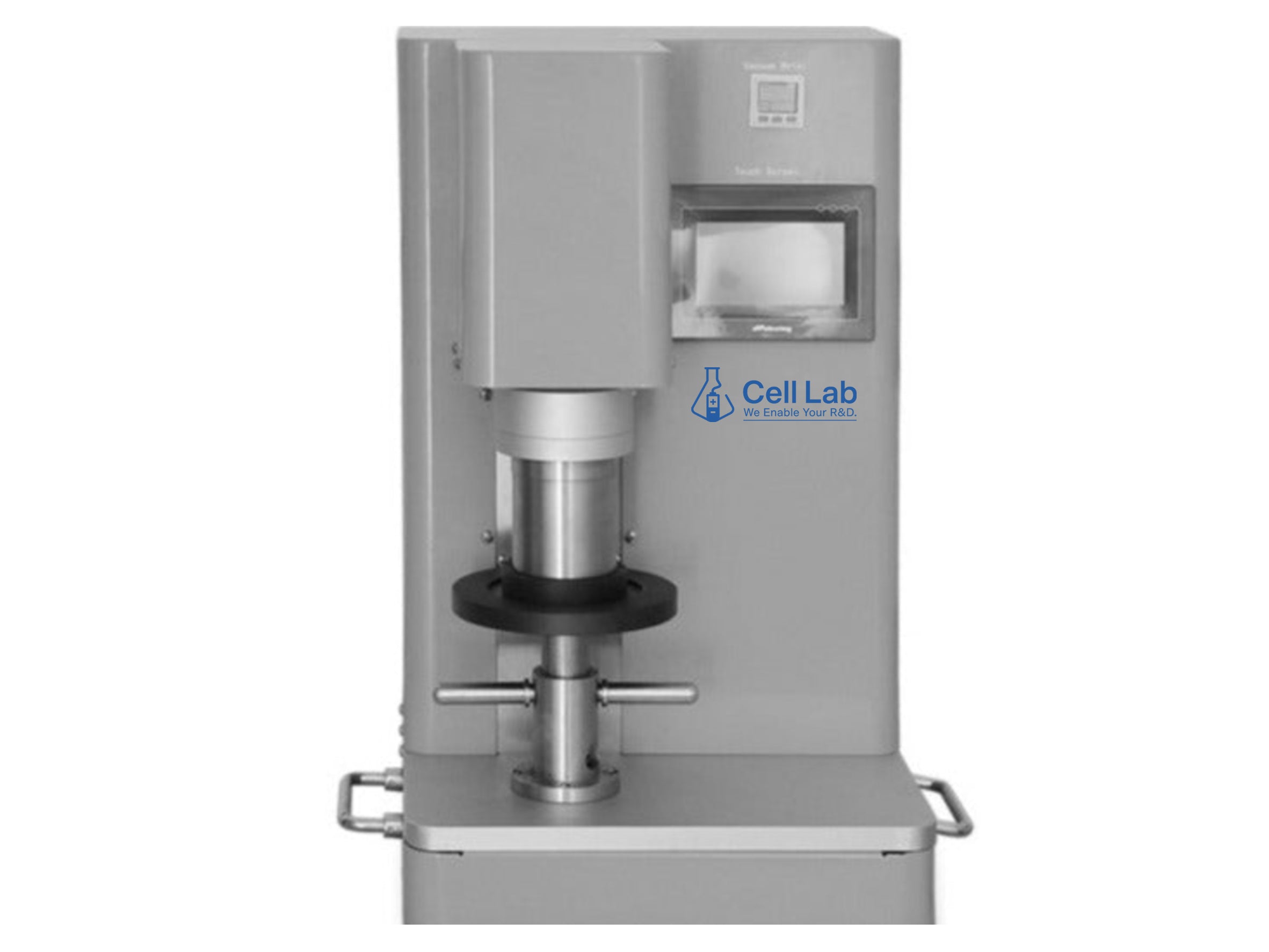

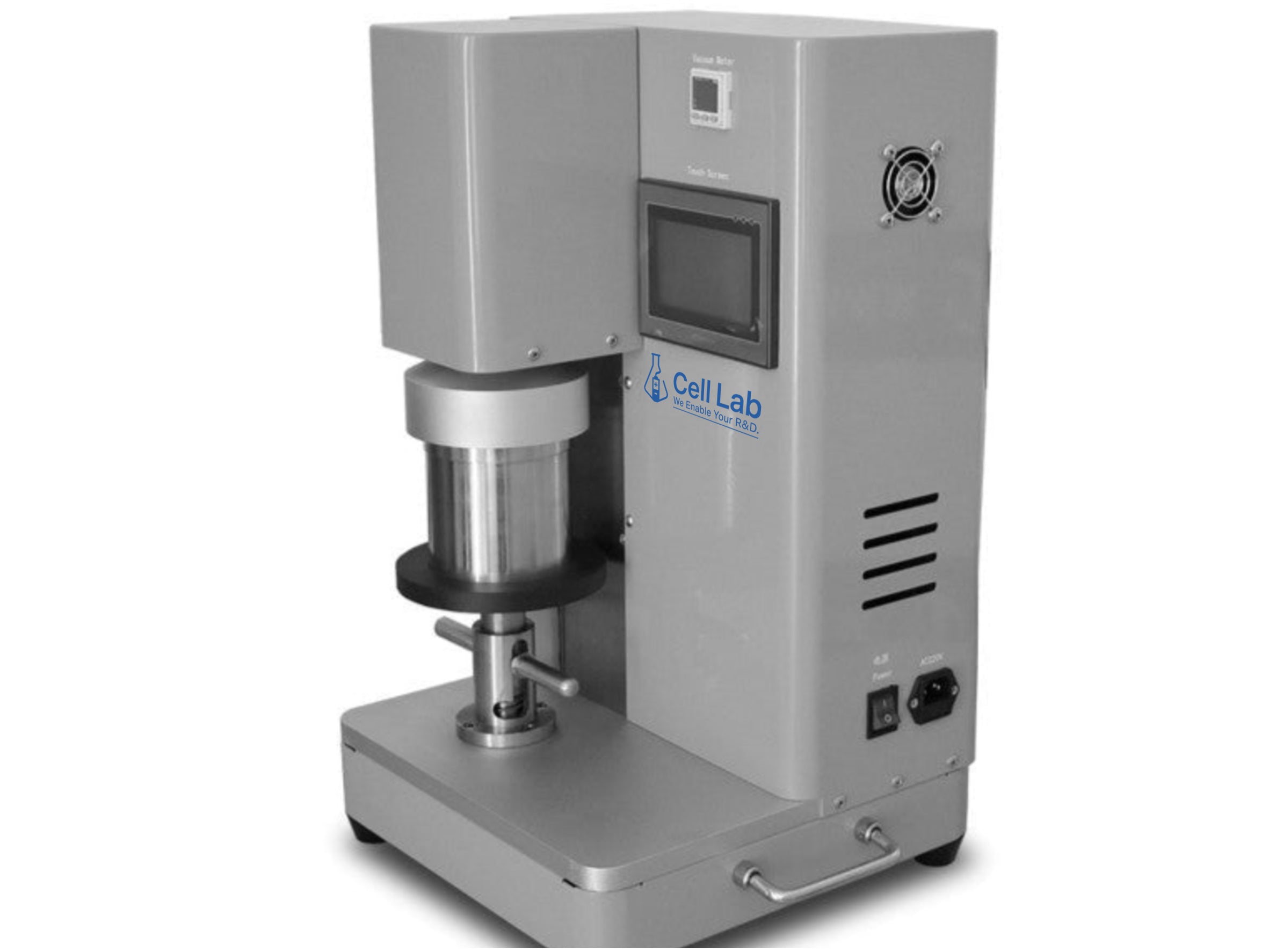

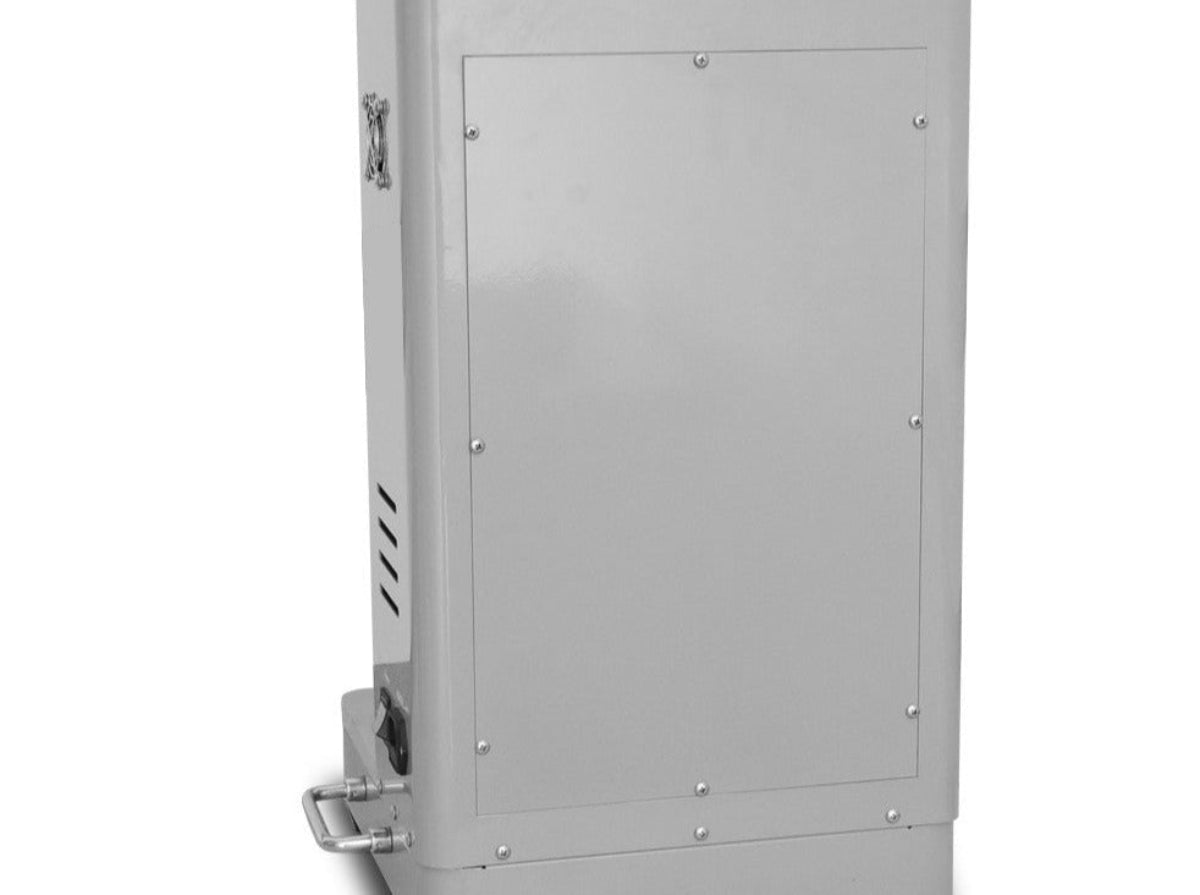

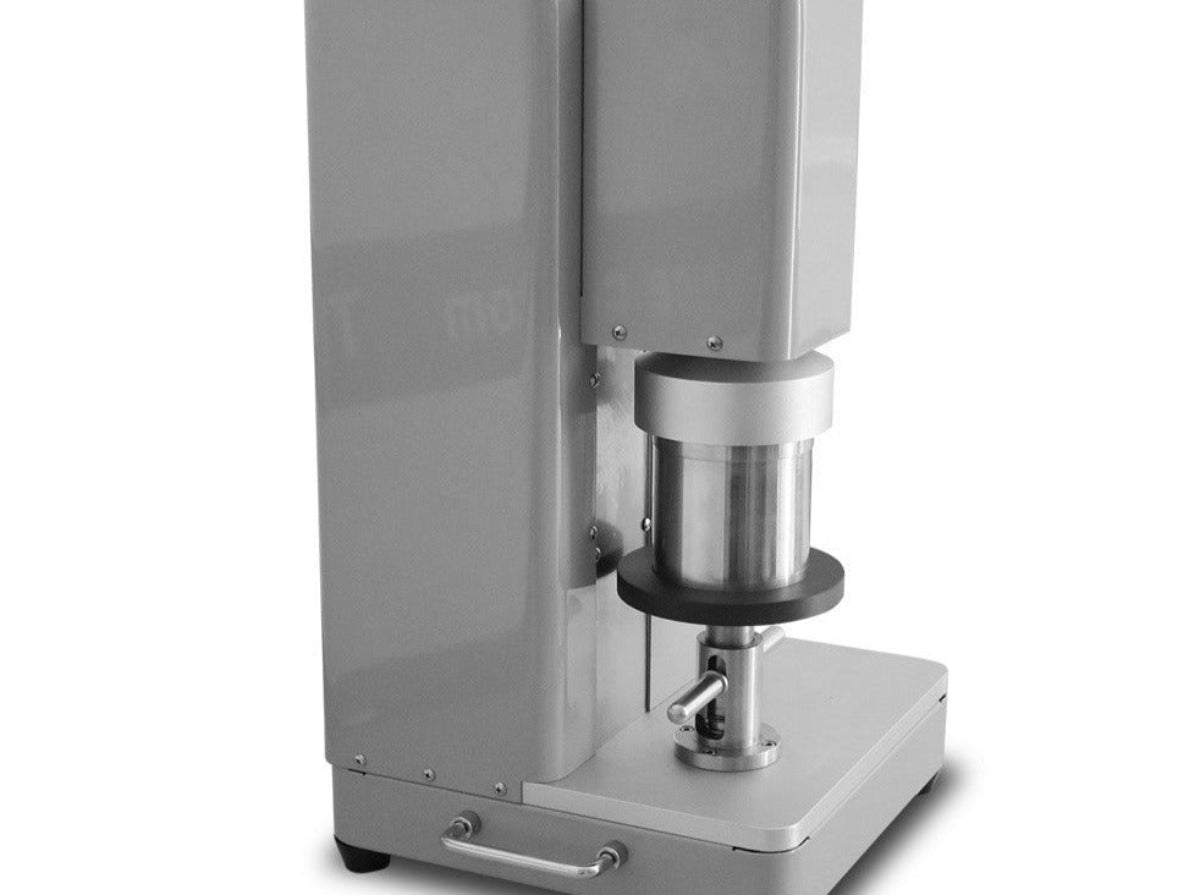

Cell Lab 500 mL Planetary Vacuum Mixer [Glovebox Compatible | Benchtop]

Compact glovebox-compatible mixer for high-uniformity, gas-free slurry blending in R&D environments

The Cell Lab 500 mL Planetary Vacuum Mixer is a precision mixing solution designed for high-viscosity and degassed slurry preparation. Its dual-shaft planetary mechanism enables simultaneous rotation and revolution, achieving highly uniform dispersions without trapped air. Engineered for glovebox operation and laboratory-scale use, this benchtop mixer delivers exceptional consistency for lithium-ion battery slurries, conductive pastes, and advanced material formulations. Custom container sizes, materials, and blade configurations are available upon request.

Key Features

  • Dual-Shaft Planetary Motion: Double-screw propeller system ensures bubble-free, homogeneous blending under vacuum.

  • Glovebox-Compatible Compact Design: 360 × 340 × 580 mm structure fits easily into glovebox chambers and benchtop setups.

  • Integrated Vacuum System: Built-in pump achieves vacuum levels up to –80 kPa, improving slurry quality and degassing.

  • Adjustable Process Control: Mixing speed (0–600 rpm) and time (0–600 min) are fully programmable for process flexibility.

  • Customisable Configuration: Containers, blades, and materials can be tailored to meet specific R&D or pilot production needs.

Technical Specifications

    Parameter Value
    Capacity 500 mL (customisable)
    Container Material 304 Stainless Steel (customisable)
    Rotary Speed 0–600 rpm
    Vacuum Pump Built-in
    Vacuum Level –80 kPa
    Mixing Time 0–600 mins
    Mixing Blade Double screw propeller (customisable)
    Dimensions 360 × 340 × 580 mm
    Weight 35 kg
    Voltage 220V / 50Hz
    Power 500 W

    Applications & Industries

    • Battery electrode slurry preparation (Li-ion, Na-ion, solid-state)

    • Conductive paste and sealant mixing for solar and electronic materials

    • Ceramic, polymer, and nanomaterial dispersion

    • Glovebox-based chemical synthesis and dry-room research

    • Laboratory and pilot-scale materials development

    FAQ

    Q1: Is this mixer suitable for glovebox installation?
    Yes. The compact footprint allows operation inside standard glovebox systems for moisture-sensitive material handling.

    Q2: Can the container volume be customised?
    Absolutely. Cell Lab offers a range of capacities from 100 mL to 2 L, along with material and blade customisation.

    Q3: What vacuum level can be achieved?
    The integrated pump reaches up to –80 kPa, ideal for degassing viscous or gas-sensitive materials.

    Q4: What materials can it mix?
    It supports electrode slurries, conductive pastes, resins, and polymer compounds with viscosities up to several thousand mPa·s.

    Q5: Is it suitable for solid-state battery material preparation?
    Yes. It delivers uniform particle dispersion essential for solid-state electrolyte and electrode formulation.
