Cell Lab 500 °C High-Temperature Forced Air Drying Oven [50L - 208L]

Cell Lab 500 °C High-Temperature Forced Air Drying Oven [50L - 208L] High-performance forced convection drying oven with precise temperature control for high-temperature material processing, drying and heat treatment. General Description The Cell Lab High-Temperature Forced Air Drying Oven is...
Vendor: Cell Lab
SKU: DO0043
Product type: Drying Oven
£2,079.00
£2,079.00
Volume: 50 L
Subtotal: £2,079.00
Description
Description
x

Cell Lab 500 °C High-Temperature Forced Air Drying Oven [50L - 208L]

High-performance forced convection drying oven with precise temperature control for high-temperature material processing, drying and heat treatment.

General Description

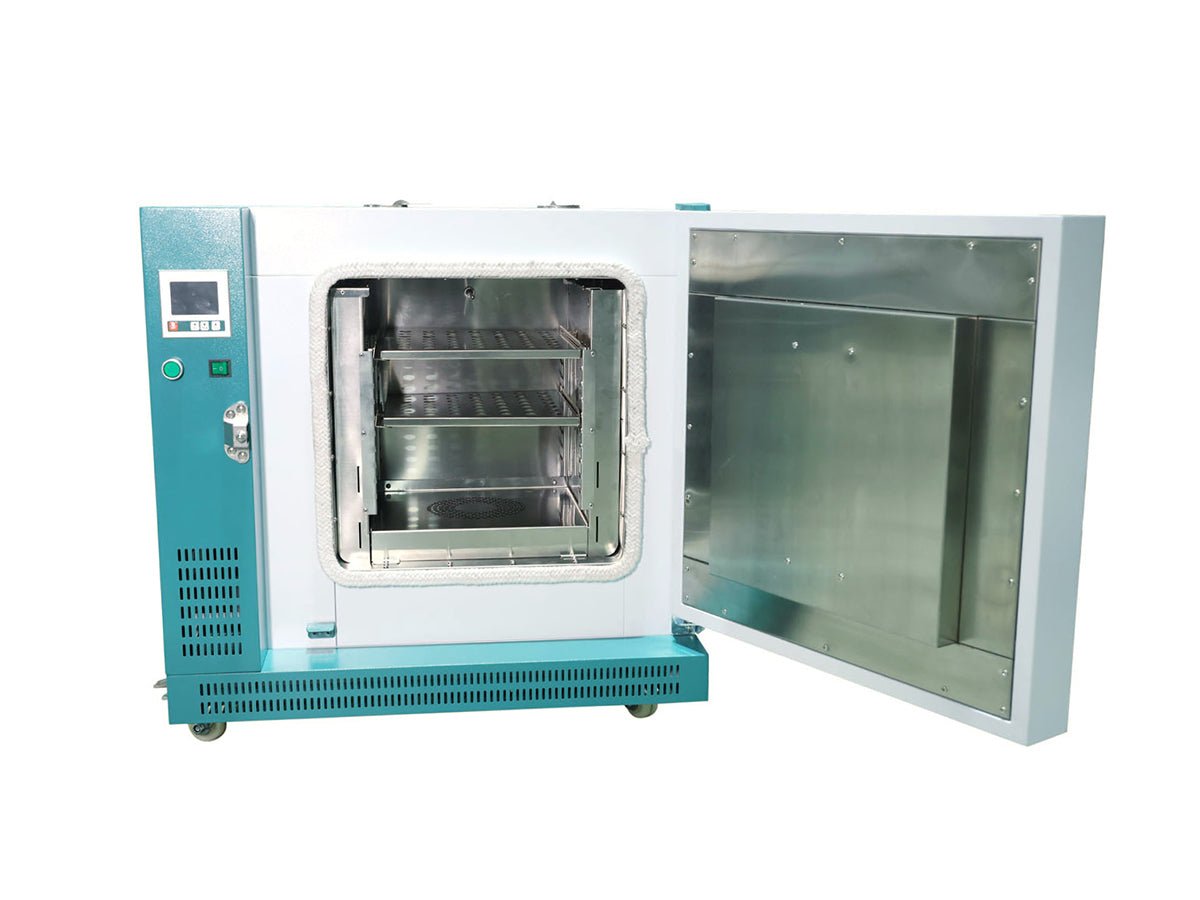

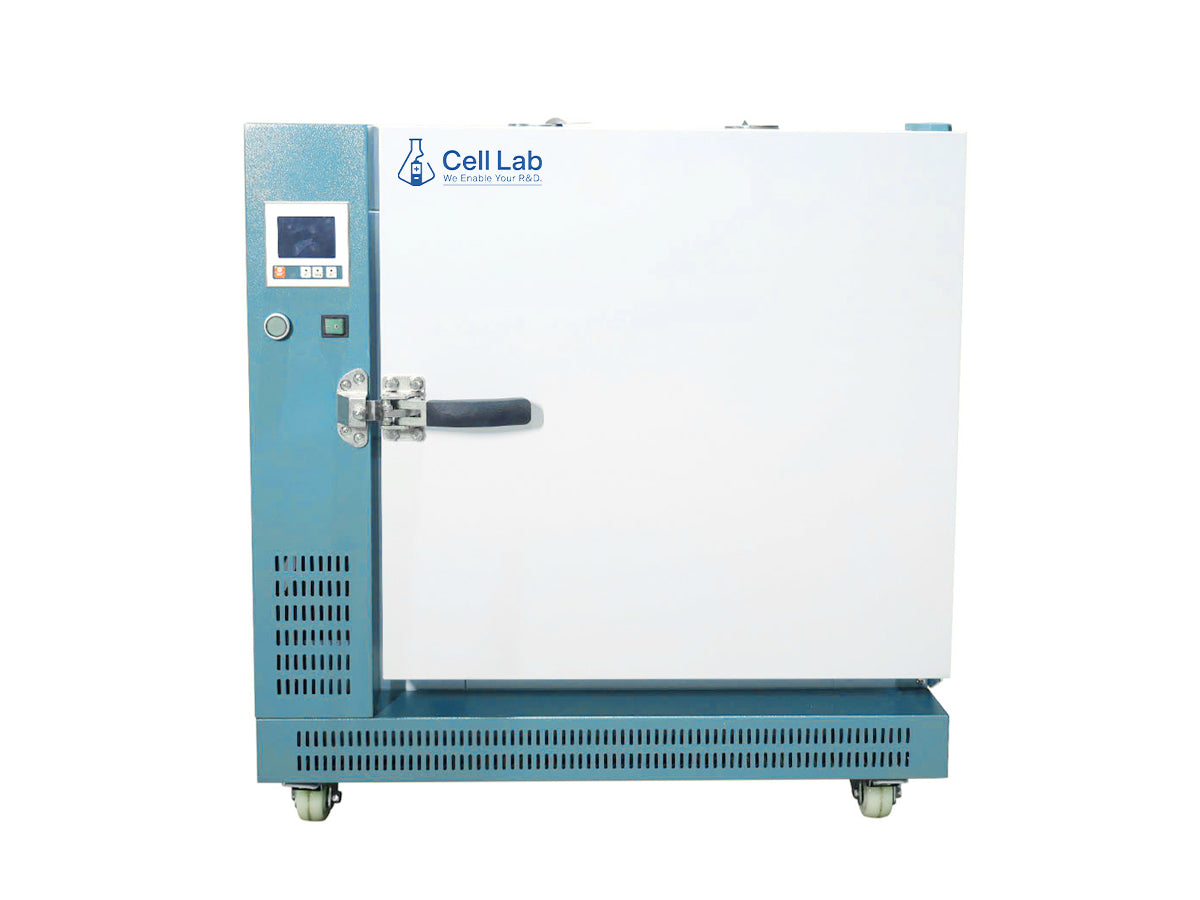

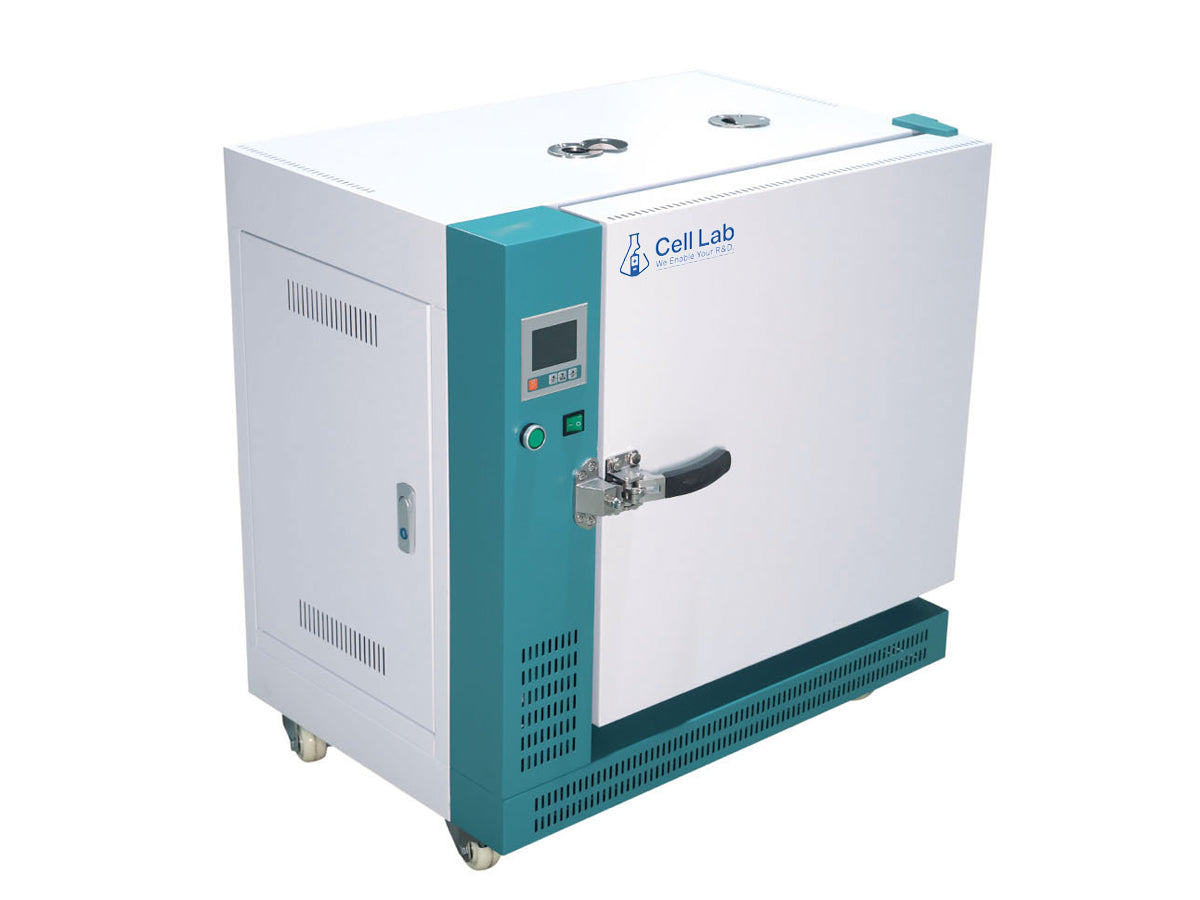

The Cell Lab High-Temperature Forced Air Drying Oven is a professional laboratory and industrial oven designed for high-temperature drying, thermal treatment, ageing tests and material processing. Available in 500 °C configurations, it delivers stable, uniform heating through forced convection air circulation combined with PID intelligent temperature control.

The oven features a stainless steel inner chamber, high-temperature resistant circulating fan, ceramic fibre door sealing and alumina silicate fibre insulation, ensuring long-term stability and safety under continuous high-temperature operation. With multiple chamber volumes available from 50 L to 208 L, this series is suitable for materials research, electronics, ceramics, metallurgy, battery components and industrial quality control.

Key Features

• High-temperature capability up to 500 °C – Available in 500 °C versions for demanding thermal processes.
• Forced convection air circulation – Ensures uniform temperature distribution and reliable drying performance.
• PID intelligent temperature control – Stable control with 0.1 °C resolution and low temperature fluctuation.
• Durable chamber construction – Stainless steel inner chamber with smooth arc corners for easy cleaning and long service life.
• Comprehensive safety and control functions – Over-temperature alarm, timer operation, parameter memory and sensor deviation correction.

Technical Specifications

General Performance

Item Specification
Circulation mode Forced convection
Temperature range 500 °C version: RT + 20 – 500 °C
Temperature resolution 0.1 °C
Temperature fluctuation ±0.5 °C
Temperature uniformity ≤ 2.5%
Temperature control mode Two-section PID intelligent control
Temperature setting Touch button setting
Display Upper LCD: actual temperature
Lower row: set temperature
Timer 0–9999 min (with waiting function)

Chamber & Structure

Item Specification
Inner chamber material 500 °C: SUS316L stainless steel
Outer shell Cold-rolled steel with electrostatic spray coating
Insulation layer Alumina silicate fibre
Heater SUS304 stainless steel electric heating tube
Exhaust port Ø35 mm top exhaust (with test hole function)
Sensor High-precision K-type thermocouple
Safety device Over-temperature sound & light alarm

Model & Capacity Options

Model Volume Inner Size (W×L×H) mm External Size (W×L×H) mm Power Rating Max Shelves
DO0043 50 L 350 × 350 × 400 781 x 529 x 645 3.6 kW 4
DO0044 91 L 450 × 450 × 450 881 × 629 × 789 4.5 kW 6
DO0045 150 L 500 × 500 × 600 931 × 679 × 939 4.8 kW 7
DO0046 208 L 570 × 620 × 595 1001 × 799 × 934 5.1 kW 7

Electrical & Mechanical

Item Specification
Power supply AC 220V or 380 V, 50Hz
Shelf spacing 45 mm
Load per shelf 15 kg
Standard shelves 2
Optional accessories Additional shelves, program controller

Applications & Industries

  • Laboratory drying and thermal ageing tests

  • Ceramic, metal and powder material heat treatment

  • Battery components and electrode drying

  • Electronics, components and material reliability testing

  • Industrial quality control and process validation

SEO keywords: high temperature drying oven, laboratory drying oven, forced air oven, 500°C drying oven, PID laboratory oven, industrial heat treatment oven

FAQ

Q1: What is the difference between the 500 °C and 600 °C versions?
The main difference is the maximum operating temperature and inner chamber material. The 600 °C version uses higher-grade stainless steel for sustained high-temperature operation.

Q2: Does the oven use forced air circulation?
Yes. Forced convection ensures uniform temperature distribution throughout the chamber.

Q3: Can the temperature be programmed and timed?
Yes. The oven supports PID temperature control with programmable timer operation up to 9999 minutes.

Q4: Is over-temperature protection included?
Yes. The oven is equipped with over-temperature sound and light alarm protection.
