Cell Lab 4N (99.99%) Zinc (Zn) Pellets – high-purity evaporation material for optical coatings, semiconductors, anodes, and thin-film deposition. Excellent performance in e-beam and thermal evaporation systems.
Cell Lab 4N (99.99%) Zinc (Zn) Pellets – high-purity evaporation material for optical coatings, semiconductors, anodes, and thin-film deposition. Excellent performance in e-beam and thermal evaporation systems.

Cell Lab 4N (99.99%) Zinc (Zn) Pellets Evaporation Materials

Cell Lab 4N (99.99%) Zinc (Zn) Pellets Evaporation Materials High-Purity Zinc Source for Thin Film, Optical, and Semiconductor Applications General Description Cell Lab 4N (99.99%) Zinc (Zn) Pellets are precision-engineered evaporation materials designed for thin-film deposition, optical coatings, and semiconductor processing.Zinc...
Vendor: Cell Lab
SKU: ST0030
Product type: Chemicals and Compounds
£79.00
£79.00
Size: 1/4" Dia. x 1/4" L
Weight: 100g
Subtotal: £79.00
Description
Description
x

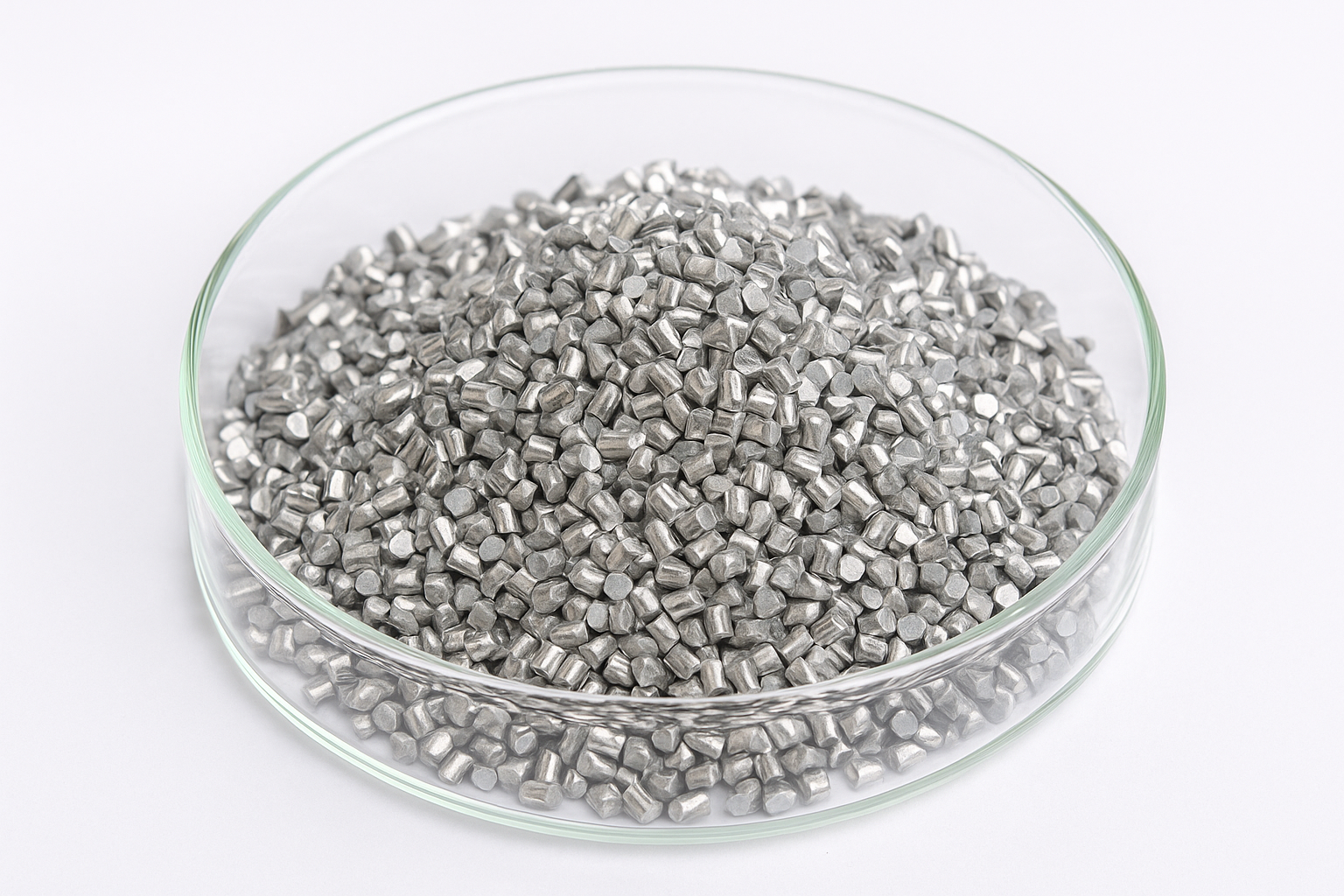

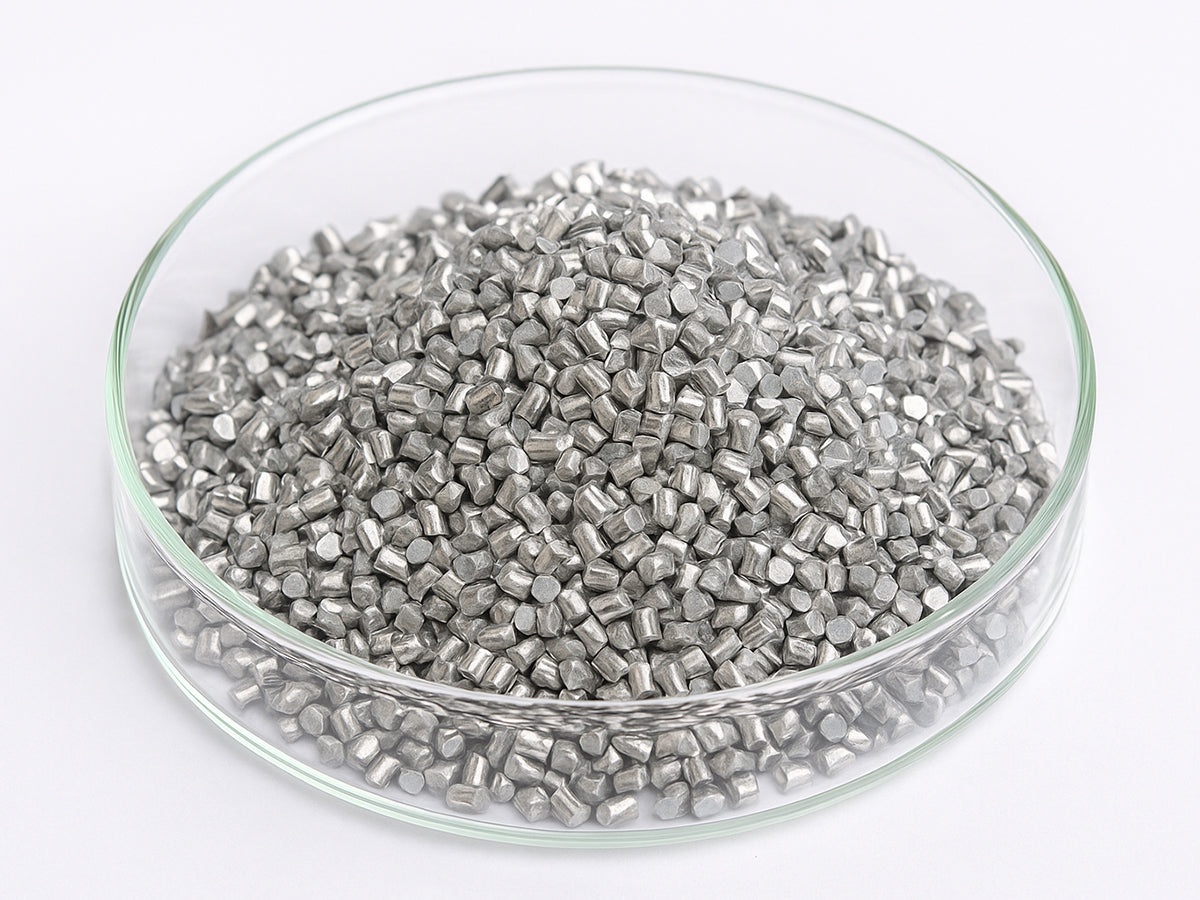

Cell Lab 4N (99.99%) Zinc (Zn) Pellets Evaporation Materials

High-Purity Zinc Source for Thin Film, Optical, and Semiconductor Applications

General Description

Cell Lab 4N (99.99%) Zinc (Zn) Pellets are precision-engineered evaporation materials designed for thin-film deposition, optical coatings, and semiconductor processing.
Zinc is a bluish pale-grey metal known for its excellent conductivity, chemical stability, and low melting point (419.5°C). Its combination of moderate reactivity and excellent film-forming properties makes it ideal for applications such as anode fabrication, reflective coatings, and transparent conductive films.

In high-vacuum environments, Zinc vaporises cleanly to produce uniform, high-purity thin films with excellent adhesion to various substrates, making it an essential material for electronic, optical, and energy research.

Key Features

  • Ultra-High Purity (99.99%) – Ensures minimal contamination for precise thin-film performance.

  • Low Melting Point (420°C) – Enables efficient thermal or e-beam evaporation.

  • High Conductivity – Excellent for use in electrode, semiconductor, and metallisation layers.

  • Wide Industrial Use – Suitable for optics, sensors, photovoltaics, and vacuum deposition.

  • Customisable Dimensions – Various pellet sizes and purities available upon request.

Technical Specifications

Parameter Specification
Name Zinc
Chemical Formula Zn
CAS Number 7440-66-6
Atomic Number 30
Molecular Weight 65.38 g/mol
Appearance Bluish Pale Grey, Metallic
Purity 99.99% (4N)
Thermal Conductivity 116 W/m·K
Coefficient of Thermal Expansion 30.2 × 10⁻⁶ /K
Melting Point 420 °C
Theoretical Density 7.14 g/cm³
Z Ratio 0.514
E-Beam Compatibility Excellent
Recommended Crucible Materials Al₂O₃, Graphite, Tungsten
Thermal Evaporation Techniques Boat: W, Mo, Ta; Coil: W; Basket: W
Temperature (°C) for Given Vapour Pressure (Torr)

10⁻⁸: 127 °C

10⁻⁶: 177 °C

10⁻⁴: 250 °C

Applications & Industries

  • Optical Coatings – High-reflectivity and anti-corrosion coatings for mirrors and lenses.

  • Semiconductors & Microelectronics – Used for metallisation and contact layers.

  • Energy & Photovoltaics – Applied in solar cell electrodes and transparent films.

  • Protective & Conductive Layers – Used in surface coating and vacuum metallisation.

  • Battery Anodes & Catalysis – Functional material for advanced energy storage and catalytic processes.

FAQ

Q1: What makes Zinc pellets ideal for evaporation?
Their high purity, low melting point, and stable vapour behaviour allow for consistent thin-film deposition.

Q2: Are these Zinc pellets suitable for e-beam evaporation?
Yes, they perform exceptionally well with e-beam systems due to their stable metallic structure.

Q3: Can Cell Lab supply custom pellet sizes or purities?
Absolutely — custom sizes, forms, and purities (up to 5N) can be provided upon request.

Q4: What crucible material is recommended for Zinc evaporation?
Alumina, molybdenum, or tungsten crucibles are ideal for stable and clean evaporation.
