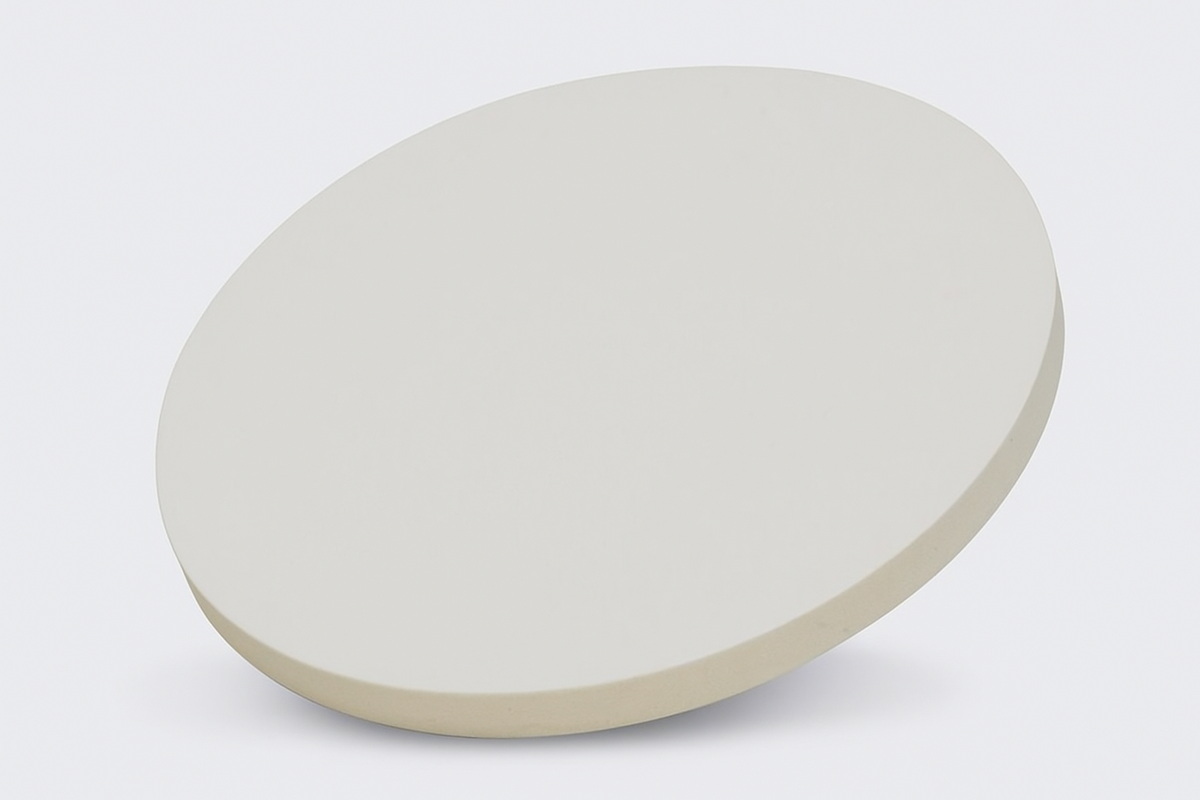

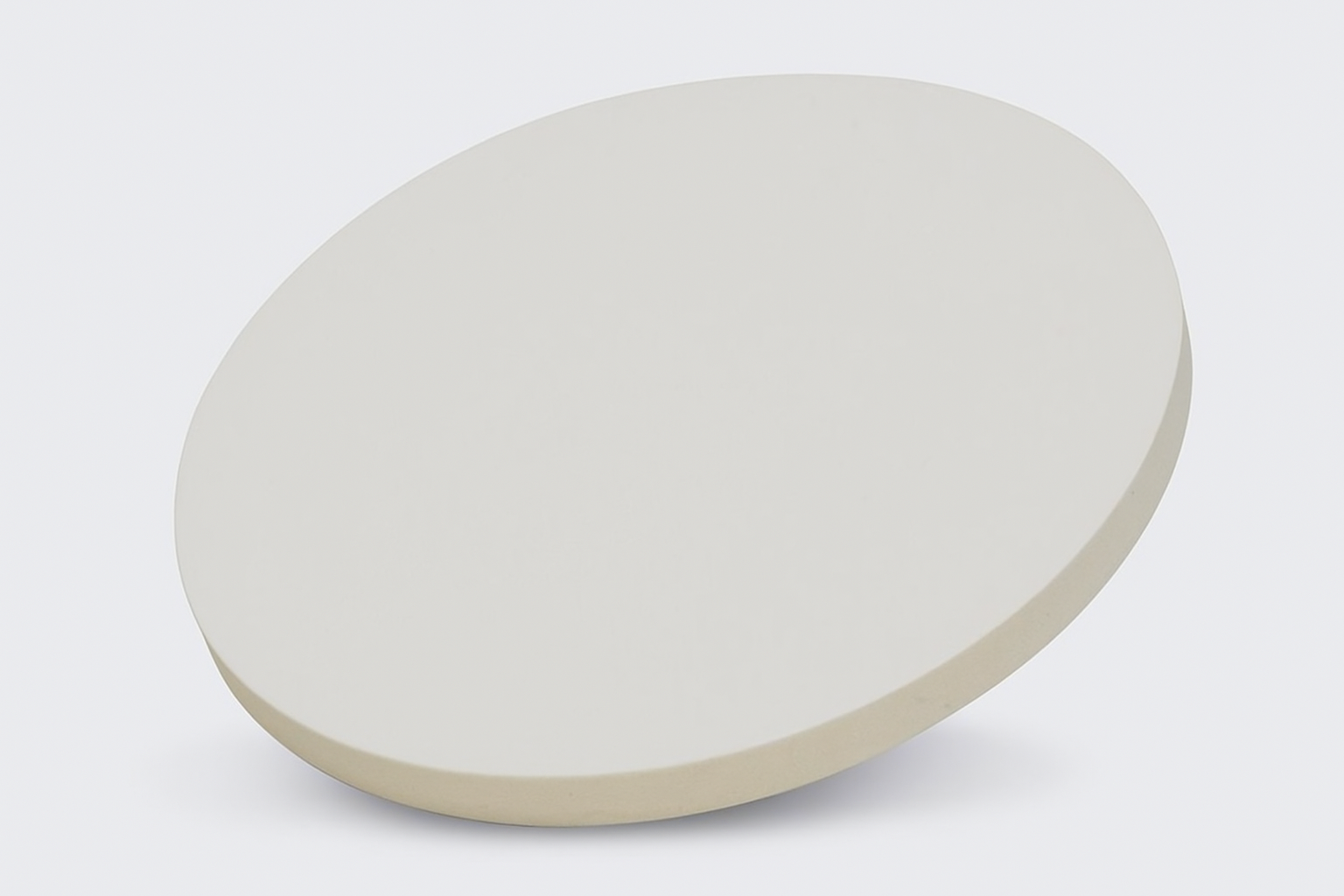

Cell Lab 4N (99.99%) Sodium Fluoride (NaF) Sputtering Target

Cell Lab 4N (99.99%) Sodium Fluoride (NaF) Sputtering Target High-Purity NaF Target for Optical Coatings and Electronic Applications General Description Cell Lab 4N (99.99%) Sodium Fluoride (NaF) Sputtering Target is a high-purity ceramic material widely used for optical coatings, dielectric layers,...
Vendor: Cell Lab
SKU: ST0189
Product type: Sputtering Targets
£199.00
£199.00
Size: 1.00" Dia.x 0.125" Thick
Subtotal: £199.00
High-purity 99.99% sodium fluoride sputtering target for optical and dielectric coatings. Excellent UV transparency and chemical stability for thin-film deposition.

Cell Lab 4N (99.99%) Sodium Fluoride (NaF) Sputtering Target

£199.00
High-purity 99.99% sodium fluoride sputtering target for optical and dielectric coatings. Excellent UV transparency and chemical stability for thin-film deposition.

Cell Lab 4N (99.99%) Sodium Fluoride (NaF) Sputtering Target

£199.00
Size: 1.00" Dia.x 0.125" Thick
Description
Description
x

Cell Lab 4N (99.99%) Sodium Fluoride (NaF) Sputtering Target

High-Purity NaF Target for Optical Coatings and Electronic Applications

General Description

Cell Lab 4N (99.99%) Sodium Fluoride (NaF) Sputtering Target is a high-purity ceramic material widely used for optical coatings, dielectric layers, and thin-film deposition. Known for its high transparency, low refractive index, and strong chemical stability, NaF is frequently applied in anti-reflective coatings, UV optics, and laser components. Its excellent thermal resistance and insulation properties also make it suitable for semiconductor and protective layer fabrication.

Key Features

  • High Purity (99.99%) – Ensures minimal contamination and consistent film performance.

  • Excellent Optical Transmission – Ideal for UV and visible optical coatings.

  • Stable and Chemically Inert – Resistant to moisture and most reactive gases.

  • Versatile Form Factors – Available in disc, rectangular, and custom shapes.

  • Customisable Dimensions – Sizes, thickness, and bonding options available upon request.

Technical Specifications

Parameter Specification
Material Type Sodium Fluoride
Symbol NaF
CAS Number 7681-49-4
Molar Mass 41.99 g/mol
Density 2.56 g/cm³
Melting Point 993 °C
Purity 99.99% (4N)
Color/Appearance White, Crystalline Solid
Shape Discs, Rectangle, Step, Plates, Sheets, Rods, Custom-Made
Dimension Range Max Diameter 200 mm, Length 300 mm, Width 200 mm, Thickness 1 mm, Custom-Made
Backing Plate Option Copper with Indium Bonding (optional, not included by default)

Applications & Industries

  • Optical Coatings – Anti-reflective, UV and IR filters, and dielectric mirrors.

  • Semiconductor Fabrication – Passivation and insulation layers.

  • Laser and Photonics – Thin films for high-power laser components.

  • Protective Coatings – For glass, metal, and ceramic substrates.

  • Aerospace & Defence – Infrared transmission and high-temperature optical films.

FAQ

Q1: Is NaF compatible with high-temperature sputtering systems?
Yes, Sodium Fluoride can be sputtered at moderate temperatures; however, precise control of the chamber environment is required to prevent moisture absorption.

Q2: What is the typical purity level for optical-grade NaF targets?
Cell Lab provides NaF targets with 99.99% purity, suitable for optical and dielectric thin-film applications.

Q3: Can custom sizes and thicknesses be manufactured?
Absolutely. We can produce custom geometries and bonded configurations for specific coating systems.

Q4: Does the target come pre-bonded to a backing plate?
No, the standard product is supplied without one, but copper backing plates with indium bonding are available as an optional add-on.
