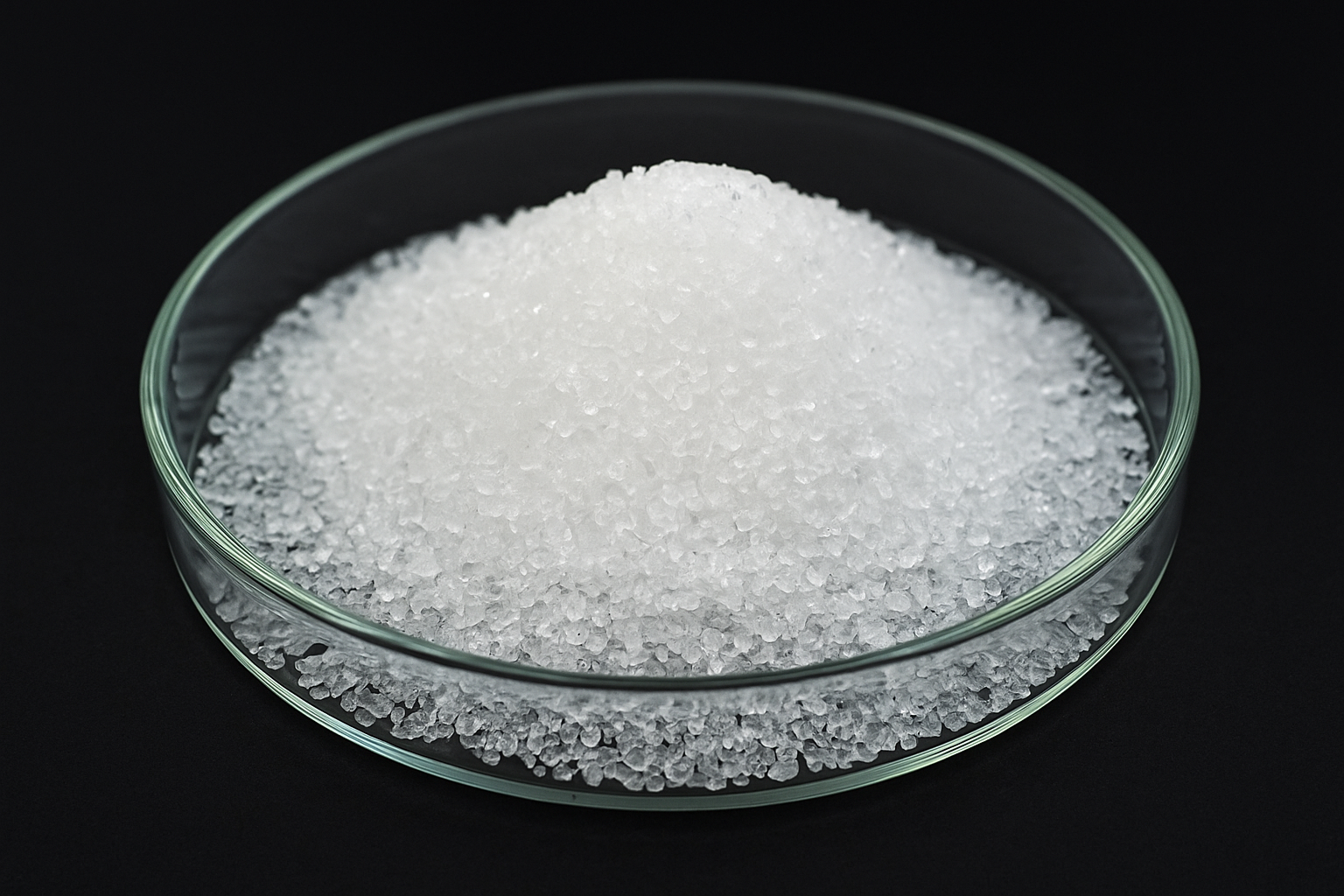

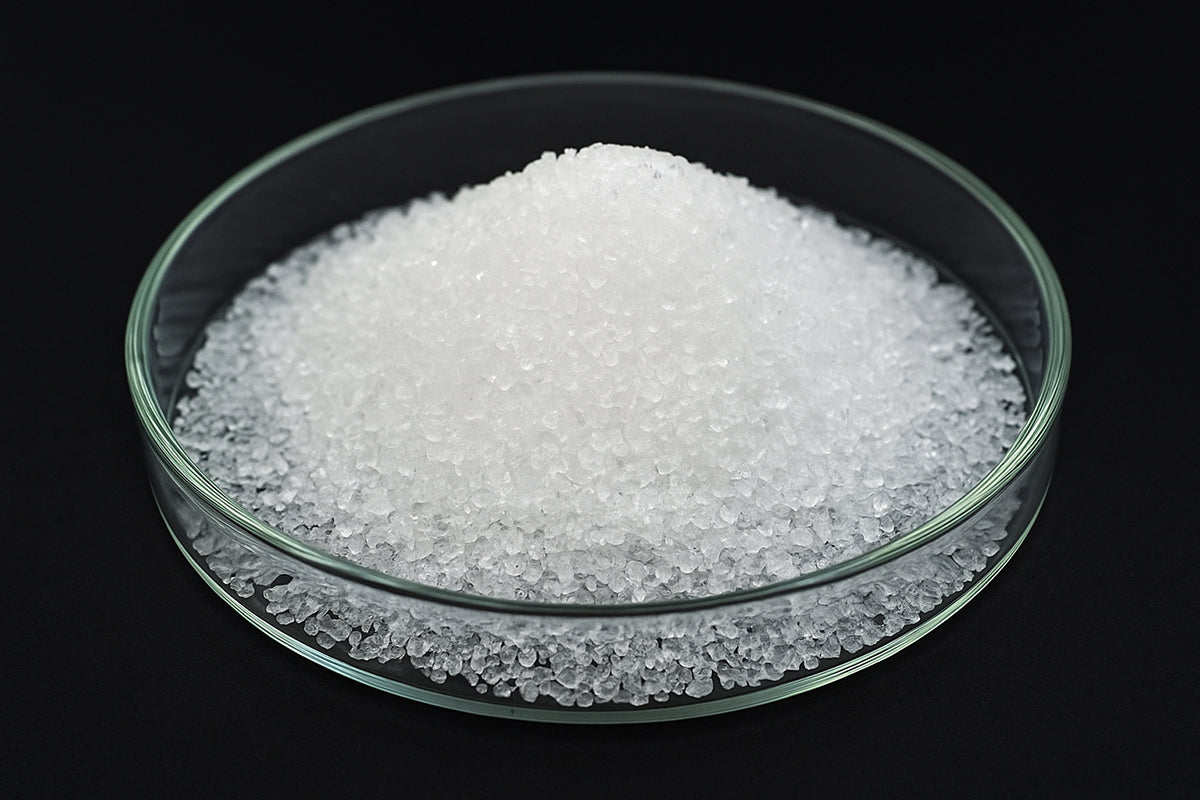

Cell Lab 4N (99.99%) Silicon Dioxide (SiO₂) evaporation material — high-purity white crystalline solid for optical coatings, semiconductors, and dielectric thin films. Ideal for E-beam and thermal evaporation systems.
Cell Lab 4N (99.99%) Silicon Dioxide (SiO₂) evaporation material — high-purity white crystalline solid for optical coatings, semiconductors, and dielectric thin films. Ideal for E-beam and thermal evaporation systems.

Cell Lab 4N (99.99%) Silicon Dioxide (SiO₂) Pieces Evaporation Materials

Cell Lab 4N (99.99%) Silicon Dioxide (SiO₂) Pieces Evaporation Materials High-Purity Silica for Optical, Electronic, and Structural Coatings General Description Cell Lab 4N (99.99%) Silicon Dioxide (SiO₂) Pieces are premium-grade evaporation materials widely used in thin-film deposition, optical coatings, and semiconductor...
Vendor: Cell Lab
SKU: ST0049
Product type: Crucibles
£79.00
£79.00
Size: 1-5mm
Weight: 500g
Subtotal: £79.00
Description
Description
x

Cell Lab 4N (99.99%) Silicon Dioxide (SiO₂) Pieces Evaporation Materials

High-Purity Silica for Optical, Electronic, and Structural Coatings

General Description

Cell Lab 4N (99.99%) Silicon Dioxide (SiO₂) Pieces are premium-grade evaporation materials widely used in thin-film deposition, optical coatings, and semiconductor applications.
Also known as silica, SiO₂ occurs naturally as quartz and is one of the most abundant oxides on Earth. It is an essential material across industries — from microelectronics and energy research to pharmaceutical and structural engineering.

SiO₂ coatings are among the most widely used ceramic coatings, providing excellent thermal stability, dielectric strength, and chemical resistance. This makes them ideal for battery research, magnetic thin films, and optical material protection.

Key Features

  • Ultra-High Purity (99.99%) – Ensures reliable thin-film quality for semiconductor and optical use.

  • Excellent Dielectric and Insulating Properties – Stable under high electric fields and vacuum conditions.

  • Superior Chemical and Thermal Stability – Resistant to most acids, solvents, and high-temperature environments.

  • Versatile Applications – Suitable for coating, thin-film deposition, and advanced research processes.

  • Customisable Dimensions and Purity – Available in various forms upon request.

Technical Specifications

Parameter Specification
Name Silicon (IV) Oxide
Chemical Formula SiO₂
CAS Number 14808-60-7
Molecular Weight 60.084 g/mol
Color / Appearance White, Crystalline Solid
Purity 99.99% (4N)
Melting Point 1,610 °C
Theoretical Density ~2.65 g/cm³
E-Beam Compatibility Excellent
Thermal Evaporation Techniques Crucible: Al₂O₃
E-Beam Crucible Liner Material Graphite, Tantalum

Applications & Industries

  • Semiconductors and Microelectronics – Used for passivation and dielectric films.

  • Optical and Photonic Devices – Anti-reflective and protective coatings on lenses and mirrors.

  • Battery Research – Coating material for solid-state and lithium-ion systems.

  • Magnetic and Structural Materials – Provides protective and dielectric surface layers.

  • Pharmaceutical and Food Industries – Used in inert, high-purity structural materials.

FAQ

Q1: What is the difference between SiO₂ and SiO evaporation materials?
SiO₂ forms insulating, transparent coatings, whereas SiO provides semi-conductive, stress-relief layers in multilayer films.

Q2: What crucible material is best for SiO₂ evaporation?
Al₂O₃ crucibles are recommended for maintaining purity and preventing contamination.

Q3: Can I order SiO₂ pieces in custom shapes or sizes?
Yes, Cell Lab provides custom dimensions and purity levels to suit specific deposition systems.

Q4: Is SiO₂ compatible with E-beam evaporation?
Yes, SiO₂ has excellent E-beam compatibility with graphite or tantalum liners for clean deposition.
