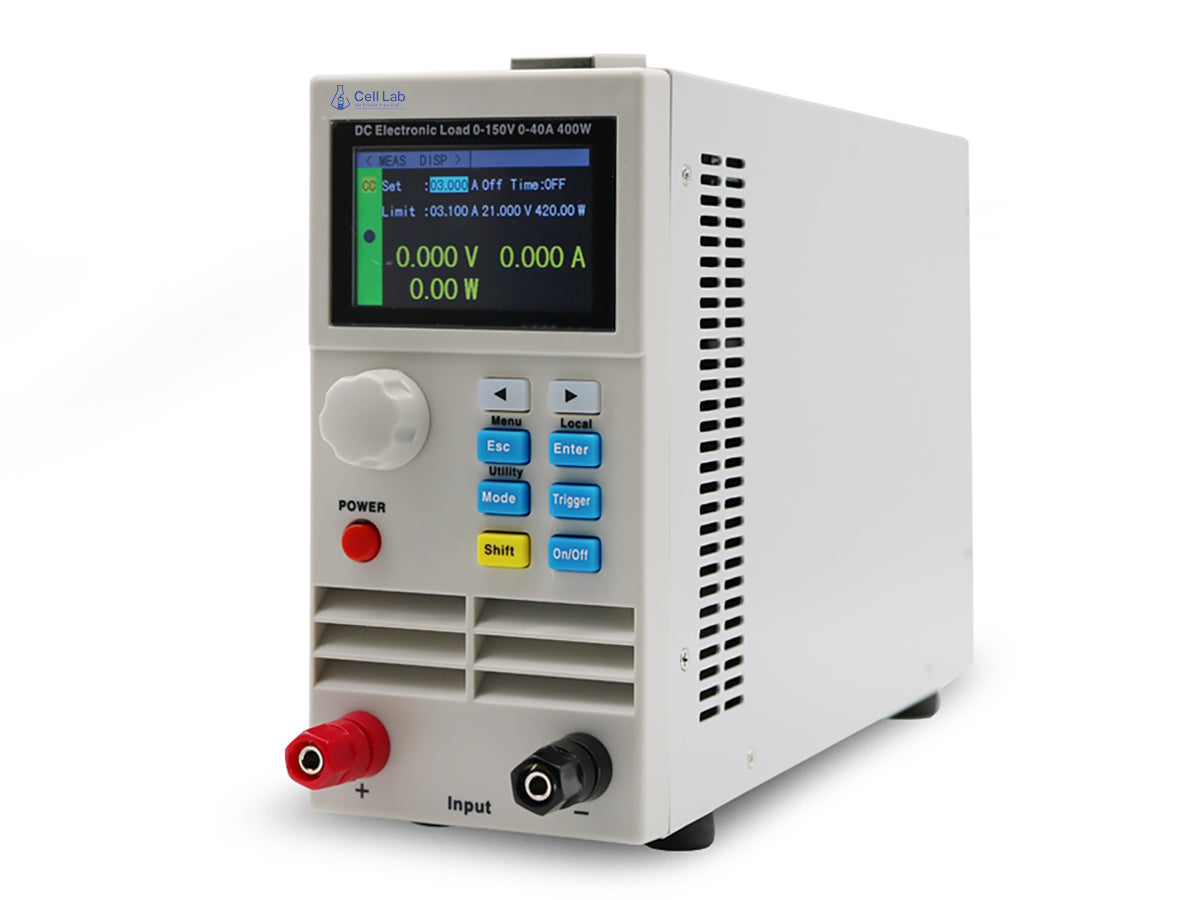

Cell Lab ET54 Programmable DC Electronic Load Tester

Cell Lab ET54 Programmable DC Electronic Load Tester High-precision programmable DC electronic load for power supply, charger and battery testing in production lines and R&D laboratories. General Description The Cell Lab 400W Programmable DC Electronic Load Tester is a high-performance...
Vendor: Cell Lab
SKU: CL0878
Product type: Battery Equipment
£859.00
£859.00
Subtotal: £859.00
Description
Description
x

Cell Lab ET54 Programmable DC Electronic Load Tester

High-precision programmable DC electronic load for power supply, charger and battery testing in production lines and R&D laboratories.

General Description

The Cell Lab 400W Programmable DC Electronic Load Tester is a high-performance electronic load designed for accurate testing of power supplies, chargers, batteries, LED drivers and electronic components. Featuring 1 mV / 1 mA resolution, multiple operating modes and comprehensive protection mechanisms, it is suitable for both production line testing and research and development applications.

With support for CC, CV, CR, CP and combined modes, as well as dedicated battery discharge and LED testing, this electronic load enables precise evaluation of voltage stability, current capability, dynamic response and power performance. A clear 2.8-inch TFT LCD display, intuitive interface and optional remote communication interfaces make it easy to integrate into automated test systems and laboratory environments.

Key Features

• Multiple programmable load modes – CC, CV, CR, CP, CC+CV and CR+CV for flexible testing of power devices.
• High resolution and accuracy – 1 mV / 1 mA resolution with stable and repeatable measurement performance.
• Advanced test functions – Transient test, scan test, list test, short-circuit simulation, battery and LED testing.
• Remote control and data retention – USB standard interface with optional RS-232 or RS-485, data retained after power loss.
• Comprehensive safety protection – Over-voltage, over-current, over-power and over-temperature protection with intelligent fan control.

Models Overview

Model Channels Rated Power Input Voltage Input Current
CL0878 Single channel 400 W 0–150 V 0–40 A

Operating Modes & Performance

CV Mode

Item Specification
Voltage range 0.1–19.999 V / 0.1–150.00 V (up to 500 V for ET5411 A+)
Resolution 1 mV / 10 mV
Accuracy ±(0.05% + 0.02% FS)

CC Mode

Item Specification
Current range 0–3.000 A / up to 40.00 A (model dependent)
Resolution 1 mA / 10 mA
Accuracy ±(0.05% + 0.05% FS)

CR Mode

Item Specification
Resistance range 0.05 Ω–1 kΩ / 1 kΩ–4.5 kΩ
Resolution 10 mΩ / 100 mΩ
Accuracy ±(0.1% + 0.5% FS)

CP Mode

Item Specification
Power range Up to 400 W (model dependent)
Resolution 10 mW
Accuracy ±(0.1% + 0.5% FS)

Transient & Battery Testing

Function Specification
Transient test modes CC, CV
Time range (T1 & T2) 1 ms–60 s
Time resolution 1 ms
Battery discharge modes CC, CR
Maximum discharge capacity 9999 Ah
Measurement resolution 1 mA / 10 mA / 10 mΩ / 100 mΩ

Read-Back Measurement Accuracy

Voltage

Range Resolution Accuracy
0–19.999 V / 0–150.00 V (up to 500 V) 1 mV / 10 mV ±(0.05% + 0.1% FS)

Current

Range Resolution Accuracy
0–3.000 A / up to 40.00 A 1 mA / 10 mA ±(0.05% + 0.1% FS)

Power

Range Resolution Accuracy
Up to 400 W 10 mW ±(0.1% + 0.5% FS)

Protection Functions

Protection Type Specification
Over-voltage protection Cut-off at >155 V or >510 V (model dependent)
Over-current protection >42 A / >22 A / >16 A
Over-power protection 420 W / 220 W
Over-temperature protection 85 °C
Short-circuit simulation CC / CV / CR supported
Input polarity protection Reverse polarity prompt
Cooling Intelligent variable-speed fan

User Interface & Communication

Item Specification
Display 2.8-inch TFT LCD
Language English / Chinese
Key lock Supported
Alarm Built-in buzzer

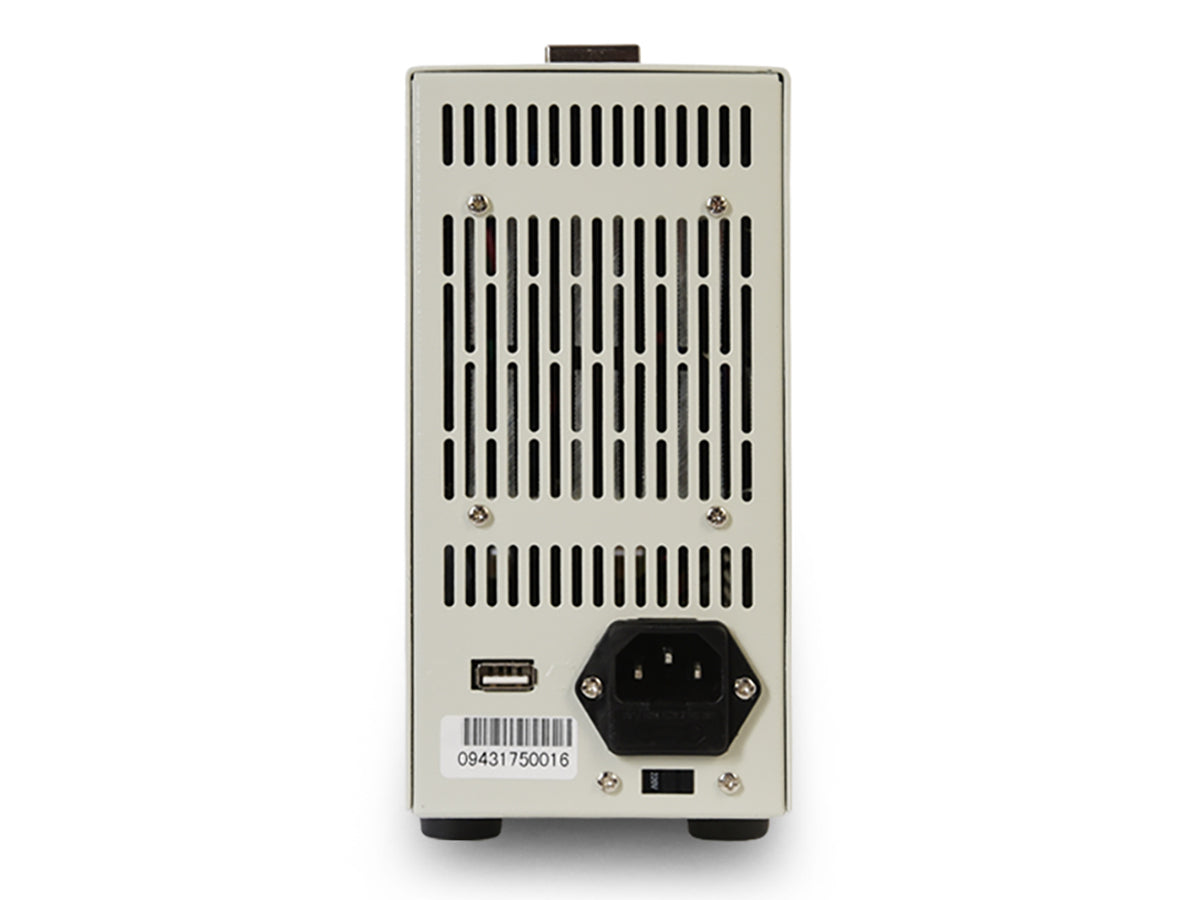

Interfaces USB (standard), RS-232 / RS-485 (optional)
External trigger Supported (DB9 required)
Data retention Yes (power-off memory)

Applications & Industries

  • Charger and power adapter testing

  • Switching and linear power supply evaluation

  • Battery discharge and capacity testing

  • LED driver and lighting power testing

  • Production line quality control

  • Electronics R&D laboratories

(SEO coverage: programmable DC electronic load, 400W electronic load tester, battery discharge tester, power supply testing equipment, CC CV CR CP load)

FAQ

Q1: Can this electronic load be used for battery discharge testing?
Yes. It supports dedicated battery test modes with CC and CR discharge and capacity measurement up to 9999 Ah.

Q2: Does it support dynamic load testing?
Yes. Transient and scan test modes are available to evaluate dynamic response of power supplies.

Q3: Can it be remotely controlled?
Yes. USB is standard, with optional RS-232 or RS-485 for automated test systems.

Q4: Is data retained after power loss?
Yes. The system maintains stored data even after unexpected power failure.
