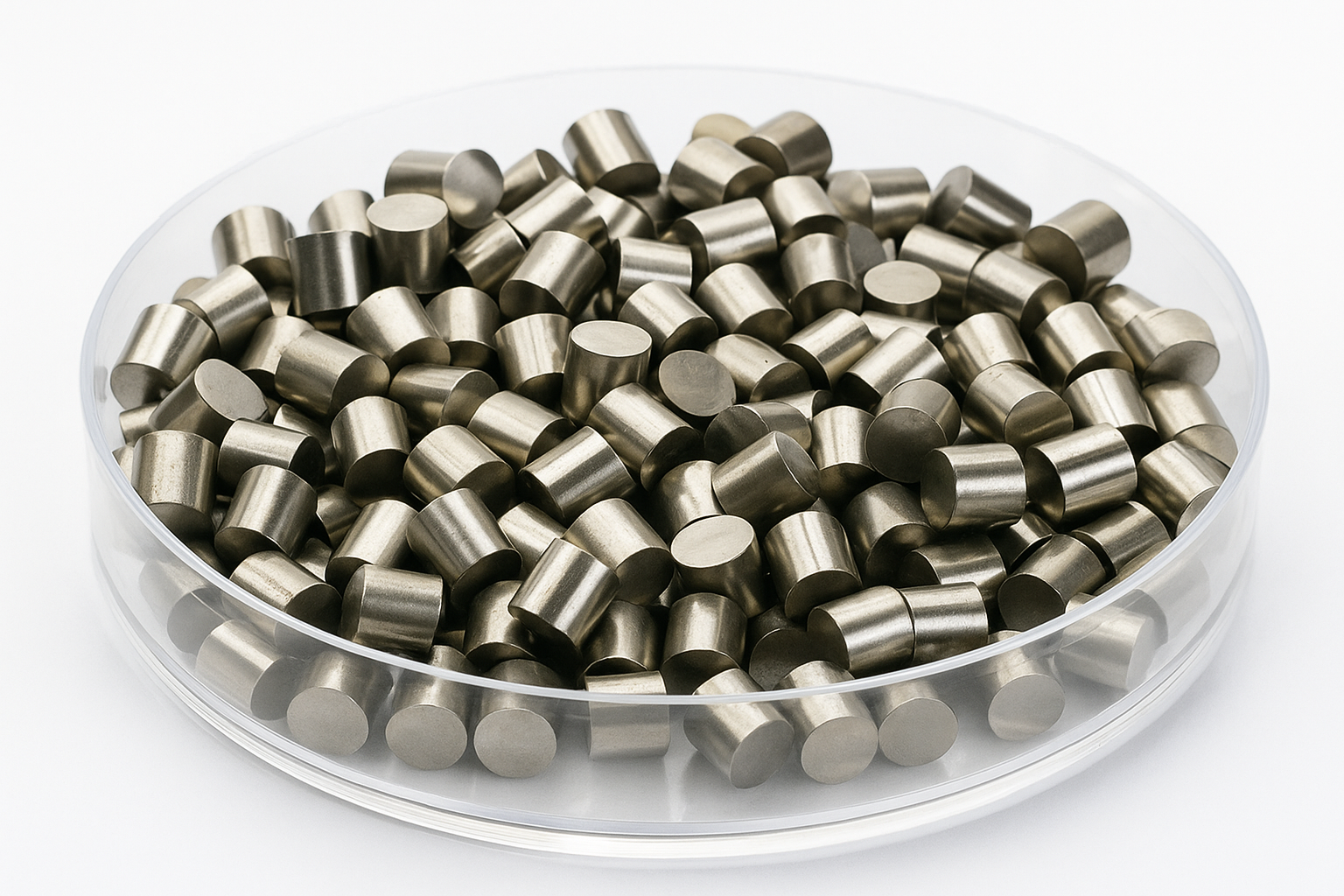

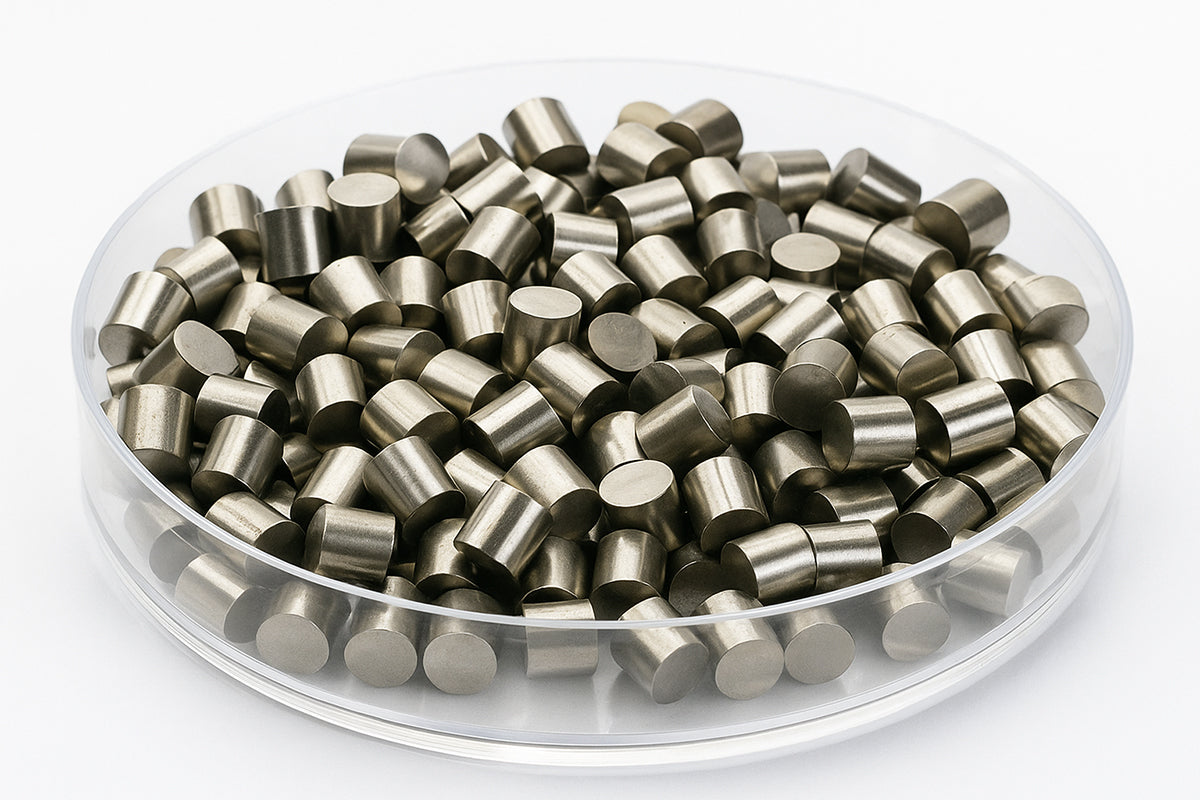

Cell Lab 3N5 (99.95%) Molybdenum (Mo) Pellets Evaporation Materials

High-Purity Molybdenum Pellets for Thin-Film Deposition and High-Temperature Applications

General Description

Cell Lab 3N5 (99.95%) Molybdenum (Mo) Pellets are high-purity refractory metal evaporation materials engineered for vacuum coating, metallurgical, and semiconductor applications. With their outstanding thermal conductivity, creep resistance, and strength at elevated temperatures, these pellets deliver stable and reliable performance in extreme environments.

Molybdenum is widely used in furnace components, turbine parts, fusion and fission reactors, and forging dies. In thin-film coating, Mo provides excellent adhesion and wear resistance, forming a lubricating transfer layer that enhances surface durability. It is also a preferred material for semiconductor, optical, and sensor coatings due to its excellent evaporation characteristics under high vacuum.

Key Features

  • High Purity (99.95%) – Reduces contamination for consistent film composition and superior conductivity.

  • Exceptional Thermal Stability – Withstands temperatures exceeding 2,600 °C without distortion or degradation.

  • High Conductivity and Strength – Ensures durable coatings and efficient energy transfer.

  • Excellent E-Beam Evaporation Compatibility – Stable under prolonged vacuum deposition.

  • Versatile Application Range – Ideal for refractory components, thin-film deposition, and high-stress environments.

Technical Specifications

Parameter Specification
Name Molybdenum
Symbol Mo
CAS Number 7439-98-7
Atomic Number 42
Molecular Weight 95.96 g/mol
Appearance Grey, Metallic
Purity 99.95% (3N5)
Melting Point 2,617 °C
Thermal Conductivity 139 W/m·K
Coefficient of Thermal Expansion 4.8 × 10⁻⁶ /K
Theoretical Density 10.2 g/cm³
Z Ratio 0.257
E-Beam Compatibility Excellent
E-Beam Crucible Liner Material Graphite
Temperature (°C) for Vapour Pressure (Torr) 10-8:  1,592 °C
10-6:  1,822 °C
10-4:  2,117 °C

Applications & Industries

  • Vacuum Thin-Film Coating – For electronic, optical, and semiconductor layer deposition.

  • Refractory Metallurgy – Ideal for turbines, nozzles, and structural furnace components.

  • Semiconductor Fabrication – Used as contact layers and conductive barriers in IC manufacturing.

  • Sensor and Display Technology – Provides high stability and adhesion in vacuum-processed coatings.

  • Aerospace and Defence Engineering – For high-performance alloys and protective coatings.

FAQ

Q1: Is this product suitable for both thermal and E-beam evaporation?
Yes. Cell Lab Mo Pellets maintain excellent stability and low vapour pressure, making them ideal for both deposition systems.

Q2: What crucible materials are recommended for molybdenum?
Graphite liners are preferred for high-temperature applications to ensure clean evaporation.

Q3: Can Cell Lab customise the purity or size?
Yes. Custom purity grades, diameters, and packaging quantities are available upon request.

Q4: What industries benefit most from molybdenum coatings?
Applications span aerospace, semiconductors, sensor development, and energy systems, where durability and conductivity are key.
