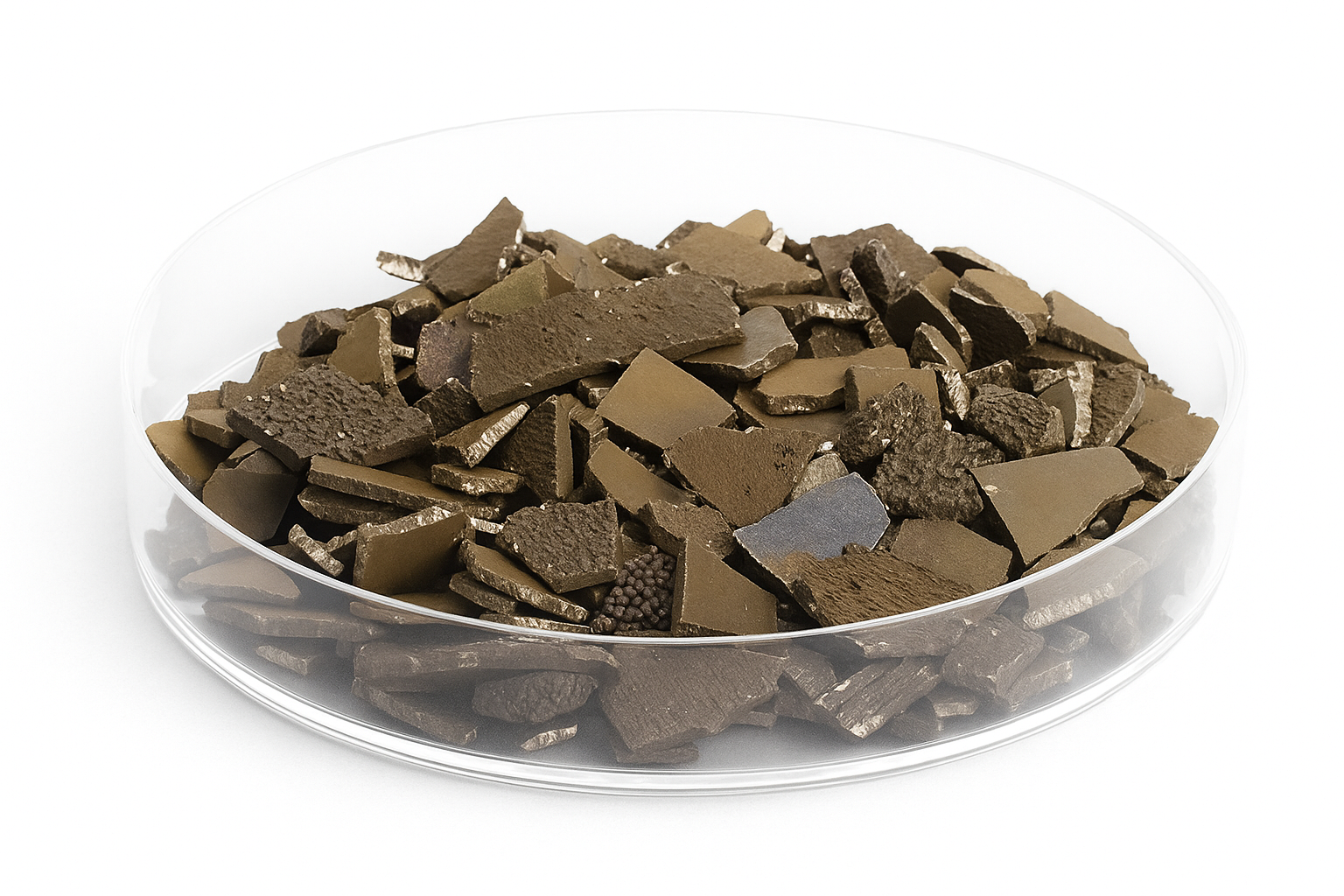

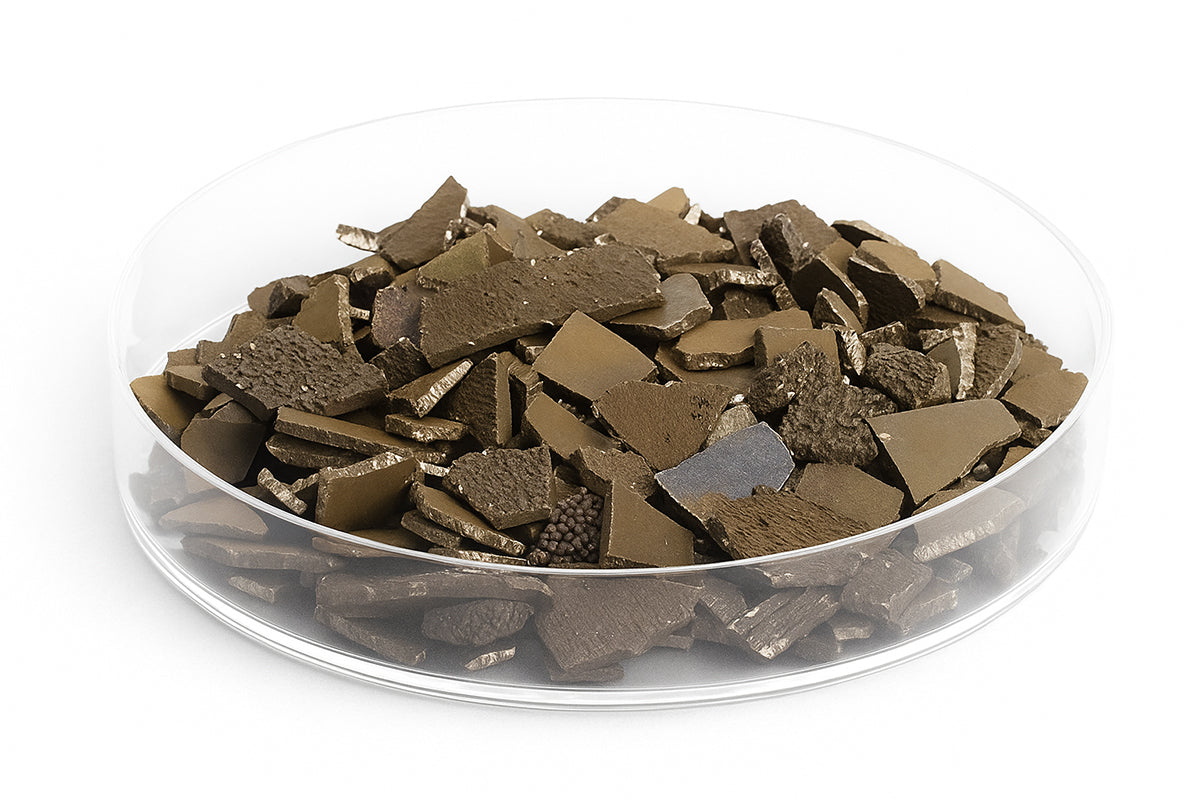

Cell Lab 3N5 (99.95%) Manganese (Mn) Pieces Evaporation Materials [3–12 mm]

High-Purity Manganese for Thin-Film Deposition, Alloying, and Fuel Cell Research

General Description

Cell Lab 3N5 (99.95%) Manganese (Mn) Pieces are high-purity evaporation materials designed for vacuum deposition, alloy production, and energy research. As a critical alloying element, manganese plays an essential role in the steel, aluminium, and cast iron industries—improving strength, hardness, and corrosion resistance.

In thin-film deposition, manganese serves as an effective coating and doping material, particularly in fuel cell interconnect protection and semiconductor fabrication. Its reliable evaporation behaviour and good adhesion make it a trusted choice for advanced coatings, R&D, and electronic applications.

Key Features

  • High Purity (99.95%) – Ensures minimal contamination for consistent film properties and electrical performance.

  • Excellent Alloying Compatibility – Ideal for steel, aluminium, and cast iron enhancement.

  • Good Evaporation Stability – Maintains controlled deposition at moderate temperatures.

  • Versatile Coating Material – Used for metallic protection layers and dopant integration.

  • Custom Sizes & Packaging – Available in multiple weights and dimensions for research and industrial use.

Technical Specifications

Parameter Specification
Name Manganese
Symbol Mn
Atomic Number 25
CAS Number 7439-96-5
Molecular Weight 54.94 g/mol
Appearance Silvery Metallic
Purity 99.95% (3N5)
Melting Point 1,244 °C
Coefficient of Thermal Expansion 21.7 × 10⁻⁶ /K
Theoretical Density 7.2 g/cm³
Z Ratio 0.377
E-Beam Compatibility Good
Thermal Evaporation Techniques Boat:  W, Ta, Mo
Coil:  W
Basket:  W
Crucible:  Al2O3
E-Beam Crucible Liner Material Tungsten
Temperature (°C) for Vapour Pressure (Torr) 10-8:  507 °C
10-6:  572 °C
10-4:  647 °C

Applications & Industries

  • Steel and Alloy Manufacturing – Enhances mechanical strength and corrosion resistance.

  • Fuel Cell and Energy Systems – Used as a protective interconnect coating.

  • Vacuum Deposition & Semiconductor Films – Serves as a dopant and adhesion layer.

  • Aluminium Alloying – Improves grain structure and tensile strength in lightweight applications.

  • Research & Development – Ideal for material science, catalytic, and energy conversion studies.

FAQ

Q1: Can manganese be evaporated via both E-beam and thermal methods?
Yes. Manganese can be evaporated using E-beam, tungsten boats, or crucible methods, depending on chamber configuration.

Q2: What precautions are needed when handling Mn pieces?
Store in a dry, inert environment to prevent oxidation. Handle with non-reactive tools to maintain surface integrity.

Q3: Is manganese suitable for thin-film semiconductor doping?
Yes. Its controlled vapour pressure and purity make it ideal for precise doping processes.

Q4: Can Cell Lab provide customised packaging or purities?
Absolutely — customised purity levels, sizes, and bulk orders are available upon request.
