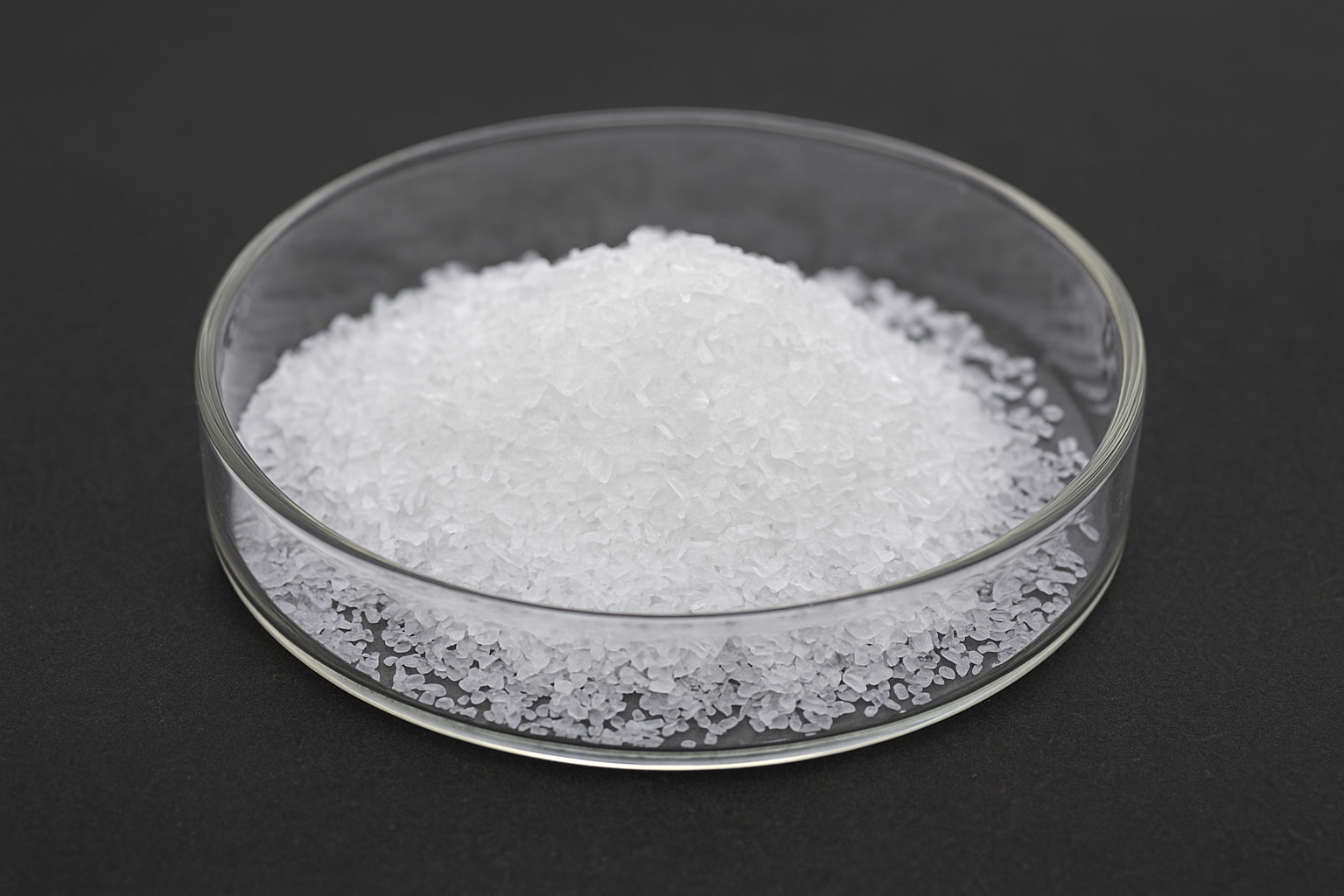

Cell Lab 3N5 (99.95%) Magnesium Oxide (MgO) Pieces Evaporation Materials [1–3 mm]

Cell Lab 3N5 (99.95%) Magnesium Oxide (MgO) Pieces Evaporation Materials [1–3 mm] High-Purity MgO for Thin-Film Deposition, Catalysis, and Battery Research General Description Cell Lab 3N5 (99.95%) Magnesium Oxide (MgO) Pieces are high-purity evaporation materials designed for vacuum coating, superconductor research,...
Vendor: Cell Lab
SKU: ST0082
Product type: Evaporation Materials
£159.00
£159.00
Weight: 50g
Subtotal: £159.00
Description
Description
x

Cell Lab 3N5 (99.95%) Magnesium Oxide (MgO) Pieces Evaporation Materials [1–3 mm]

High-Purity MgO for Thin-Film Deposition, Catalysis, and Battery Research

General Description

Cell Lab 3N5 (99.95%) Magnesium Oxide (MgO) Pieces are high-purity evaporation materials designed for vacuum coating, superconductor research, and catalytic applications. With its excellent thermal stability, chemical inertness, and high melting point (2,852 °C), MgO is a reliable choice for buffer layers, protective coatings, and battery electrode enhancement.

In thin-film technology, MgO is frequently used as a buffer layer between superconductors and substrates to improve lattice matching. It also serves as a corrosion-resistant and dielectric coating for Mg alloys and steels. Additionally, MgO contributes to the stability of cathode materials in Li-ion batteries under high-temperature operation.

Key Features

  • High Purity (99.95%) – Ensures low contamination and high reproducibility in deposition results.

  • Exceptional Thermal Resistance – Melting point up to 2,852 °C for use in extreme environments.

  • Excellent Chemical Stability – Insoluble in water, resistant to most solvents and reactive gases.

  • Versatile Applications – Used in superconductors, Li-ion battery research, and protective coatings.

  • Customisable Dimensions – Available in 50 g or 100 g packs; other sizes available upon request.

Technical Specifications

Parameter Specification
Name Magnesium Oxide
Symbol MgO
CAS Number 1309-48-4
Molecular Weight 40.30 g/mol
Appearance White, Crystalline Solid
Purity 99.95% (3N5)
Melting Point 2,852 °C
Theoretical Density 3.58 g/cm³
Refractive Index 1.736
Solubility Soluble in HCl and dilute acids; insoluble in water and ethanol
Z Ratio 0.411
E-Beam Compatibility Good
Thermal Evaporation Techniques Crucible: C, Al₂O₃
E-Beam Crucible Liner Material Graphite
Temperature (°C) for Vapour Pressure (Torr) 10⁻⁴: 1,300 °C
Evaporation Conditions Recommended in 10⁻³ Torr O₂ atmosphere for stoichiometric control

Applications & Industries

  • Superconductor Research – Acts as a buffer layer for YBCO and similar materials.

  • Battery and Energy Storage – Improves cathode performance and corrosion resistance.

  • Optical and Dielectric Coatings – Enhances insulation and light transmission properties.

  • Catalysis and Environmental Science – Serves as an effective acid neutraliser and catalyst support.

  • Material Science & R&D – Essential for thin-film growth, ceramics, and high-temperature experiments.

FAQ

Q1: Can MgO be evaporated directly under vacuum?
Yes. MgO can be evaporated thermally or via E-beam; using an oxygen-rich environment helps maintain stoichiometry.

Q2: What substrates are suitable for MgO coatings?
It adheres well to metal, glass, ceramic, and semiconductor substrates.

Q3: Is MgO hygroscopic?
Slightly. Store in a dry, sealed container to avoid moisture absorption.

Q4: Can Cell Lab customise MgO purity or particle size?
Yes. Custom purities (up to 99.999%) and granule sizes are available upon request.
