Cell Lab 3N5 (99.95%) Magnesium Fluoride (MgF₂) Pieces Evaporation Materials [1–3 mm]

High-Transparency MgF₂ for Optical Coatings, Solar Cells, and Laser Applications

General Description

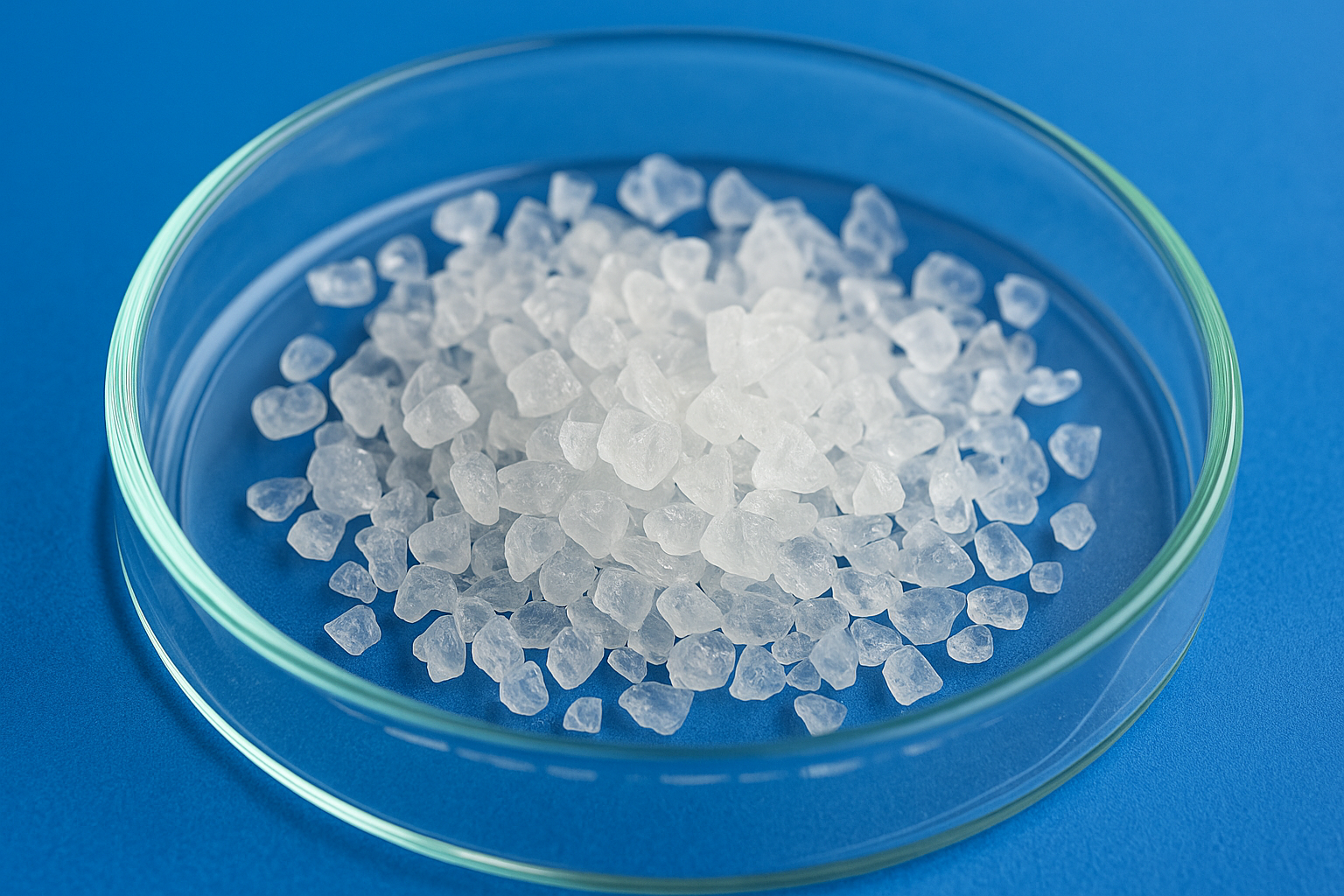

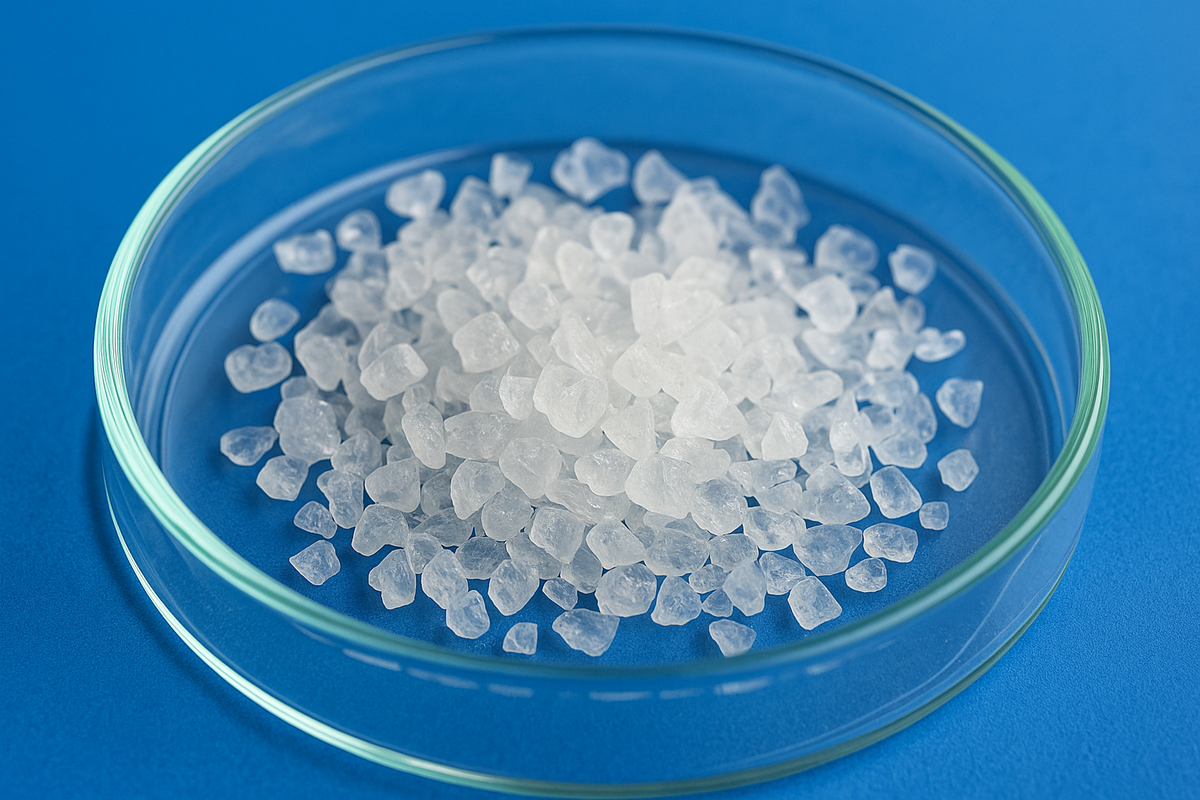

Cell Lab 3N5 (99.95%) Magnesium Fluoride (MgF₂) Pieces are high-purity alkaline earth metal fluoride materials designed for optical coating, antireflection layers, and high-power laser optics. With its exceptionally low refractive index (n ≈ 1.36) and excellent transparency from UV to IR regions, MgF₂ is one of the most widely used thin-film materials in crystalline silicon solar cells, VUV mirrors, and optical components.

Due to its high resistance to laser-induced damage, hardness, and stability in corrosive environments, MgF₂ is a preferred choice for vacuum deposition, UV optics, and laser protective coatings. When evaporated onto aluminium, it significantly enhances VUV reflectivity and prevents oxidation.

Key Features

  • High Optical Transparency – Ideal for UV, visible, and infrared optical coatings.

  • Low Refractive Index (1.36–1.38) – Perfect for multilayer antireflection coatings and solar applications.

  • Excellent Thermal Stability – High melting point (1,261 °C) for consistent vacuum evaporation.

  • High Damage Threshold – Resistant to laser-induced breakdown and environmental degradation.

  • Versatile Thin-Film Material – Enhances reflectance, reduces optical losses, and improves coating durability.

Technical Specifications

Parameter Specification
Name Magnesium Fluoride
Symbol MgF₂
CAS Number 7783-40-6
Molecular Weight 62.30 g/mol
Appearance White, Crystalline Solid
Purity 99.95% (3N5)
Melting Point 1,261 °C
Theoretical Density 3.15 g/cm³
Refractive Index 1.36–1.38
Solubility Soluble in water (0.076 g/L) and nitric acid; insoluble in ethanol
Z Ratio 0.637
E-Beam Compatibility Excellent
Thermal Evaporation Techniques Boat: Mo, Ta; Crucible: Al₂O₃
E-Beam Crucible Liner Material Graphite, Molybdenum
Temperature (°C) for Vapour Pressure (Torr) 10⁻⁴: ~1,000 °C
Comments Substrate temperature and deposition rate control are crucial; reacts with W (Mo preferred)

Applications & Industries

  • Optical Coatings – Used for UV, IR, and visible-range optical elements and antireflective films.

  • Solar Energy – Second-layer antireflection coating on crystalline silicon solar cells.

  • Laser Optics – Ideal for high-power laser mirrors and protective window coatings.

  • Vacuum Ultraviolet (VUV) Mirrors – Enhances aluminium reflectivity and oxidation resistance.

  • Scientific Instrumentation – Used in spectrometers, telescopes, and optical sensors.

FAQ

Q1: Why is MgF₂ preferred for optical coatings?
Its low refractive index and wide transparency range make it ideal for multilayer optical and antireflective coatings.

Q2: Can MgF₂ be used in laser optics applications?
Yes. It withstands high laser fluence, providing excellent stability against laser-induced damage.

Q3: What are suitable crucible materials for MgF₂ evaporation?
Molybdenum or alumina crucibles are recommended; avoid tungsten due to reactivity.

Q4: Can Cell Lab supply custom MgF₂ purities or sizes?
Yes. Customised purity, size range, and bulk packaging are available for R&D or industrial use.
